melee-pc

Beta, for testing only. "melee-pc" is a working name. Online play with rollback netcode is planned and not implemented yet.

A native PC port of Super Smash Bros. Melee (NTSC-U 1.02), built from doldecomp/melee on top of aurora (GX/OS/PAD/DVD/CARD/THP compatibility layer with a WebGPU backend) and SDL3. Same approach as dusklight.

You need your own disc image. No game data ships here.

Features

• Native Linux, Windows and Android (arm64) builds, rendered through Dawn/WebGPU (Vulkan, D3D12) and SDL3.

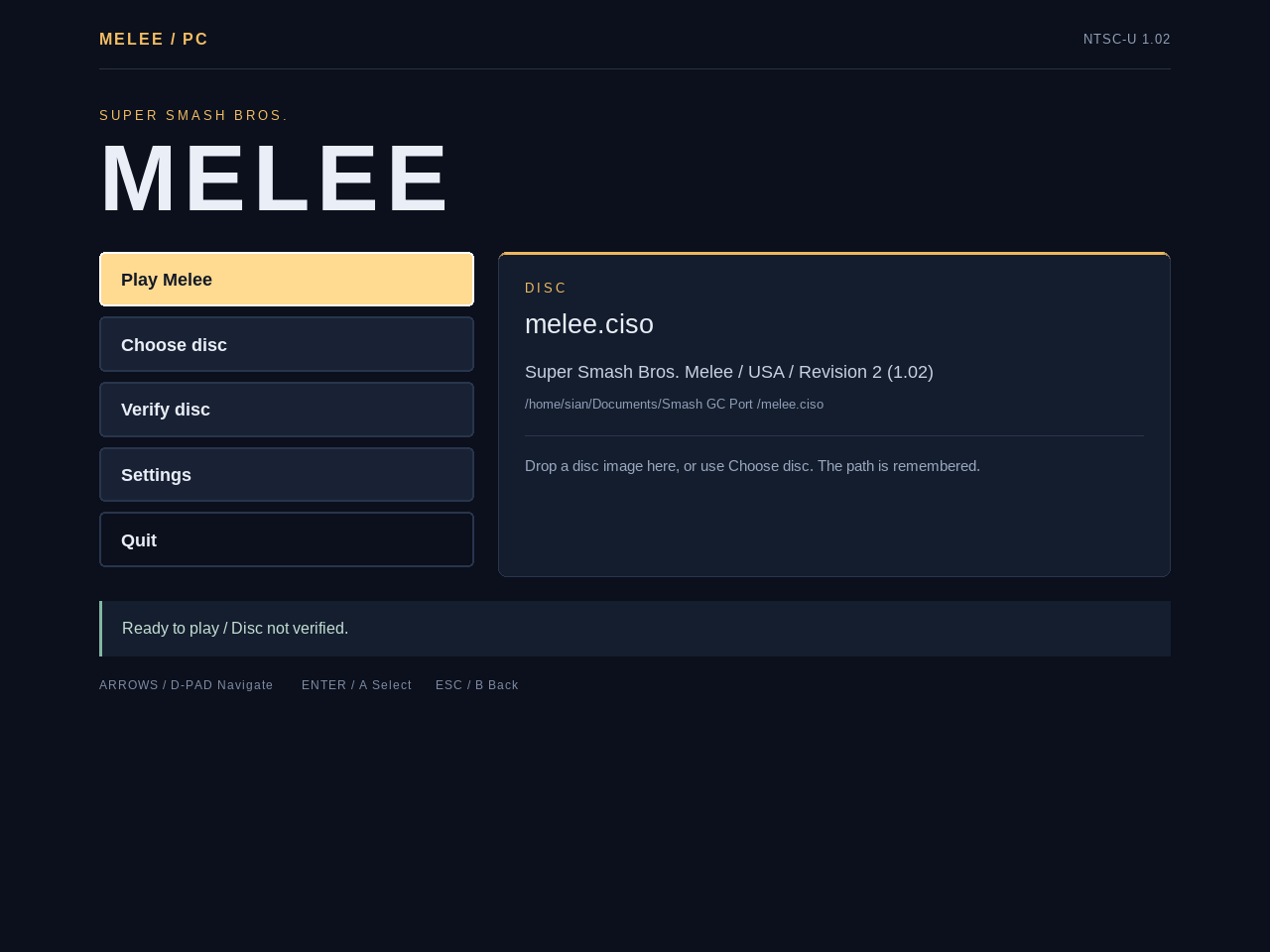

• RmlUi launcher with disc selection and SHA-1 verification against the Redump database before boot.
• In-game settings overlay on F1, with the game paused underneath.
• Internal resolution from Auto to 10x native (6400x4800).
• Post-processing shaders: area sampling, CRT scanlines, vibrant.
• 4x MSAA and anisotropic filtering up to 16x.
• Gamepad remapping, including C-stick directions, saved per device.
• Software AX audio mixer with the game's aux busses and reverb.
• Dolphin-compatible .gci memory cards.

Screenshots

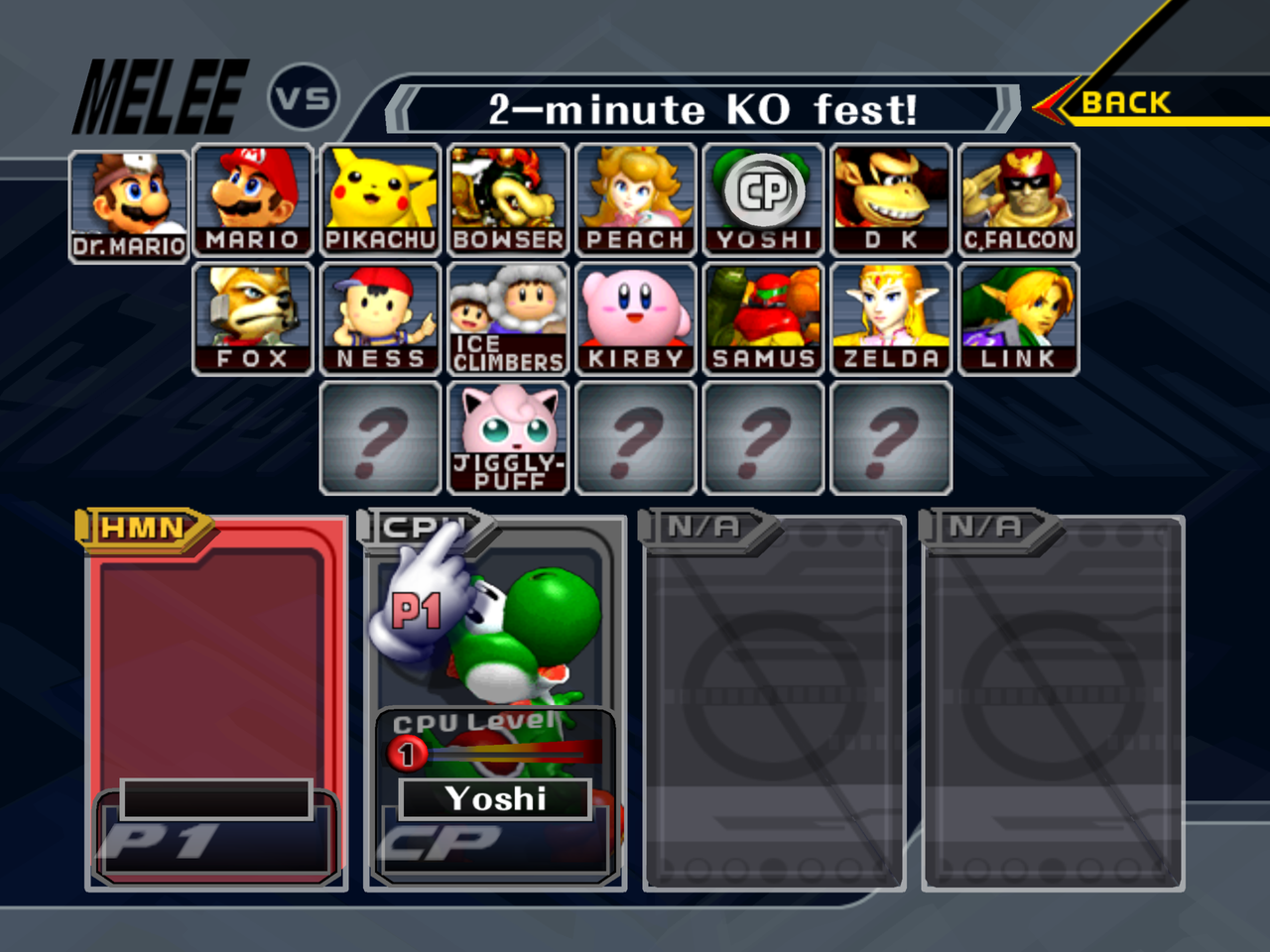

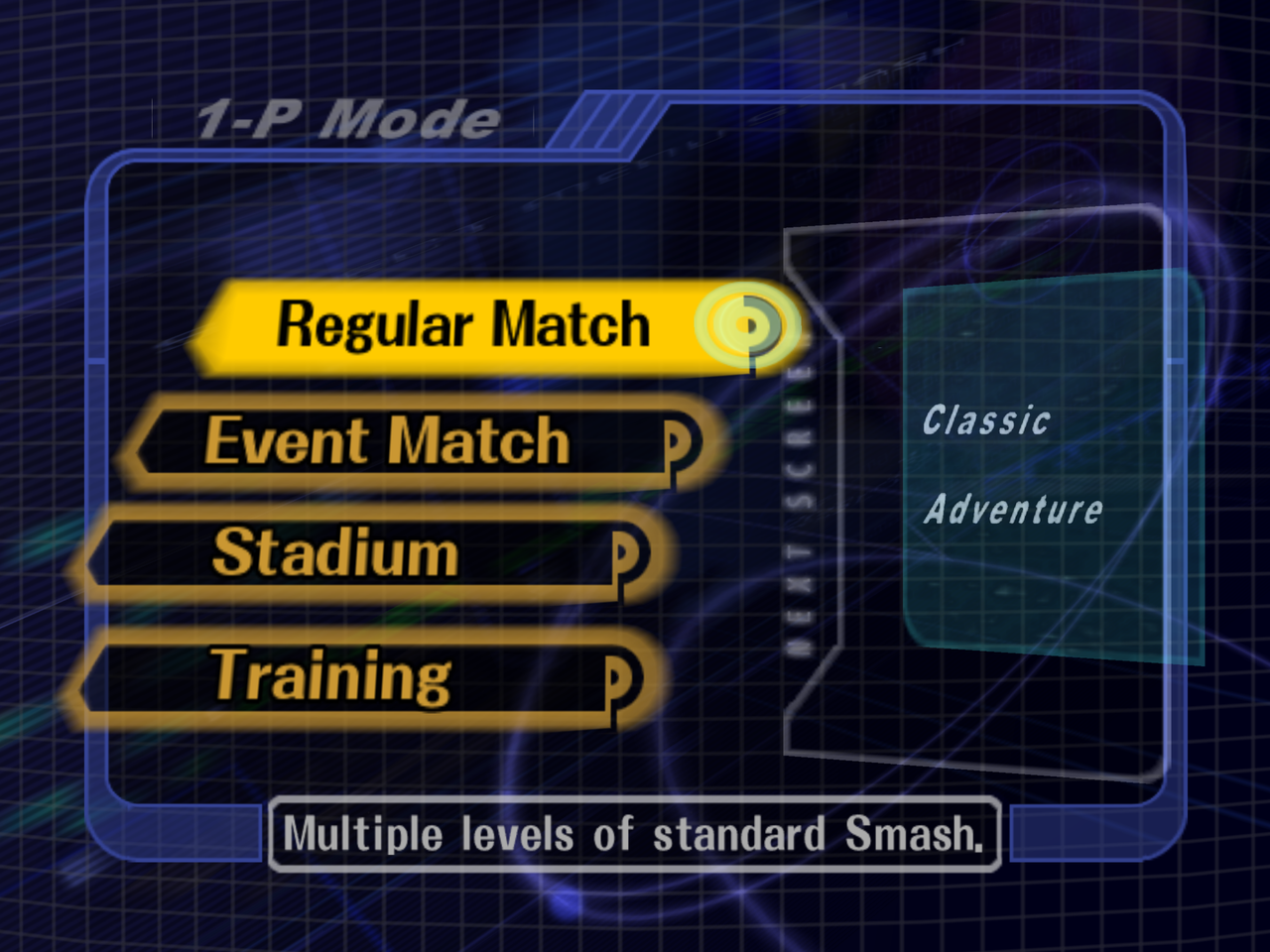

Main menu	Character select

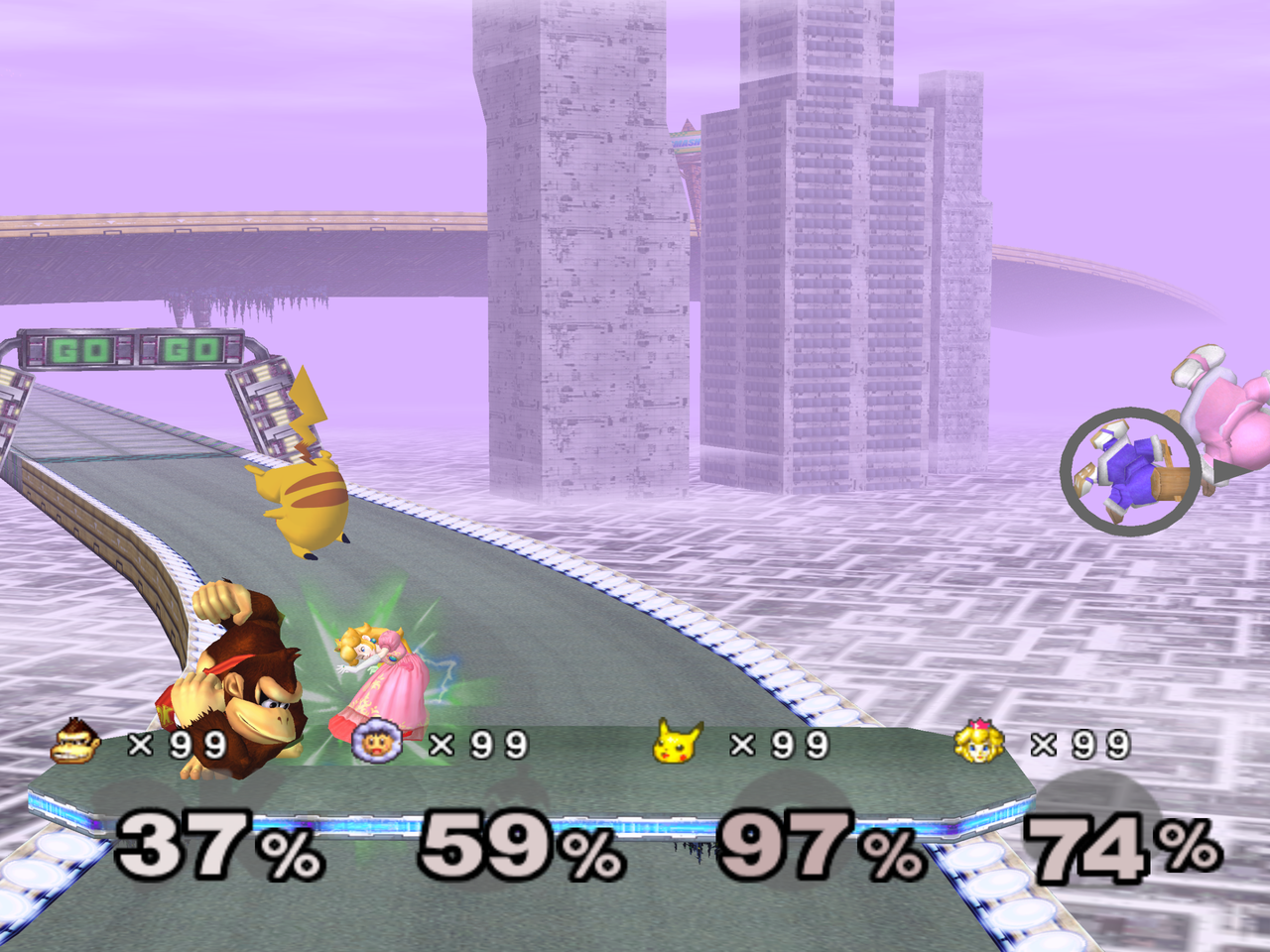

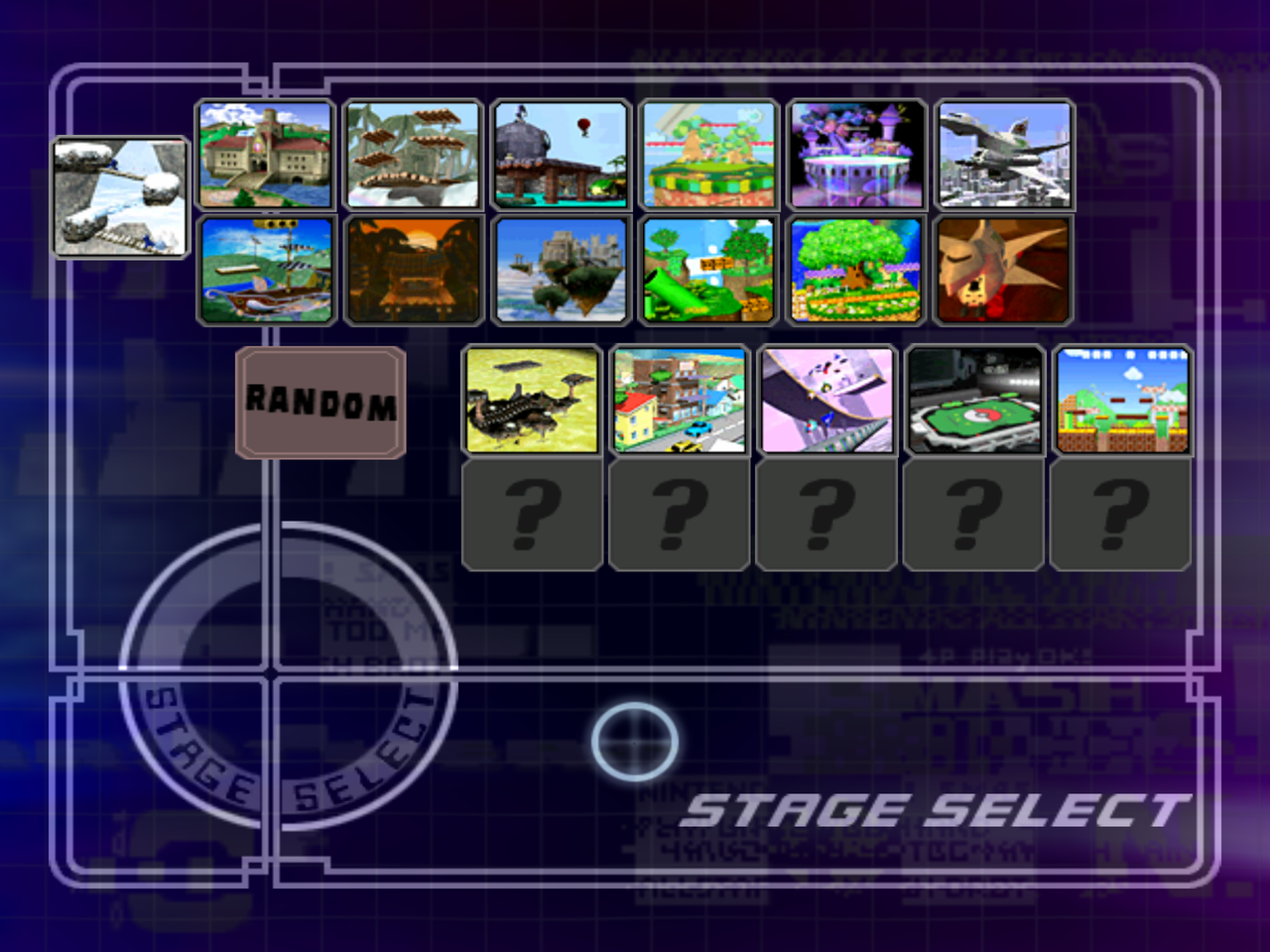

Stage select	Four-player match

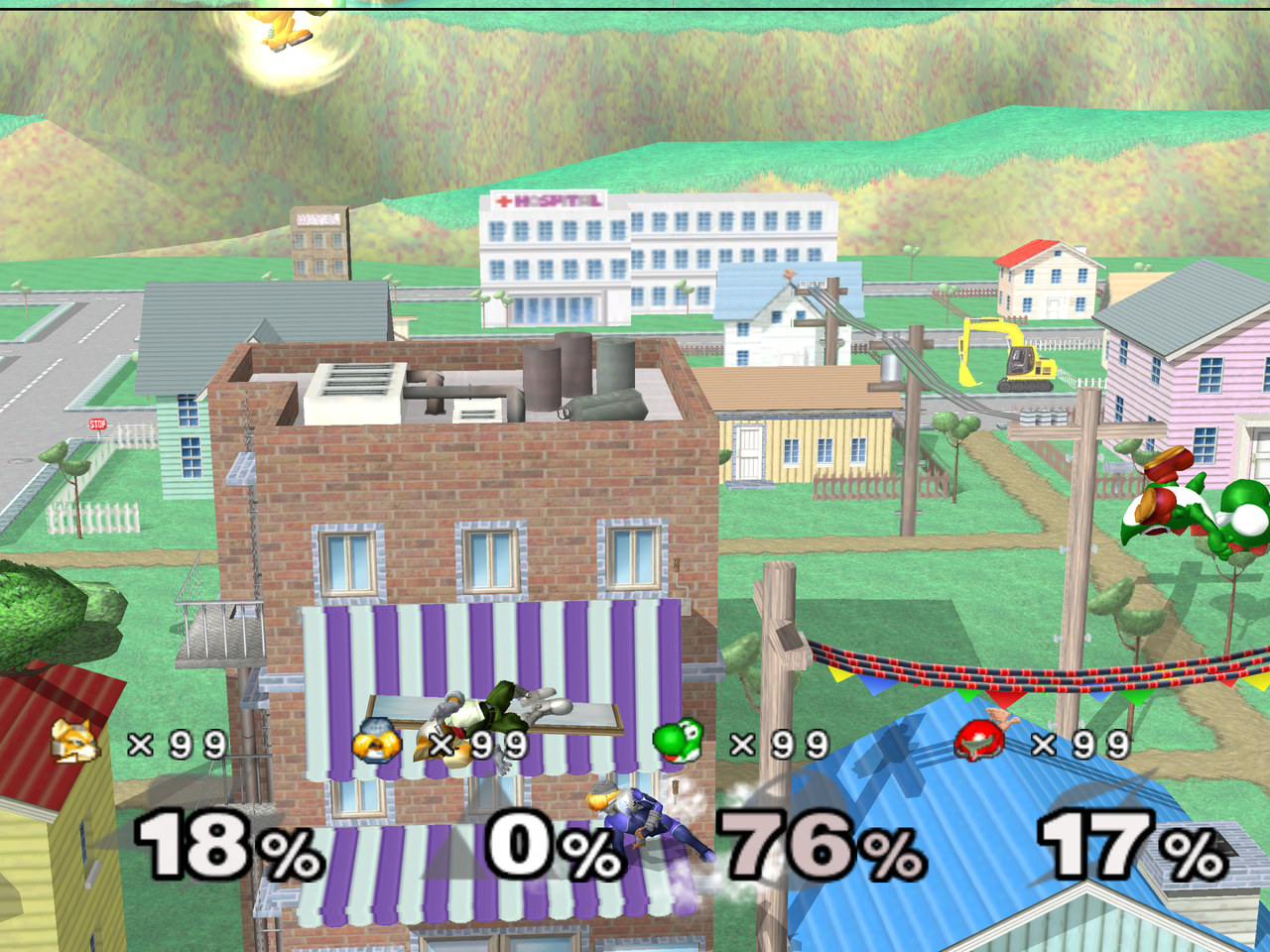

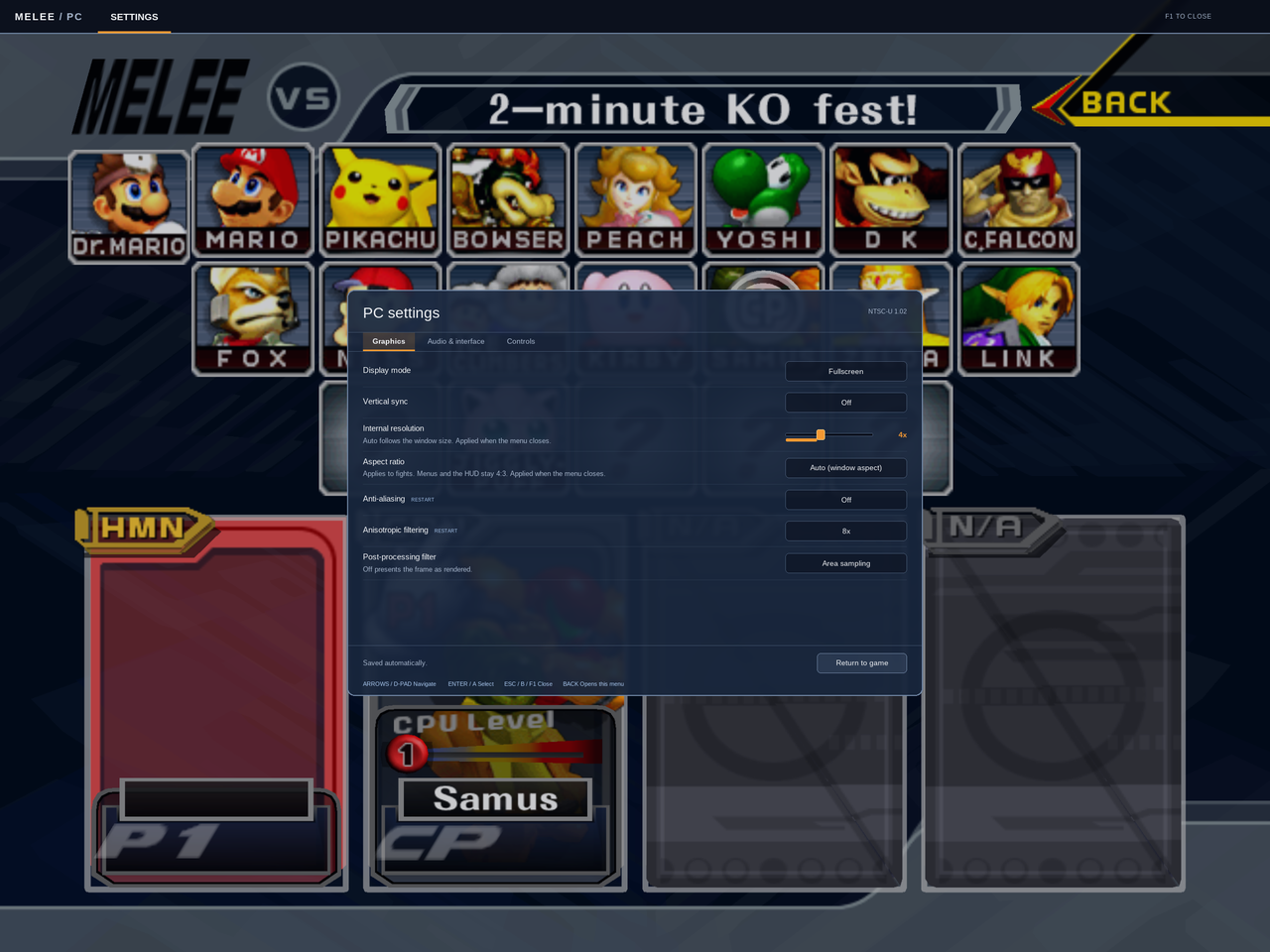

Onett	F1 settings overlay

Status

Works end to end:

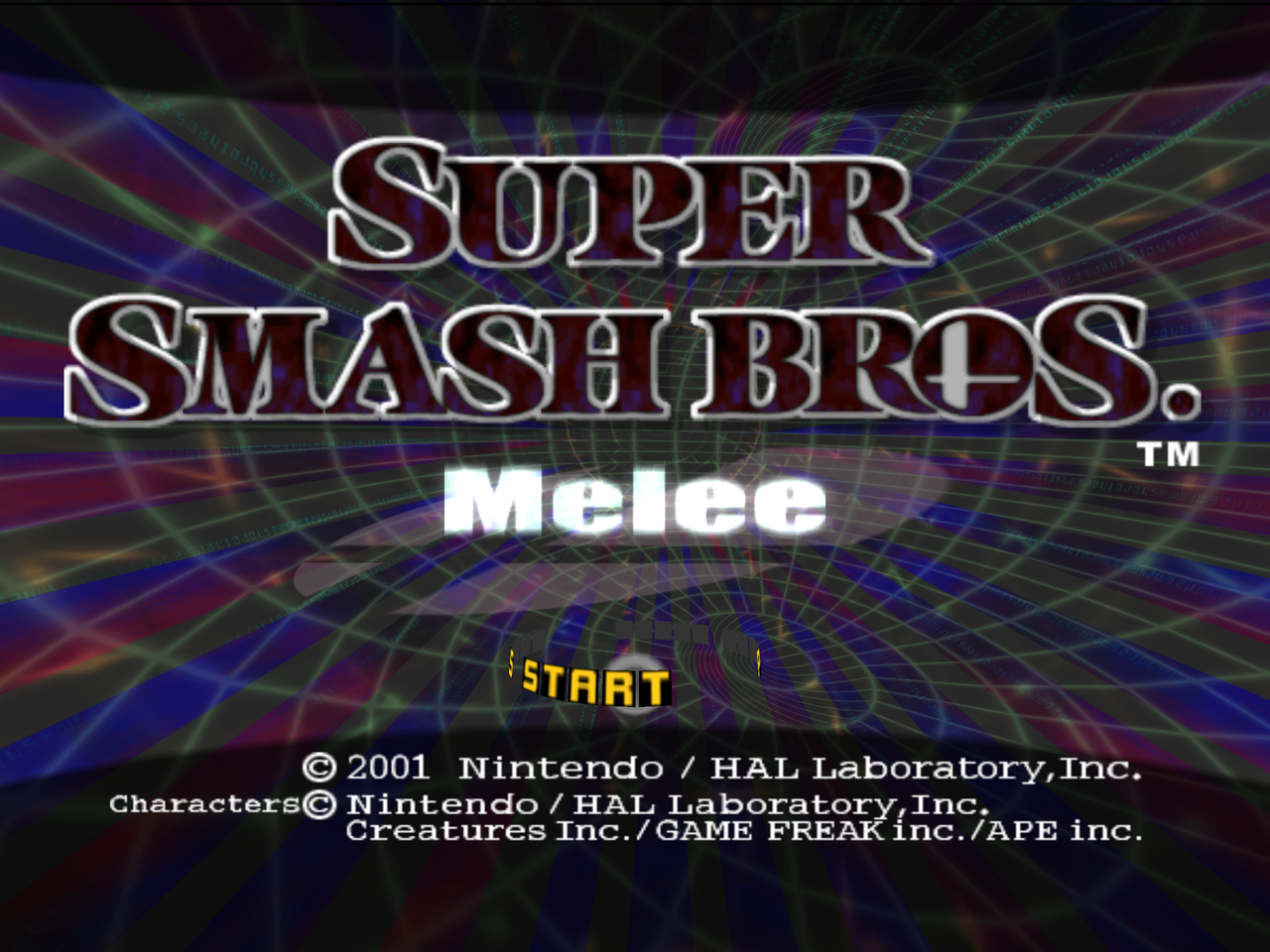

• Boot, opening movie, memory card create/load, title, attract demos.
• Main menu, VS Mode, character and stage select; human vs CPU matches play.
• 1-P Classic and Adventure run to completion, with results and score saved.
• Training, Stadium (Target Test, Home-Run Contest, 10-Man Melee).
• Trophy gallery, Event Match list, Icicle Mountain scrolling.
• Music and sound effects, saves.

Not done: online play with rollback netcode, All-Star (unreachable until the roster is unlocked), widescreen camera and HUD, macOS.

Building

Needs GCC (the game code relies on scalar_storage_order("big-endian"), which only GCC implements), CMake 3.25+, Ninja, and a Vulkan driver. Aurora fetches its own Dawn/SDL3/nod prebuilts.

cmake -B build -G Ninja
ninja -C build

No disc data is needed to build. The two HSD font atlases are pixel data from the retail DOL, so instead of being committed they are read out of the disc you supply, at boot (src/pc/discfont.c).

The release artifacts are produced by the same scripts CI runs, so they work locally too. Windows cross-compiles from Linux with MinGW-w64; Android needs an NDK (ANDROID_NDK_HOME) and a JDK 17.

tools/package_linux.sh      # dist/Melee-x86_64.AppImage + tarball
tools/package_windows.sh    # dist/Melee-Windows-x86_64.zip
tools/build_android.sh      # dist/Melee-Android-arm64.apk (signed release)

Running

build/melee                              # open the launcher
build/melee <disc.iso|.gcm|.ciso|.rvz>

Only Melee USA revision 2 (NTSC-U 1.02, GALE01) is supported. A valid disc path on the command line boots straight in; a missing or invalid one returns to the launcher. Settings and the selected path live in launcher.cfg in SDL's melee-pc preference directory (usually ~/.local/share/melee-pc).

Verification reads the disc through nod, compressed images included, and compares SHA-1 against the Redump DAT: d4e70c064cc714ba8400a849cf299dbd1aa326fc, 1,459,978,240 bytes. It supports progress and cancellation, and is not cached between launches. Unverified images still play.

Keep resources/ next to the binary when distributing. The bundled Liberation Sans fonts are covered by resources/FONT-LICENSE.txt.

Controls

Keyboard: arrows = stick, IJKL = C-stick, X = A, Z = B, C = X, V = Y, Q/E = L/R, Tab = Z, Enter = Start, TFGH = D-pad. Gamepads work through SDL.

Settings overlay

F1, or Back/Select on a gamepad, opens the overlay. The game pauses while it is open.

• Display: fullscreen/windowed and VSync apply immediately. MELEE_VSYNC overrides the saved preference.
• Internal resolution and UI scale are sliders. UI scale covers 75% to 150%.
• Post-processing picks the presentation shader and applies immediately.
• Anti-aliasing and anisotropic filtering apply on the next launch. MSAA offers only off and 4x because WebGPU guarantees sample counts 1 and 4.
• Audio: master volume, mute, FPS counter, all immediate.
• Controls remaps a gamepad. Pick the port, select a GameCube button, then press the physical button. Escape cancels, Restore resets the port. Back cannot be bound since it opens the menu. Sticks and triggers remap the same way, and a direction accepts either a stick axis or a button.

Melee's own menu sounds play in the overlay. Bindings are stored in aurora's per-device .controller files; everything else shares launcher.cfg.

Environment variables

Diagnostics are off by default and cost nothing when unset. They measure or suppress only; none of them fixes anything.

Porting notes

Disc data stays big-endian in memory and is described with DISC_STRUCT and DISC_PTR (see src/pc/disc.h). Structs mapping archive contents are byte-swapped on access by GCC, disc pointers are 32-bit slots relocated to host addresses, and MEM1 is mapped at 0x80000000 so those slots always fit. The whole 4 GB range is game-addressable through -no-pie with text at 0x10000000.

Bug classes that keep coming back when bringing up a new scene:

• Runtime structs have 8-byte pointers, so any hard-coded GameCube offset ((u8*)gp + 0xD8, memzero(p, 0x74), padded overlay structs) has to become a real field or sizeof.
• Statics are not adjacent on x86-64. A cast to a bigger struct to reach the next static must name the neighbour instead.
• Bitfields are LSB-first. Unions overlaying bitfields with an integer view need DISC_STRUCT on the union and every nested struct.
• UNK_T is void*, so unnamed words are 8 bytes. Inside a union view that is a layout change; retype numeric ones u32.
• Motion-variable unions (Fighter::mv) have the same problem one level down: the game writes one view and reads another, so a pointer inside a view shifts every member below it. Where no position survives, move the field into Fighter.
• Retail GXEnd is empty and the decomp omits it, but aurora's GXEnd submits the draw. Every GXBegin needs one.
• Mtx is 48 bytes and Mtx44 is 64; MTXOrtho and MTXPerspective take Mtx44.
• bool in a decomp signature usually means "int the decompiler could not name". Under _Bool every value above 1 clamps, so an index or scene id silently becomes 1.
• Walking an object as void** and indexing by GameCube word number scales by 8, so p[0x14] for byte 0x50 lands at byte 160. Index by name.
• Japanese string literals are Shift-JIS at runtime; the build passes -fexec-charset=CP932.

Three harnesses find the next batch. Validate any sweep by re-introducing one known-true positive and checking the count moves by exactly one.

• Whole-tree warning sweep: compile every TU for real (-Wreturn-type is not emitted under -fsyntax-only), strip the build's -Wno-all -Wno-extra, pass -fdiagnostics-color=never, and add -Warray-bounds=2 -Wstringop-overflow=2 -Wformat-overflow=2 -Wbool-operation.
• python3 tools/lint_sweep.py compiles every game TU with -m32 -DLINT, which turns ASSERT_SIZE and ASSERT_OFFSET into real checks against the GameCube ABI. A failure means the struct reconstruction is wrong, not the port.
• python3 tools/compile_check.py <files|dirs> syntax-checks with the build's exact flags. Fast, so use it before a full build.

For "does this union view still alias on LP64", build one probe TU of the real headers twice with the project's flags, native and -m32, then diff member offsets and sizes out of DWARF (gdb -batch -ex 'ptype /o T'). Compare byte-range intersections, not start offsets.

Tools

• tools/run.sh <disc> runs under gdb and dumps all threads on a crash.
• tools/demo_run.sh <seed> [secs] enters the attract demo and reports survival or crash frames; tools/demo_sweep.sh <seeds...> batches it.
• tools/devctl.py key|hold|shot drives and captures the game window under X11.
• tools/run_dbg.sh <disc> adds a FIFO/PAD state dump on interrupt.

import -window can keep returning the last composited frame under Xwayland while the game presents normally, which looks like a freeze and is not one. devctl.py shot detects two identical captures and nudges the window; when a screenshot and a backtrace disagree, believe the backtrace.

Layout

• src/melee, src/sysdolphin - game code from the decomp (upstream commit in src/UPSTREAM_COMMIT), adapted to the PC data model.
• src/pc - platform layer: main, OS/VI/GX glue, keyboard, audio mixer, THP, vertex-array sizing.
• extern/aurora - vendored aurora with local changes.

License

Three situations, spelled out in LICENSE.md: the decompiled game code in src/melee and src/sysdolphin is not licensed and remains the property of its copyright holders; the port code in src/pc, tools, platforms, cmake and .github is GPL-3.0-or-later (COPYING); bundled third-party components keep their own licenses. Because the game code cannot be relicensed, the repository as a whole is not distributable under the GPL. No game assets are in this repository.
