Smart Plant Doctor

Smart Plant Doctor is an AI + IoT plant health platform that combines real-time environmental sensing from ESP32 devices with image-based disease detection and an AI plant care assistant.

Upgraded from the original Streamlit prototype to a full-stack React + FastAPI application with Supabase authentication, live WebSocket dashboards, and a production-ready API.

CA

EQdPcKnFDqZT5scQVrye58Uiu6aLSvZr7EVqpod6pump

Demo

Screenshots

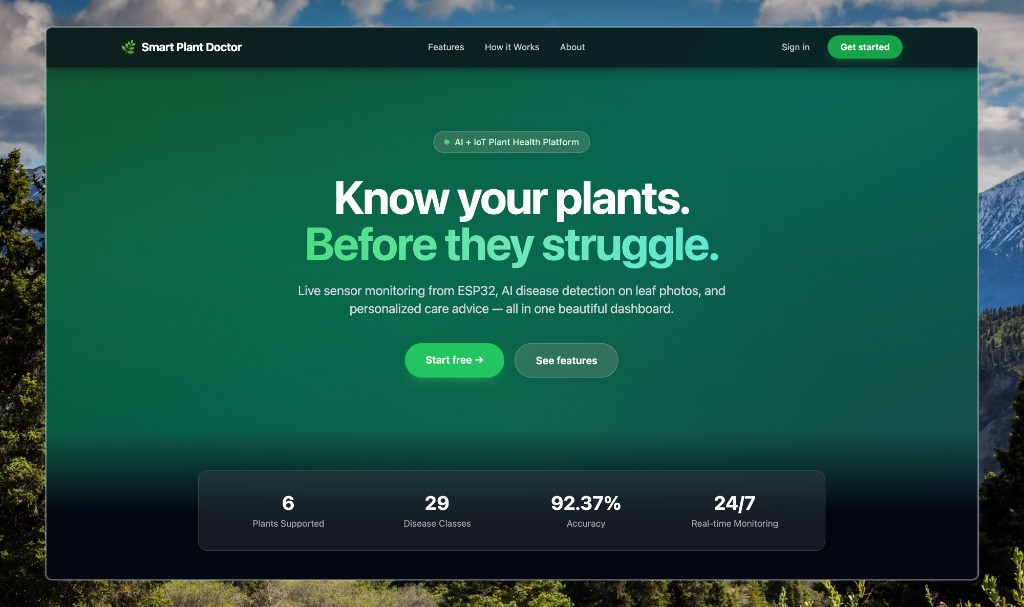

Landing Page

Landing page

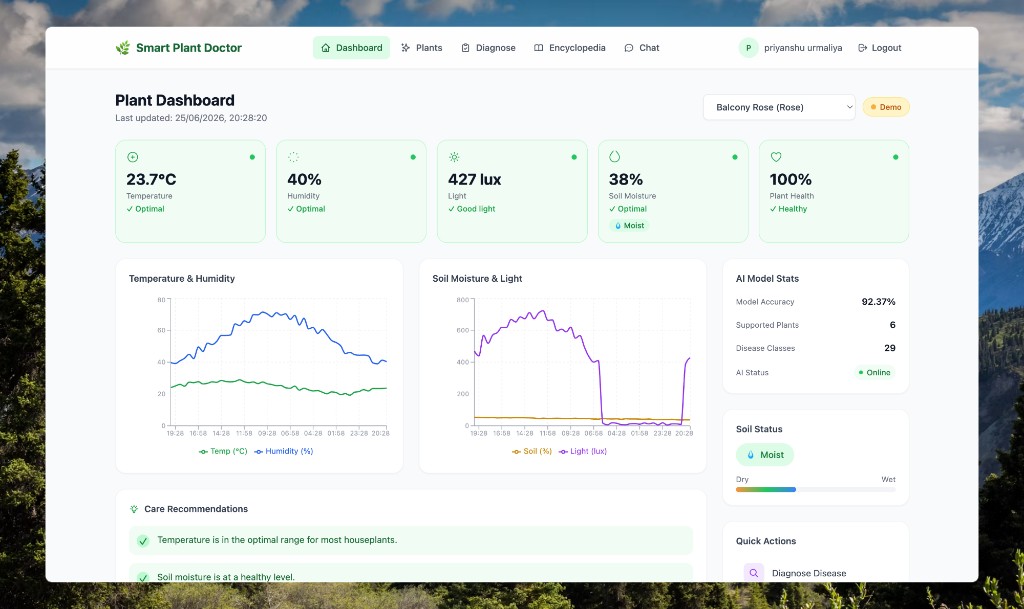

Plant Dashboard

Plant dashboard with live sensor metrics and charts

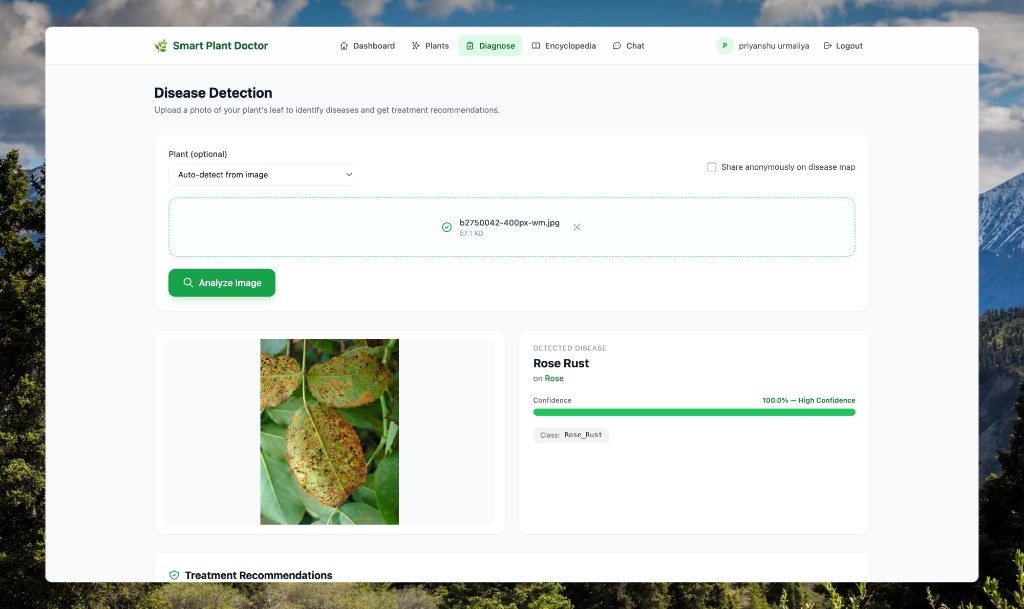

Disease Detection

AI disease detection with Rose Rust diagnosis

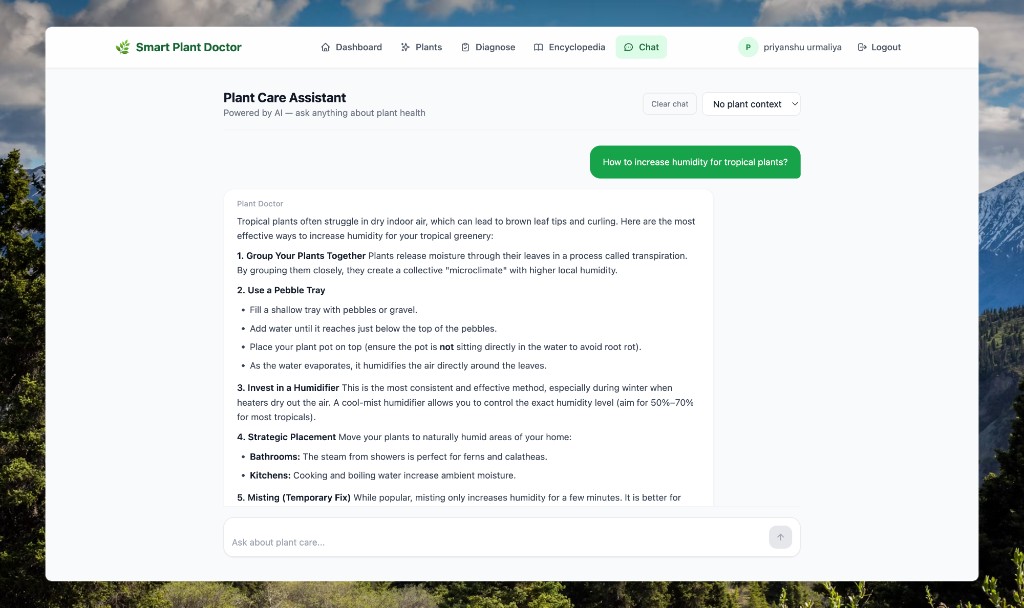

Plant Care Chat

AI plant care assistant chat

What's New (Major Upgrades)

Feature	Before (v1)	Now (v2)
Frontend	Streamlit	React + TypeScript + Vite PWA
Backend	Single `ingest.py`	FastAPI with modular routers
Auth	None	Supabase (email + Google OAuth)
Database	SQLite only	PostgreSQL (Supabase) or SQLite for local dev
Dashboard	Basic charts	Live metrics, charts, care recommendations, demo mode
Disease detection	Streamlit upload	Drag-and-drop UI with treatment cards + history
Chat	—	Gemma 4 AI assistant with optional plant context
Encyclopedia	—	6 species with care guides, seasonal tips, diseases
Devices	Basic ESP32 ingest	Device onboarding, multi-pot support, WebSockets
Community	—	Disease map (anonymized geohash reports)
Landing page	—	Modern glassmorphism landing with feature showcase

Highlights

Real-time IoT dashboard — temperature, humidity, light, soil moisture, plant health score
AI disease detection — trained MobileNetV2 model, 29 classes, ~92.37% accuracy
Plant care chatbot — Gemma 4 powered assistant with live sensor context
Plant encyclopedia — care guides for Rose, Hibiscus, Aloe Vera, Money Plant, Chrysanthemum, Turmeric
Care journal — log watering, fertilizing, and repotting events
Device onboarding — register ESP32 sensors and stream live readings
Disease map — crowdsourced plant health reports

Architecture

ESP32 Sensors
  → POST /api/v1/ingest (device token)
  → FastAPI backend
  → PostgreSQL / SQLite
  → WebSocket → React dashboard

Leaf image upload
  → POST /api/v1/diagnose
  → MobileNetV2 (ai/inference.py)
  → Disease + confidence + treatment recommendations

Plant care question
  → POST /api/v1/chat
  → Gemma 4 (Google AI)
  → Contextual advice with sensor + diagnosis data

AI Model (Plant Disease Detection)

Model used

Backbone: MobileNetV2 (PyTorch)
Inference: SmartPlantDoctor in ai/inference.py
Input size: 224 × 224
Output: 29 plant disease / healthy classes
Validation accuracy: ~92.37%

Supported plants

Plant	Disease classes
Rose	8
Hibiscus	4
Aloe Vera	5
Money Plant	4
Chrysanthemum	3
Turmeric	5

Exported artifacts

ai/exports/smart_plant_doctor_model.pth
ai/exports/class_mapping.json

Tech Stack

Layer	Technology
Frontend	React, TypeScript, Vite, Tailwind CSS, TanStack Query
Backend	FastAPI, SQLAlchemy, Alembic
Auth	Supabase (JWT + Google OAuth)
Database	PostgreSQL (Supabase) / SQLite (local)
AI / ML	PyTorch, MobileNetV2
LLM Chat	Google Gemma 4 via Gemini API
IoT	ESP32, PlatformIO, WebSockets
Maps	Leaflet (disease map)

Quick Start

Prerequisites

Python 3.11+
Node.js 18+
Supabase project (for auth) — see docs/SUPABASE_SETUP.md

1. Clone

git clone https://github.com/GitHpriyanshu23/Smart-Plant-Doctor.git
cd Smart-Plant-Doctor

2. Backend

cd backend
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
cp ../.env.example .env   # configure DATABASE_URL, SUPABASE_*, GEMINI_API_KEY
uvicorn app.main:app --reload --port 8000

3. Frontend

cd frontend
cp .env.example .env      # add VITE_SUPABASE_URL + VITE_SUPABASE_ANON_KEY
npm install
npm run dev

Open http://localhost:5173 — landing page → sign in → dashboard.

Environment variables

Backend (backend/.env):

Variable	Description
`DATABASE_URL`	PostgreSQL connection string or `sqlite:////tmp/smart_plant_doctor.db`
`SUPABASE_URL`	Your Supabase project URL
`SUPABASE_JWT_SECRET`	Supabase JWT secret (Settings → API)
`GEMINI_API_KEY`	Google AI API key for chat
`MODEL_PATH`	Path to `smart_plant_doctor_model.pth`

Frontend (frontend/.env):

Variable	Description
`VITE_SUPABASE_URL`	Supabase project URL
`VITE_SUPABASE_ANON_KEY`	Supabase anon key

ESP32 Firmware

Updated firmware in firmware/ with NVS token storage and multi-pot sensor support.

cd firmware
# Set WIFI_SSID, WIFI_PASSWORD in platformio.ini or src/main.cpp
pio run -t upload

API Endpoints

Method	Endpoint	Description
`GET`	`/api/v1/plants`	List user's plants
`POST`	`/api/v1/plants`	Add a plant
`POST`	`/api/v1/diagnose`	Upload leaf image for disease detection
`GET`	`/api/v1/diagnose/history`	Diagnosis history
`POST`	`/api/v1/chat`	AI plant care chat
`GET`	`/api/v1/encyclopedia`	Species care guides
`POST`	`/api/v1/ingest`	ESP32 sensor data (device token)
`WS`	`/api/v1/ws/plants/{id}`	Live sensor feed

Deployment

Component	Platform
Frontend	Vercel
Backend	Railway / Render
Database + Auth	Supabase

Legacy Streamlit App

The original Streamlit prototype is preserved at app.py for reference. The new app is the recommended version.

Project Structure

smart-plant-doctor/
├── frontend/          # React PWA
├── backend/           # FastAPI API
├── ai/                # ML model + training
├── firmware/          # ESP32 PlatformIO project
├── docs/              # Setup guides + demo video
└── app.py             # Legacy Streamlit app

License

MIT

Author

Priyanshu
