AERIS-10: Open Source Pulse Linear Frequency Modulated Phased Array Radar

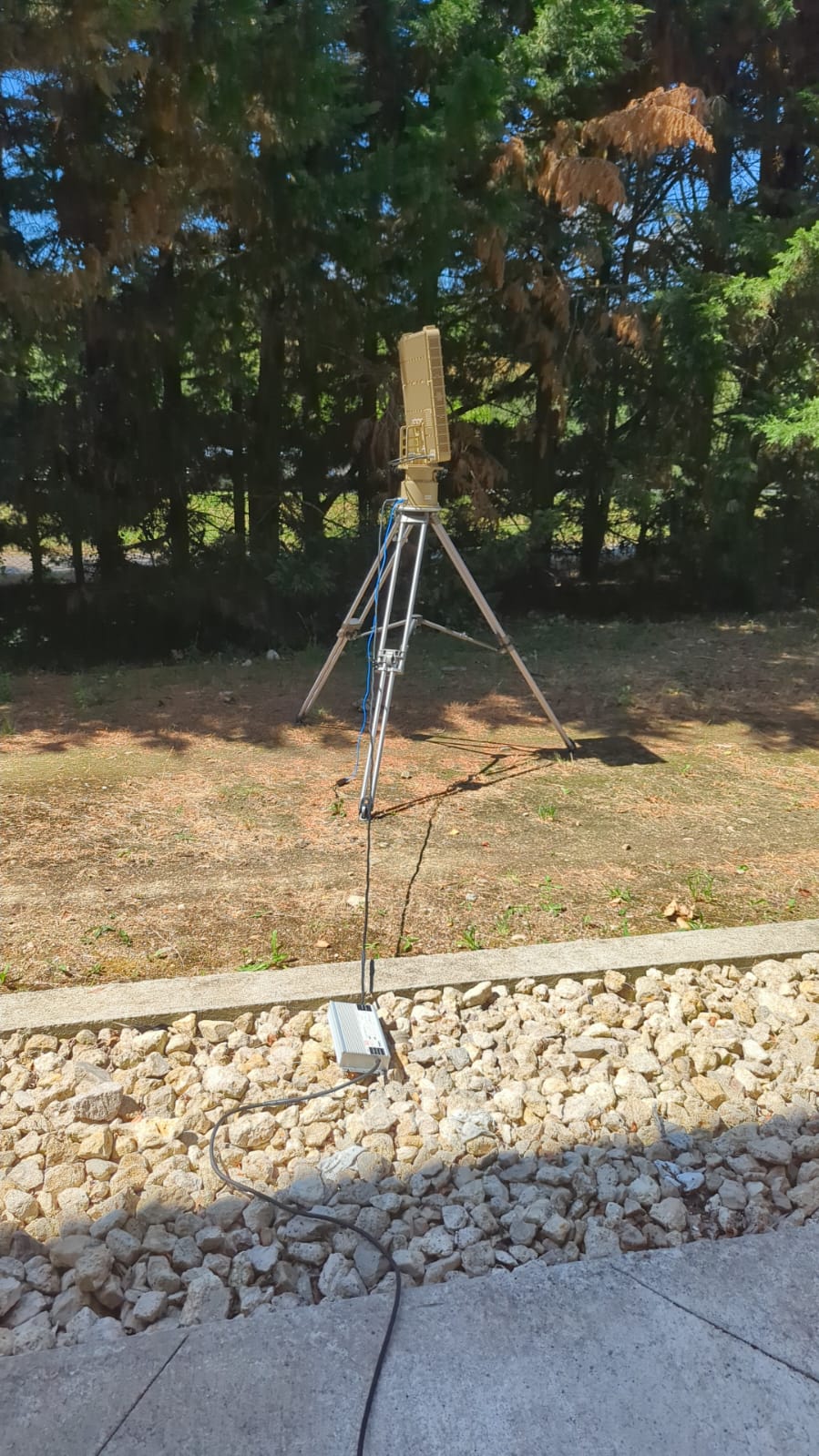

AERIS-10 Radar System

AERIS-10 is an open-source, low-cost 10.5 GHz phased array radar system featuring Pulse Linear Frequency Modulated (LFM) modulation. Available in two versions (3km and 20km range), it's designed for researchers, drone developers, and serious SDR enthusiasts who want to explore and experiment with phased array radar technology.

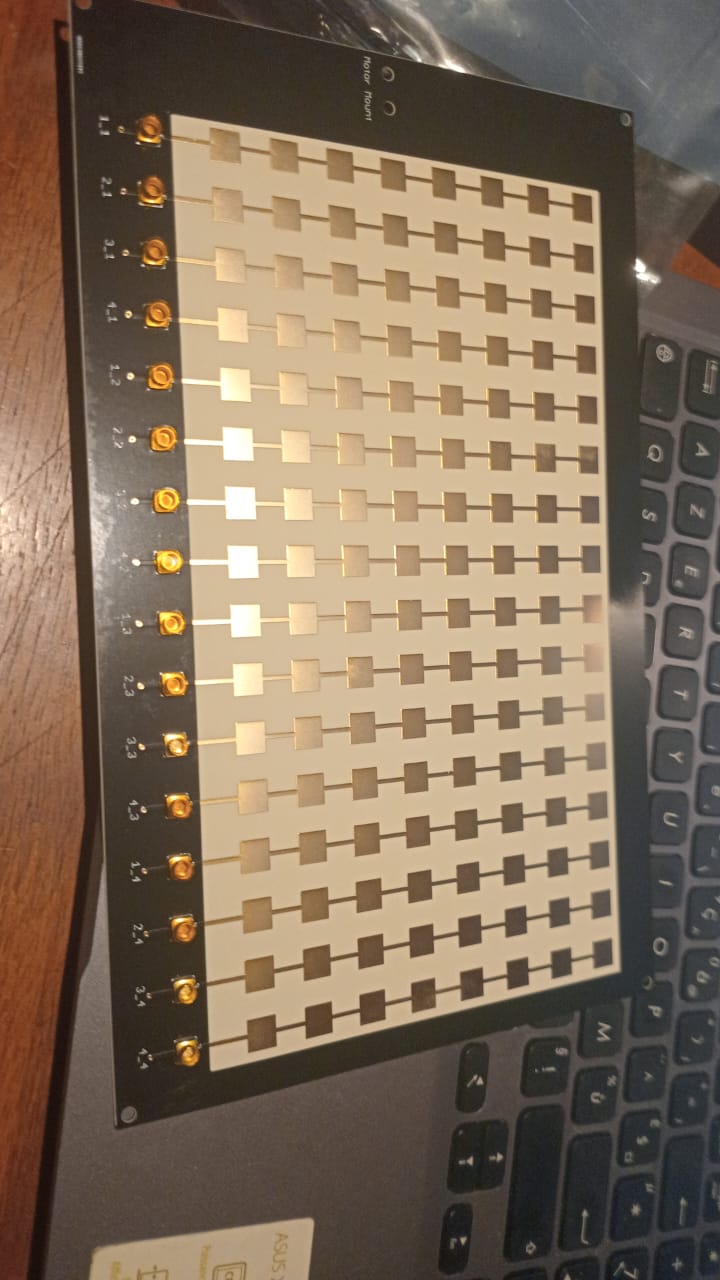

AERIS-10 Antenna Array

📡 Overview

The AERIS-10 project aims to democratize radar technology by providing a fully open-source, modular, and hackable radar system. Whether you're a university researcher, a drone startup, or an advanced maker, AERIS-10 offers a platform for experimenting with beamforming, pulse compression, Doppler processing, and target tracking.

🔬 Key Features

Open Source Hardware & Software - Complete schematics, PCB layouts, firmware, and software available
Dual Version Availability:
- AERIS-10N (Nexus): 3km range with 8x16 patch antenna array
- AERIS-10E (Extended): 20km range with 32x16 dielectric-filled slotted waveguide array
Full Electronic Beam Steering - ±45° electronic steering in elevation and azimuth
Advanced Signal Processing - On-board FPGA handles pulse compression, Doppler FFT, MTI, and CFAR
Python GUI - User-friendly interface with map integration
GPS/IMU Integration - Real-time position and attitude correction
Modular Design - Separate power management, frequency synthesis, and RF boards

🏗️ System Architecture

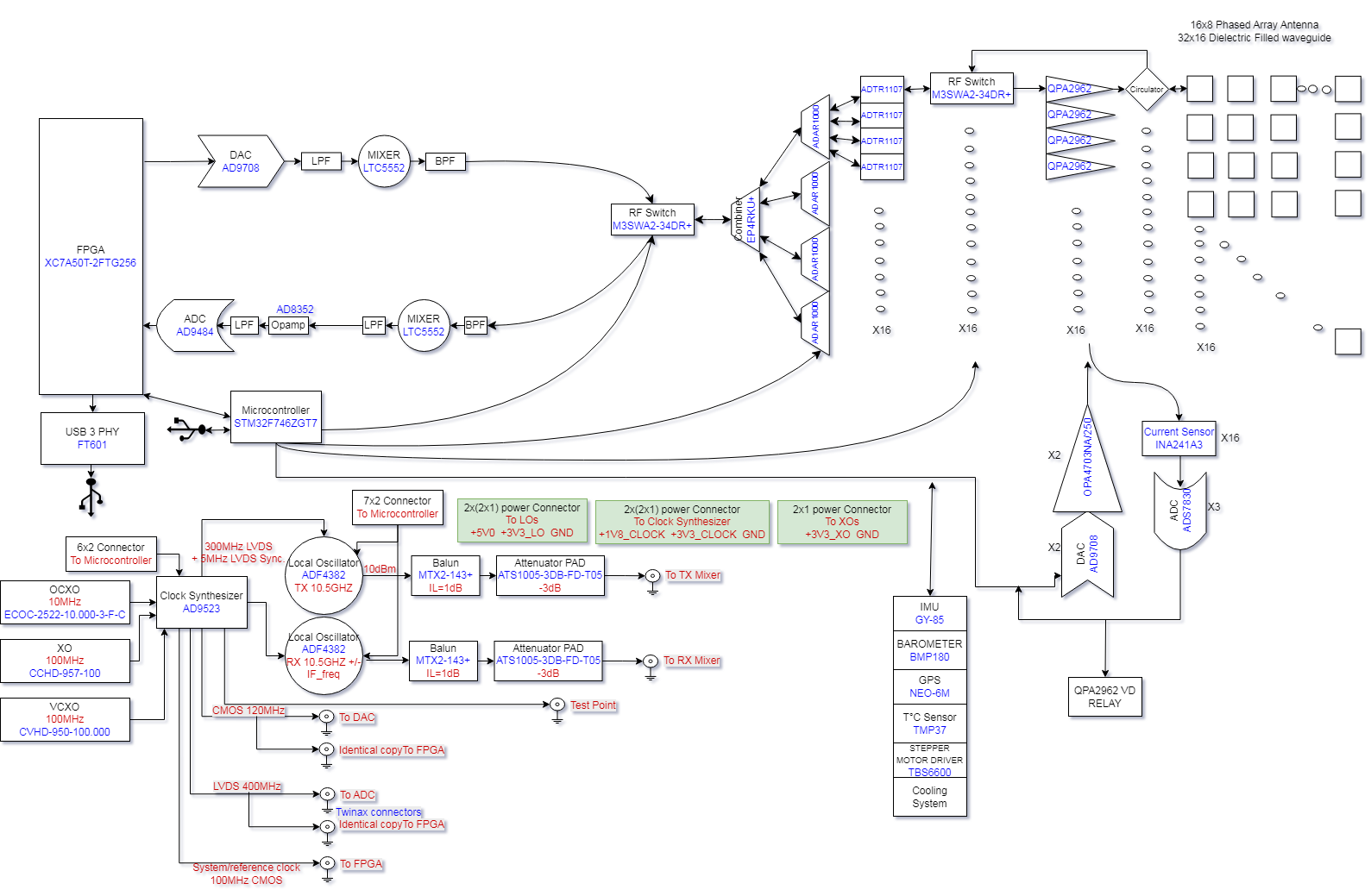

AERIS-10 System Diagram

Hardware Components

The AERIS-10 main sub-systems are:

Power Management Board - Supplies all necessary voltage levels to the electronics components with proper filtering and sequencing (sequencing ensured by the microcontroller)
Frequency Synthesizer Board - Uses a high-performance Low Jitter Clock Generator (AD9523-1) that supplies phase-aligned clock references for:
- RX and TX Frequency Synthesizers (ADF4382)
- DAC
- ADC
- FPGA
Main Board containing:
- DAC - Generates the RADAR Chirps
- 2x Microwave Mixers (LT5552) - For up-conversion and IF-down-conversion
- 4x 4-Channel Phase Shifters (ADAR1000) - For RX and TX chain beamforming
- 16x Front End Chips (ADTR1107) - Used for both Low Noise Amplifying (RX) and Power Amplifying (TX) stages
- XC7A50T FPGA - Handles RADAR Signal Processing on the upstream FTG256 board:
  - PLFM Chirps generation via the DAC
  - Raw ADC data read
  - Automatic Gain Control (AGC)
  - I/Q Baseband Down-Conversion
  - Decimation
  - Filtering
  - Forward FFT
  - Pulse Compression
  - Doppler, MTI and CFAR processing
  - USB Interface
- STM32F746xx Microcontroller - Used for:
  - Power-up and power-down sequencing (see Power Management Excel File)
  - FPGA communication
  - Setup and Interface with:
    - Clock Generator (AD9523-1)
    - 2x Frequency Synthesizers (ADF4382)
    - 4x 4-Channel Phase Shifters (ADAR1000) for RADAR pulse sequencing
    - 2x ADS7830 ADCs (on Power Amplifier Boards) for Idq measurement
    - 2x DAC5578 (on Power Amplifier Boards) for Vg control
    - GPS module for GUI map centering
    - GY-85 IMU for pitch/roll correction of target coordinates
    - BMP180 Barometer
    - Stepper Motor
    - 8x ADS7830 Temperature Sensors for cooling fan control
    - RF switches
16x Power Amplifier Boards - Used only for AERIS-10E version, featuring 10Watt QPA2962 GaN amplifier for extended range
Antenna Arrays:
- AERIS-10N (Nexus) - 8x16 patch antenna array
- AERIS-10X (Extended) - 32x16 dielectric-filled slotted waveguide antenna array
Miscellaneous Components:
- Slip-Ring
- Stepper Motor and drivers
- Cooling Fans
- Enclosure

Processing Pipeline

Waveform Generation - DAC creates LFM chirps
Up/Down Conversion - LT5552 mixers handle frequency translation
Beam Steering - ADAR1000 phase shifters control 16 elements
Signal Processing (FPGA):
- Raw ADC data capture
- I/Q baseband down-conversion
- Decimation & filtering (CIC/FIR)
- Pulse compression
- Doppler FFT processing
- MTI & CFAR detection
System Management (STM32):
- Power sequencing
- Peripheral configuration
- GPS/IMU integration
- Stepper motor control
Visualization (Python GUI):
- Real-time target plotting
- Map integration
- Radar control interface

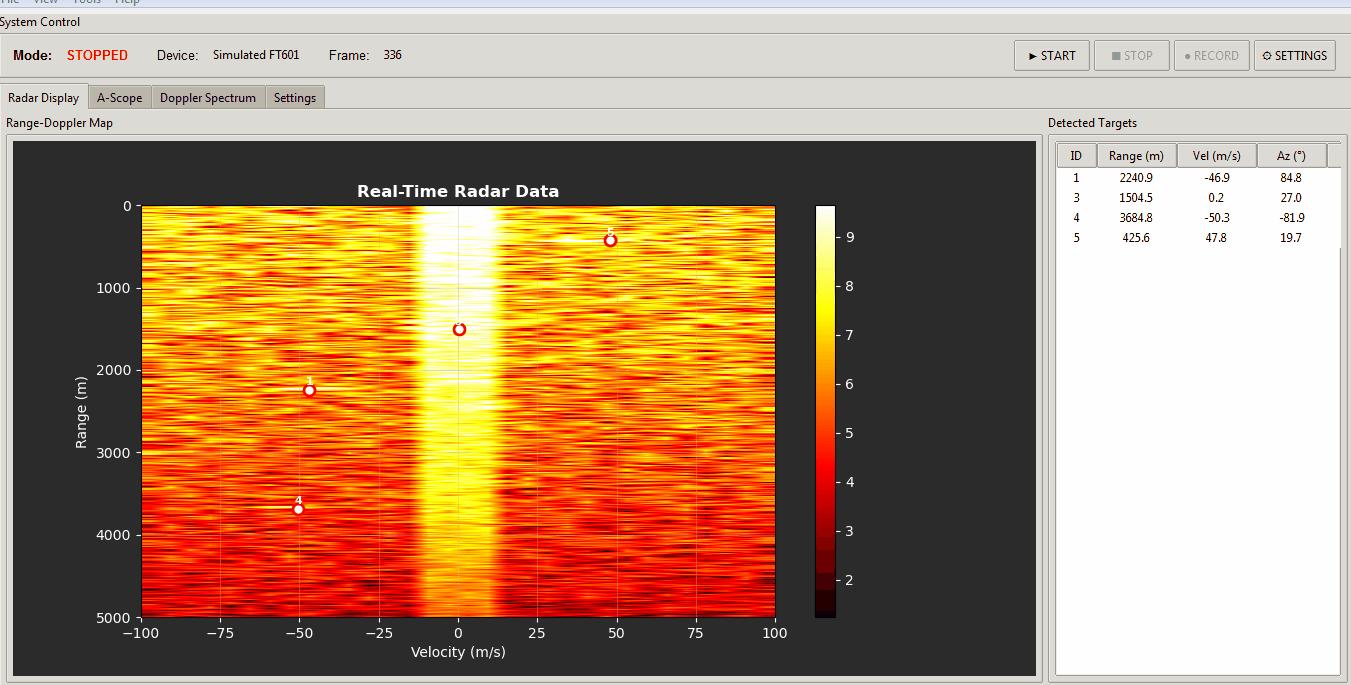

AERIS-10 GUI Demo

📊 Technical Specifications

Parameter	AERIS-10N (Nexus)	AERIS-10X (Extended)
Frequency	10.5 GHz	10.5 GHz
Max Range	3 km	20 km
Antenna	8x16 Patch Array	32x16 Slotted Waveguide
Beam Steering	Electronic (±45°)	Electronic (±45°)
Mechanical Scan	360° (stepper motor)	360° (stepper motor)
Output Power	~1W×16	10W×16 (GaN amplifier)
Processing	FPGA + STM32	FPGA + STM32

🚀 Getting Started

🧹 Repository File Placement Policy

To keep the repository root clean and make artifacts easy to find, place generated files in the following locations:

Published reports (tracked, GitHub Pages): docs/
- Example: docs/AERIS_Simulation_Report_v2.pdf
Simulation-generated outputs (local, gitignored): 5_Simulations/generated/
- Plots, scenario outputs, temporary analysis directories
FPGA/Vivado generated artifacts (local, gitignored): 9_Firmware/9_2_FPGA/reports/
- VCD/VVP dumps, temporary CSVs, local report snapshots
Reusable FPGA automation scripts (tracked): 9_Firmware/9_2_FPGA/scripts/
- TCL flows, helper scripts used by build/bring-up

Do not leave generated artifacts in the repository root.

Prerequisites

Basic understanding of radar principles
Experience with PCB assembly (for hardware build)
Python 3.8+ for the GUI software
FPGA development tools (Vivado) for signal processing modifications

Hardware Assembly

Order PCBs: Production outputs are under /4_Schematics and Boards Layout/4_7_Production Files
Source Components: BOM/CPL files are co-located under /4_Schematics and Boards Layout/4_7_Production Files
Assembly: Use the schematics in /4_Schematics and Boards Layout/4_6_Schematics together with the production outputs above; a standalone assembly guide is not currently tracked
Antenna: Choose appropriate array files for your target variant
Enclosure: Mechanical drawings currently live in /8_Utils/Mechanical_Drawings

📜 License

This project is open-source but uses different licenses for hardware and software to ensure proper legal coverage.

Hardware Documentation

The hardware design files—including:

Schematics and PCB layouts (in /4_Schematics and Boards Layout)
Bill of Materials (BOM) files
Gerber files and manufacturing outputs
Mechanical drawings and enclosure designs

are licensed under the CERN Open Hardware Licence Version 2 – Permissive (CERN-OHL-P) .

This is a hardware-specific license that:

✅ Clearly defines "Hardware," "Documentation," and "Products"
✅ Includes explicit patent protection for contributors and users
✅ Provides stronger liability limitations (important for high-power RF)
✅ Aligns with professional open-hardware standards (CERN, OSHWA)

You may use, modify, and sell products based on these designs, provided you:

Maintain the original copyright notices
Distribute any modified designs under the same license
Make your modifications available in Source format

Software and Firmware

The software components—including:

FPGA code (VHDL/Verilog in /9_Firmware)
Microcontroller firmware (STM32)
Python GUI and utilities

remain under the MIT License for maximum flexibility.

Full License Texts

The complete CERN-OHL-P license text is in the LICENSE file
MIT license terms apply to software where not otherwise specified

Why This Change?

Originally, the entire project used the MIT license. The community (special thanks to gmaynez!) pointed out that MIT lacks legal protections needed for physical hardware. The switch to CERN-OHL-P ensures the project is properly protected while maintaining the same permissive spirit.

📚 Documentation

Comprehensive documentation is available in the /docs folder and served via GitHub Pages at https://NawfalMotii79.github.io/PLFM_RADAR/docs/:

🤝 Contributing

We welcome contributions! Please see our Contributing Guidelines for details on repo layout, branch workflow, and basic PR checks.

Areas where help is especially appreciated:

RF Engineers: Review designs, optimize antenna performance
FPGA Developers: Optimize signal processing pipeline
Software Developers: Enhance Python GUI and SDK
Beta Testers: University researchers, drone startups, advanced makers

📞 Contact & Collaboration

I welcome serious inquiries from researchers, engineers, and potential collaborators. However, due to the high volume of interest in this project, please understand that I cannot guarantee a response to every message.

Technical questions or bug reports: Please open a GitHub issue so the whole community can benefit from the discussion.
Collaboration, licensing, or business inquiries: 📧 nawfal.motii.33 [at] gmail [dot] com

💰 Sponsors

PCBWay Sponsor Logo

Star ⭐ this repository if you're interested in open-source radar technology!

Note: This is an active development project. Some features are still in progress. Check the issues page for known limitations and upcoming features.
