ASCII Canvas

A Unicode grid editor for freeform drawing and structured ASCII UI composition.

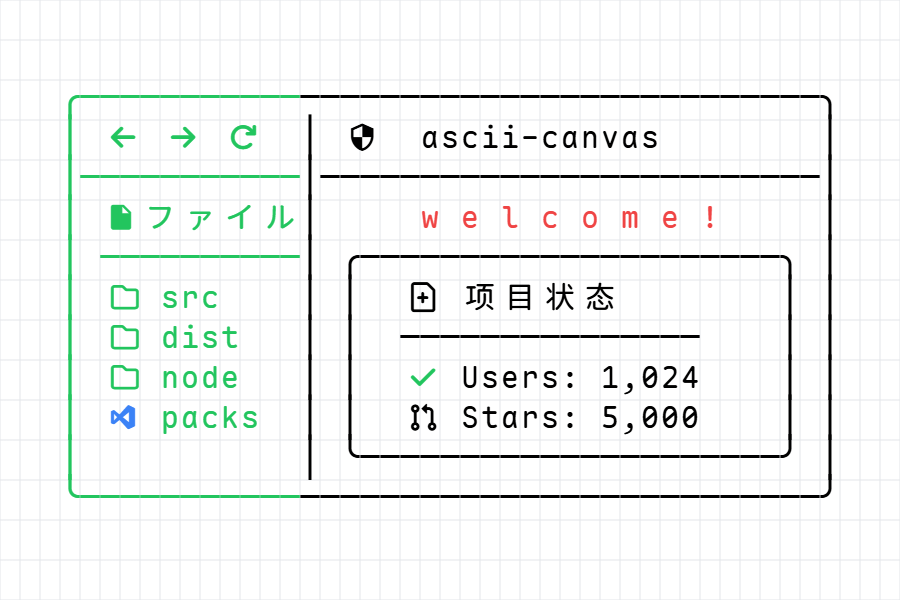

ASCII Canvas Cover

Core Features

ASCII Canvas renders editable Unicode grids instead of opaque pixels. It is built for drawings and UI surfaces that humans can inspect visually and LLMs can still read as text.

It supports two session modes:

Freeform: an infinite ASCII canvas for sketching, diagrams, terminal-style layouts, and exploratory drawing.
Structured: a semantic canvas where text, backgrounds, boxes, split boxes, and lines stay editable as structured nodes.

1. Structured Canvas

Structured nodes: compose scenes from text, bg, box, splitBox, and line nodes instead of flattening everything into plain text.
Components tab: drag reusable UI molecules such as buttons, badges, inputs, cards, tables, charts, progress bars, calendars, and scroll areas.
Template tab: insert full scene examples such as Safari, File tree, Timeline, Snippet, and Terminal.
Layer-aware backgrounds: bg nodes can sit under text and borders as real background layers, or above content when deliberately reordered.
Split layouts: splitBox supports resizable regions for panels, cards, terminals, and compound UI sketches.

2. Structured Editing

Direct manipulation: select one or many structured nodes, move them together, and resize box, background, split box, and line shapes with handles.
Text editing: double-click structured text to edit it in place; click elsewhere to leave editing mode.
Selection formatting: apply toolbar changes to selected text ranges instead of only whole text nodes.
Shape styling: control character color for box, split box, and line strokes; control background fill separately for bg layers.
Surface and structure copy: copy structured data inside Structured mode, or paste selected structured surfaces into Freeform mode.

3. Freeform Drawing

Multi-layer rendering: background, scratch, and UI layers keep interaction responsive.
Grid-aware Unicode: CJK, Emoji, Nerd Font, PUA icons, and box drawing characters are handled as grid cells.
Smart text flow: newline indentation and two-cell tab stepping keep text aligned.
Character library: browse Unicode, Nerd Font, Emoji, and Box Drawing characters from the right sidebar.
Precision selection: drag rectangular selections, use Shift + Click anchor selection, and fill selected areas with typed characters.

4. Clipboard, ANSI, And Protocol

Context menu: copy, copy as ANSI, cut, paste, and delete from the canvas.
ANSI import/export: paste standard ESC ANSI or ANSI-like text such as [38;2;190;24;93m..., interpreted by the AsciiCanvas Text Protocol v1.
Portable rendering: use @ascii-canvas/fonts for the default renderer font profile and self-hosted glyph assets.
Terminal style parsing: supports 8-color, bright 16-color, 256-color, truecolor SGR, and attributes such as bold, italic, underline, and strikethrough.
Document protocol: JSON protocol v1 covers Freeform and Structured sessions for durable import/export.

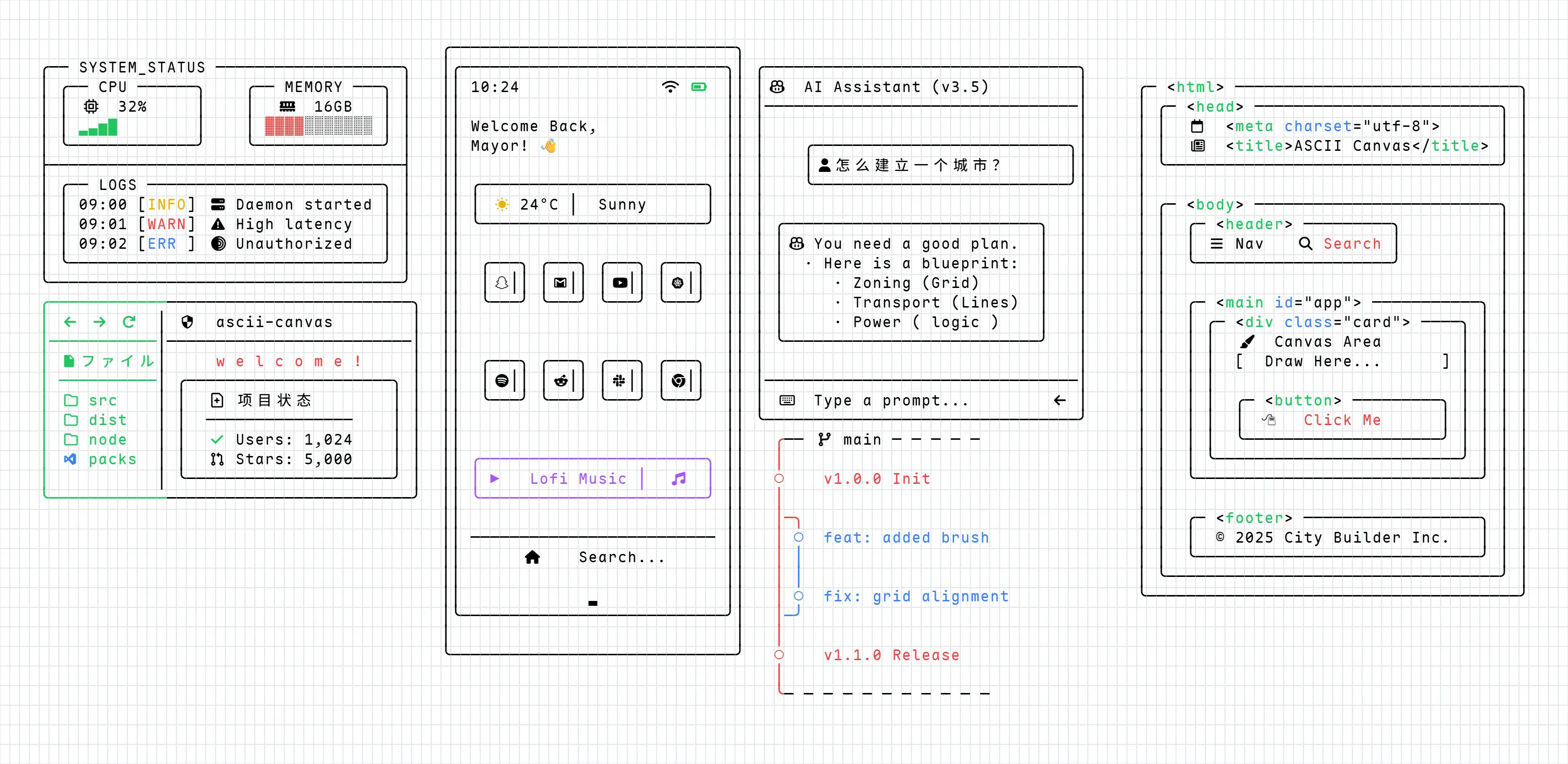

Showcase

Tech Stack

Frontend: React 19, TypeScript, Vite 7
State Management: Zustand 5 with slice-based store modules
Styling: Tailwind CSS 4, Radix UI, shadcn/ui-style primitives
Rendering: layered Canvas 2D rendering with grid metrics for wide characters
Font routing: self-hosted font and Unicode routing
Character catalog: curated packs and lazy Unicode explorer
Synchronization: Yjs / Y-IndexedDB
Gestures: @use-gesture/react
Terminal Text: SGR foreground/background, text attributes, and ANSI/ANSI-like import/export

Getting Started

Installation

git clone https://github.com/Sayhi-bzb/ascii-canvas.git
cd ascii-canvas
npm install

Development

npm run dev

Build

npm run build

Shortcuts And Workflows

Action	Shortcut / Gesture	Description
Freeform selection	`Drag`	Select a rectangular grid area
Anchor selection	`Shift + Click`	Select from the anchor point to the current point
Fill selection	`Char Key`	Fill active selections with the typed character
Smart newline	`Enter`	Insert a new line with inherited indentation
Pave space	`Tab`	Move the text cursor right by 2 grid units
Context menu	`Right Click`	Copy, copy as ANSI, cut, paste, and delete
Structured text edit	`Double Click` text	Enter in-place structured text editing
Structured insert	Drag from sidebar	Drop components or templates into the structured canvas

Paste accepts plain text, app-native rich clipboard data, and ANSI/ANSI-like styled terminal text.

Roadmap

License

This project is licensed under the MIT License. See the LICENSE file for details.
