🌟 FZ nRF24 Jammer 🌟

Welcome to the FZ nRF24 Jammer repository! 🎉 Dive into the world of RF interference with this project based on the Flipper Zero and NRF24.

📚 Table of Contents

• 🚀 What Can You Do with This?
• 📋 List of Components
• 🧑‍🔧 Let's Get Started with Soldering!
• 📥 Installing App
• 🎮 App Control
• 🎉 Final Outcome
• 🙏 Acknowledgments
• ❤️ Support the project
• ⭐ Star History

🚀 What Can You Do with This?

This jammer is based on the Flipper Zero integrated with the NRF24 module. Thanks to its capabilities, you can effectively suppress signals from various technologies, including:

• Bluetooth 🔊
• BLE 📱
• Drones 🚁
• Wi-Fi 📶
• Zigbee📡

📋 List of Components

To bring this project to life, you will need the following components:

1. NRF24L01+PA+LNA module 🛠️
2. 16V capacitor rated at 100µF 🔋
3. Step Down Module AMS1117 3.3V

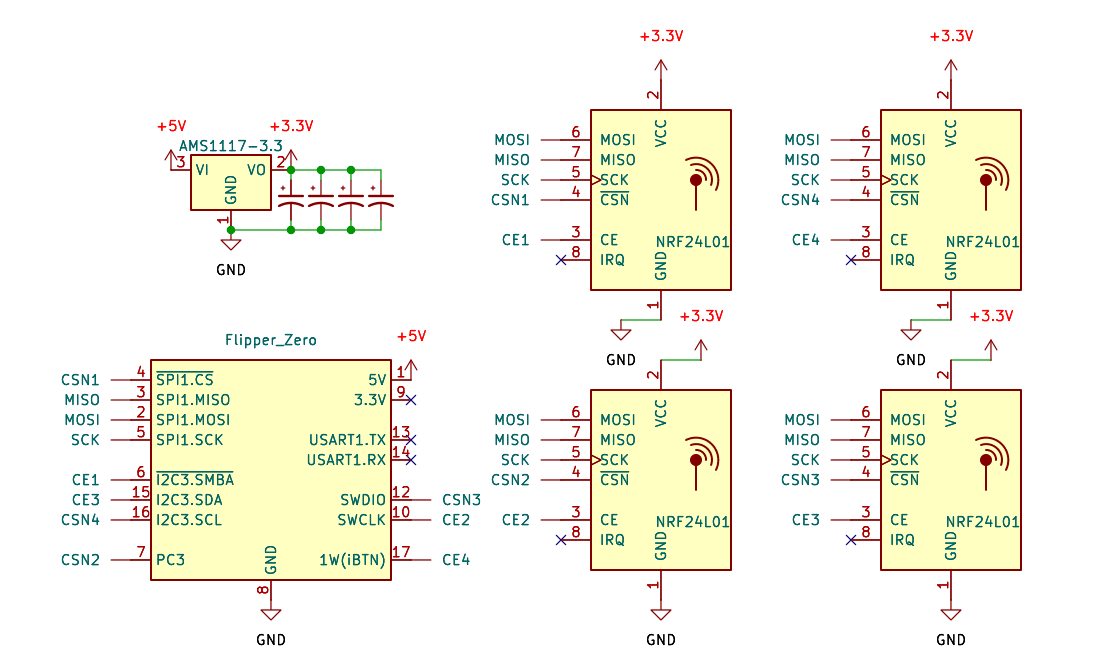

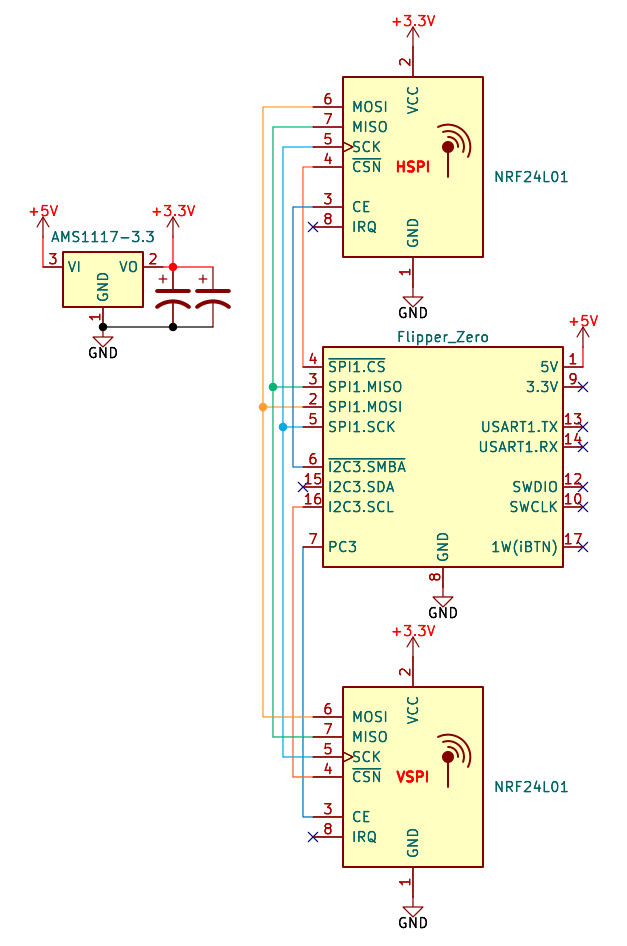

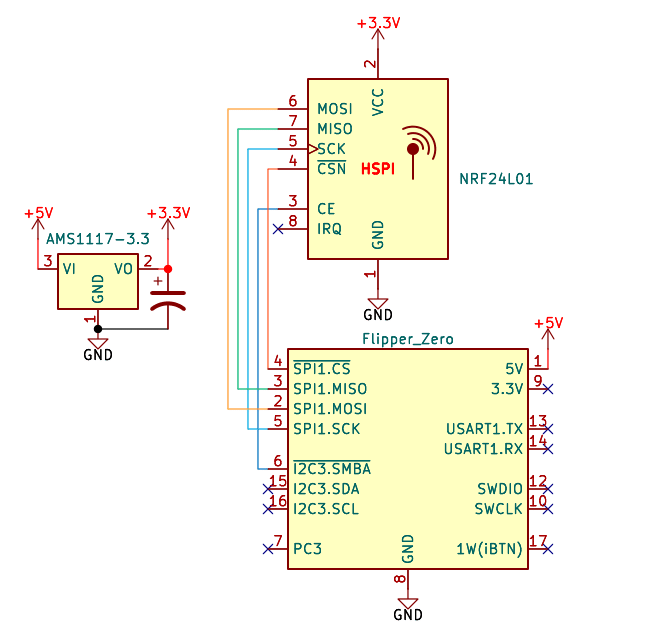

🧑‍🔧 Let's Get Started with Soldering!

Anyone who built the device before version 1.4.0, please add the AMS1117 module to your circuit, without it the nrf24 does not work correctly

📥 Installing App

1. Download the app from the releases section that corresponds to your firmware.
2. Install qFlipper
3. In qFlipper, go to the "File manager" section, and transfer the application downloaded from release to a convenient location on Flipper Zero

🎮 App Control

📋 Menu Navigation

• Up or Right button short press → Next menu item
• Down or Left button short press → Previous menu item
• OK button short press → Select menu item
• Back button short press → Exiting the app

📡 Misc Jammer

• Up button short press → Channel +1
• Up button long press → Continuous channel +1 (every 100ms)
• Up button double press → channel +10
• Up button triple press → channel +100
• Down button short press → Channel -1
• Down button long press → Continuous channel -1 (every 100ms)
• Down button double press → channel -10
• Down button triple press → channel -100
• Right button short press → Switch jamming mode
• Left button short press → Switch jamming mode
• OK button short press → Select channel
• Back button short press → Back to the last selected subject

Back button short press → stops active attacks

🎉 Final Outcome

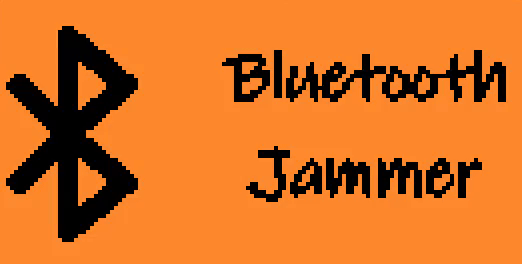

App Appearance

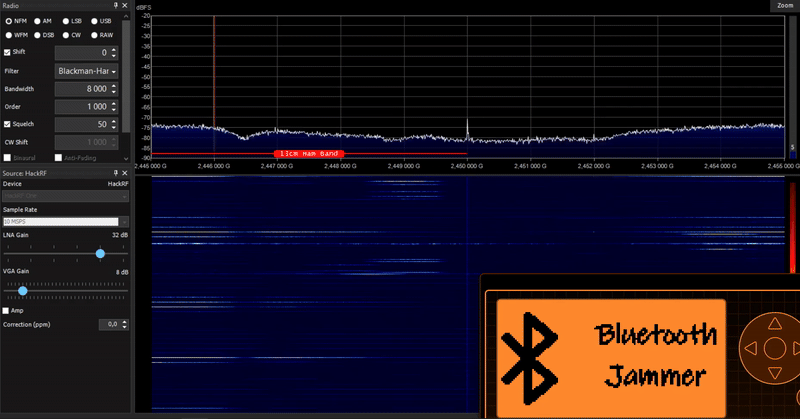

Normal Spectrum

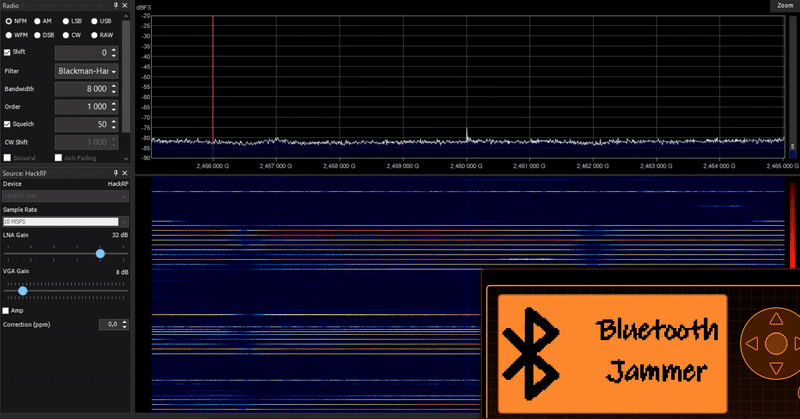

Bluetooth Jam Spectrum

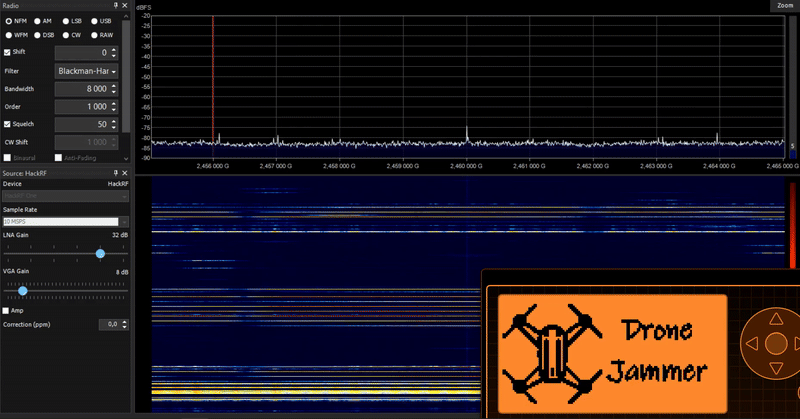

Drone Jam Spectrum

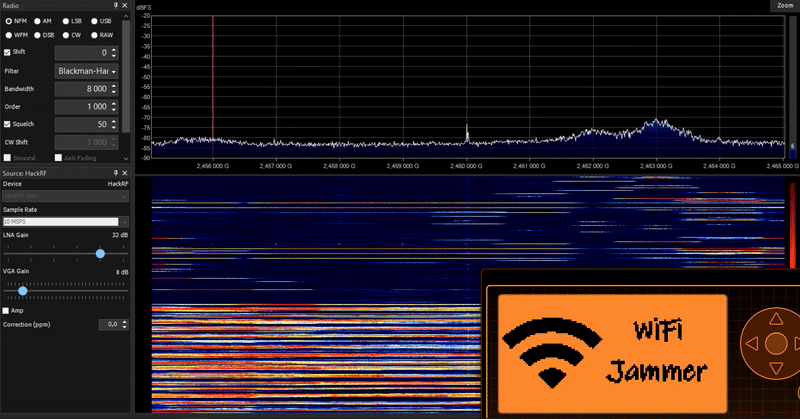

Wi-Fi Jam Spectrum

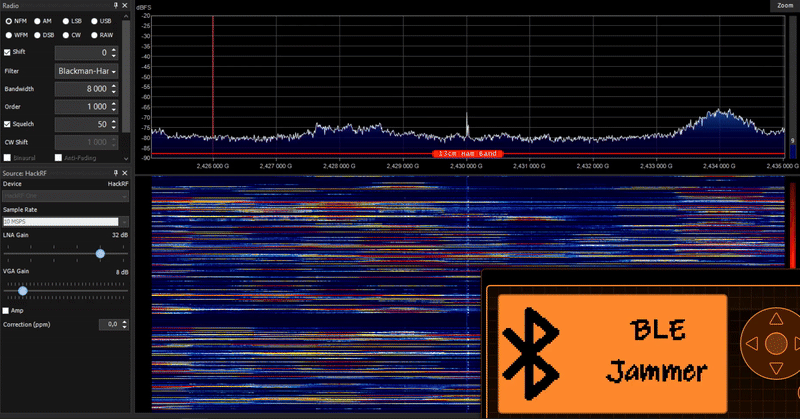

BLE Jam Spectrum

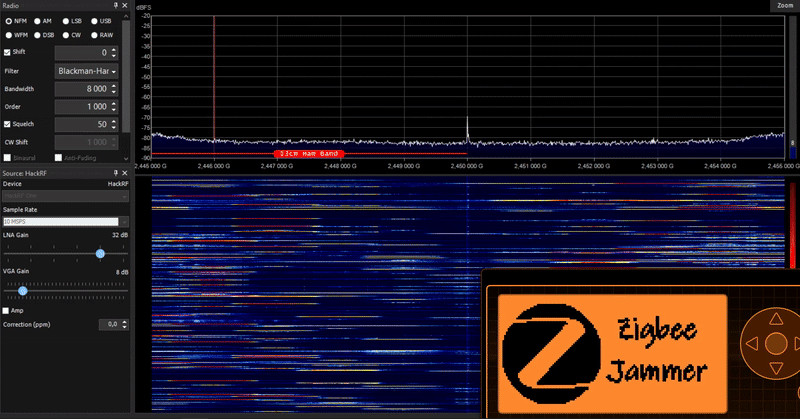

Zigbee Jam Spectrum

🙏 Acknowledgments

• huuck - original author of the FlipperZeroNRFJammer

❤️ Support the Project

If you find this project useful and want to support its ongoing development, consider starring the repository ⭐, following the author, or buying a cup of coffee to keep things fueled! ☕

Every donation is greatly appreciated and directly contributes to the development, testing, and new hardware revisions of this project!
