dsh-computer-use-win

让 DSH 看懂并操作你的 Windows 桌面。

您的 Star ⭐ ↗ 就是我更新的动力，球球了，这对我很重要！如有问题，欢迎去 提 Issue ↗，您来许愿，我来实现！

语言 / Language: 简体中文 · English

Releases · npm · Issues

简体中文

这个插件让 DeepSeek Harness（DSH）里的 agent 看到并操作你电脑上真实的 Windows 程序和网页：找到按钮和输入框，读出屏幕上的文字，点击、打字，切换和管理窗口。网页默认在 DSH 自己的浏览器里后台完成，不动你的鼠标，也不抢前台。

网页在后台完成 · 24 个桌面工具 + 1 个管理入口 · 用到鼠标键盘时有明显提示 · 按 Esc 随时停止 · 中英文设置界面

目录：1 快速开始 · 2 界面预览 · 3 能做什么 · 4 工作原理 · 5 设置 · 6 使用示例 · 7 工具与进阶 · 8 常见问题 · 9 数据与隐私 · 10 文档与开发 · English

1. 快速开始

1.1 安装

你需要一台 Windows 电脑，并且已经装好 DSH Desktop。插件用的是 Windows 自带的 PowerShell 5.1，不用另外安装。

1. 右键点击任务栏托盘里的 DSH 图标，选“打开 DSH 终端”，然后运行：

   dsh plugin --profile desktop add dsh-computer-use-win

2. 再右键托盘图标，选“退出”，然后重新打开 DSH Desktop。只关掉窗口不够：窗口关了，DSH 还在托盘里运行，不会加载新装的插件。

3. 打开 设置 → 电脑操控（鼠标图标）看看各项选项。不改也能直接用，默认加载全部工具。然后给 agent 布置一个桌面任务，比如第 6 节里的例子。

1.2 升级

运行同一条安装命令，然后像上面第 2 步那样完全退出、再重新打开 DSH Desktop。

命令里的 desktop 是 DSH Desktop 使用的配置（profile）。如果装到了别的 profile，正在用的 DSH 不会有任何变化。

1.3 其他安装方式

dsh plugin --profile web add dsh-computer-use-win

dsh plugin --profile desktop add github:Yu-tao-Li/dsh-computer-use-win

{
  "mcpServers": {
    "wincu": {
      "command": "npx",
      "args": ["-y", "dsh-computer-use-win"]
    }
  }
}

2. 界面预览

下面是 DSH Desktop 2.0.18 里的真实截图（中文界面），只保留了浏览器窗口、对话或设置面板，点击图片可以看原图。浏览器和设置页截图来自 0.5.2；对话截图来自更早的一次搜索任务，记录的样式和 0.5.2 相同。

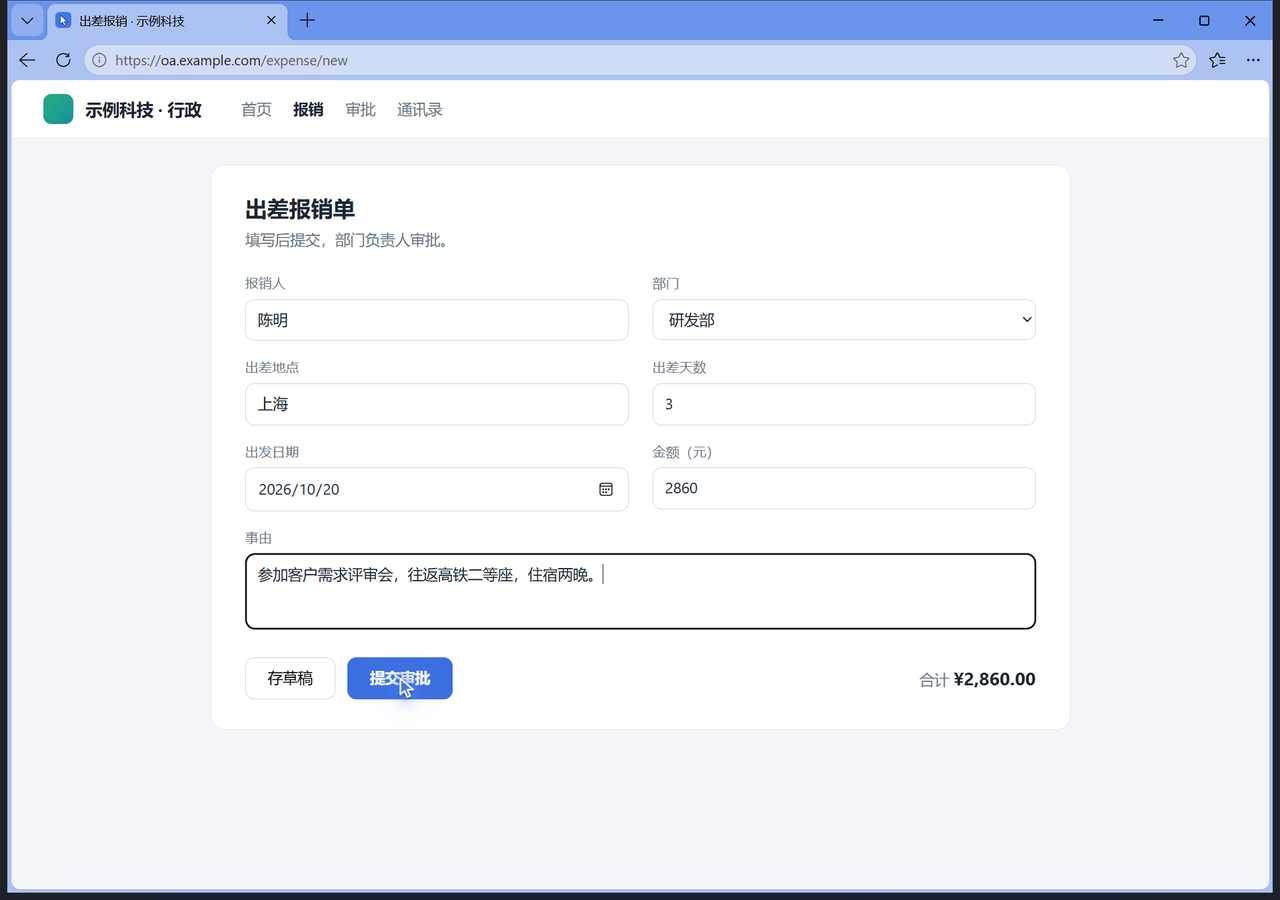

2.1 网页在 DSH 浏览器里操作

网页任务默认交给浏览器操控（Browser Use）。DSH 用自己的浏览器窗口工作：窗口框是 DSH 蓝，正在操作的标签页图标换成蓝色箭头，网页上一个带光晕的小箭头标出它点的位置。它通过浏览器的调试协议读网页、填表、点按钮，不移动你的鼠标，也不把窗口切到前台，你可以接着用别的程序。下图是它在后台填写一张示例报销单时的窗口（示例网页，人名是虚构的）。

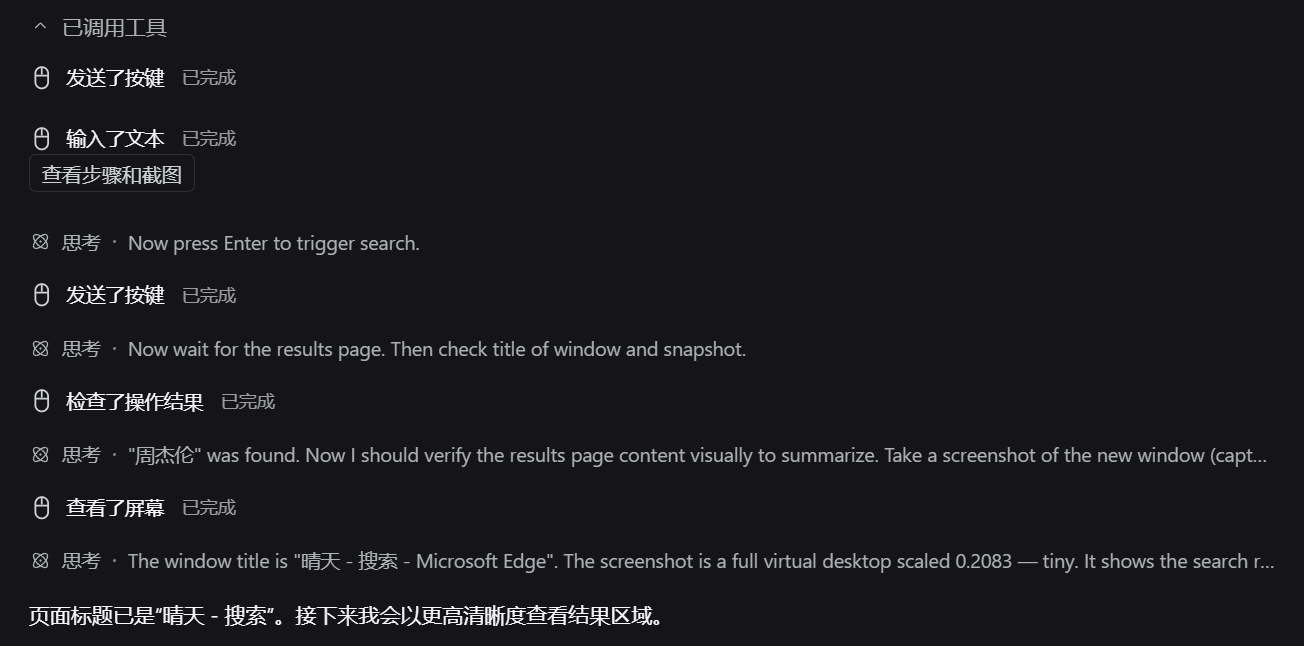

2.2 对话里能看到每一步

每次桌面操作都是一行带鼠标图标的记录，比如“输入了文本”“发送了按键”“检查了操作结果”。点“查看步骤和截图”，可以看到每一步的详情和截图。

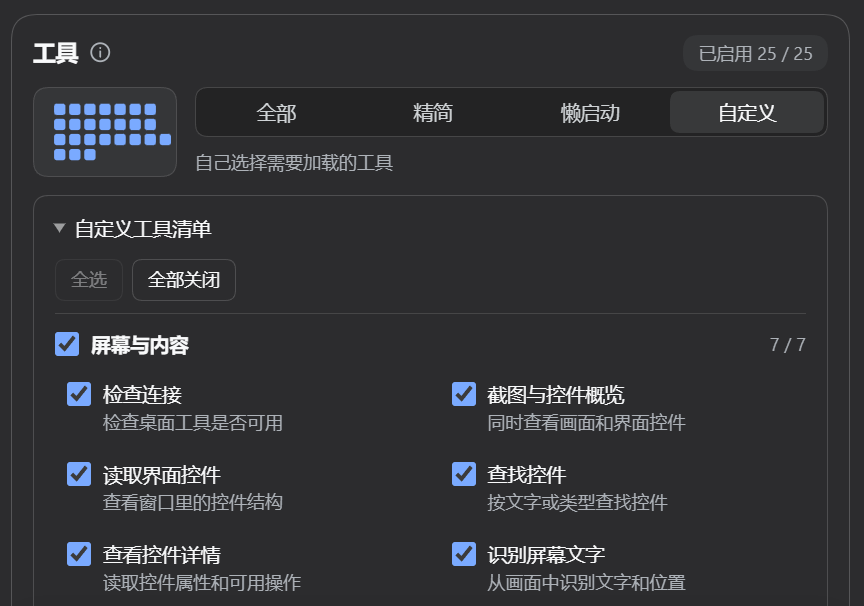

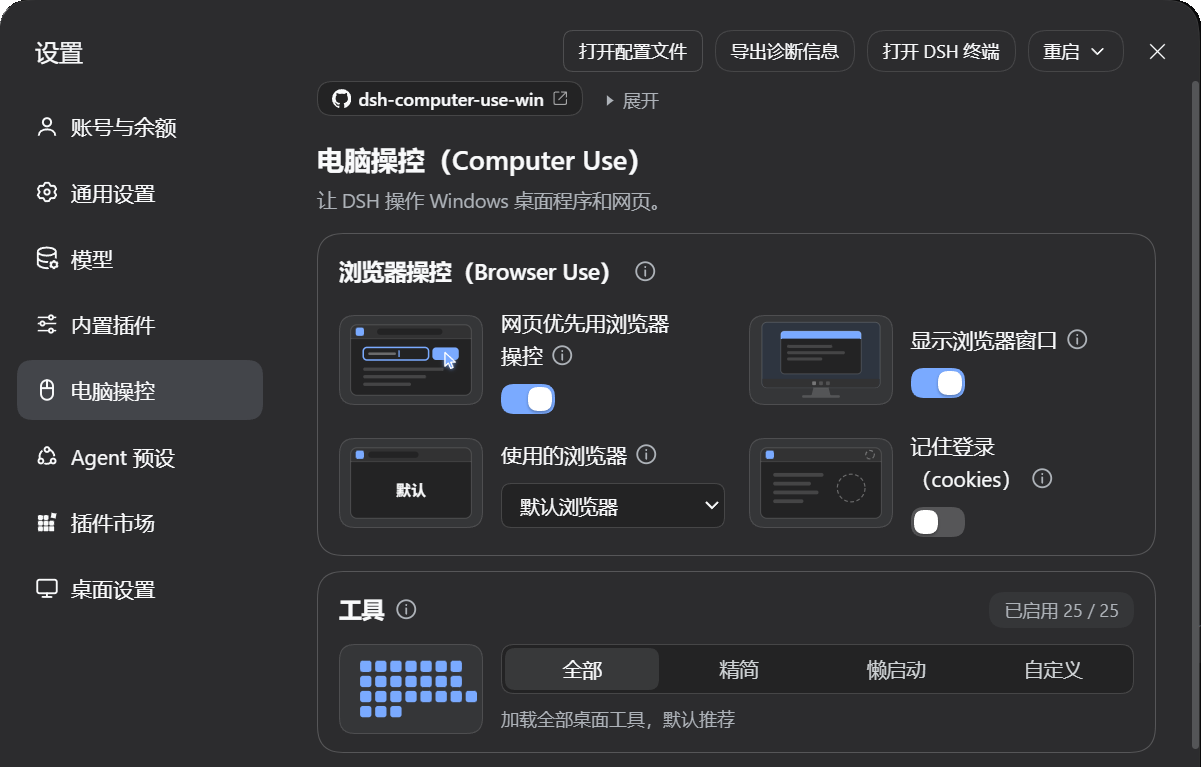

2.3 设置页

设置在左侧的“电脑操控”（鼠标图标）里。最上面是浏览器操控的四项：网页优先用浏览器操控、显示浏览器窗口、使用的浏览器、记住登录（cookies）。下面选工具加载方案：全部、精简、懒启动或自定义，默认是“全部”（25 个工具）。每项左边的小图跟着设置变化，说明收在 ⓘ 图标里。顶部的 Star 和 Issue 说明可以折叠成一个链接，下图就是折叠后的样子，点“展开”就能恢复。

2.4 更多截图

3. 能做什么

在 DSH 对话里，每次桌面操作都写成一句好懂的话，比如“点击了目标位置”，后面标出状态：“已完成”“操作已发送，效果待确认”“未完成”或“已停止”。重新打开对话时，这些记录还在。

4. 工作原理

4.1 一次桌面任务怎么进行

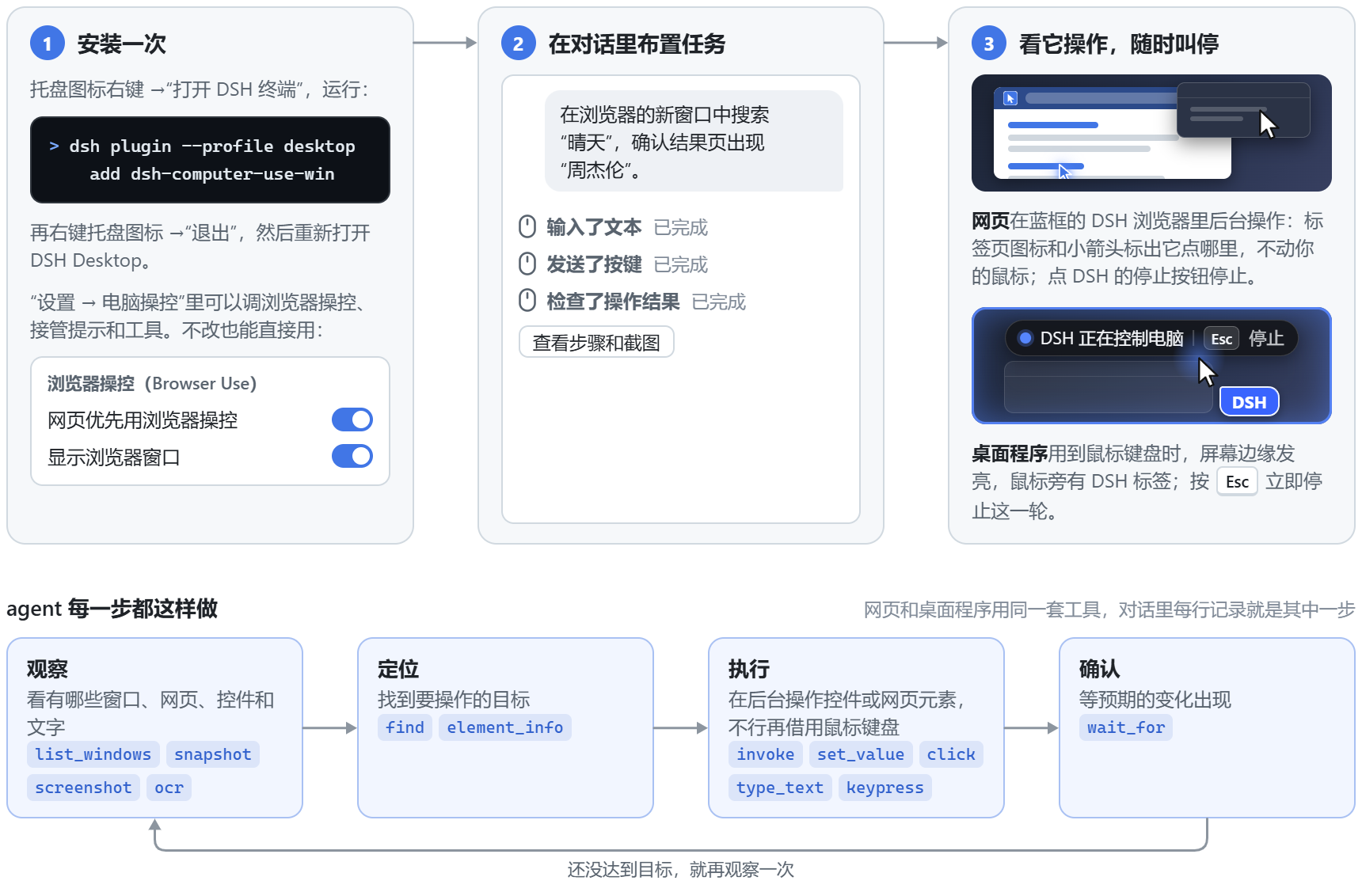

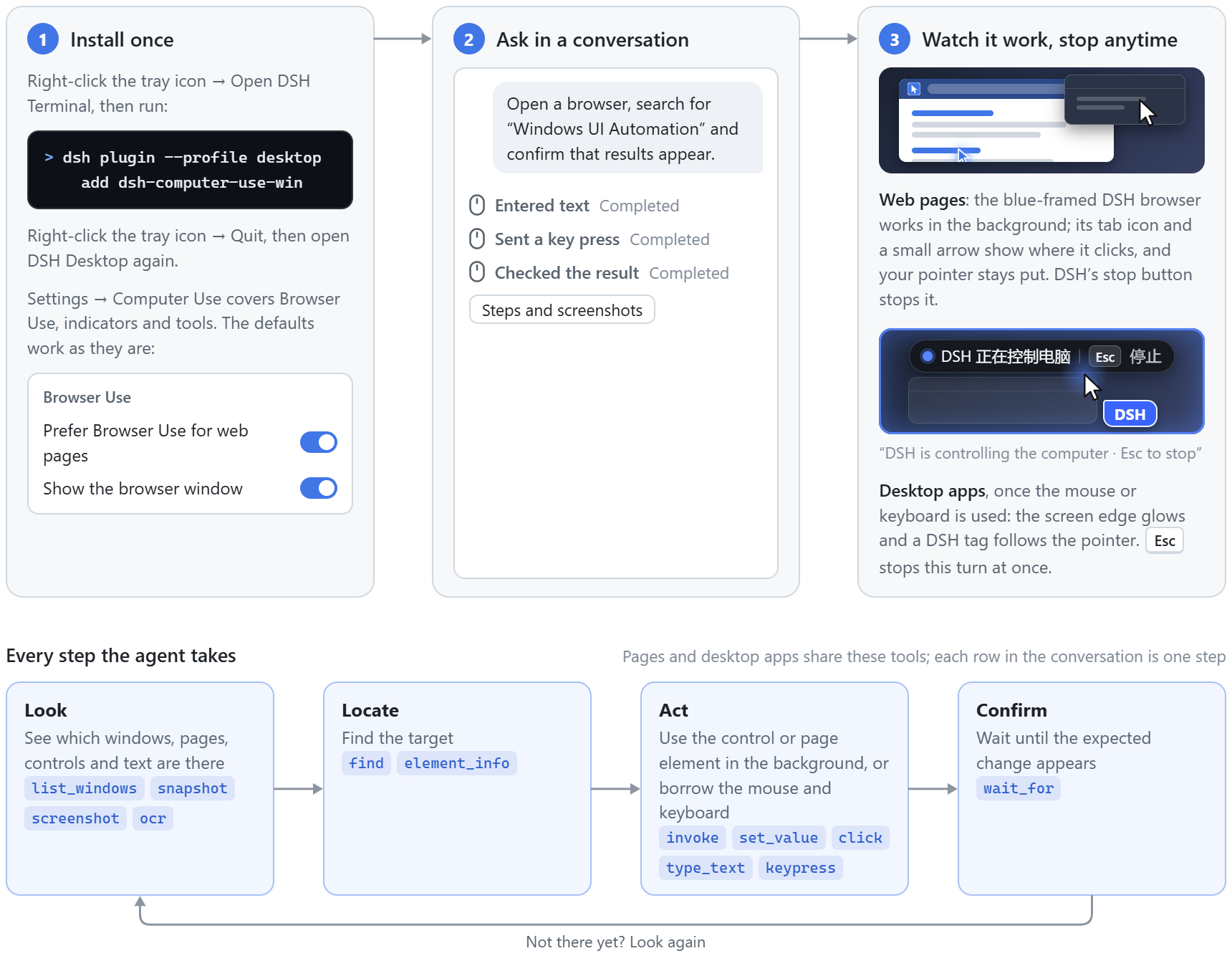

agent 每一步都按“观察 → 定位 → 执行 → 确认”来做，开头那张图的下半部分画的就是这个循环：

1. 观察：列出打开的窗口，读取界面控件，或者截图并识别文字。
2. 定位：找到要操作的按钮、输入框或文字的位置。
3. 执行：能直接操作控件就在后台直接操作，比如按下按钮、填入内容；不行再用鼠标和键盘，这时目标窗口只在这一步来到前面，做完把前台和鼠标还给你。
4. 确认：等预期的变化出现，再读一次界面。没达到目标，就回到第 1 步。

插件会区分两种结果。输入类操作只返回“已发送”（verification: "sent"），因为程序收到了输入，不等于任务完成了。只有 wait_for 看到预期的窗口、控件或文字出现时，才返回“已确认”（verification: "observed"）。所以布置任务时，最好写明要确认什么。

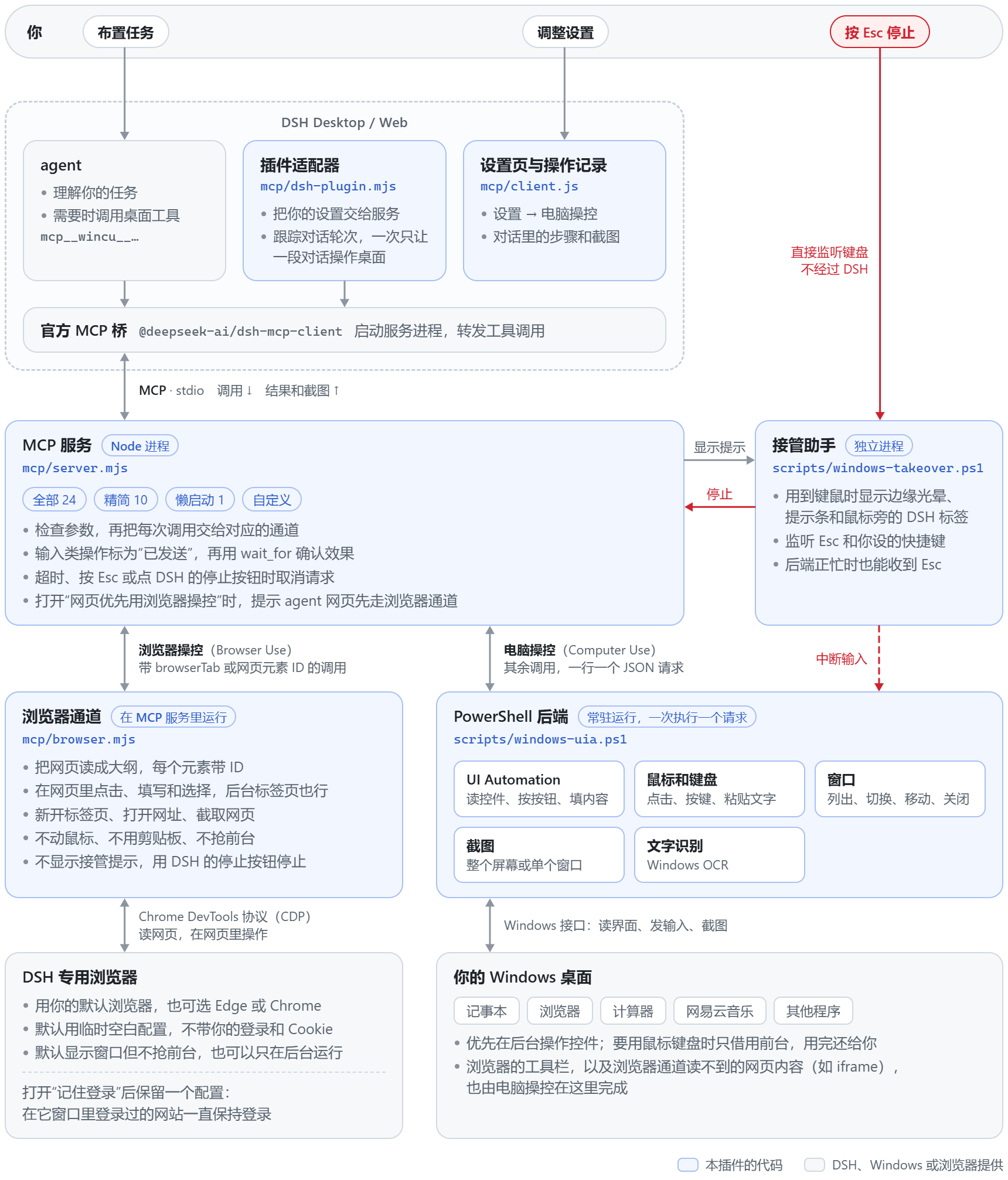

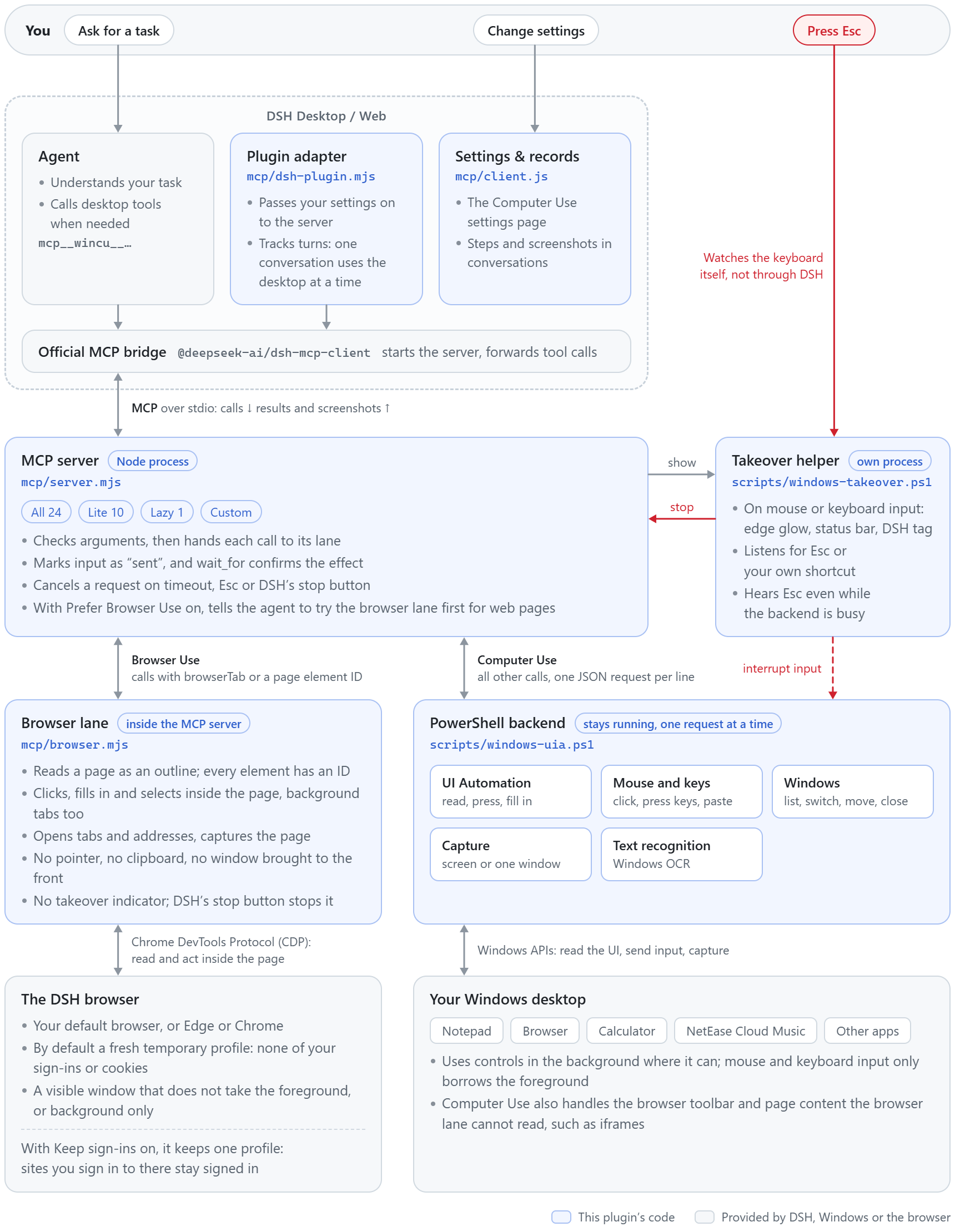

4.2 整体架构

图里蓝色的部分是本插件的代码，灰色的部分由 DSH、Windows 或浏览器提供。各部分的分工如下：

• 插件适配器（mcp/dsh-plugin.mjs）运行在 DSH 里。它把你的设置交给 MCP 服务，并跟踪对话的轮次，保证同一时间只有一段对话在操作桌面。
• 设置页与操作记录（mcp/client.js）就是“设置 → 电脑操控”这一页。它也负责把对话里的工具调用显示成好懂的步骤。
• MCP 服务（mcp/server.mjs）由 DSH 的官方 MCP 桥启动。它按你选的方案提供工具，检查参数后把请求交给后端。
• 浏览器通道（mcp/browser.mjs）也运行在 MCP 服务里。调用带上 browserTab 或网页元素 ID 时，请求不经过 PowerShell 后端，而是通过 Chrome DevTools 协议直接交给浏览器。
• PowerShell 后端（scripts/windows-uia.ps1）负责读取界面、发送输入和截图。它一直运行，所以后续调用不用每次重新启动 PowerShell。请求排队，一次只执行一个，两个操作不会同时抢鼠标和键盘。
• 接管助手（scripts/windows-takeover.ps1）是单独的进程，负责屏幕提示，并直接监听 Esc。因为它不经过 DSH 和后端，后端正忙时也能收到 Esc：还没开始的操作会被取消，正在进行的输入会尽快停下。

更多细节见架构说明。

5. 按你的习惯设置

在 设置 → 电脑操控 里调整，点“保存更改”后生效。界面跟随 DSH 的明暗主题。如果读不到设置，页面会直接说明，而不是显示一份看起来正常的默认值。

5.1 设置项

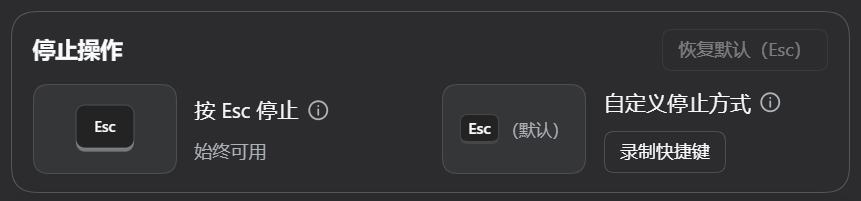

5.2 随时按 Esc 停止

按下 Esc 或你设的快捷键，这一轮的桌面操作和排队中的操作会立即停止，这一轮也不会自动重试。想继续时，直接发新任务或说“继续”就行，不用去设置里恢复。普通的鼠标移动和其他按键不会触发停止。即使关掉了屏幕提示，Esc 照样有效。浏览器操控、读取界面和在后台操作控件都不占用 Esc，你在别的程序里照常用 Esc。一轮操作第一次用到鼠标键盘之前，要停止它，用 DSH 里的停止按钮。

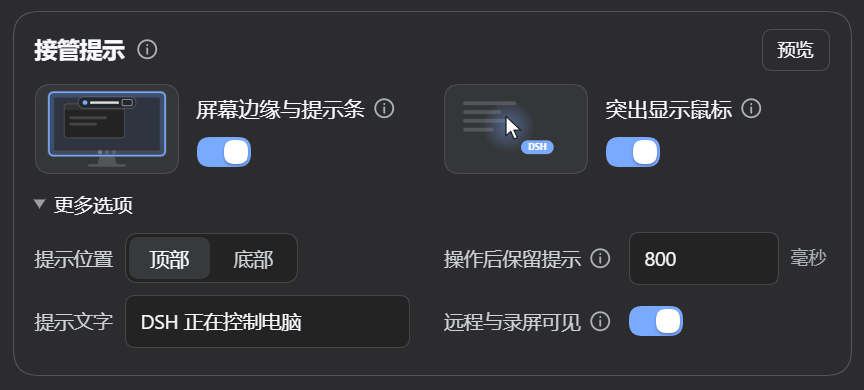

5.3 提示什么时候出现、什么时候收起

一轮操作第一次用到鼠标或键盘时出现，之后这一轮的截图、读取和短暂思考期间一直显示。只读取界面、截图、等待，或者在后台直接操作控件和网页时，不显示提示。这一轮结束、取消或出错后，按你设的时间收起。如果最后一次桌面操作后 30 秒都没有新操作，提示也会收起，下次操作时再出现。单独运行的 MCP 服务没有“轮”的概念，所以每次用到鼠标键盘的调用单独显示。

5.4 使用须知

• 能在后台操作控件时，插件会优先这样做，不动鼠标、不抢前台。按坐标点击、粘贴文字和按键还是要用真实的鼠标键盘：插件先把目标窗口提到前面，点击前检查落点没有被别的窗口挡住，做完把鼠标放回原处、把前台还给你原来的窗口。动作打开了菜单、下拉列表或对话框时，窗口留在前面；你中途换了窗口或移了鼠标，插件不再改回去。这几步进行时最好别同时动鼠标键盘。
• 前台还给你之后，不指定窗口的后续操作和截图仍对准 agent 刚操作的那个窗口，不会打进或读你正在用的窗口。DSH 粘贴的文字不进剪贴板历史（Win+V），粘贴后恢复你原来的剪贴板。
• 同一时间只有一段对话能操作桌面，其他对话会收到“忙碌”的结果。
• 已经发给程序的操作无法撤回。如果程序卡住了，要等它响应后才能停下来。
• 切换方案时，你的自定义清单会保留。保存的改动在当前这一步操作结束后生效，重启后也还在。agent 不能打开你关掉的工具。

完整说明见设置与停止。

6. 使用示例

6.1 可以这样布置任务

在记事本中输入“会议纪要”，再读取文本确认写入成功。

在已打开的计算器中计算 25 × 4，并读取结果。

打开浏览器，搜索“Windows UI Automation”，确认出现搜索结果，并总结你做了什么。

打开网易云音乐，搜索“晴天”，确认结果页出现“周杰伦”。如果无障碍树看不到搜索框，用 OCR 定位可见文字。

任务里写清楚要确认什么，agent 就会去检查结果，而不是把输入发出去就结束（见 4.1）。结果也取决于目标程序、所用的模型和当前页面。

7. 工具与进阶

7.1 工具清单

一共 24 个桌面工具和 1 个管理入口。下表用的是短名；完整名字是 windows_computer_use_<短名>，在 DSH 里通常还会加上 mcp__wincu__ 前缀。

launch_app 通过 Windows 桌面（资源管理器）启动程序，所以程序在工具调用结束后照常运行。cmd、PowerShell 这类命令解释器和脚本宿主只能不带参数启动，命令请交给 DSH 自己的命令行工具。

7.2 精简方案与管理入口

精简方案包含 list_windows、find、click、scroll、type_text、keypress、ocr、screenshot、wait_for、launch_app 和 tools。

有了管理入口 tools，agent 可以查看某个工具的说明，也可以临时卸载或重新加载你允许的工具；reset 会恢复你保存的启动方案。卸载工具不会删掉对话里已有的说明和结果。

7.3 使用建议

能用 UIA 找到控件时，用 invoke / set_value 直接操作，它们在后台完成；invoke 的 action 还能展开、折叠控件，或把它滚到可见处，scroll 给元素 ID 时也先在后台滚动。UIA 找不到，或者只找到很少的控件时，用 OCR 读屏幕上的文字；图标和布局交给能看图的模型读截图。OCR 只返回文字和屏幕坐标，不会编造控件 ID。窗口移动或控件变化后，要重新观察。

Electron 程序、Chrome 和 Edge 都用 Chromium 内核。这类程序要等有程序来读网页，才会生成网页里的控件。所以插件第一次读这类窗口时，会先替它打开网页的控件树，一般不到半秒就能读到网页里的按钮和输入框。结果里的 webContent 说明网页是否就绪；如果显示 starting，稍等再读一次。

完整参数与返回值 · 按需加载与客户端兼容性 · 不同应用的技术差异

7.4 浏览器通道

处理网页时，插件可以不看截图、不动鼠标：它通过 Chrome DevTools 协议（CDP）直接读网页的结构，再按元素点击、填写和选择。这些操作都在浏览器内部完成，不移动你的鼠标，不用剪贴板，也不把窗口切到前台，放在后台的标签页同样可以操作。浏览器操控没有新增工具，只多了一个 browserTab 参数和网页元素 ID：

1. list_windows 的结果里有 browserLane，列出已连接浏览器的标签页。每个标签页有一个 ID，例如 t1a2b。
2. 把这个 ID 作为 browserTab 传给 snapshot、accessibility_tree、find、type_text、keypress、scroll、screenshot 或 wait_for，就是在读或操作这个网页。网页里的每个元素都带 ID，例如 t1a2b:57，可以直接交给 click、set_value、focus、invoke、scroll 和 element_info。每次操作后，结果里会附上页面发生的变化。元素 ID 只对读到它的那个页面有效：页面跳转后要重新读；插件服务重启后，标签页 ID 也会换，要先调用 list_windows。
3. 用 set_value 往 t1a2b:address 写一个网址，这个标签页就会打开它；往 new-tab 写网址，会在后台新开一个标签页。

浏览器有两种来源：

• agent 浏览器（默认）：第一次用 new-tab 时，插件在后台创建一个可见但不抢前台的浏览器窗口。用哪个浏览器可以在设置里选，默认跟随 Windows 的默认浏览器；默认浏览器不是 Edge 或 Chrome 时，用已安装的 Chrome 或 Edge；也可以选 Firefox 系，这是实验功能，在后台运行，见 Firefox 系浏览器。它每次都从新的临时配置开始，标签页放在单独的隔离环境里，看不到你的 Cookie、登录状态和浏览记录。插件进程退出时它跟着退出，空闲 10 分钟也会自己关掉。如果用的是 Edge，Edge 会自动把这个临时配置登录到 Windows 的微软账户；agent 的标签页留在隔离环境里，用不到这个登录状态，窗口上也不显示账户；临时配置在浏览器关闭后删除。在设置里关掉“显示浏览器窗口”，它就在后台运行，没有窗口。浏览器操控不显示屏幕边缘和鼠标标签。
• 记住登录：需要登录的任务，可以在设置里打开“记住登录（cookies）”，默认关闭。打开后，DSH 专用浏览器不再每次用临时配置，而是给每个浏览器保留一个配置（%LOCALAPPDATA%\dsh-computer-use-win\agent-browser 下的 kept-edge、kept-chrome）：你在它的窗口（蓝框）里登录过的网站，之后的任务里还是登录状态，没勾“记住我”的网站也一样。第一次用到要登录的网站时，agent 会请你在这个窗口里登录一次，密码和验证码由你自己输入。你自己的浏览器始终不碰，不用开远程调试，也不会弹出允许提示。用 Edge 时，Edge 会自动用 Windows 上的微软账户登录这个配置，微软自家的网站直接是登录状态；不想这样就选 Chrome。关掉开关后登录仍然保留；要全部清除，退出 DSH 后删除上面的文件夹。风险：DSH 会以你的身份操作你在这里登录过的网站；网页上的文字可能诱导 agent；DSH 浏览器开着时，本机其他程序也能通过它的调试端口连上它。

浏览器通道还读不到 iframe 里的内容，遇到时 agent 会改用电脑操控，通过 UIA 读取和操作。显示浏览器窗口时，Chrome 自己的 JavaScript 弹窗（alert、confirm 这类）有时会短暂切到前台。Ctrl+L、Ctrl+T 这类快捷键属于浏览器窗口，网页内部收不到，请改用 address、new-tab 和 close_window。环境变量和返回格式见 MCP 工具文档。

8. 常见问题

8.1 装好了，却看不到工具或设置页，或者还是旧版本？

最常见的原因是 DSH Desktop 没有完全重启：只关窗口时，DSH 还在托盘里运行旧版插件。请右键托盘图标选“退出”，再重新打开。

也要确认插件装到了 DSH 正在用的 profile。版本号可以在 MCP 返回的 initialize.serverInfo.version 里看；选“全部”方案时，也可以让 agent 调用 health 检查连接。同一个 profile 里只应有一个 serverName: wincu 服务。如果旧版本留下过重复的手动配置，先备份，再按升级说明处理。

保存设置后，DSH 会在 profile 的 cordis.patch.yml 里写一条 id: mcp-dsh-computer-use-win 的记录，里面就是你的设置。这条记录是正常的，不要删。选了“精简”或“懒启动”时，不在方案里的工具（比如 health）本来就不会出现，直接调用会显示 unknown tool。让 agent 调用管理入口 windows_computer_use_tools（{"operation":"list"}），就能看到哪些工具已经加载、哪些还能加载。如果保存的设置里有这个版本不认识的值，比如换过版本以后，插件会对这一项改用默认值、照常加载，并在 tools 列表的 notices 和 health 里写明改了哪一项。

提交问题时，请附上 DSH Desktop、dsh 内核和插件的版本号，以及去掉隐私后的报错文字。

8.2 为什么点击或输入没有反应？

先看目标窗口有没有被挡住、程序是不是卡住了。按坐标点击时，落点露出的是别的窗口（比如通知）就不会点下去，结果会说出挡住它的窗口（POINT_COVERED）；结果里的 foreground 和 pointer 说明这一步有没有借用前台、有没有还回去。Chromium、Electron 和部分 WinUI 程序会忽略后台输入，所以优先用 UIA 操作，或者先把目标窗口切到前台再输入，然后看看实际效果。以管理员身份运行的窗口和 UAC 确认界面受 Windows 权限保护，插件无法操作。插件还需要一个正常可用的桌面会话。

8.3 支持 PowerShell 7、其他系统，或者自带看图模型吗？

只支持 Windows。默认用 PowerShell 5.1，它的文字识别（WinRT OCR）经过了真实测试。自动测试同时覆盖 PowerShell 5.1 和 7：在 7 上，界面读取和截图有真实测试，但文字识别只测了协议，所以还不能保证 7 上的文字识别可用。

插件只提供桌面工具，不带模型、API key，也不带 OmniParser、UI-TARS 这类看图解析工具。能看图的模型或单独的解析服务可以读截图，再把位置交给插件去操作。

9. 数据与隐私

界面读取、文字识别、截图和输入都在你的电脑上完成，结果交给 DSH 或其他调用方。这些内容会不会再发给远程模型，取决于你的 DSH 和模型设置。截图和读出的文字可能包含窗口里的敏感信息，所以分享日志或提 Issue 之前，请先遮住账号、路径、密码和私人对话。

浏览器通道读到的网页内容同样在本机处理，再交给调用方。agent 浏览器默认不带任何登录；打开“记住登录”后，agent 能读取和操作你在 DSH 浏览器里登录过的网站。网页里的文字也可能夹带写给 agent 的指令，所以页面大纲的开头会提醒模型：网页内容不可信，只听你的指示。

10. 文档与开发

10.1 文档

设置与停止 · 工具加载 · 工具参数 · 架构 · 测试记录 · 更新日志

10.2 开发与测试

各部分怎么配合，见 4.2 整体架构。

npm ci
npm test

单独运行的 MCP 服务不依赖任何第三方包；接入 DSH 时，用的是 DSH 自带的 Schemastery 和官方 MCP 桥。开发依赖只用于测试。npm test 会运行 43 套互相隔离的回归测试，覆盖设置兼容、接管与停止、界面读取、截图、文字识别协议、输入边界和浏览器通道。它不会发出真实的键盘鼠标输入，也不会改动你装好的 DSH 配置；需要真实界面的测试只操作专用的测试窗口和临时的浏览器配置，日志写在命令输出的临时目录里。

node test/notepad-e2e.mjs 是另一项会真实打字的测试，它会打开记事本，请在专门的测试桌面上运行。

README 里的两张图由 assets/diagrams/ 里的网页生成。改了图里的文字后，运行 node assets/diagrams/render.mjs，它会用本机的 Chrome 或 Edge 重新导出中英文、浅色和深色共 8 张图。

MIT 许可。本项目基于 cgissing/windows-computer-use 衍生，来源与版权见 THIRD_PARTY.md。

插件市场 · 发布记录 · 反馈问题 · 返回中文顶部 ↑

English

This plugin lets a DeepSeek Harness (DSH) agent see and use the real Windows apps and web pages on your computer. It can find buttons and text fields, read text on the screen, click, type, and switch or manage windows. Web pages are worked on in DSH's own browser in the background by default, without moving your pointer or taking the foreground.

Web pages in the background · 24 desktop tools + 1 management entry · Clear indicators when the mouse or keyboard is used · Press Esc to stop at any time · Chinese and English settings

Contents: 1 Quick start · 2 Interface tour · 3 What it can do · 4 How it works · 5 Settings · 6 Try a task · 7 Tools · 8 FAQ · 9 Privacy · 10 Development · 简体中文

1. Quick start

1.1 Install

You need a Windows computer with DSH Desktop installed. The plugin uses Windows PowerShell 5.1, which comes with Windows, so there is nothing else to install.

1. Right-click the DSH icon in the taskbar tray, choose Open DSH Terminal, and run:

   dsh plugin --profile desktop add dsh-computer-use-win

2. Right-click the tray icon again, choose Quit, then open DSH Desktop again. Closing the window is not enough: DSH keeps running in the tray and does not load the new plugin.

3. Open Settings → Computer Use (the mouse icon; 电脑操控 in the Chinese interface) to look around. You don't have to change anything: all tools are loaded by default. Then give the agent a desktop task, such as one from section 6.

1.2 Upgrade

Run the same install command, then fully quit and reopen DSH Desktop as in step 2 above.

The desktop in the command is the profile that DSH Desktop uses. If you install into another profile, the DSH you are using does not change.

1.3 Other ways to install

dsh plugin --profile web add dsh-computer-use-win

dsh plugin --profile desktop add github:Yu-tao-Li/dsh-computer-use-win

{
  "mcpServers": {
    "wincu": {
      "command": "npx",
      "args": ["-y", "dsh-computer-use-win"]
    }
  }
}

2. Interface tour

These are real screenshots from DSH Desktop 2.0.18, with the Chinese interface. Each image shows only the browser window, the conversation or the settings panel; click one to see it at full size. The browser and settings screenshots come from 0.5.2. The conversation screenshots come from an earlier search task, and the rows look the same in 0.5.2.

2.1 Web pages are worked on in the DSH browser

Web tasks go to Browser Use by default. DSH works in a browser window of its own: the window frame is DSH blue, the tab it works in shows a blue arrow as its icon, and a small glowing arrow on the page marks where it clicks. It reads pages, fills in forms and presses buttons through the browser's debugging protocol, without moving your pointer or bringing the window to the front, so you can keep using other apps. The screenshot shows the window while it filled in a sample expense form in the background (a demo page; the name is made up).

2.2 Every step shows up in the conversation

Each desktop action is a row with a mouse icon, such as “Entered text”, “Sent a key press” or “Checked the result” (the screenshot shows the Chinese labels). Click Steps and screenshots to see the details and screenshots of each step.

2.3 Settings page

The settings are under Computer Use, the tab with the mouse icon on the left (电脑操控 in the Chinese interface). Browser Use comes first, with four items: Prefer Browser Use for web pages, Show the browser window, Browser and Keep sign-ins (cookies). Below it, pick how tools are loaded: All, Lite, Lazy or Custom. All (25 tools) is the default. The small picture to the left of each item follows its setting, and the explanations sit behind ⓘ icons. Collapse folds the Star and Issue note at the top into a single link, as in the screenshot, and Expand brings it back.

2.4 More screenshots

3. What it can do

In a DSH conversation, each desktop action reads as a short sentence, such as “Clicked the target”, followed by its status: “Completed”, “Input sent; effect unconfirmed”, “Incomplete” or “Stopped”. The records are still there when you reopen the conversation.

4. How it works

4.1 How a desktop task runs

The agent takes every step as look → locate → act → confirm. The lower half of the first figure shows this loop:

1. Look: list the open windows, read the controls, or take a screenshot and recognize the text.
2. Locate: find the button, text field or piece of text to work on.
3. Act: operate the control directly in the background when possible, such as pressing a button or filling in a field; otherwise use the mouse and keyboard, with the target window in front for that step only and the foreground and mouse given back afterwards.
4. Confirm: wait for the expected change and read the screen again. If the goal is not met yet, go back to step 1.

The plugin keeps two kinds of result apart. Input actions only report “sent” (verification: "sent"), because an app receiving input does not mean the task is done. Only wait_for reports “observed” (verification: "observed"), when the expected window, control or text actually appears. So when you give a task, say what should be checked.

4.2 Architecture

The blue parts are this plugin's code, and the grey parts come from DSH, Windows or the browser. Here is what each part does:

• The plugin adapter (mcp/dsh-plugin.mjs) runs inside DSH. It passes your settings to the MCP server and tracks conversation turns, so only one conversation uses the desktop at a time.
• The settings page and step records (mcp/client.js) are the Settings → Computer Use page. The same file turns the tool calls in a conversation into readable steps.
• The MCP server (mcp/server.mjs) is started by DSH's official MCP bridge. It offers the tools of your preset, checks the arguments and passes each request to the backend.
• The browser lane (mcp/browser.mjs) also runs in the MCP server. When a call carries browserTab or a page element ID, it skips the PowerShell backend and goes straight to the browser over the Chrome DevTools Protocol.
• The PowerShell backend (scripts/windows-uia.ps1) reads the screen, sends input and takes screenshots. It stays running, so later calls skip PowerShell startup. Requests wait in a queue and run one at a time, so two actions never fight over the mouse and keyboard.
• The takeover helper (scripts/windows-takeover.ps1) is a separate process that draws the indicators and listens for Esc itself. Because it goes through neither DSH nor the backend, it hears Esc even while the backend is busy: actions that have not started are cancelled, and input in progress stops as soon as it can.

See the architecture notes for more detail.

5. Make it yours

Change these in Settings → Computer Use, then click Save changes. The page follows DSH's light or dark theme. If the settings cannot be read, the page says so instead of showing defaults that look valid.

5.1 Settings

5.2 Press Esc to stop at any time

Esc, or your own shortcut, stops this turn's desktop actions right away, including queued ones, and the agent will not retry them in the same turn. To carry on, send a new task or say “continue”. There is no need to visit settings. Normal mouse movement and other keys do not stop anything. Esc still works even if you turn the indicators off. Browser Use, reading the screen and background control actions do not take Esc, so Esc keeps working in your other apps. Until a turn first uses the mouse or keyboard, stop it with the stop button in DSH.

5.3 When the indicators appear and disappear

They appear the first time a turn uses the mouse or keyboard and stay on through that turn's screenshots, reading and short pauses for thinking. Reading the screen, taking screenshots, waiting, and operating controls or web pages in the background show no indicator. When the turn ends, is cancelled or fails, they fade out after the delay you set. If 30 seconds pass after the last desktop action with nothing new, they also hide, and they come back with the next action. A standalone MCP server has no notion of turns, so it shows them for each call that uses the mouse or keyboard.

5.4 Good to know

• The plugin operates controls in the background when it can, without moving the mouse or the foreground. Clicks at screen positions, pasting text and key presses still need the real mouse and keyboard: the plugin brings the target window forward, checks that no other window covers the click point, and afterwards puts the mouse back and returns the foreground to the window you had in front. If the action opened a menu, drop-down list or dialog, the window stays in front; if you switched windows or moved the mouse meanwhile, the plugin leaves them as you set them. Avoid using the mouse and keyboard during these steps.
• After the foreground goes back to you, later actions and screenshots that name no window still aim at the window the agent was working in, never at the one you are using. Text DSH pastes stays out of your clipboard history (Win+V), and your clipboard is restored after the paste.
• Only one conversation can use the desktop at a time. Others get a “busy” result.
• An action already delivered to an app cannot be undone. If the app is stuck, stopping waits until it responds.
• Switching presets keeps your custom list. Saved changes take effect after the current step finishes and survive a restart. The agent cannot turn on tools you have turned off.

See settings and stopping for the full details.

6. Try a task

6.1 Example tasks

Type “Meeting notes” into Notepad, then read the text back to confirm it was entered.

Calculate 25 × 4 in the open Calculator window and read the result.

Open a browser, search for “Windows UI Automation”, confirm that results appeared, and summarize what you did.

Open NetEase Cloud Music, search for “晴天”, and confirm that “周杰伦” appears in the results. If UIA cannot find the search box, use OCR to locate visible text.

When the task says what to confirm, the agent checks the result instead of stopping once the input is sent (see 4.1). Results also depend on the app, the model and the page you are on.

7. Tools and options

7.1 Tool list

There are 24 desktop tools and 1 management entry. The table uses short names. The full name is windows_computer_use_<name>, and DSH usually adds a mcp__wincu__ prefix.

launch_app starts programs through the Windows desktop (Explorer), so they keep running after the tool call ends. Command interpreters and script hosts such as cmd and PowerShell start only without arguments; run commands with DSH's own shell tool.

7.2 Lite preset and the management entry

Lite includes list_windows, find, click, scroll, type_text, keypress, ocr, screenshot, wait_for, launch_app and tools.

Through the tools entry, the agent can read a tool's description, and unload or reload tools you have allowed. reset returns to your saved startup set. Unloading a tool does not remove its description or results from the conversation.

7.3 Tips

When UIA can find a control, operate it directly with invoke or set_value; both run in the background. With action, invoke can also expand or collapse a control or scroll it into view, and scroll on an element ID scrolls in the background first. When UIA finds nothing, or very little, read the screen text with OCR, and let a model that can see images read the screenshot for icons and layout. OCR returns only text and screen positions; it never makes up control IDs. Look again after a window moves or a control changes.

Electron apps, Chrome and Edge are all built on Chromium. Such an app builds the controls of a page only once another program reads the page. So the first time the plugin reads one of these windows, it turns the page's control tree on, and the page's buttons and input boxes usually become readable within half a second. webContent in the result tells you whether the page is ready. If it says starting, wait a moment and read again.

Parameters and results · On-demand loading and client compatibility · How apps differ

7.4 Browser lane

For web pages, the plugin does not have to read screenshots or move the mouse. It reads the page structure over the Chrome DevTools Protocol (CDP), then clicks, fills and selects elements directly. All of this happens inside the browser: your mouse does not move, the clipboard is not used and no window comes to the front, so tabs in the background work too. Browser Use adds no tools; what is new is a browserTab argument and page element IDs:

1. The result of list_windows includes browserLane, which lists the tabs of connected browsers. Each tab has an ID such as t1a2b.
2. Pass that ID as browserTab to snapshot, accessibility_tree, find, type_text, keypress, scroll, screenshot or wait_for to read or operate that page. Every element on the page comes with an ID such as t1a2b:57, which works directly in click, set_value, focus, invoke, scroll and element_info. After each action, the result shows what changed on the page. An element ID is valid only for the page it was read from: read the page again after it navigates. After the plugin's server restarts, tab IDs change too, so call list_windows first.
3. set_value with a web address on t1a2b:address opens it in that tab; on new-tab, it opens the address in a new background tab.

The browser comes from one of two places:

• The agent browser (default). The first new-tab opens a visible browser window without bringing it to the front. Which browser is a setting: by default the Windows default browser, and an installed Chrome or Edge when that is neither; the Firefox family is an experimental choice that runs in the background (see Firefox-family browsers). It starts from a fresh temporary profile every time, and its tabs run in a separate isolated context, so they never see your cookies, sign-ins or history. It exits with the plugin process and closes itself after 10 idle minutes. Edge signs a new profile in to your Windows Microsoft account on its own; the agent's tabs stay in the isolated context and cannot use that sign-in, the window shows no account, and the temporary profile is deleted after the browser closes. Turn off Show the browser window in settings to run it in the background with no window. Browser Use shows no screen edges or pointer tag.
• Keep sign-ins. For tasks that need you signed in, turn on Keep sign-ins (cookies) in settings; it is off by default. The DSH browser then stops starting from a temporary profile and keeps one profile per browser (kept-edge, kept-chrome under %LOCALAPPDATA%\dsh-computer-use-win\agent-browser): sites you sign in to in its window (the blue frame) are still signed in for later tasks, also sites where you did not tick “remember me”. The first time a task needs a site that asks you to sign in, the agent asks you to sign in once in that window; you type passwords and codes yourself. Your own browser is never touched: no remote debugging to turn on and no prompts to allow. With Edge, Edge signs this profile in with the Microsoft account of your Windows, so Microsoft’s own sites are signed in already; choose Chrome to avoid that. Sign-ins stay when you turn the switch off; to remove them all, exit DSH and delete that folder. Risks: DSH acts as you on the sites you signed in to there; page text can try to steer the agent; and while the DSH browser runs, other programs on this computer can connect to it through its debugging port.

The browser lane does not read content inside iframes yet; there the agent switches to Computer Use and reads and operates it through UIA. With the browser window shown, Chrome's own JavaScript dialogs (alert, confirm and the like) sometimes come to the front briefly. Shortcuts such as Ctrl+L and Ctrl+T belong to the browser window and never reach the page; use address, new-tab and close_window instead. Environment variables and result formats are in the MCP tools reference.

8. FAQ

8.1 It's installed, but I see no tools or settings, or an old version is still running

Most often, DSH Desktop was not fully restarted. Closing the window leaves DSH running in the tray with the old plugin, so right-click the tray icon, choose Quit, and open DSH Desktop again.

Also check that the plugin went into the profile DSH is actually using. The version appears in the MCP initialize.serverInfo.version; with All selected, the agent can also call health to check the connection. Each profile should have only one serverName: wincu service. If an older version left a duplicate manual entry, back it up first, then follow the upgrade notes.

When you save settings, DSH writes a row with id: mcp-dsh-computer-use-win into the profile's cordis.patch.yml. That row holds your settings, so keep it. With Lite or Lazy selected, tools outside the preset, such as health, are not listed, and calling one directly returns unknown tool. Ask the agent to call the management entry windows_computer_use_tools with {"operation":"list"} to see which tools are loaded and which can be loaded. If a saved setting holds a value this version does not offer, for example after switching versions, the plugin uses the default for that setting, loads as usual, and names the reset value under notices in the tools list and in health.

When you report an issue, include the DSH Desktop, dsh core and plugin versions, plus the error text with private details removed.

8.2 Why did a click or typed text have no effect?

Check that the target window is not covered and still responds. A click at a screen position whose point shows another window, such as a notification, is not sent, and the result names the covering window (POINT_COVERED). The foreground and pointer fields of a result say whether the step borrowed the foreground and whether it gave it back. Chromium, Electron and some WinUI apps ignore input sent to background windows, so prefer UIA, or bring the window to the front before typing, and then look at the result. Windows protects apps running as administrator and the UAC prompt, so the plugin cannot operate them. The plugin also needs a normal, unlocked desktop session.

8.3 What about PowerShell 7, other systems or a built-in vision model?

It works on Windows only. PowerShell 5.1 is the default, and its text recognition (WinRT OCR) has been tested on real screens. The automated tests cover both PowerShell 5.1 and 7. Under 7, reading controls and taking screenshots are tested for real, but text recognition is only tested at the protocol level, so OCR under PowerShell 7 is not guaranteed.

The plugin provides desktop tools only. It does not include a model, an API key, or image parsers such as OmniParser or UI-TARS. A model that can see images, or a separate parsing service, can read the screenshots and pass positions back to the tools.

9. Data and privacy

Reading controls, text recognition, screenshots and input all run on your computer. The results go to DSH or another caller, and whether they are then sent to a remote model depends on your DSH and model settings. Screenshots and recognized text can include sensitive content from your windows, so hide accounts, paths, passwords and private chats before you share logs or open an issue.

Pages read through the browser lane are also processed on your computer before they go to the caller. By default the agent browser carries no sign-ins; with Keep sign-ins on, the agent can read and operate the sites you signed in to in the DSH browser. Page text can also carry instructions aimed at the agent, so every page outline starts by reminding the model that page content is untrusted and only your instructions count.

10. Documentation and development

10.1 Documentation

Settings and stopping · Tool loading · Tool reference · Architecture · Test notes · Changelog

10.2 Development and testing

See 4.2 Architecture for how the parts fit together.

npm ci
npm test

The standalone MCP server needs no third-party packages at runtime. Inside DSH, it uses DSH's own Schemastery and the official MCP bridge. Development dependencies are only for testing. npm test runs 43 isolated regression suites covering settings compatibility, takeover and stopping, reading controls, capture, OCR protocols, input edge cases and the browser lane. It sends no real keyboard or mouse input and does not touch your installed DSH profiles. Tests that need a real interface use only their own test windows and temporary browser profiles, and logs go to the temporary folder the command prints.

node test/notepad-e2e.mjs is a separate test that really types. It opens Notepad, so run it on a dedicated test desktop.

The two figures in this README are generated from the pages in assets/diagrams/. After changing their text, run node assets/diagrams/render.mjs; it uses your local Chrome or Edge to export all 8 images again, in Chinese and English, light and dark.

MIT licensed. Derived from cgissing/windows-computer-use; see THIRD_PARTY.md for attribution and copyright.

Plugin marketplace · Releases · Report an issue · Back to English ↑

Star 趋势 / Star History
