Enterprise-grade management platform for Proxmox Virtual Environment

Overview

ProxCenter is a modern web interface for monitoring, managing, and optimizing Proxmox VE infrastructure. Multi-cluster management, cross-hypervisor migration, workload balancing, and more, all from a single pane of glass.

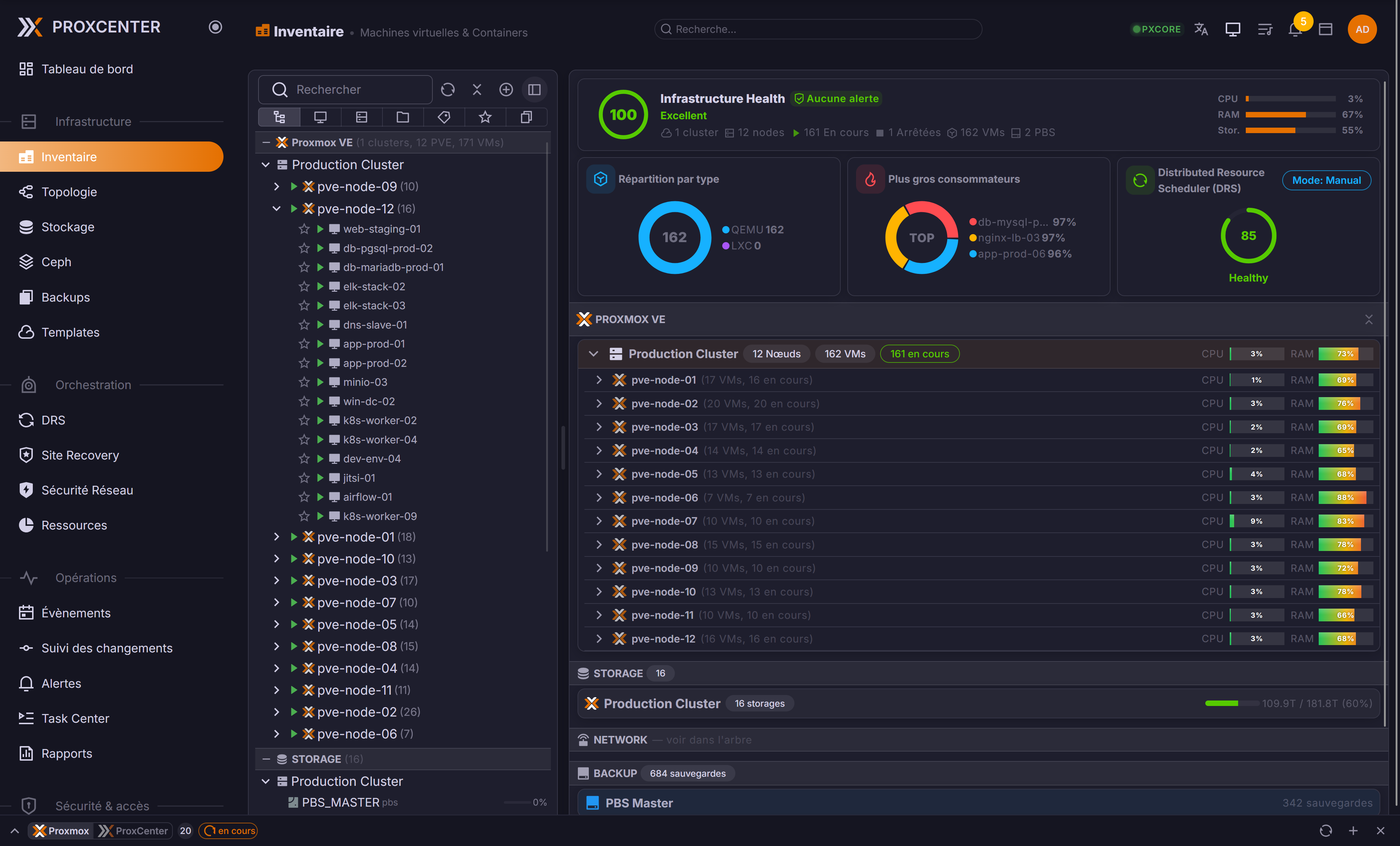

Multi-cluster Inventory

Quick Start

# Community Edition (Free)
curl -fsSL https://proxcenter.io/install/community | sudo bash

# Enterprise Edition
curl -fsSL https://proxcenter.io/install/enterprise | sudo bash -s -- --token YOUR_TOKEN

The installer sets up Docker, the Compose stack, PostgreSQL and the persistent volumes under /opt/proxcenter. When it finishes, open http://your-server:3000 and create the first admin account.

Running behind a reverse proxy? Enable the "Behind reverse proxy" toggle in the connection settings, to prevent failover from switching to the internal node IPs.

Features

Multi-cluster management: monitor and operate every Proxmox cluster from one console
Inventory & topology: nodes, guests, storage, networks, and the Ceph CRUSH tree at a glance
Cross-hypervisor migration: bring VMs over from VMware, Hyper-V, Nutanix, and XCP-ng, including warm (CBT) migration
In-browser consoles: noVNC and SPICE for QEMU guests
Backups & replication: fleet-wide visibility and reporting
RBAC & SSO: granular roles and scopes
DRS workload balancing (Enterprise): automatic load distribution via the Go orchestrator
Alerts, reports & notifications (Enterprise): email digests, severity routing, and scheduled reports
MSP mode (Enterprise): multi-tenant fleet management with license stacking
High availability (Enterprise): three-node control plane with a virtual IP, replicated PostgreSQL, and leader election

See the documentation for the full feature list and the Community vs Enterprise breakdown.

Screenshots

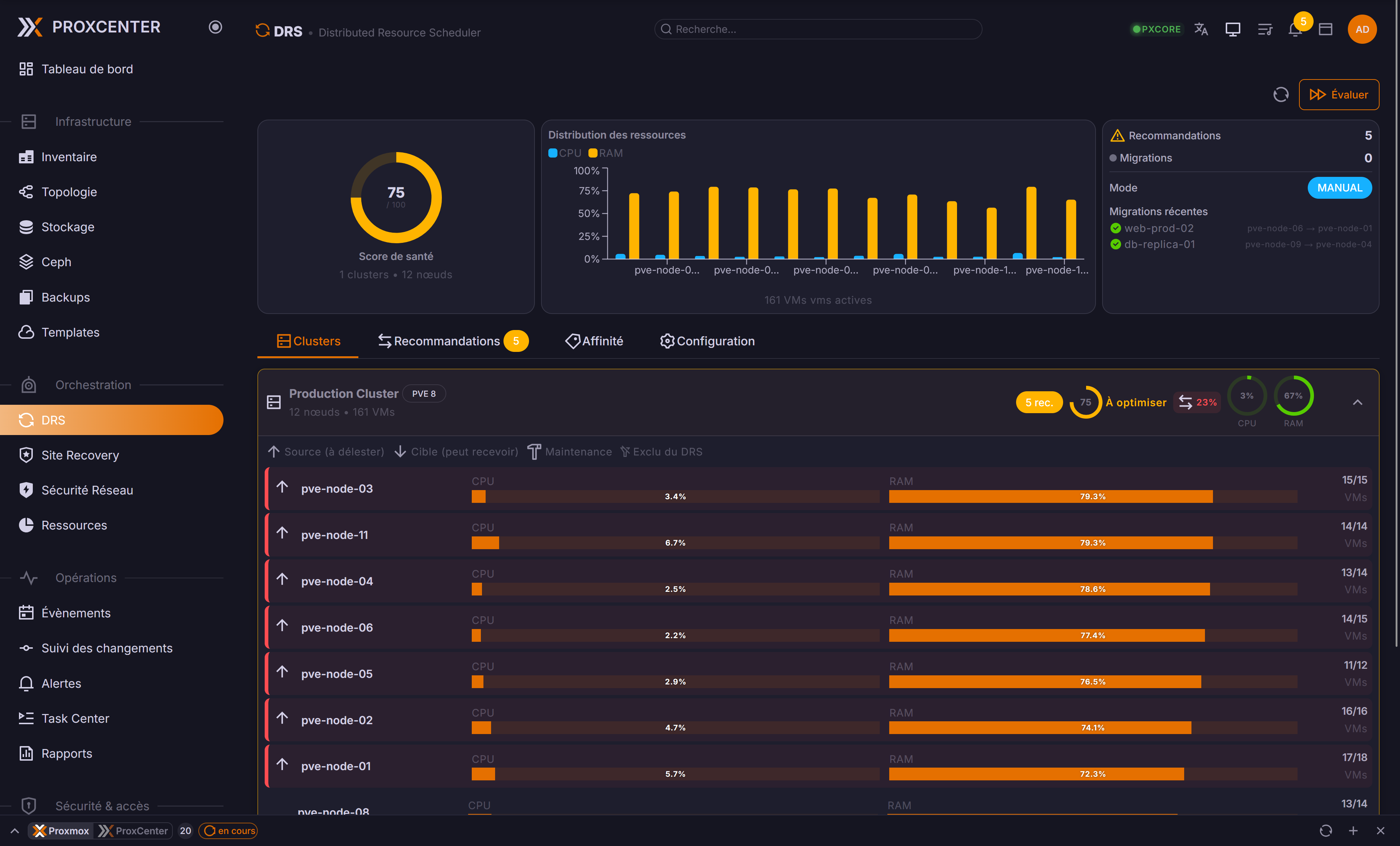

_{Modular Dashboard}	_{DRS Load Balancing}
_{Hypervisor Migration}	_{Real-Time Ceph Monitoring}
_{Site Recovery}	_{Multi-channel Alerts}

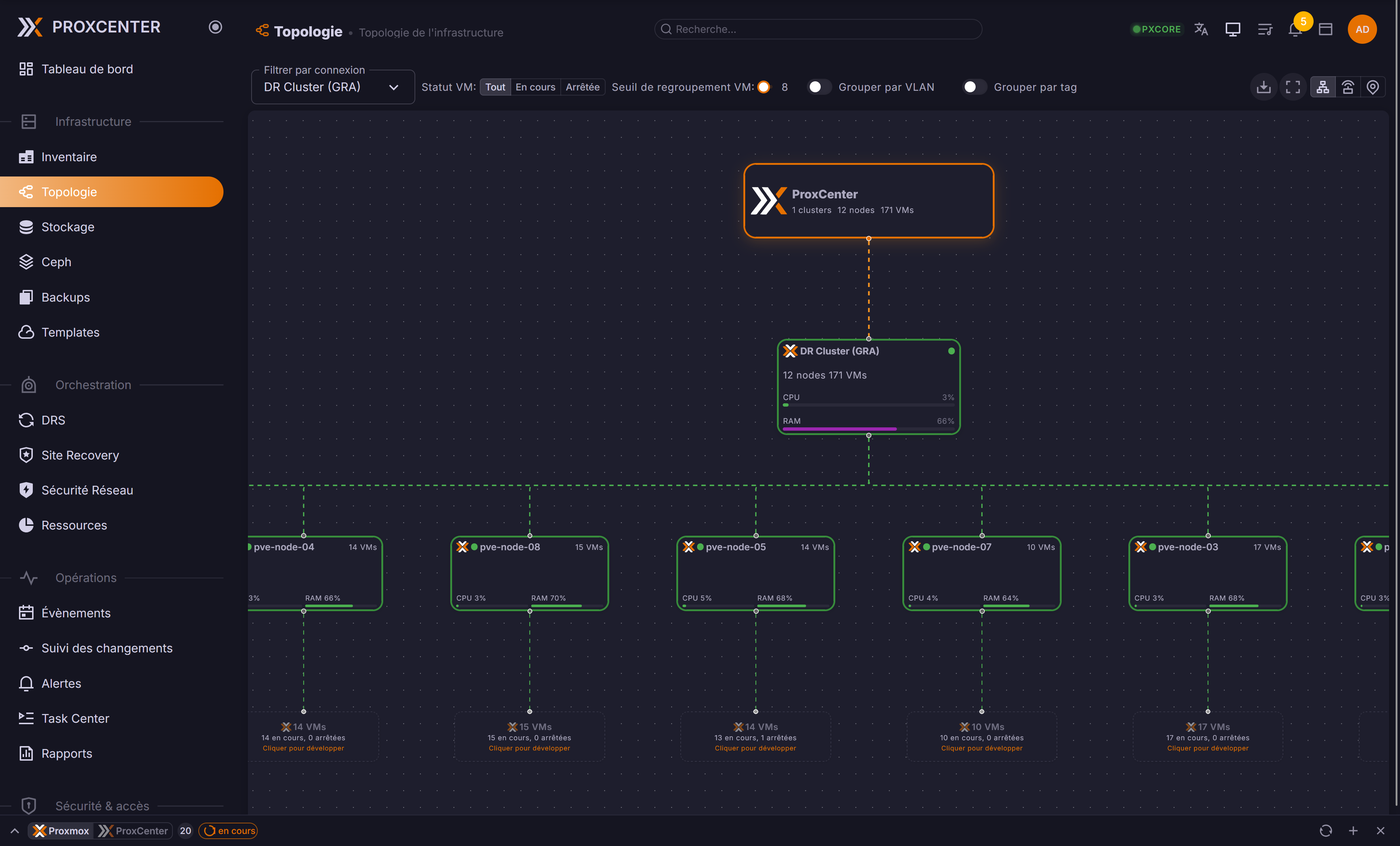

_{Micro-segmentation (NSX)}	_{Network Topology Map}

Architecture

ProxCenter architecture: service topology for the Community and Enterprise deployments

Single exposed port (3000): HTTP and WebSocket served by one process, with Nginx optional in front for TLS
PostgreSQL is the only source of truth, and schema migrations run at startup
Enterprise adds the Go orchestrator (DRS, jobs, alerts, reports, flow telemetry) and the WeasyPrint sidecar for PDF rendering, both kept on the internal network
Proxmox VE, Proxmox Backup Server, and the migration sources are reached outbound, with no agent to deploy

High Availability (Enterprise)

ProxCenter HA architecture: three-node control plane with a virtual IP and replicated PostgreSQL

Three nodes behind a Keepalived VIP, with quorum on 2 of the 3 nodes
PostgreSQL replicated by Patroni, which elects the single writable primary through etcd
A local HAProxy on every node routes database traffic to the current primary and leader-only traffic, DRS included, to the elected orchestrator
Converting an existing single-node install is driven by the wizard in Settings > High Availability, see the HA prerequisites

Upgrade

Pull the new images and restart the stack:

cd /opt/proxcenter
docker compose pull
docker compose up -d

Schema migrations run automatically on startup. Nothing else is required for a Community install.

Enterprise, when a release adds a setting: docker compose pull refreshes the images, never docker-compose.yml, and the shipped Compose files pass their environment through an explicit environment: list. A setting introduced by a newer release therefore never reaches the container on a pull-only update, whatever /opt/proxcenter/.env holds. Re-run the installer to refresh the Compose file:

curl -fsSL https://proxcenter.io/install/enterprise | sudo bash -s -- --token YOUR_TOKEN

It keeps your secrets, your customised NEXTAUTH_URL and APP_URL, and your license key, leaves the data untouched, then pulls and recreates only the containers whose environment changed. An install that pinned a version in .env has to pass it again with --version, since a re-run otherwise resets it to latest.

High availability: the three nodes run the same Compose file, so the same two commands apply per node. Upgrade one node at a time and keep the version identical across the cluster.

Coming from v1.3.x or earlier: SQLite support was removed in v1.4.0 and there is no in-place migration to PostgreSQL. Follow Upgrade to v1.4 for the cutover.

Checking the result:

cd /opt/proxcenter
docker compose ps               # Service status
docker compose logs -f          # Follow the logs
docker compose restart          # Restart the stack

Requirements

Host: Linux with Docker Engine 24+ and Docker Compose v2
Sizing: 2 GB RAM and 10 GB disk minimum, more for database growth
Ports: 3000 inbound, outbound to Proxmox VE 8006 and Proxmox Backup Server 8007
Proxmox: Proxmox VE 8.x or 9.x

High availability adds its own sizing and network prerequisites, listed in the documentation.

Security

Automated scanning via CodeQL, Trivy, and Dependabot. Report vulnerabilities to security@proxcenter.io.

License

Community: Free for personal and commercial use
Enterprise: Commercial license

Support

Community: GitHub Issues
Enterprise: support@proxcenter.io
