claude-desktop-buddy

Claude for macOS and Windows can connect Claude Cowork and Claude Code to maker devices over BLE, so developers and makers can build hardware that displays permission prompts, recent messages, and other interactions. We've been impressed by the creativity of the maker community around Claude - providing a lightweight, opt-in API is our way of making it easier to build fun little hardware devices that integrate with Claude.

Building your own device? You don't need any of the code here. See REFERENCE.md for the wire protocol: Nordic UART Service UUIDs, JSON schemas, and the folder push transport.

As an example, we built a desk pet on ESP32 that lives off permission approvals and interaction with Claude. It sleeps when nothing's happening, wakes when sessions start, gets visibly impatient when an approval prompt is waiting, and lets you approve or deny right from the device.

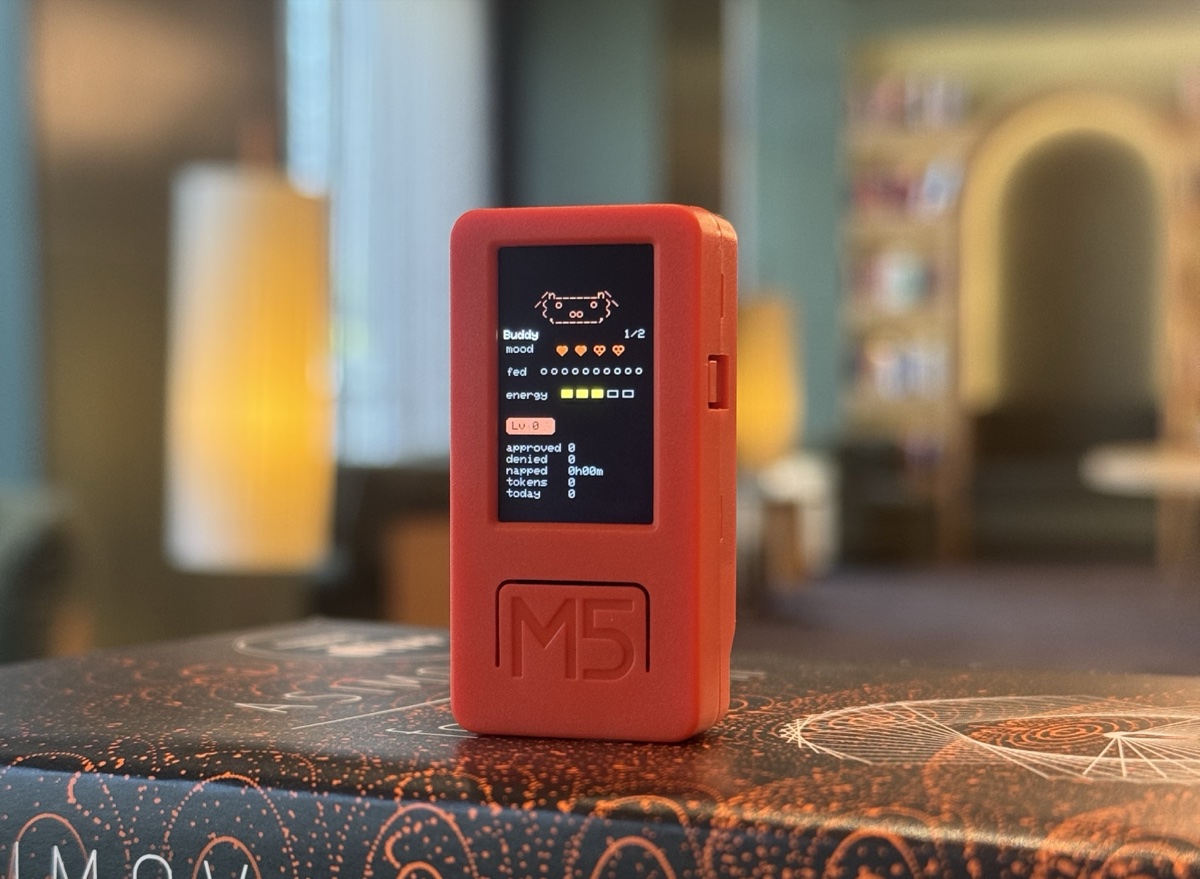

M5StickC Plus running the buddy firmware

Hardware

The firmware targets ESP32 with the Arduino framework. As written, it depends on the M5StickCPlus library for its display, IMU, and button drivers—so you'll need that board, or a fork that swaps those drivers for your own pin layout.

Flashing

Install PlatformIO Core, then:

pio run -t upload

If you're starting from a previously-flashed device, wipe it first:

pio run -t erase && pio run -t upload

Once running, you can also wipe everything from the device itself: hold A → settings → reset → factory reset → tap twice.

Pairing

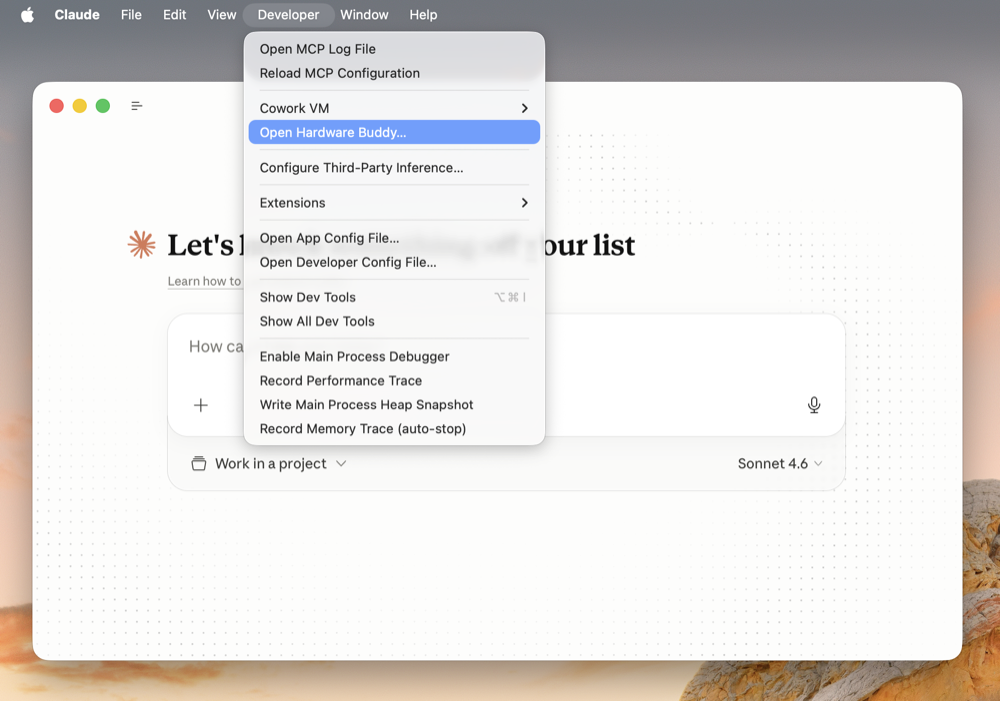

To pair your device with Claude, first enable developer mode (Help → Troubleshooting → Enable Developer Mode). Then, open the Hardware Buddy window in Developer → Open Hardware Buddy…, click Connect, and pick your device from the list. macOS will prompt for Bluetooth permission on first connect; grant it.

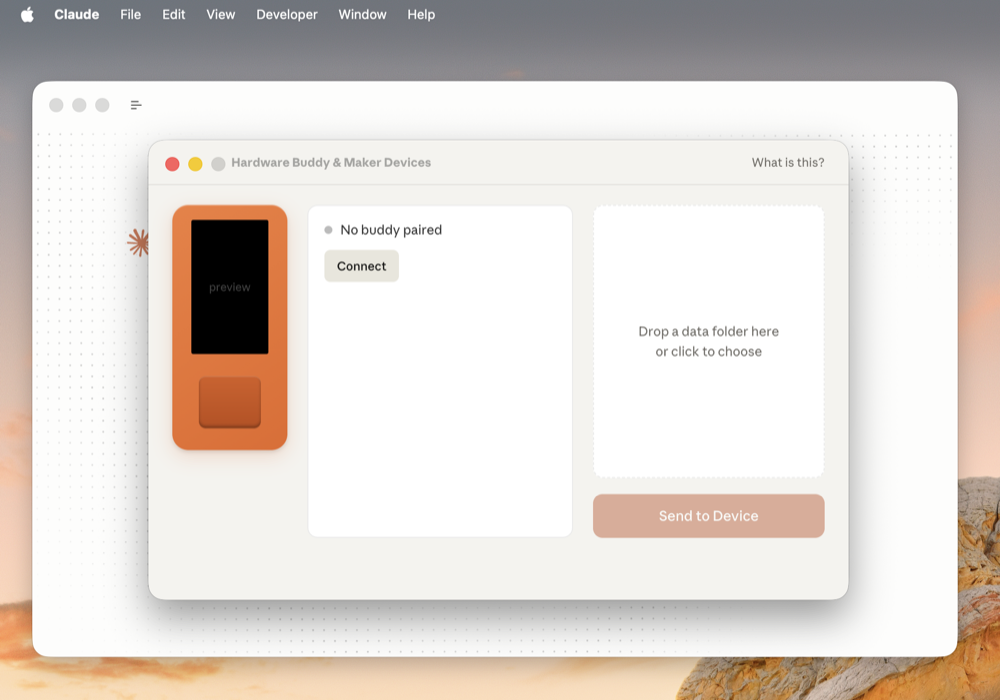

Hardware Buddy window with Connect button and folder drop target

Once paired, the bridge auto-reconnects whenever both sides are awake.

If discovery isn't finding the stick:

Make sure it's awake (any button press)
Check the stick's settings menu → bluetooth is on

Controls

	Normal	Pet	Info	Approval
A (front)	next screen	next screen	next screen	approve
B (right)	scroll transcript	next page	next page	deny
Hold A	menu	menu	menu	menu
Power (left, short)	toggle screen off
Power (left, ~6s)	hard power off
Shake	dizzy			—
Face-down	nap (energy refills)

The screen auto-powers-off after 30s of no interaction (kept on while an approval prompt is up). Any button press wakes it.

ASCII pets

Eighteen pets, each with seven animations (sleep, idle, busy, attention, celebrate, dizzy, heart). Menu → "next pet" cycles them with a counter. Choice persists to NVS.

GIF pets

If you want a custom GIF character instead of an ASCII buddy, drag a character pack folder onto the drop target in the Hardware Buddy window. The app streams it over BLE and the stick switches to GIF mode live. Settings → delete char reverts to ASCII mode.

A character pack is a folder with manifest.json and 96px-wide GIFs:

{
  "name": "bufo",
  "colors": {
    "body": "#6B8E23",
    "bg": "#000000",
    "text": "#FFFFFF",
    "textDim": "#808080",
    "ink": "#000000"
  },
  "states": {
    "sleep": "sleep.gif",
    "idle": ["idle_0.gif", "idle_1.gif", "idle_2.gif"],
    "busy": "busy.gif",
    "attention": "attention.gif",
    "celebrate": "celebrate.gif",
    "dizzy": "dizzy.gif",
    "heart": "heart.gif"
  }
}

State values can be a single filename or an array. Arrays rotate: each loop-end advances to the next GIF, useful for an idle activity carousel so the home screen doesn't loop one clip forever.

GIFs are 96px wide; height up to ~140px stays on a 135×240 portrait screen. Crop tight to the character — transparent margins waste screen and shrink the sprite. tools/prep_character.py handles the resize: feed it source GIFs at any sizes and it produces a 96px-wide set where the character is the same scale in every state.

The whole folder must fit under 1.8MB — gifsicle --lossy=80 -O3 --colors 64 typically cuts 40–60%.

See characters/bufo/ for a working example.

If you're iterating on a character and would rather skip the BLE round-trip, tools/flash_character.py characters/bufo stages it into data/ and runs pio run -t uploadfs directly over USB.

The seven states

State	Trigger	Feel
`sleep`	bridge not connected	eyes closed, slow breathing
`idle`	connected, nothing urgent	blinking, looking around
`busy`	sessions actively running	sweating, working
`attention`	approval pending	alert, LED blinks
`celebrate`	level up (every 50K tokens)	confetti, bouncing
`dizzy`	you shook the stick	spiral eyes, wobbling
`heart`	approved in under 5s	floating hearts

Project layout

src/
  main.cpp       — loop, state machine, UI screens
  buddy.cpp      — ASCII species dispatch + render helpers
  buddies/       — one file per species, seven anim functions each
  ble_bridge.cpp — Nordic UART service, line-buffered TX/RX
  character.cpp  — GIF decode + render
  data.h         — wire protocol, JSON parse
  xfer.h         — folder push receiver
  stats.h        — NVS-backed stats, settings, owner, species choice
characters/      — example GIF character packs
tools/           — generators and converters

Availability

The BLE API is only available when the desktop apps are in developer mode (Help → Troubleshooting → Enable Developer Mode). It's intended for makers and developers and isn't an officially supported product feature.
