Fly Brain Minecraft

A Fabric mod for Minecraft 1.21.1 that runs the complete male fruit fly nervous system inside a fly mob.

The connectome is the male Drosophila melanogaster central nervous system released by Janelia, Google Research and the Cambridge connectomics group (neuPrint male-cns:v1.0, Berg et al., Cell, September 2026): 176,422 neurons and 6.29 million connections of five or more synapses, carrying 90 of the dataset's 125 million synapses. Every neuron is simulated as a leaky integrate-and-fire unit following Shiu et al. (Nature 2024). The Minecraft world drives the fly's real sensory neurons (photoreceptors, olfactory and gustatory receptor neurons, Johnston's organ, bristles), and the activity of its real descending and motor neurons is decoded into what the mob does. Each fly runs its own brain on its own thread, in real time.

What you see

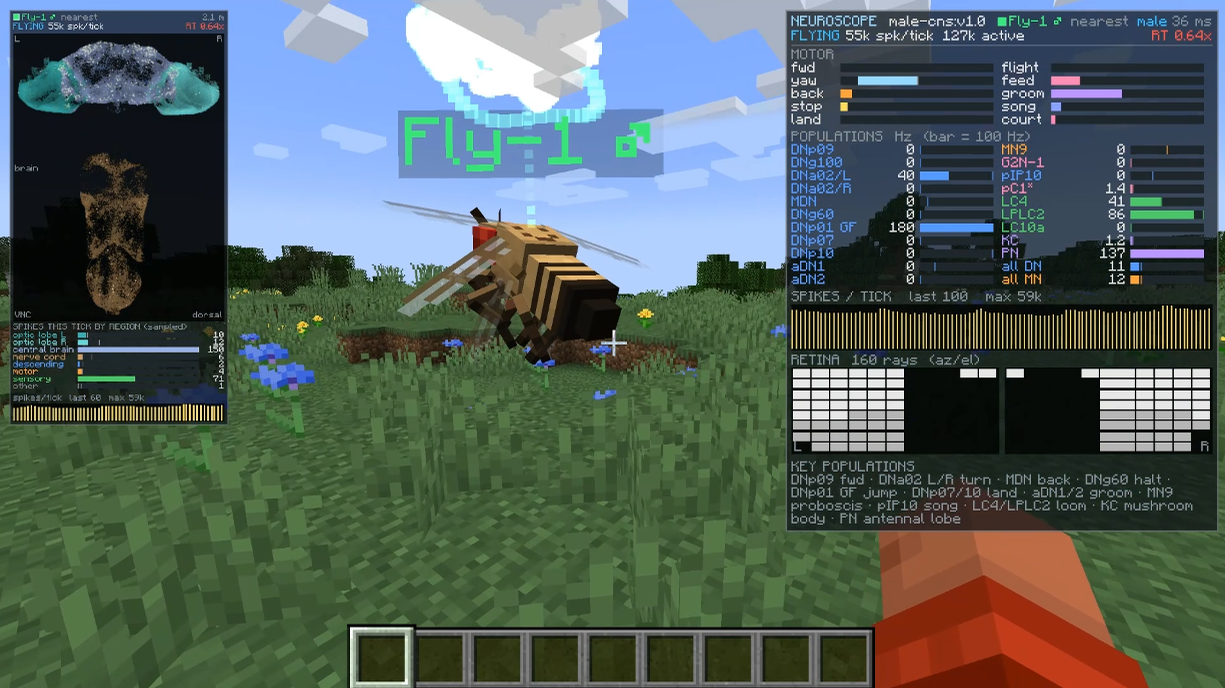

Two HUD panels show the brain at work:

• B, the brain view. A live map of the whole nervous system (optic lobes top left and right, central brain between them, nerve cord below). Neurons light up at their real soma positions as they fire and fade over about 300 ms. Below the map: spikes per region for the current tick and a spikes-per-tick history.
• H, the neuroscope. The readout: decoded motor channels (forward, yaw, back, stop, land, flight, feed, groom, song), firing rates of the key populations (MN9, the giant fibre DNp01, DNa02 left and right, MDN, aDN1/2, LC4, LPLC2, Kenyon cells, projection neurons and more), a spike raster, and the retina as the fly sees it.

Every fly gets a persistent number, an identity colour and a matching name tag (Fly-1 ♂). The same colour heads both panels and draws a rotating ring above the fly whose brain you are watching, so with several flies it is always clear which brain is which.

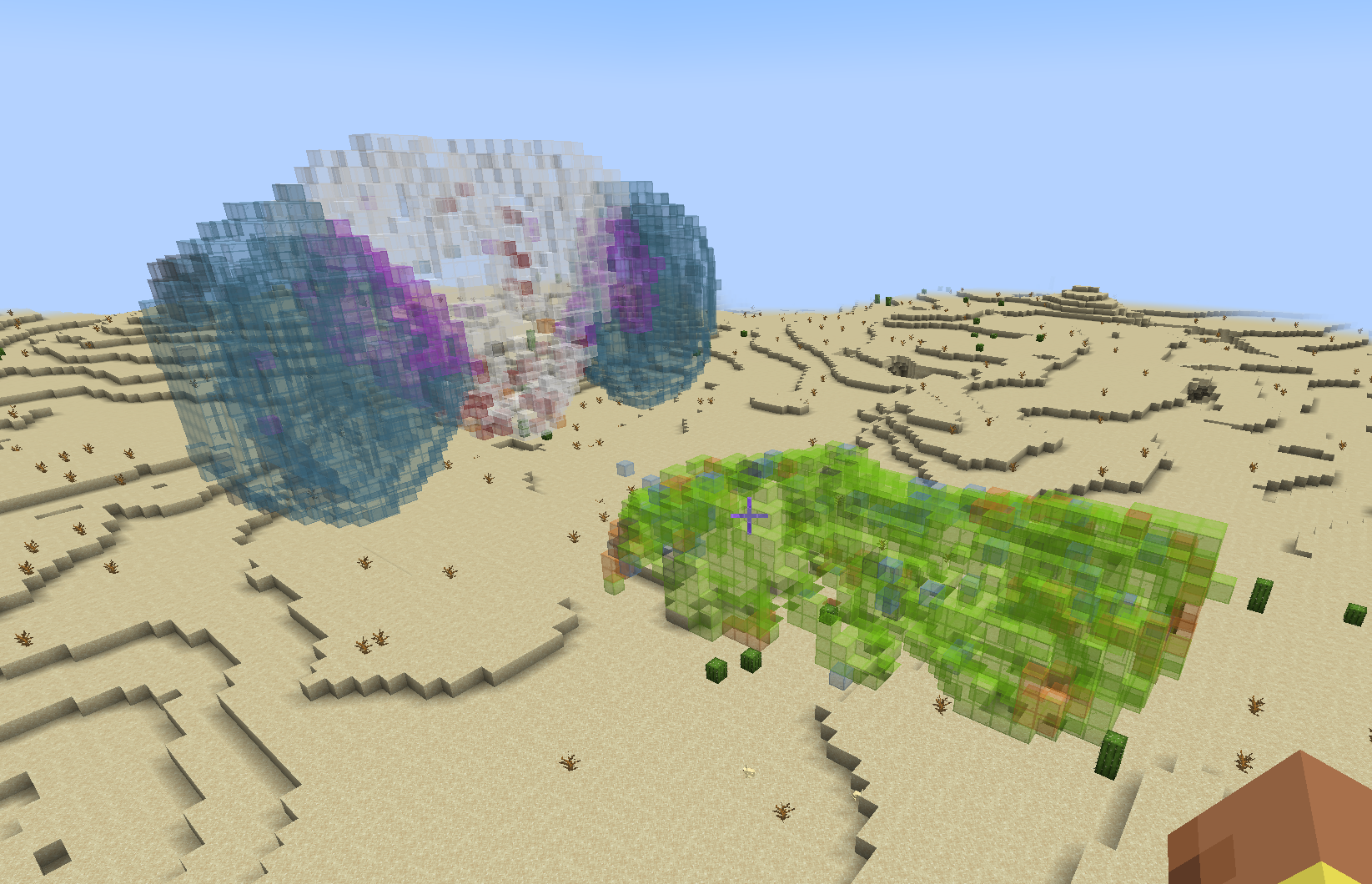

You can also put the brain into the world: /flybrain build places the 141,781 neurons with a reconstructed soma as a walk-through structure of stained glass coloured by region, and the linked fly's spiking neurons flash as sea lanterns.

What the fly does

The point of the project is to be honest about that last column. What comes out of the wiring diagram and what is scaffolding is spelled out in docs/REFERENCE.md and docs/VALIDATION.md.

Quick start

Requirements: Minecraft 1.21.1, Fabric Loader 0.17.3 or newer, Fabric API for 1.21.1, Java 21 or newer. A machine with 8 or more cores keeps one fly in real time; more flies share the cores (maxBrains, default 4).

Install: put fruitfly-connectome-<version>.jar and the Fabric API jar into .minecraft/mods/. The 23 MB connectome is inside the jar, nothing is downloaded at runtime. To build from source run ./gradlew build (JDK 21 or newer); the jar lands in build/libs/.

Then, in a world:

1. /fruitfly spawn (or use the Fruit Fly Spawn Egg from the creative menu). /fruitfly spawn big gives a 2.5x fly.
2. Press B for the brain view and H for the neuroscope.
3. Drop an apple next to it, right-click it while holding sugar, sprint at it, or make it rain.
4. /fruitfly loom, /fruitfly feed, /fruitfly groom and /fruitfly bitter inject the corresponding sensory input directly, which is handy for demos.

Commands

Populations are named with neuPrint types and annotations: DNp09, DNa02/L, prefix:ORN_DM1, class:gustatory, superclass:vnc_motor, subclass:wm, body:10783, and intersections such as class:mechanosensory_tactile&nerve:ADMN. Every neuron keeps its neuPrint body id, so anything on the HUD can be looked up at https://neuprint.janelia.org/?dataset=male-cns%3Av1.0.

Configuration lives in config/fruitfly.json (integration step, gain, thread count, fly scale, speeds, telemetry rate, HUD populations). All keys are documented in docs/REFERENCE.md.

How it works

Minecraft world  -> sensors -> SensoryFrame -> encoders -> Poisson drive on real sensory neuron types
                                                              |
                                             LifNetwork, one thread per fly, 50 ms of brain per game tick
                                                              |
FlyEntity movement <- MotorDecoder <- descending and motor neuron population rates

Every neuron is the same current-based leaky integrate-and-fire unit with an exponential synapse, as in Shiu et al. 2024: membrane time constant 20 ms, synaptic time constant 5 ms, rest and reset at -52 mV, threshold -45 mV, refractory 2.2 ms, synaptic delay 1.8 ms, and each synapse adds 0.275 mV times a global gain. Acetylcholine, monoamines and unclear transmitters are excitatory, GABA, glutamate and histamine are inhibitory. There is no spontaneous activity: every spike traces back to a sensory neuron. Only neurons that are away from rest or have pending input are integrated, so cost scales with activity, not network size.

The one calibration choice is the global gain of 0.65. The published weight was fitted to the FlyWire female brain, which has fewer synapses per neuron than the male dataset; at the literal weight the male network over-excites. The gain was chosen with the paper's own recipe: the smallest value at which sugar input drives the proboscis motor neuron while the grooming and escape pathways stay stable and Kenyon cells stay silent. Kenyon cells additionally receive an input gain of 0.25, a stand-in for their known high spike threshold. Both choices, the alternatives that were rejected, and an independent Brian2 replication that argues for a lower gain are documented in docs/.

Sensory encoding, the odor and taste tables, the motor map and the decoder's priority ladder (escape, landing, brake, halt, backward, forward, groom, song) are described in docs/REFERENCE.md and docs/ARCHITECTURE.md.

Validation

Headless benches (./gradlew brainBench, visionBench, embodiedBench), gain 0.65, dt 0.5 ms. Rates are population means over one 50 ms tick.

56 JUnit tests cover the integrator, the retina geometry, the encoders and the decoder. Full protocol and numbers: docs/VALIDATION.md.

Rebuilding the data

pip install requests numpy pandas
python tools/fetch_neuprint.py     # anonymous neuPrint access, about two minutes
python tools/build_flyb.py         # writes src/main/resources/connectome/malecns-v1.0.flyb.gz

--min-weight 1 fetches all 25.9 million connections; build_flyb.py --exclude-superclass ol_intrinsic,visual_projection builds a brain-only file without the optic lobes. Point connectomeFile in the config at the result. Exact queries, transformations and file hashes are in PROVENANCE.md.

Limitations

• Every neuron has the same parameters. The antennal lobe saturates under any odor, and the medulla motion pathway stays silent, so looming and object signals are painted onto LC4/LPLC2/LC11/LC10a analytically instead of emerging from the lamina. Walking toward food is a reflex layer, not the connectome.
• No neuromodulation, neuropeptides, gap junctions or spontaneous activity.
• Connections with fewer than five synapses are omitted.
• Only the male nervous system exists; female flies use the same brain.
• Absolute firing rates should not be trusted, only the pattern of which populations respond.

Data sources and citations

The mod embeds a thresholded derivative of the male Drosophila CNS connectome, neuPrint dataset male-cns:v1.0, produced by the FlyEM Project Team at HHMI Janelia Research Campus, the Drosophila Connectomics Group (University of Cambridge and MRC LMB) and Google Research, licensed CC BY 4.0. Source: https://male-cns.janelia.org/ and https://www.janelia.org/project-team/flyem/male-cns-connectome. Modifications: synapse-count threshold, integer re-indexing, quantised weights (see PROVENANCE.md).

If you use this in research or teaching, please cite:

• Berg S, Beckett IR, Costa M, Schlegel P, Januszewski M, et al. Sexual dimorphism in the complete Drosophila male central nervous system connectome. Cell 189(18):5504-5526 (2026). https://doi.org/10.1016/j.cell.2026.08.015
• Shiu PK, Sterne GR, Spiller N, et al. A Drosophila computational brain model reveals sensorimotor processing. Nature 634:210-219 (2024). https://doi.org/10.1038/s41586-024-07763-9
• Plaza SM, Clements J, Dolafi T, et al. neuPrint: An open access tool for EM connectomics. Front. Neuroinform. 16:896292 (2022). https://doi.org/10.3389/fninf.2022.896292

The companion papers on the visual system, the nerve cord, the taste system and the sexually dimorphic circuits, and the descending-neuron literature behind the motor decoding, are listed in docs/REFERENCE.md.

This project is not affiliated with or endorsed by HHMI, Janelia, Google, the University of Cambridge, the MRC LMB or Mojang/Microsoft. Minecraft is a trademark of Mojang/Microsoft.

License

Code: MIT, see LICENSE. The bundled connectome derivative: CC BY 4.0 with the attribution above.

Repository layout

tools/                                  data pipeline (fetch_neuprint.py, build_flyb.py, texture generators)
src/main/java/com/fruitfly/brain        engine-independent brain: connectome loader, LIF network, encoders, decoder, benches
src/main/java/com/fruitfly/entity       the fly: world senses, body physics, odor and taste tables
src/main/java/com/fruitfly              mod entrypoint, config, brain service, commands, networking
src/client/java/com/fruitfly/client     renderer, model, brain view, neuroscope, in-world overlay
src/main/resources/connectome           the bundled connectome (23 MB)
src/test/java                           JUnit tests
docs/                                   ARCHITECTURE.md, REFERENCE.md, VALIDATION.md, FOLLOWUPS.md, research notes
