Booking Microservices

A practical flight-booking system built as microservices with .NET 10, using Vertical Slice Architecture, DDD, CQRS, Event Sourcing, gRPC, RabbitMQ, Wolverine, PostgreSQL, MongoDB and .NET Aspire.

Developed by Evangelos Vlachos.

Table of Contents

• Overview
• Architecture
• Services
• Technology Stack
• Project Structure
• Getting Started
  • Prerequisites
  • Dev Certificate
  • Run with Aspire
  • Run with Docker Compose
  • Run with Kubernetes
  • Build, Run and Test manually
• API Documentation
• Development Tooling
• Contributing

Overview

This repository demonstrates how to design and run a production-style microservices system end to end: independent services with their own databases, asynchronous messaging with durable inbox/outbox, synchronous gRPC calls between services, an API gateway, centralized identity, observability and container/Kubernetes deployment.

Key goals:

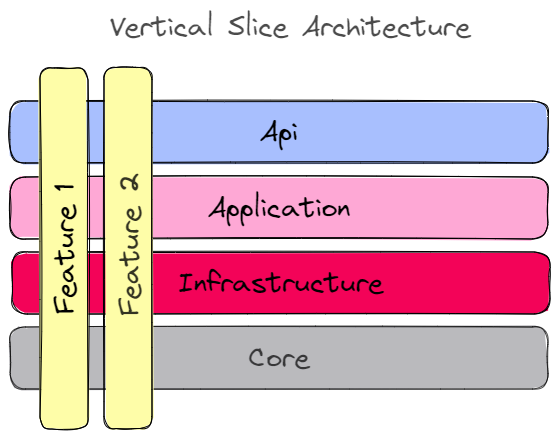

• Vertical Slice Architecture with feature folders. Each request is one self-contained slice.
• Domain Driven Design for all business logic.
• CQRS with MediatR, plus validation and logging pipeline behaviours.
• Event Sourcing (EventStoreDB) for the write side of the Booking service.
• Event Driven Architecture with RabbitMQ on top of Wolverine, using durable inbox (idempotent, exactly-once processing) and outbox (at-least-once delivery) patterns.
• gRPC for internal service-to-service communication.
• PostgreSQL for write models, MongoDB for read models.
• Unit, integration, end-to-end and contract tests (NSubstitute, Testcontainers, PactNet).
• Observability with OpenTelemetry, Jaeger, Prometheus, Grafana and Serilog/Kibana.
• IdentityServer (OpenID Connect / OAuth2) for authentication and authorization.
• YARP as the API gateway.
• Docker Compose, Kubernetes (Nginx Ingress, cert-manager) and .NET Aspire for orchestration.

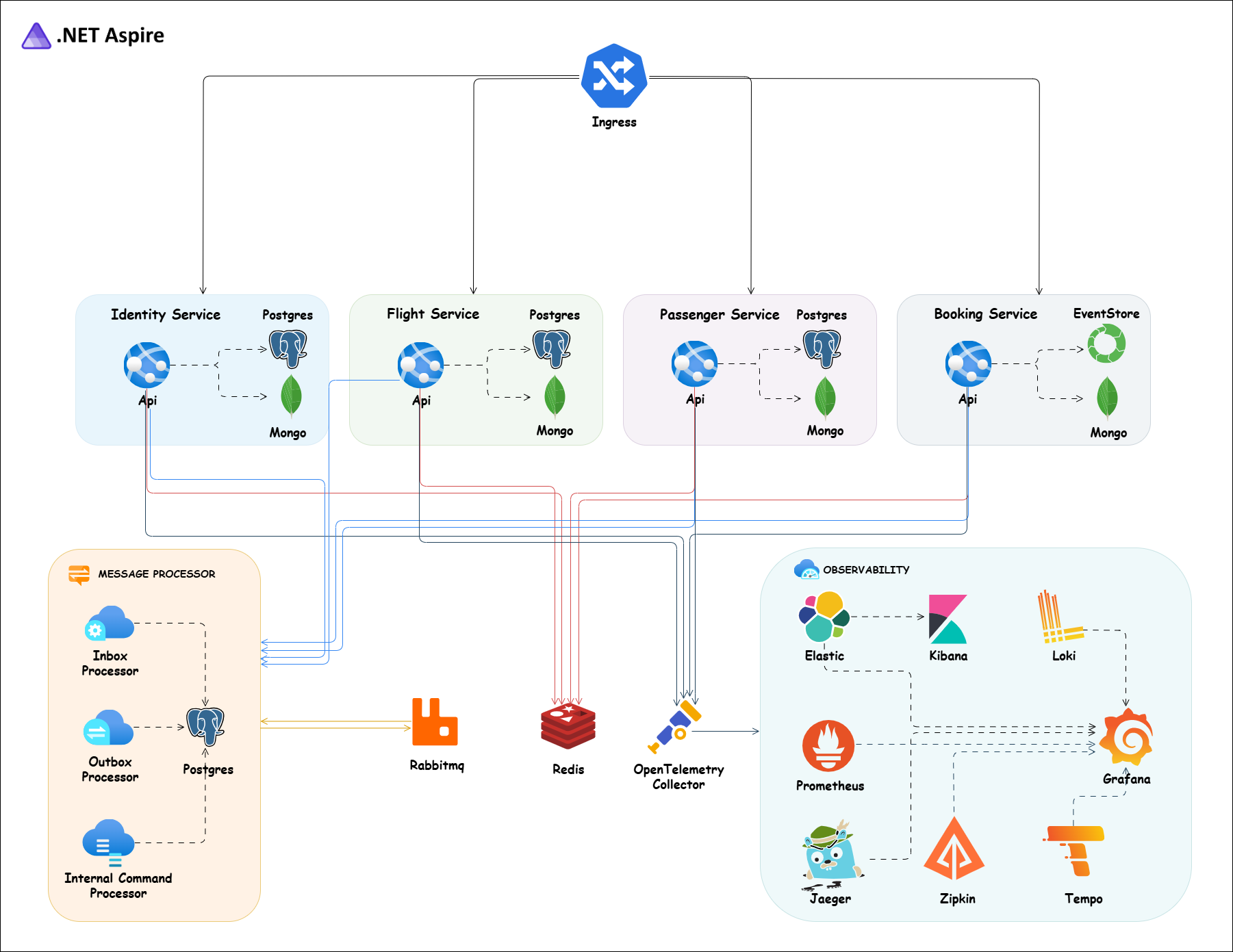

Architecture

Each service owns its data and exposes a small REST surface through minimal APIs. Commands mutate the write store (PostgreSQL or EventStoreDB) and publish integration events through Wolverine's durable outbox to RabbitMQ. Consumers process those events through the durable inbox and project them into MongoDB read models. Queries read from MongoDB only. Cross-service reads that must be synchronous (for example Booking validating a flight or passenger) go over gRPC.

Services

Technology Stack

• .NET 10, Minimal APIs, API Versioning
• MediatR, FluentValidation, Mapster
• Wolverine + RabbitMQ for messaging, MassTransit contracts
• gRPC with Grpc.AspNetCore
• Entity Framework Core + PostgreSQL
• MongoDB, EventStoreDB, Redis
• Duende IdentityServer (OpenID Connect / OAuth2)
• YARP reverse proxy
• OpenTelemetry, Jaeger, Prometheus, Grafana, Serilog + Kibana
• Polly resilience, ASP.NET Core Health Checks
• Scalar and Swagger for OpenAPI docs
• xUnit, NSubstitute, Testcontainers, PactNet, Bogus
• .NET Aspire, Docker, Kubernetes, Nginx Ingress, cert-manager

Project Structure

.
├── src
│   ├── ApiGateway/            # YARP gateway
│   ├── Aspire/                # Aspire AppHost and service defaults
│   ├── BuildingBlocks/        # Shared cross-cutting code (Core, EFCore, Mongo, Wolverine, Jwt, Logging, OpenTelemetry, Polly, TestBase, ...)
│   └── Services
│       ├── Booking/           # src/Booking, src/Booking.Api, tests/
│       ├── Flight/
│       ├── Identity/
│       └── Passenger/
├── deployments
│   ├── configs/               # otel-collector, prometheus, grafana configs
│   ├── docker-compose/        # infrastructure and full-stack compose files
│   └── kubernetes/            # manifests + cert-manager
├── assets/                    # diagrams and logo
├── booking.rest               # REST Client requests for manual API testing
└── booking-microservices.sln

Inside every service, code is grouped by feature (for example Flights/Features/CreatingFlight/V1/) rather than by technical layer. Each feature folder holds its endpoint, command/query, handler, validator and any events it raises, so a change to one use case touches only that folder.

Getting Started

Prerequisites

• .NET 10 SDK
• Docker Desktop
• Node.js (for Husky commit hooks)
• Optional: .NET Aspire CLI, kubectl

Dev Certificate

Create and trust a development HTTPS certificate so the containers can serve TLS.

Windows (PowerShell):

dotnet dev-certs https -ep $env:USERPROFILE\.aspnet\https\aspnetapp.pfx -p password
dotnet dev-certs https --trust

macOS / Linux:

dotnet dev-certs https -ep ${HOME}/.aspnet/https/aspnetapp.pfx -p password
dotnet dev-certs https --trust

Run with Aspire

The fastest way to get everything up locally, with a dashboard for logs, traces and metrics:

aspire run

The Aspire dashboard is available at http://localhost:18888.

Run with Docker Compose

Infrastructure only (RabbitMQ, PostgreSQL, EventStoreDB, MongoDB, Redis, Jaeger, Zipkin, OTel Collector, Prometheus, Grafana):

docker-compose -f ./deployments/docker-compose/docker-compose.infrastructure.yaml up -d

Full stack including the services:

docker-compose -f ./deployments/docker-compose/docker-compose.yaml up -d

Run with Kubernetes

Install cert-manager first, then apply the TLS issuer and the application manifests:

kubectl apply -f ./deployments/kubernetes/booking-cert-manager.yml
kubectl apply -f ./deployments/kubernetes/booking-microservices.yml

The manifests reference images under the evangelosvlachos96/ Docker Hub namespace. Build and push the service images there (or change the image names) before deploying.

Build, Run and Test manually

Build the whole solution from the repository root:

dotnet build

Run a single service from its *.Api project folder (for example src/Services/Flight/src/Flight.Api):

dotnet run

Run all tests (integration and end-to-end tests start their dependencies with Testcontainers, so Docker must be running):

dotnet test

API Documentation

Every service exposes OpenAPI documentation at /swagger (Swagger UI) and /scalar/v1 (Scalar).

For quick manual testing, open booking.rest with the VS Code REST Client extension. Seeded users are van1 / Admin@123456 (admin) and van2 / User@123456 (user).

Development Tooling

.NET tools (CSharpier formatter, dotnet-outdated) are declared in .config/dotnet-tools.json:

dotnet tool restore

Husky + commitlint enforce Conventional Commits and run the formatter before each commit:

npm install

Upgrade NuGet packages across the solution:

dotnet outdated -u
