🧜‍♀️ MermaidGenie – Visualize Ideas in Seconds

MermaidGenie turns text prompts into crisp Mermaid diagrams you can edit, version and share. Sketch flow-charts, UML, mind-maps, ERDs and more, then collaborate with teammates — all inside a sleek, PWA-ready workspace.

Think “Figma for graphs”, but powered by AI. ✨

[!NOTE] Inspired by Mermaid Live Editor & Excalidraw — yet adds AI-powered diagram generation, secure user accounts, charts history, and secure sharing.

📋 Table of Contents

🧜‍♂️ About MermaidGenie

MermaidGenie is a full-stack diagramming platform that converts natural-language prompts into editable Mermaid code, stores every version in MongoDB and lets you:

generate/regenerate diagrams from natural language with AI 💡
toggle dark/light & theme-aware exports 🌓
collaborate by turning charts public or keeping them private 🔒
export SVG / PNG at any size 🖼️
edits with syntax highlighting, pan/zoom, fullscreen mode 🖌️
and more!

Designed for developers, product managers and educators who live in Markdown and whiteboards.

🌐 Live App

MermaidGenie is now live on Vercel & AWS! Try it out:

👉 MermaidGenie — deploy preview on Vercel.

👉 OpenAPI Docs — Swagger-UI for every endpoint.

Feel free to register an account, create charts, and explore the features. No credit card required!

🚀 Features

Category	Highlights
Auth	Register, login, JWT, reset password, email verification
Diagramming	Live Mermaid editor with syntax highlighting, AI “Regenerate” button, pan/zoom, fullscreen
Asset Export	One-click SVG / PNG (maskable, transparent, responsive)
History	Version every regenerate/save; rollback coming soon
Sharing	Private by default — flip a switch to publish and get a share link
PWA	`manifest.json`, offline fonts, icons (512/192/32/16/ICO), splash screens
Accessibility	Keyboard shortcuts, ARIA labels, color-contrast audit
Responsive UI	Tailwind + shadcn/ui, fluid between mobile & ultrawide
CI/CD	Type-check, lint, Mocha, Chai, Jest; Docker images pushed on main
Infrastructure-as-Code	Terraform for AWS, Serverless Framework for backend, GitHub Actions for CI/CD
Observability	CloudWatch logs, Vercel Analytics, error tracking
Testing	Mocha & Chai for frontend, Jest for backend, unit/integration tests

and so much more!

🏛 Tech Stack & Architecture

Layer	Tech
Frontend	Next.js 14 App Router, React 18, TypeScript, Tailwind CSS, shadcn/ui, SWR, Framer Motion
Backend	Node.js 18, Express 5, TypeScript, Mongoose 7, Swagger
Auth & Security	bcrypt, JSON Web Tokens, Helmet, CORS
AI	OpenAI o3 (diagram rewrite)
Storage	MongoDB Atlas (Charts & Users), AWS S3 (future diagram screenshots)
DevOps	Docker, Vercel (FE), AWS Lambda (BE), Serverless Framework, Terraform, GitHub Actions
Observability	CloudWatch Logs, Vercel Analytics
Tests	Mocha & Chai (unit/integration), Jest (unit/integration)
IaC	Terraform, GitHub Actions secrets

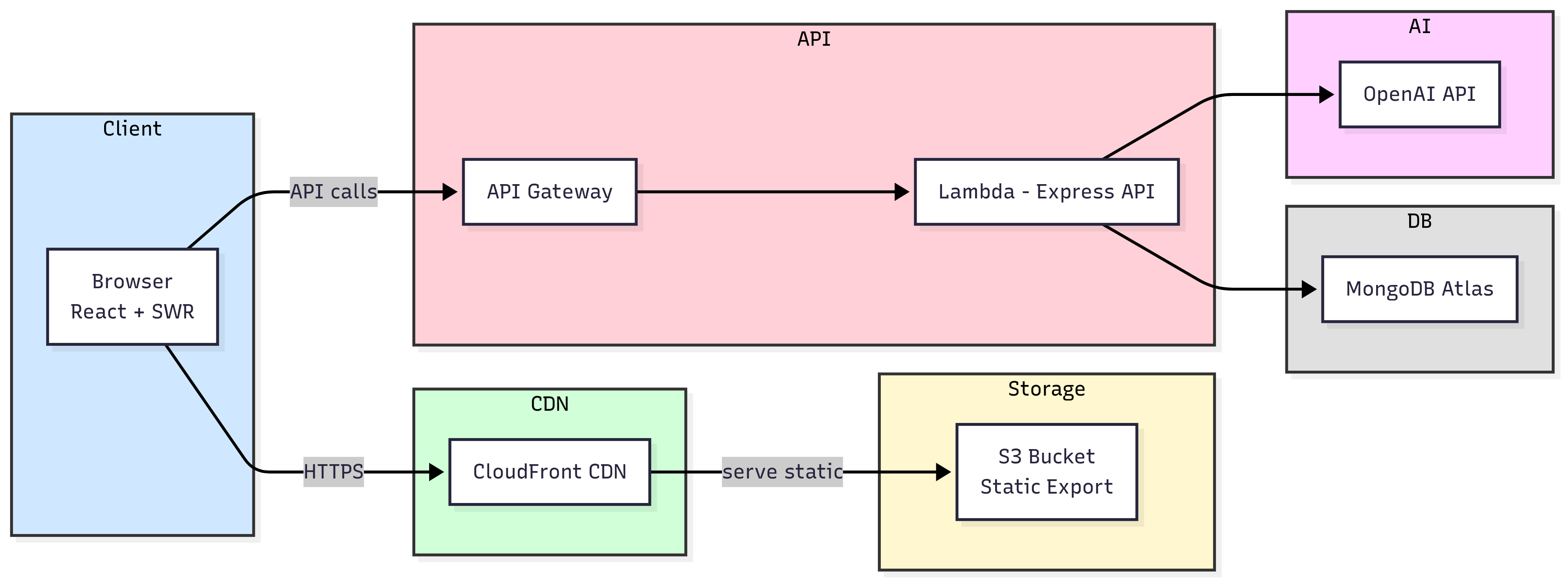

🎹 Architecture Diagram

The architecture diagram illustrates the high-level components and their interactions in the MermaidGenie application:

Architecture Diagram

Mermaid Code for the diagram:

flowchart LR
    subgraph Client
        A[Browser<br/>React + SWR]
    end

    subgraph CDN
        B[CloudFront CDN]
    end

    subgraph Storage
        C[S3 Bucket<br/>Static Export]
    end

    subgraph API
        D[API Gateway]
        E[Lambda - Express API]
    end

    subgraph DB
        F[MongoDB Atlas]
    end

    subgraph AI
        G[OpenAI API]
    end

    A -->|HTTPS| B
    B -->|serve static| C
    A -->|API calls| D
    D --> E
    E --> F
    E --> G

    style Client  fill:#D0E8FF,stroke:#333
    style CDN     fill:#D0FFD8,stroke:#333
    style Storage fill:#FFF7D0,stroke:#333
    style API     fill:#FFD0D8,stroke:#333
    style DB      fill:#E0E0E0,stroke:#333
    style AI      fill:#FFD0FF,stroke:#333

[!TIP] Feel free to paste it to our own MermaidGenie editor to see and interact with it live!

🏗 User Interface

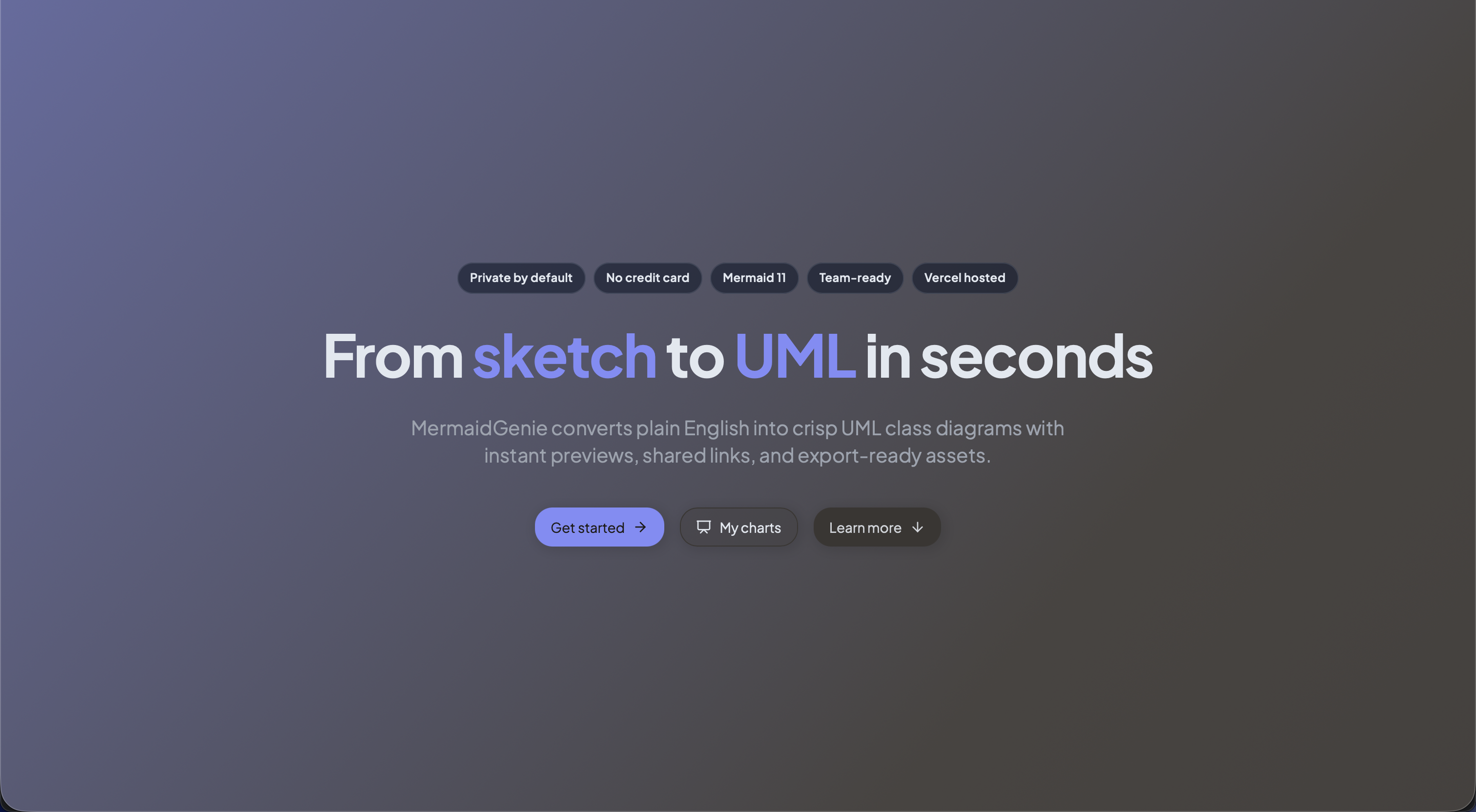

Landing Page

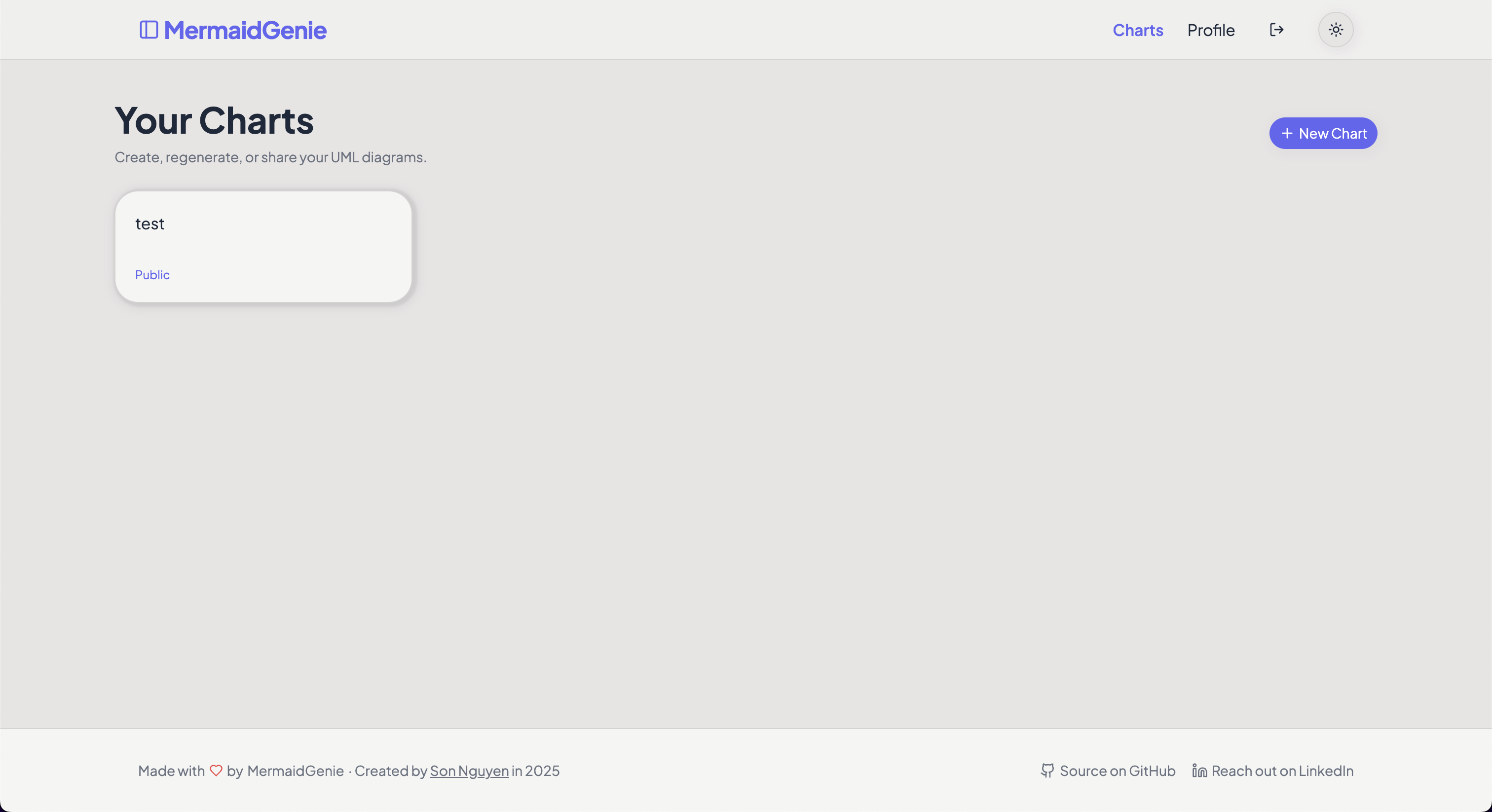

Dashboard

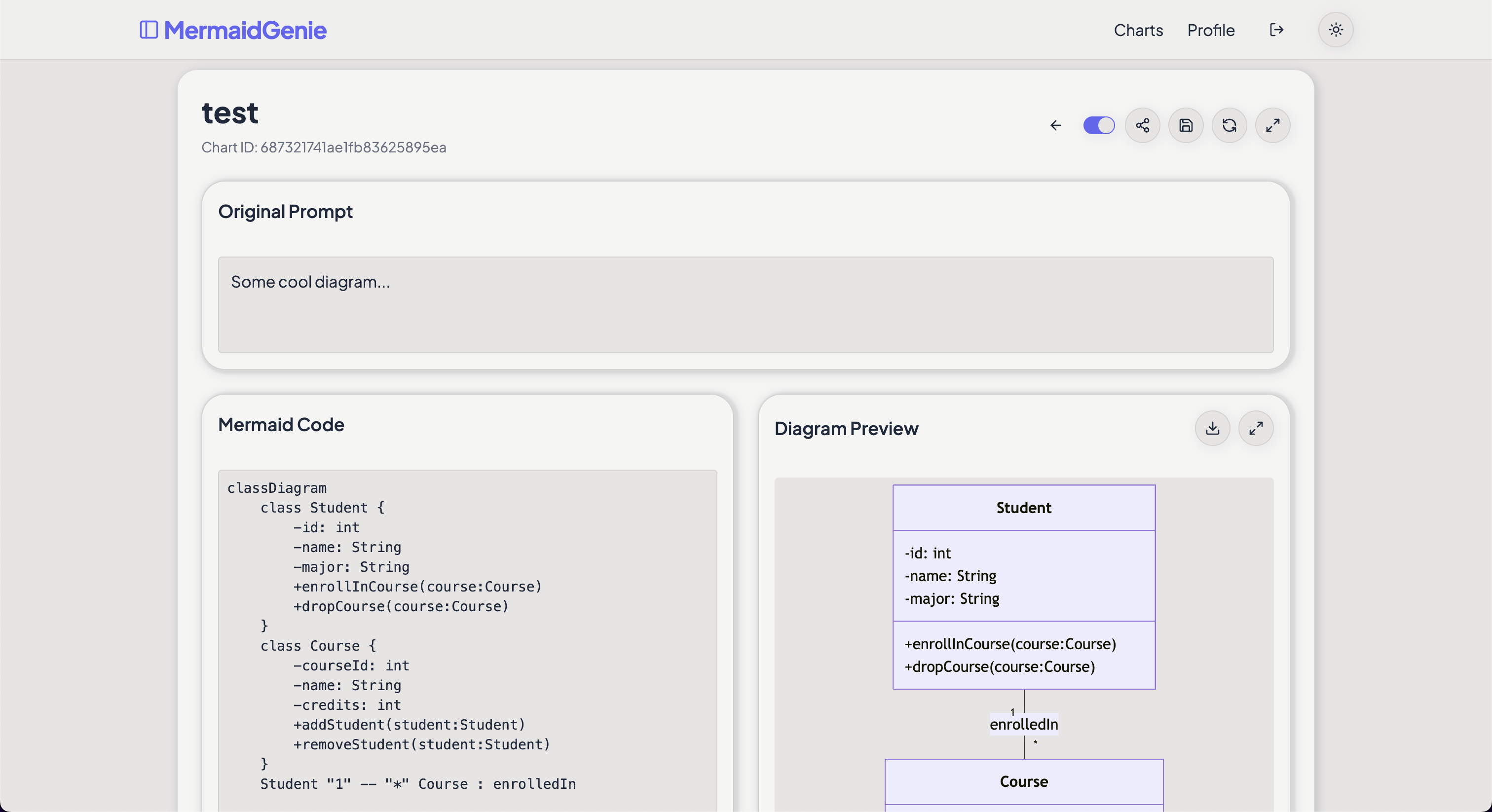

Editor

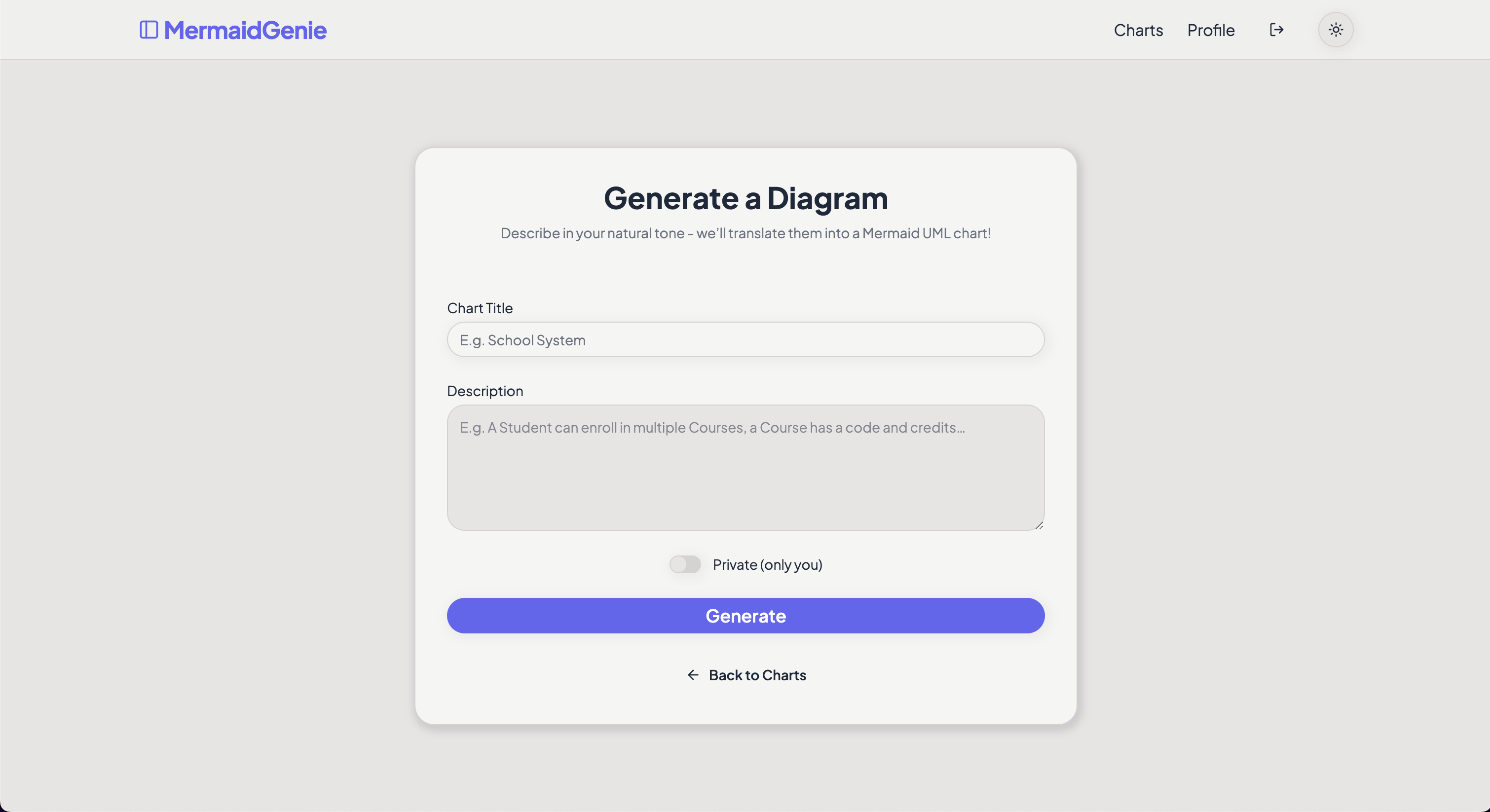

Create Chart

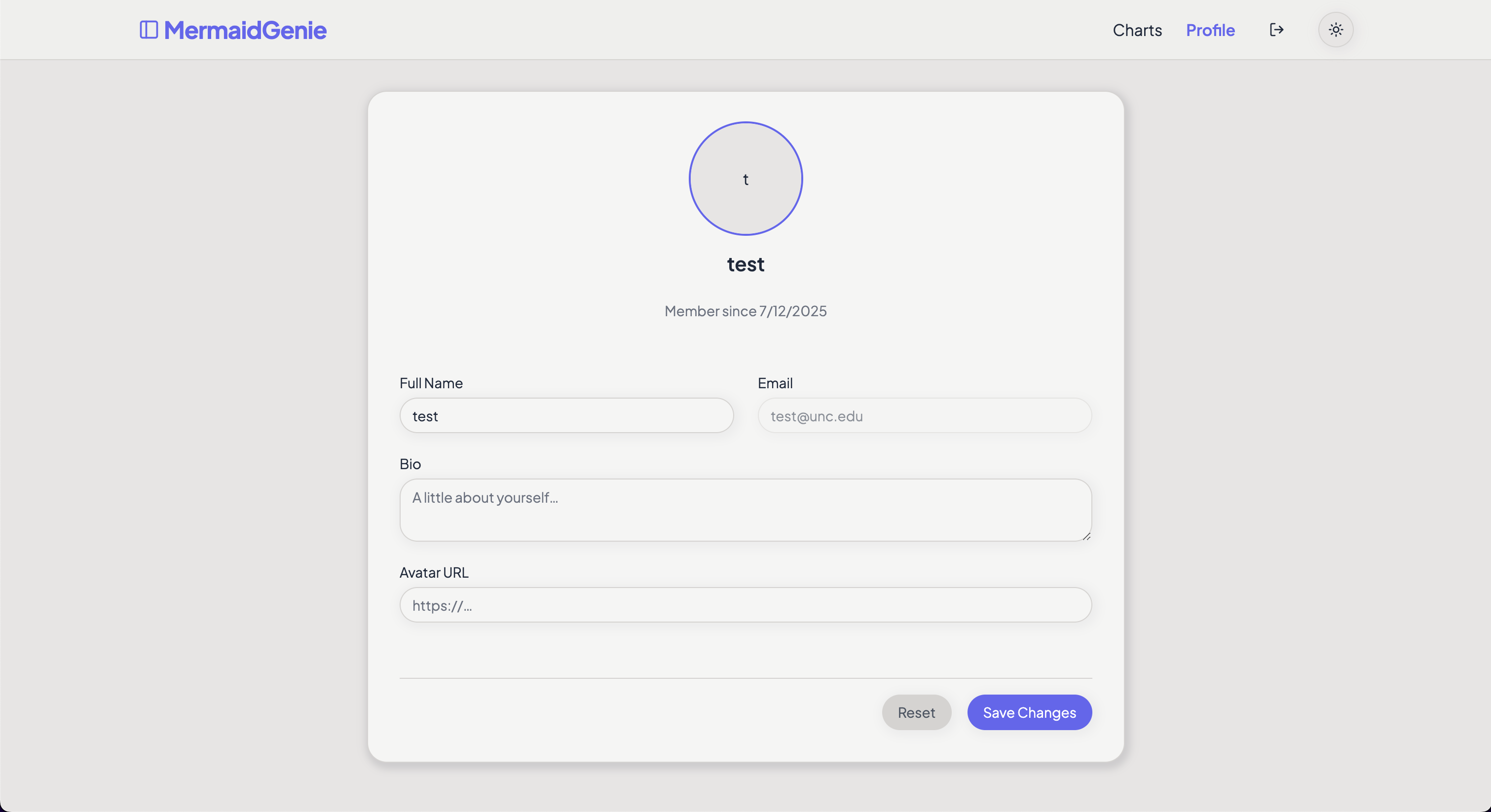

User Profile

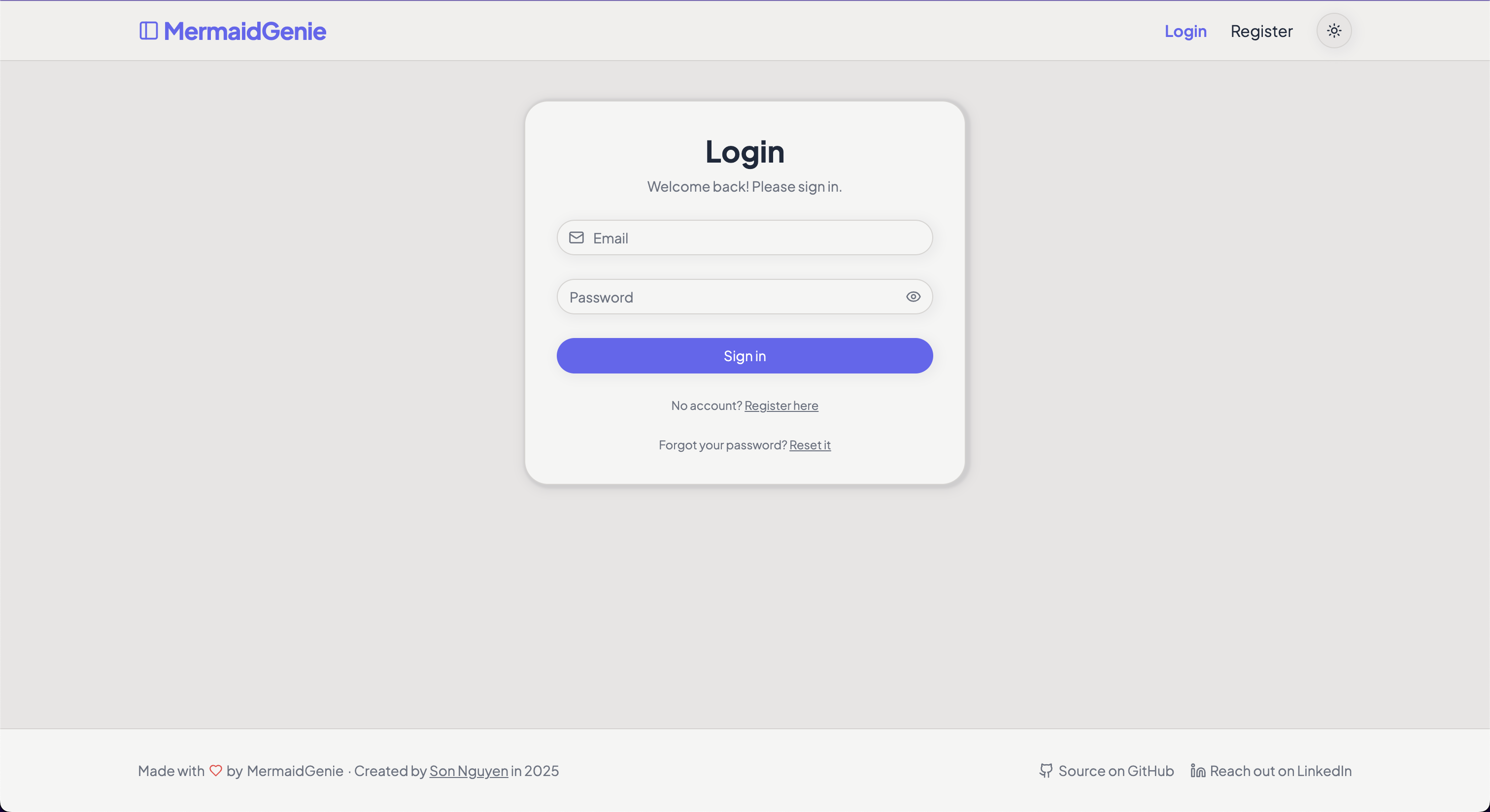

Login

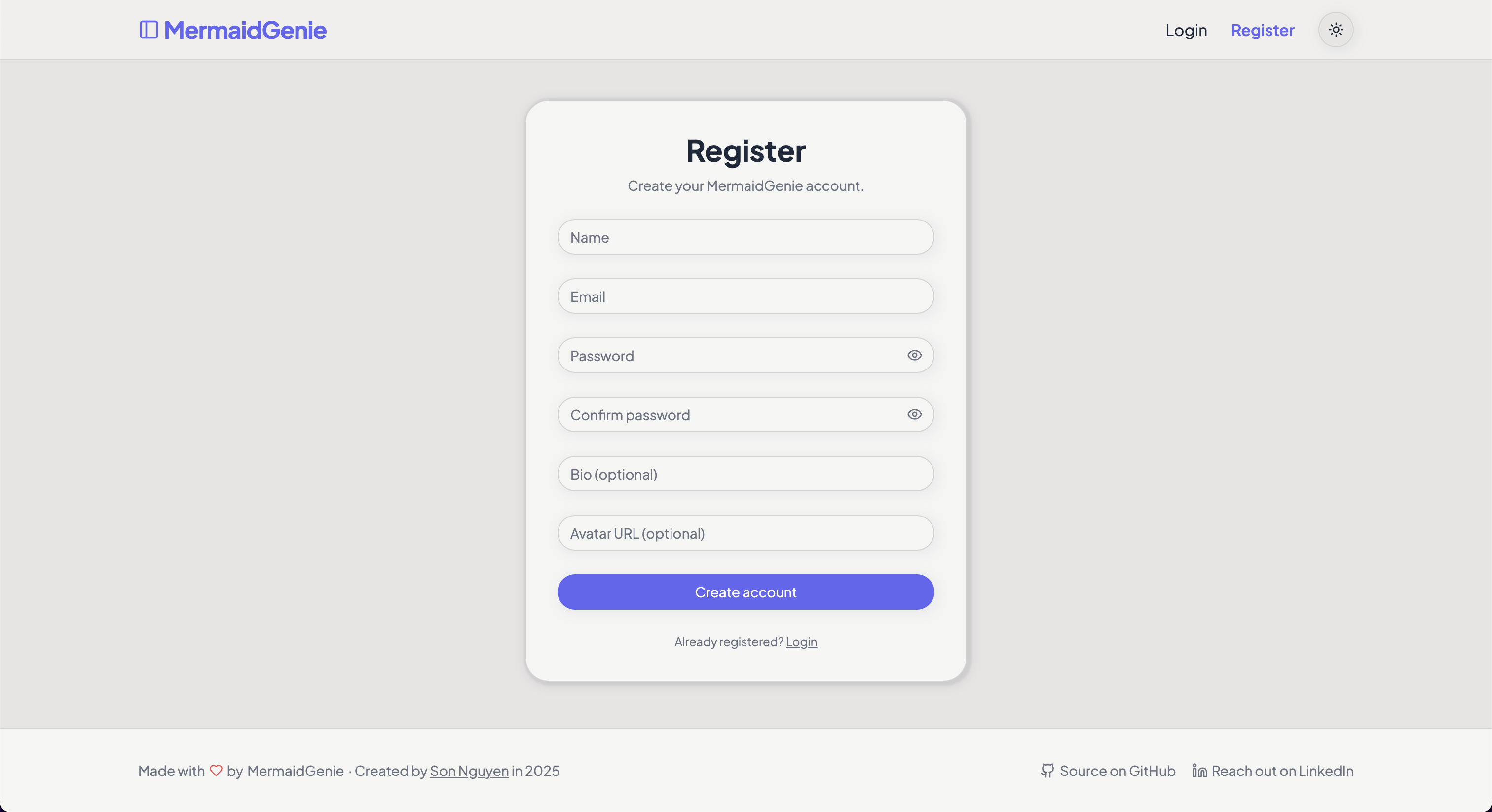

Register

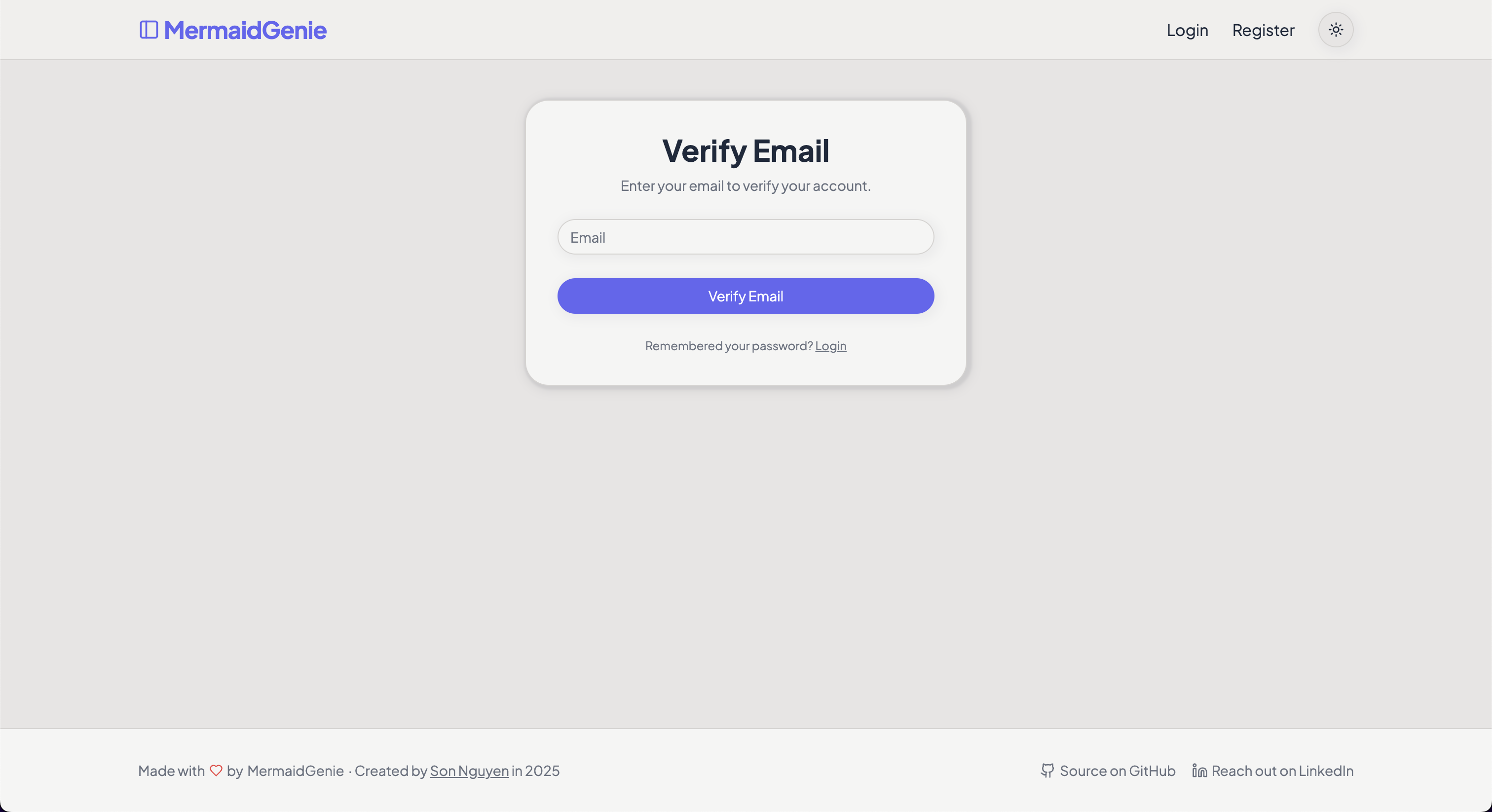

Reset Password

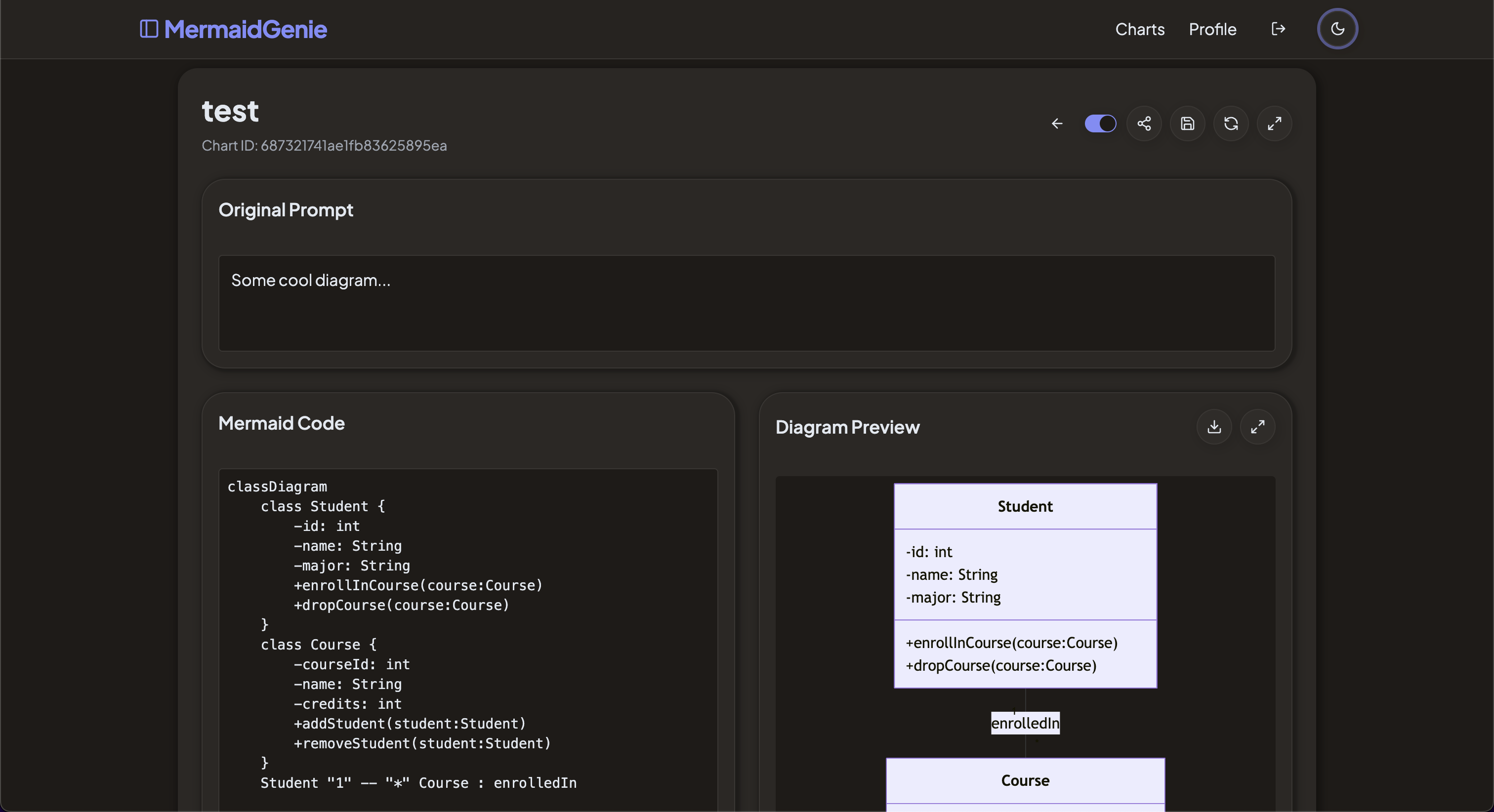

Dark Mode Example

Dark Mode

🗄 Database Schema (Mongoose Models)

Model	Field	Type	Req	Notes
User	`_id`	`ObjectId`	✔
	`name`	`String`	✔
	`email`	`String`	✔ unique
	`password`	`String`	✔ hashed
	`bio`	`String`	—	optional
	`avatarUrl`	`String`	—
	`createdAt` / `updatedAt`	`Date`	✔	auto
Chart	`_id`	`ObjectId`	✔
	`title`	`String`	✔
	`prompt`	`String`	✔	original text
	`mermaidCode`	`String`	✔	sanitized
	`isPublic`	`Boolean`	✔	default false
	`owner`	`ObjectId → User`	✔	ref
	`createdAt` / `updatedAt`	`Date`	✔

We also index email in User and owner in Chart for fast lookups.

[!NOTE] Schemas may change and more schemas may be added as we implement new features. Always check the latest code in backend/models/.

🏁 Getting Started

⚙️ Backend Setup

git clone https://github.com/hoangsonww/MermaidGenie-UML-Diagram-App.git
cd MermaidGenie-UML-Diagram-App
cd backend
npm install

cp .env.example .env         # fill: MONGO_URL, JWT_SECRET, OPENAI_KEY
npm run dev                  # http://localhost:5000/api or the URL with the port that you set in .env

💻 Frontend Setup

cd ../frontend
npm install --legacy-peer-deps
cp .env.local.example .env.local   # NEXT_PUBLIC_API_URL, etc.

npm run dev            # http://localhost:3000 by default

📚 API Reference

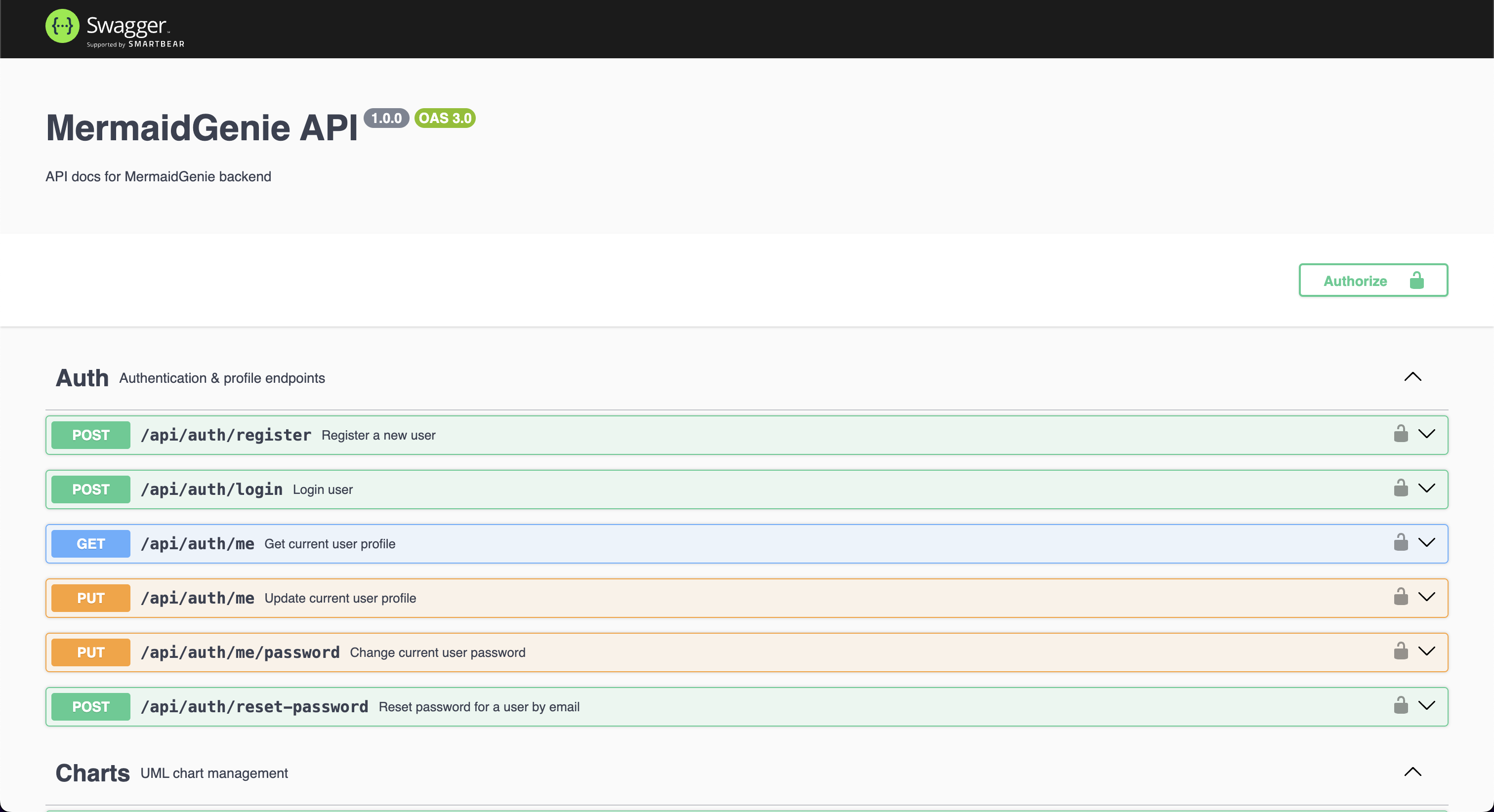

Swagger JSON at /api-docs.json, UI at /api-docs.

Authentication

Method	Endpoint	Body
POST	`/api/auth/register`	`{ name,email,password }`
POST	`/api/auth/login`	`{ email,password }`
POST	`/api/auth/verify-email`	`{ email }` → `{ exists }`
POST	`/api/auth/reset-password`	`{ email,newPassword }`

Charts

Method	Endpoint	Description
GET	`/api/charts`	All charts of current user
POST	`/api/charts`	Create new from `{ title,prompt }`
GET	`/api/charts/:id`	Fetch one (if owner or public)
PUT	`/api/charts/:id`	Update prompt / code
PUT	`/api/charts/:id/visibility`	Toggle public
POST	`/api/charts/:id/regenerate`	AI rewrite of `prompt → code`
DELETE	`/api/charts/:id`	Remove

Authorization: Bearer <JWT> header (except public GET).

More details in the OpenAPI docs.

[!NOTE] Additional endpoints may be added as needed for future features, so please check the API docs for the latest updates.

API Docs

☁️ Deployment

MermaidGenie uses serverless and static‐hosting services:

Layer	Target	Tool / Config
Frontend	S3 + CloudFront global CDN	Terraform (in `terraform/`)
Backend	AWS Lambda behind HTTP API via Serverless	Serverless Framework (in `aws/backend/`)
Database	MongoDB Atlas (M0 free / M10 prod)	Atlas UI
Assets	S3 bucket for static export (`out/` folder)	Terraform
Domain	CloudFront or Vercel custom domain (opt.)	Route 53 / CloudFront aliases

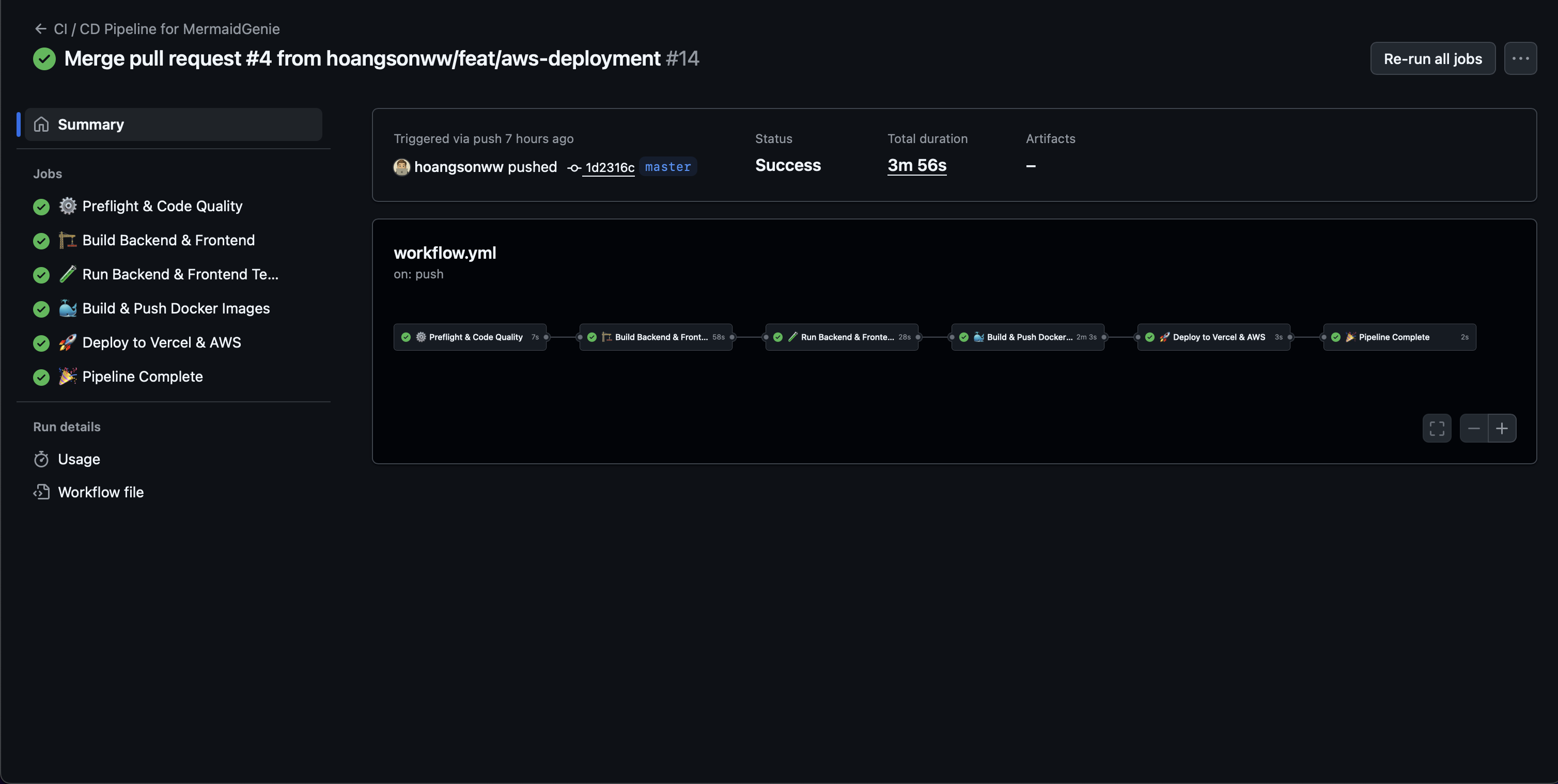

GitHub Actions workflow

Install deps, type-check, lint, format
Build backend (npm run build) & frontend (next build && next export), errors suppressed
Run backend tests (Jest) & frontend tests (Mocha), errors suppressed
Build & push Docker images to GHCR (for both backend & frontend)
Run serverless deploy --stage ${{ secrets.STAGE }} for backend
Sync frontend/out/ to S3 & invalidate CloudFront (via Terraform or AWS CLI)
(Optional) Vercel deploy for preview branches

All credentials (AWS keys, Atlas URI, JWT secret, GHCR token, etc.) are stored encrypted in GitHub Secrets.

[!TIP] For more details on how to deploy, check the aws/ and terraform/ directories for configuration files and scripts, and the AWS deployment guide.

Deployment Diagram

🛠 Scripts & Utilities

We also have several utility scripts to help with development and maintenance, as well as a Makefile for common tasks, which can be run straight from the command line in the root directory.

Common Scripts

# Backend
./shell/backend_deploy.sh      # Deploy backend to AWS
./shell/backend_remove.sh      # Remove backend from AWS
./shell/backend_test.sh        # Run backend tests
./shell/backend_setup.sh       # Setup backend environment (e.g., MongoDB, AWS)

# Frontend
./shell/frontend_deploy.sh     # Deploy frontend to Vercel
./shell/frontend_remove.sh     # Remove frontend from Vercel
./shell/frontend_test.sh       # Run frontend tests
./shell/frontend_setup.sh      # Setup frontend environment (e.g., Vercel, Next.js)

Makefile Commands

# Run all tests
make test
# Build the project
make build
# Lint the codebase
make lint
# Format the codebase
make format
# Deploy the backend
make backend-deploy
# Setup the backend environment
make backend-setup
# Test the backend
make backend-test
# Deploy the frontend
make frontend-deploy
# Setup the frontend environment
make frontend-setup
# Deploy the frontend
make deploy-frontend
# Help with available commands
make help

More commands and scripts can (and will) be added as needed. The Makefile is designed to simplify common tasks and ensure consistency across development environments.

🧪 Testing

We also have a comprehensive test suite to ensure code quality and functionality. Tests are run using Jest for the backend and Mocha/Chai for the frontend.

Backend Tests

MermaidGenie uses Jest for unit and integration tests in the backend.

cd backend
npm run test           # Run all tests
npm run test:watch     # Watch mode
npm run test:coverage  # Generate coverage report

Frontend Tests

MermaidGenie uses Mocha and Chai for unit tests in the frontend.

cd frontend
npm run test           # Run all tests
npm run test:frontend  # Run frontend tests

Tests are located in the tests/ directory of each respective project. Feel free to add new tests as you develop new features or fix bugs.

🔄 CI/CD with GitHub Actions

MermaidGenie project uses a multi-stage CI/CD pipeline with GitHub Actions ensures code quality and deploys to Vercel and AWS.

.github/workflows/ci.yml
├─ Install & Cache
├─ Lint   (ESLint + Prettier)
├─ Test   (Jest & Playwright)
├─ Build  (Docker multi-arch)
├─ Push   (GHCR)
└─ Deploy (Vercel / AWS ECS)
(and more...)

This pipeline runs on every push to main and on pull requests, ensuring that only tested and linted code is deployed.

🐬 Docker & Containerization

MermaidGenie uses Docker for containerization, allowing for consistent development and deployment environments.

Docker Commands

# Build the backend Docker image
docker build -t mermaidgenie-backend ./backend
# Build the frontend Docker image
docker build -t mermaidgenie-frontend ./frontend
# Run the backend container
docker run -p 5000:5000 mermaidgenie-backend
# Run the frontend container
docker run -p 3000:3000 mermaidgenie-frontend
# Push the backend image to GitHub Container Registry
docker push ghcr.io/yourusername/mermaidgenie-backend:latest
# Push the frontend image to GitHub Container Registry
docker push ghcr.io/yourusername/mermaidgenie-frontend:latest

Docker Compose

We also have a docker-compose.yml file in the root directory for local development, which allows you to run both the backend and frontend together:

docker-compose up --build

This will start both services, making it easy to develop and test the entire application locally as you can get both the frontend and backend running with a single command!

Kubernetes

For production deployments, we recommend using Kubernetes for orchestration. The Docker images can be deployed to a Kubernetes cluster, and you can use Helm charts for easier management.

We also have a k8s/ directory with example Kubernetes manifests to get you started.

Feel free to modify these manifests to suit your production environment.

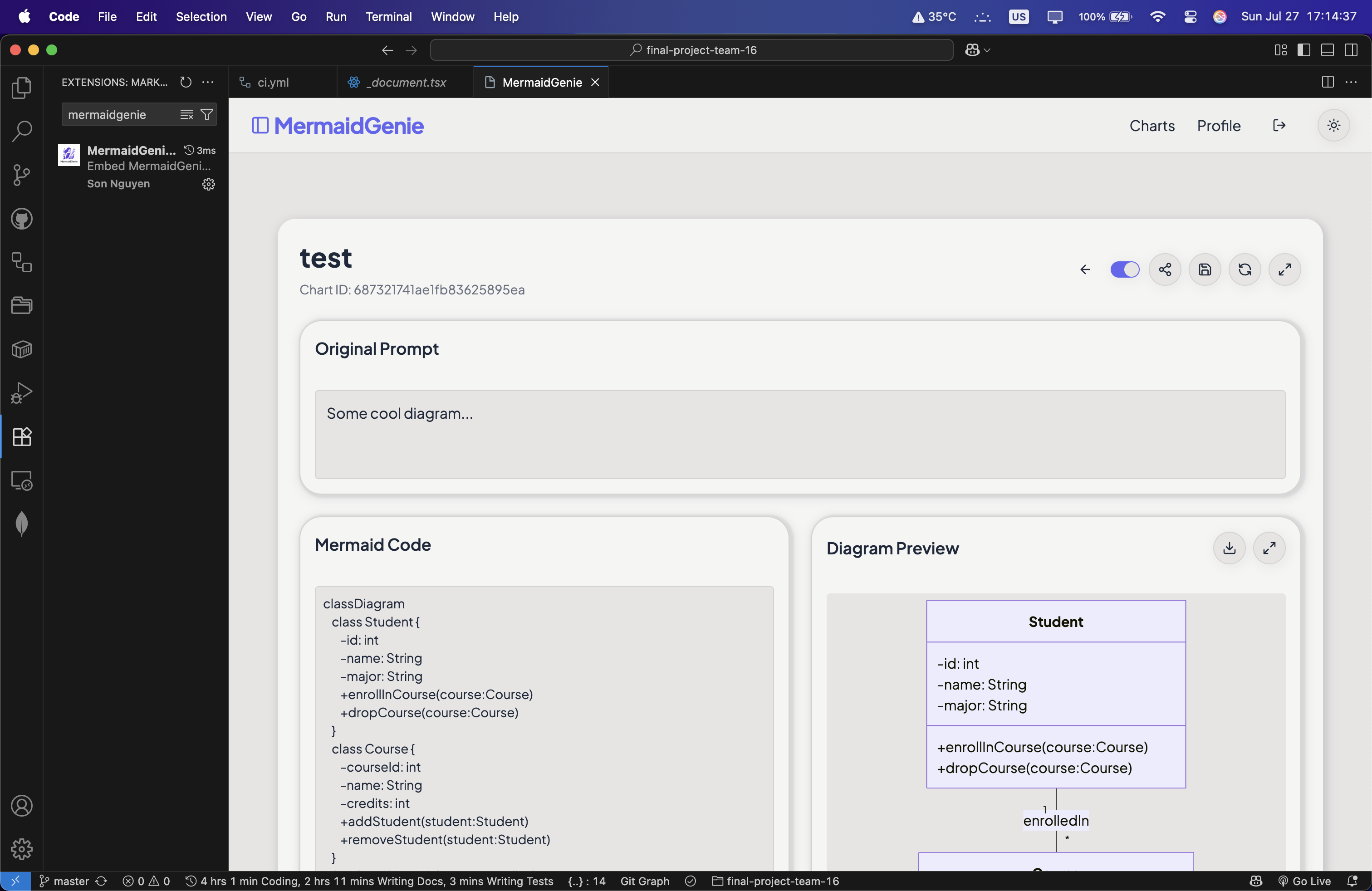

⚛️ VS Code Extension

MermaidGenie also comes with a VS Code extension that lets you create, edit and share Mermaid diagrams without leaving your editor.

Key Features

Instant Diagram Editor
Launch MermaidGenie in a side panel via the Command Palette.
Live AI Generation
Type natural‑language prompts and see your diagram render in real time.
Secure iframe
Loads https://mermaidgenie.vercel.app under a strict Content‑Security‑Policy.
Persistent State
Your work (prompts, edits, history) stays alive across sessions.
Panel Customization
Configure the panel title, column, iframe size, script permissions, and auto‑open behavior.

To install the extension: Simply search for MermaidGenie Viewer in the VS Code Marketplace or go to MermaidGenie Viewer and click Install.

VS Code Extension

Usage

Open the Command Palette (Ctrl+Shift+P / ⌘+Shift+P).
Run MermaidGenie Viewer: Open Diagram Editor.
Enter your prompt or paste Mermaid code, then edit & share.

Configuration Open Settings → Extensions → MermaidGenie Viewer to adjust:

Panel title
Editor column (0=active, 1–3)
iframe width & height
Script permissions
Auto‑open on startup

For full details, troubleshooting tips and advanced options, see extension/README.md.

🤝 Contributing

Fork the repo
Create a feature branch (git checkout -b feature/your-feature)
Make your changes
Before committing, run npm run format to format your code
Commit your changes with a clear message
Push to your fork (git push origin feature/your-feature)
Open a pull request
Describe your changes and link any issues
Wait for review and address feedback
Once approved, your PR will be merged!

Thanks for making diagramming better for everyone!

📝 License

This project is licensed under the MIT License. Contributions are welcome! However, make sure that you credit the original authors and maintainers regardless of the changes you make or the use you put it to.

👩‍💻 Author

Built with ☕ and 🧜 magic by Son Nguyen in 2025.

[!IMPORTANT] MermaidGenie © 2025. Bring your ideas to life, one diagram at a time.
