⚠️ Read this before you install: it is usually the combination, not the game

This project is a bridge between three things it does not control — your NVIDIA driver, the NVIDIA NGX runtimes (nvngx_dlssnr.dll, nvngx_dlss.dll) and a third-party neural consumer (renodx-dlss5.addon64 or Deep Fried Chicken). Most reports here are not "game X does not work"; they are one of those three not getting on with another. The tables below are what has actually been measured, and what has not.

Check your own combination in about fifteen seconds, with no game running:

host64\dlss5-feed-host64.exe --test          (32-bit games; the helper is in host64\)

--test finished: 300/300 evaluates succeeded means the driver, the runtimes and the consumer all work together. Anything less prints the fault and the module chain that produced it.

1. Driver × neural consumer

Measured with --test on one RTX 5090, same files throughout, changing only the consumer — through the 64-bit helper, i.e. the 32-bit game path. A 64-bit game runs the consumer's detour in-process through the same code and is expected to behave the same, but has not been measured. Blank cells are not claims — they are combinations nobody has run.

neural consumer	driver 616.56	driver 616.64
(none — DLAA only, no neural pass)	—	✅ 300/300
Deep Fried Chicken 1.4.8-alpha	—	✅ 300/300
renodx-dlss5 v4.55 (classic engine)	—	✅ 300/300
renodx-dlss5 "latest" (classic engine)	—	✅ 300/300
renodx-dlss5 v4.6 (lazy-adoption engine)	—	❌ 1/300
renodx-dlss5 v4.7 (lazy-adoption engine)	✅ 300/300	❌ 0/300

The one row measured on both drivers is v4.7, and it flips. That is what pins the driver rather than the machine. One real-game log on 616.86 shows the same v4.7 failure, so it is not fixed there — but 616.86 has only that one data point. On 616.64+ the neural evaluate faults inside NVIDIA's own NGX runtime:

evaluate raised 0xC0000005 in D3D12Core.dll
    D3D12Core.dll <- nvngx_dlssnr.dll <- _nvngx.dll <- renodx-dlss5.addon64 <- dlss5-feed-host64.exe

Nothing on this side is in that chain past the call itself. 616.64 also changed what NGX answers about the feature that path creates (NotImplemented on 616.56 → supported on 616.64), so the driver moved and the v4.6+ engine did not survive it. Any one of these works: Deep Fried Chicken, a classic-engine renodx-dlss5 build, or driver 616.56. See #54.

2. The NGX runtimes

file	what it is	builds seen in reports
nvngx_dlssnr.dll	the neural-rendering model — DLSS 5 cannot run without it	NVIDIA 310.8.0.0, NVIDIA 310.8.2.0, ShortFuse repack 310.8.SF.0
nvngx_dlss.dll	the DLSS super-resolution runtime	310.8.0.0, 310.9.0.0, and older DLSS v3 builds such as 3.8.10.0

Telling NVIDIA's build from ShortFuse's repack: not by the version number and not by OriginalFilename — both report 310.8.0.0 and both carry CL 38718415. The field that differs is the stated FileVersion string: 310,8,0,0 (NVIDIA) versus 310.8.SF.0 (ShortFuse). 0.14.0-beta.2 logs it, and Verify-DLSS5Feeder.ps1 prints it.

The .SF repack is not known to break anything. It was the leading hypothesis in #47 and was then eliminated by counter-example. Do not swap runtimes on the strength of that thread alone.

A 3.x nvngx_dlss.dll beside a 310.x nvngx_dlssnr.dll has been seen in reports. Whether the mismatch matters is unknown — no test has isolated it. If yours are mismatched, it is worth mentioning when you report.

3. Known-open, and not caused by your install

symptom	where	status
NVSDK_NGX_D3D12_Init -> 0xBAD00001 on a 64-bit game, while the same files succeed for 32-bit games	#47	Open, per-game. GPU architecture, driver, data path, adapter, model build and game provenance have each been eliminated by counter-example.
Works for minutes, then the neural pass stops; log says device removed … 0x887A0006	#57	Open. A GPU hang; 0.14.0-beta.2 arms the D3D12 breadcrumb recorder on the D3D11 path, which was missing.
Severe flicker or a frozen image on 64-bit Vulkan	#13	Open. Narrowed: the transport is clean, the depth guide reaching NGX is a constant.

4. If you report something

Attach dlss5-feed.log, ReShade.log, and for a 32-bit game host64\dlss5-feed-host.log — from the same run. Run Verify-DLSS5Feeder.ps1 in the game folder and paste its output; it prints the driver, both runtime identities, the consumer and its engine generation, which is most of the above in one go. A report without the host log cannot usually be answered.

Use 0.14.0-beta.2 or newer: builds before 0.14.0 logged every C++ crash identically as KERNELBASE.dll with no way to name the thrower, and beta.2 fixes the crash that followed the driver fault.

Description

DLSS 5 neural rendering in games that ship without any DLSS — D3D11, D3D12, Vulkan, OpenGL, 32-bit, even DirectX 10 and DirectX 9.

DLSS 5's neural-rendering add-on only works by hooking a game's own DLSS calls. A game that has no DLSS never makes those calls, so the add-on sits idle. DLSS5-Feeder makes the calls itself. It builds a complete DLSS DLAA "contract" out of what ReShade already has — the frame being processed, the depth buffer, and estimated optical-flow motion vectors — runs a genuine DLSS evaluate, lets the DLSS 5 neural-rendering add-on hook into that evaluate, and copies the neural result back into the frame. All inside ReShade's effect chain.

game frame → ReShade effects → [motion vectors] → [DLSS5_Feed] → DLSS5-Feeder:
                                                    depth + MV     DLSS DLAA + DLSS 5 neural rendering
                                                                   ↓
                                    neural output written back over the frame → later effects → present

↓ Jump to the Contents

---

Before you install: three things

None of this is hard, and the automated installer verifies most of it for you.

1. You might not need this project at all

If your game is 64-bit and uses DirectX 9, 11 or 12, there is now a simpler option: ShortFuse's renodx-dlss add-on does the whole job by itself. Use that instead — it is one add-on rather than two, and there is nothing for this project to add.

Your game	What to use
64-bit, DirectX 9 / 11 / 12	renodx-dlss on its own — you do not need DLSS5-Feeder
32-bit (any graphics API)	DLSS5-Feeder
Vulkan	DLSS5-Feeder
DirectX 9, and you want the best handling of motion	DLSS5-Feeder

renodx-dlss is not on GitHub. It comes from the RenoDX Discord, #DLSS5 channel: https://discord.com/invite/renodx

Why DLSS5-Feeder is still the only option for those three

• 32-bit games. renodx-dlss is 64-bit only, and NVIDIA ships no 32-bit NGX runtime at all, so an in-process approach is impossible there by construction. This project's cross-process helper is the only route.
• Vulkan games. Covered here through the bundled layer.
• Real motion vectors on D3D9. renodx-dlss evaluates only the finished backbuffer there, with no temporal inputs. This project drives a full temporal evaluate from ReShade motion vectors.

2. You need one neural add-on installed next to this one

DLSS5-Feeder does not sharpen anything by itself. It builds the DLSS request your game never makes; a second add-on does the actual neural rendering. You install exactly one of them.

Recommended: Deep Fried Chicken, by Alexander, from its Discord: https://discord.gg/g2v2XGqvR — take 1.4.8 or newer.

Copy its three files next to your game's .exe (or into host64\ for a 32-bit game): deep-fried-chicken.addon64, deep-fried-chicken-nvngx.dll and deep-fried-chicken.cfg. Its settings file already arrives set up correctly, so leave it alone for your first run. You supply nvngx_dlssnr.dll and nvngx_dlss.dll yourself, as always.

Never install two neural add-ons. If Deep Fried Chicken finds RenoDX's add-on or Alex's Toolkit loaded beside it, it does nothing at all for the whole session — silently, as far as your eyes are concerned. Pick one. If something looks like it is not working, this is the first thing to check.

Using Krish's RenoDX add-on instead (the older option, still fully supported)

renodx-dlss5.addon64, the #DLSS5 build, from the RenoDX Discord, #DLSS5 channel: https://discord.com/invite/renodx. It is what every release up to now was developed against.

The feeder fingerprints whichever build it finds and adapts, so any recent one works — take the newest in the channel. Any renodx-dlss5*.addon64 name is recognised (renodx-dlss5-4.7.addon64 included; before 0.11.0-beta.2 only the exact name was, and a versioned file was logged as "not found" and treated as the classic engine). Keep just one copy — ReShade loads them all.

The feeder writes EnableHooks=2, NeuralUplift=1 and NREnableUpscaling=0 when they are unset, and in the host64 helper it unbinds the global hotkeys so a gameplay keypress cannot silently toggle neural rendering in a background process. Every guard is keyed to a marker only the build that needs it carries. None of this applies to Deep Fried Chicken, which has its own config file and its own overlay tab.

Build	Marker	What the feeder does about it
v4.7	NRGlobalTone	Newest, checked 2026-09-01. Replaces the paper-white codec with a reversible colour bridge (SDR sRGB / linear HDR BT.709 / PQ BT.2020) picked from the contract the feeder already publishes, plus a fenced D3D12 workset pool. Nothing new is required from the feeder; the 32-bit overlay mirrors its renamed sliders and its two new keys.
v4.6	NRToggleKey	Global hotkeys, WIP upscaling with a rejection latch, richer decline diagnostics. See the NRStyle=2 note under Smooth Motion below.
v45+	EnableHooks	Rescans every present and adopts missed features lazily, so the feeder skips its warm-up re-create.
older	—	Classic single hook pass; the warm-up re-create stays on.

Verification status: no game row has verified a v4.6 or v4.7 run end-to-end yet. The compatibility work is static — marker detection, key defaults, panel mirroring — and both generations were checked against the shipped binaries.

Careful: renodx-dlss and renodx-dlss5 are two different add-ons

• renodx-dlss5 (Krish) is a neural add-on. It works with this project, as the alternative to Deep Fried Chicken above.
• renodx-dlss (ShortFuse) replaces this project — it builds the DLSS request itself, so it neither needs nor tolerates the feeder. One or the other, never both.

3. Turn off OptiScaler, and Smooth Motion on Vulkan

• OptiScaler — turn it off. It drives the same upscaling path this project does, and the two fight over it.
• NVIDIA Smooth Motion — turn it off for Vulkan games only. On Vulkan the two cannot work together, and no future release can fix that. You would see roughly half your frames unprocessed, which looks like heavy flickering or a picture stuck on an old frame. Nothing is broken and nothing is crashing; it simply cannot work.
• DirectX 11 and 12 games are fine. Leave Smooth Motion on there if you like it.

To switch it off for Vulkan alone and keep it everywhere else: in NVIDIA Profile Inspector, set Smooth Motion - Enabled APIs (0xB0CC0875) and clear the Vulkan bit — the value is a sum of 1 for DX12, 2 for DX11 and 4 for Vulkan, so 7 becomes 3.

Why Vulkan cannot work, and how to check whether Smooth Motion is on

Smooth Motion doubles your frame rate by inventing an extra frame between each pair of real ones. On Vulkan it does that inside the graphics driver — the very last step before the picture reaches your monitor, past anything ReShade or any add-on can touch.

This project does its work earlier, while the frame is still being built. So the frames the game really renders get neural rendering applied correctly, but the frames the driver invents are built from a copy taken before we ran, and carry none of it. Half the frames you see are processed and half are not. The log will happily report every frame delivered, because from the feeder's point of view they were.

We tried to close that gap and could not, which is why this is documented rather than fixed. Across five rebuilds on DOOM 2016 — a game that works perfectly with Smooth Motion off — we confirmed the feeder's work is correct and complete before the frame is handed over, that it can finish early enough, and that it can be made structurally identical to a normal game's frame. The invented frames still never carried our output. The driver simply does not read what we wrote. Full detail in PLAN-DETROIT.md.

The feeder cannot warn you about this on Vulkan. Its Smooth Motion check looks for a file the driver only loads for DirectX games, so a silent log does not mean Smooth Motion is off. To be certain, turn on Smooth Motion - Debug Bars (0xB01B8B02) in Profile Inspector and launch: coloured bars on screen mean it is running. (0.9.0 and newer also watch for the tell-tale extra frames and warn when they spot them, but the Debug Bars check is the reliable one.)

Profile Inspector setting	ID	Value
Smooth Motion - Enabled APIs	0xB0CC0875	bitfield, default 7: 1 DX12, 2 DX11, 4 Vulkan — clear only the bit for this game
Smooth Motion - Enable	0xB0D384C0	0 / 1, per application
Smooth Motion - Debug Bars	0xB01B8B02	draws coloured bars on generated frames — use it to check whether the bad frames are the generated ones

Smooth Motion on DirectX 11 / 12: what changed in 0.11.0-beta.2

It should work from 0.11.0-beta.2 on. Smooth Motion adds its own D3D11 device and an invisible proxy swapchain (InvisibleWindowClassNvPresent), and ReShade creates an effect runtime on each — ReShade.ini for one, ReShade2.ini for the other. Until beta.2 the feeder fed whichever runtime initialised last, which under Smooth Motion was routinely the one without your preset: the log looked healthy and nothing was neural (issue #1, Ghost Recon Breakpoint and AC Syndicate). It now tracks every runtime and feeds the one that actually renders DLSS5_Feed; dlss5-feed.log lists each runtime with its device and window class, and says which one is bound. Since 0.8.0 it is also thread-safe against Smooth Motion's extra Present calls.

If the picture still shows no effect with Smooth Motion on, post the log after a minute of play (not the first seconds) on #1, and say whether your other ReShade effects are visible.

Two other add-ons Smooth Motion is known to crash (neither is this one)

Both crash the game 1–2 s into boot with a null read on the present path, before the feeder feeds a frame. Found during a Metro 2033 Redux run.

• Luma (Luma-Metro Redux.addon): reads GetCurrentBackBufferIndex() and passes it to GetBuffer(), which fails under Smooth Motion's flip-model wrapper; the null back buffer is then dereferenced. Fix offered upstream to Filoppi/Luma-Framework. Remove the Luma add-on to boot, or turn Smooth Motion off for that game.
• NRStyle=2 (the RenoDX add-on's own setting, v4.6+, from its overlay panel): crashes at the next boot even without Luma. The feeder warns when it sees it; set NRStyle=0 in ReShade.ini's [RenoDX.DLSS5] section to recover.

Contents

• Before you install: three things
• Status
• Install: the automated way
• Install for a 64-bit game
  • Deep Fried Chicken: first run
  • Alternative: the RenoDX add-on
• Install for a 32-bit game
• Install for a DirectX 10 game
• Install for a DirectX 9 game
• Install for a Vulkan game
  • 32-bit Vulkan (DXVK)
• Install for an OpenGL game
• Motion vectors: choosing a provider
• How it works
  • The 32-bit path
  • The DirectX 10 path
  • The DirectX 9 path
  • The Vulkan path
  • The OpenGL path
• Requirements
• Configuration
• Logs and troubleshooting
• Building
• Limitations and roadmap
• Credits
• License
• AI declaration — what was written by AI, and what wasn't

Status

Proven working in seven games covering every supported path:

Game	Bitness / API	Result
Metro 2033 Redux	64-bit D3D11	4K DLAA + NR, HDR backbuffer
Subnautica	64-bit D3D11	Contributor-verified: 4K DLAA + NR, Generic Depth clear-selection profile
The Lord of the Rings: War in the North – Legacy Edition	64-bit D3D12	4K, same-device path, 120 fps
Splinter Cell: Blacklist	32-bit D3D11	60 fps, cross-process host
BioShock Remastered	32-bit D3D11 (D3D9→D3D11 wrapper)	4K, Luma HDR
Fable Anniversary	32-bit D3D9 via dgVoodoo2	1440p, 60 fps
DOOM (2016)	64-bit Vulkan	4K, D3D12 evaluate via cross-API interop
Worms Ultimate Mayhem	32-bit OpenGL	4K, GL↔D3D12 interop + cross-process host, 0.13 ms/frame
Guild Wars Reforged	32-bit Vulkan via DXVK	User-reported (#32): 3440x1440, 55 fps on an RTX 4070 (350+ without)
World of Warcraft 3.3.5a	32-bit Vulkan via DXVK	User-reported (#15): 4K on an RTX 5080/5090; the working dxvk.conf is in the DXVK section
Star Wars: KOTOR	32-bit OpenGL	User-reported (#31): RTX 2060, fixed in 0.9.0 (capped GL_EXTENSIONS string)
MX Bikes	64-bit OpenGL	User-reported (#5): the in-process OpenGL path, confirmed working

In each, the DLSS 5 add-on reports feature 18 created … inline feature 18 evaluation succeeded, driven entirely by ReShade depth + estimated motion vectors.

It is not game-specific: any D3D11, D3D12, Vulkan or OpenGL game with a working ReShade depth buffer and a motion vector provider should work — 64-bit directly, 32-bit via a bundled 64-bit helper process, D3D9 via a wrapper.

Detroit: Become Human (Demo), 64-bit Vulkan — almost certainly the Smooth Motion case above. The picture holds stale frames while the log reports every frame delivered, which is exactly the signature described in the Smooth Motion warning. Enabling Smooth Motion in DOOM 2016 reproduces it in a game that otherwise works, and the feeder cannot detect Smooth Motion on Vulkan, so its silent log never ruled it out here. If you hit this: check "Smooth Motion - Debug Bars" (0xB01B8B02), and if the bars appear, turn Smooth Motion off for Vulkan. Eight further tests (DLSS/NGX, renodx NR, HDR and format detection, cross-API memory coherence, queue-family ownership) all came back clean — full investigation in PLAN-DETROIT.md.

32-bit Vulkan (DXVK) is implemented and user-confirmed — see the World of Warcraft 3.3.5a row above (issue #15). The transport is the same src/feed_vk.h the 64-bit Vulkan path uses, compiled x86, with the host creating the shared textures the way the OpenGL path already does; the cross-bitness half is proven end-to-end on this hardware by spike\spike-vkhost64.exe + spike\spike-vkclient32.exe. Treat it as untested in a real game until a row appears above. See PLAN-VULKAN32.md.

The OpenGL path is verified 32-bit-first, which is the harder of its two halves: Worms Ultimate Mayhem runs the full cross-process route — the host creates the shared textures (GL memory objects are import-only), the game imports them raw and answers on a shared D3D12 fence. The 64-bit in-process OpenGL path shares that same src/feed_gl.h transport, is proven by spike\spike-gl64.exe, and is user-confirmed in MX Bikes (#5). See The OpenGL path and PLAN-OPENGL.md.

This is beta software. Expect the temporal quality of estimated motion vectors (some ghosting in fast motion, softness on thin moving geometry), and the HUD is processed along with the scene.

0.6.1: read this before installing

The motion-vector provider is now chosen with a preprocessor definition (DLSS5_MV_PROVIDER) instead of being whichever shader happens to write texMotionVectors. Five providers are supported and the recommended one is LumeniteFX Kernel — see Motion vectors: choosing a provider.

If you installed a release up to 0.5.2 and followed the old instructions, your feed has most likely been running on zero motion vectors. ReshadeMotionEstimation (DRME), which those releases recommended, does not compile on ReShade 6.8 (error X3020: cannot sample from texture that is also used as render target). ReShade still lists it as an enabled technique, so nothing looked wrong — but it wrote nothing. This release detects that and says so in the overlay and the log.

Install: the automated way

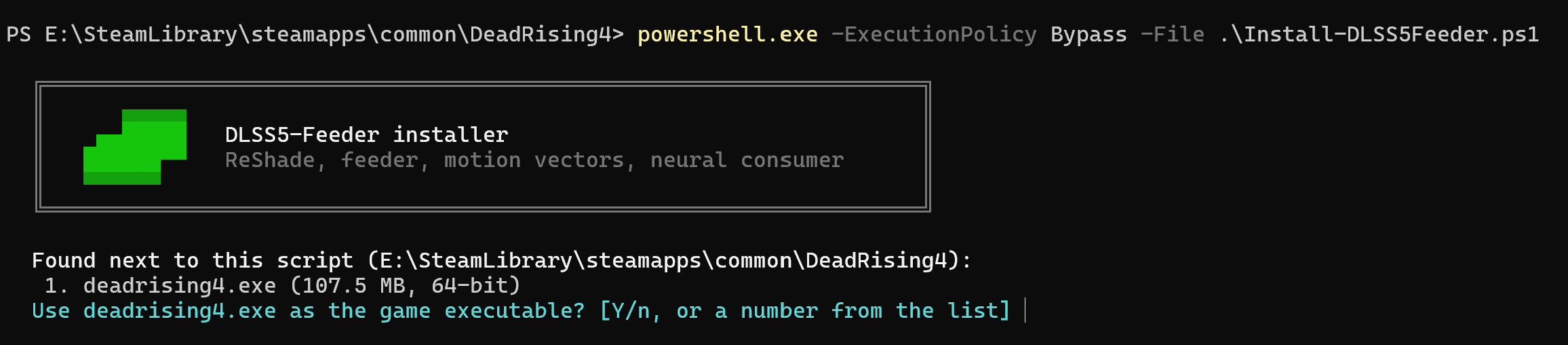

Install-DLSS5Feeder.ps1 does the whole install from one command:

• Download the script.
• Drop the .ps1 file next to your game's .exe.
• Right-click in the folder ▸ Open in Terminal.
• Paste this and press Enter:

  powershell.exe -ExecutionPolicy Bypass -File .\Install-DLSS5Feeder.ps1


• Confirm the executable it proposes.

Or point it at the exe from anywhere:

powershell -ExecutionPolicy Bypass -File .\Install-DLSS5Feeder.ps1 "C:\path\to\game.exe"

It reads the architecture and render API out of the executable, then downloads (once, into a cache) and installs everything the manual sections below describe: ReShade 6.8+ with add-on support (a local DLL, or the machine-wide Vulkan layer plus the ReShadeApps.ini entry), the feeder from the latest release (addon32 + host64\ for a 32-bit game), the ReShade framework headers, LumeniteFX, Deep Fried Chicken, both NVIDIA runtimes, dgVoodoo2 for Direct3D 8/9 games (watermark off; -DgVoodooWatermark keeps it), and ReShade.ini / ReShadePreset.ini with the provider selected and both techniques enabled in the right order. Existing files are merged into and backed up, not replaced. It ends by running a read-only verification pass and prints the result — every line is [ OK ], [WARN] or [FAIL], with the fix for each failure.

Things to know:

• Windows Defender flags Deep Fried Chicken (it hooks NVIDIA's NGX runtime with Detours, which heuristics dislike). The script tries the plain install first; only if Defender removes the file does it explain, ask, and add an exclusion for the game folder through a UAC prompt. Nothing is excluded without your yes.
• Vulkan games need one UAC prompt to register ReShade's layer and add the exe to ReShadeApps.ini. -NoElevate turns every such step into printed instructions instead.
• It asks which neural consumer you want before downloading anything: Deep Fried Chicken, or Krish's RenoDX DLSS 5 add-on. Both are fetched automatically, only one is ever installed, and if the other is already in the folder it offers to disable it. -Consumer DFC or -Consumer RenoDX answers that in advance for an unattended run.
• Pieces you already have go in a folder passed with -LocalFiles, or one at a time with -DfcZip, -RenoDxAddon, -DlssNrDll, -DlssDll, -FeederZip, -ReShadeSetup, -LumeniteZip, -DgVoodooZip.
• -Api D3D|Vulkan|OpenGL|D3D9|D3D8 overrides the detection (some engines, Max Payne 3 among them, can run on either Direct3D 9 or 11; the script assumes 11 and says so).
• The Discord download links inside the script expire; when one does, the script says so and tells you which parameter takes a fresh link or file.

Install for a 64-bit game

1. Run ReShade's installer (https://reshade.me), point it at your game's .exe, choose Direct3D 10/11/12, and tick "Enable loading of add-ons".
2. Download dlss5-feed.addon64 and DLSS5_Feed.fx from the latest release. Put dlss5-feed.addon64 next to the game .exe, and DLSS5_Feed.fx into reshade-shaders\Shaders\. The shader includes the standard ReShade.fxh header. ReShade normally installs it with its standard shader package; if ReShade.log says it cannot open that file, copy ReShade.fxh from the official reshade-shaders repository into the same Shaders\ folder.
3. Download LumeniteFX (Code ▸ Download ZIP). Copy its Shaders\ folder (the lumenite_*.fx files and include\) into reshade-shaders\Shaders\, and Textures\lumenite_bluenoise256.png into reshade-shaders\Textures\. (Other providers: see Motion vectors: choosing a provider.)
4. Get the neural consumer — Deep Fried Chicken (see Before you install) — and put its three files next to the game .exe: deep-fried-chicken.addon64, deep-fried-chicken-nvngx.dll and deep-fried-chicken.cfg. Add nvngx_dlssnr.dll (from the RenoDX Discord — Chicken does not bundle it) and a nvngx_dlss.dll (from any DLSS game, or DLSS Swapper) in the same folder. (Using the RenoDX add-on instead? See Alternative: the RenoDX add-on.)
5. Press Home for the ReShade overlay, select DLSS5_Feed.fx, set DLSS5_MV_PROVIDER = 3 in its Preprocessor definitions, and reload effects.
6. In-game: enable "LUMENITE: Kernel 2.0", then DLSS 5 Feed below it, then turn on neural rendering in the consumer's own panel — the Deep Fried Chicken tab, or the DLSS 5 Neural Rendering panel if you took the RenoDX route. Turn the game's MSAA/SSAA off.

Check dlss5-feed.log (next to the game .exe) for feature ready … DLAA, frame N delivered, and DLSS5_MV_PROVIDER=3 (LumeniteFX Kernel) -> Lumenite_Kernel (enabled). The overlay's Motion vectors section shows the same, in red if the shader and the enabled provider disagree. dlss5-feed.cfg is created automatically with working defaults.

Do I need the DLSS 5 DX11 bridge? No. DLSS5-Feeder does the bridge's job for games that have no DLSS. The bridge — https://github.com/NIGos/dlss5-dx11-bridge/releases — is only for DX11 games that already have their own DLSS; don't run both for the same game.

Deep Fried Chicken: first run

Deep Fried Chicken (by Alexander) is the add-on that does the neural rendering on top of what this project feeds it. There is nothing to set up on our side — the two recognise each other automatically.

Four things to know:

1. Don't edit its settings file. The deep-fried-chicken.cfg it ships with is already the right starting point: on, one pass, extras off.
2. It will ask you to restart once more. On its first run it adds itself to ReShade's startup list and wants one more restart. That is normal, and only happens once.
3. Start with one pass. It can do up to 30. That is a stress test, not a starting point.
4. Nothing else neural in the folder. No RenoDX add-on, no Alex's Toolkit, no DX11 bridge. With any of those present, Chicken quietly does nothing at all.

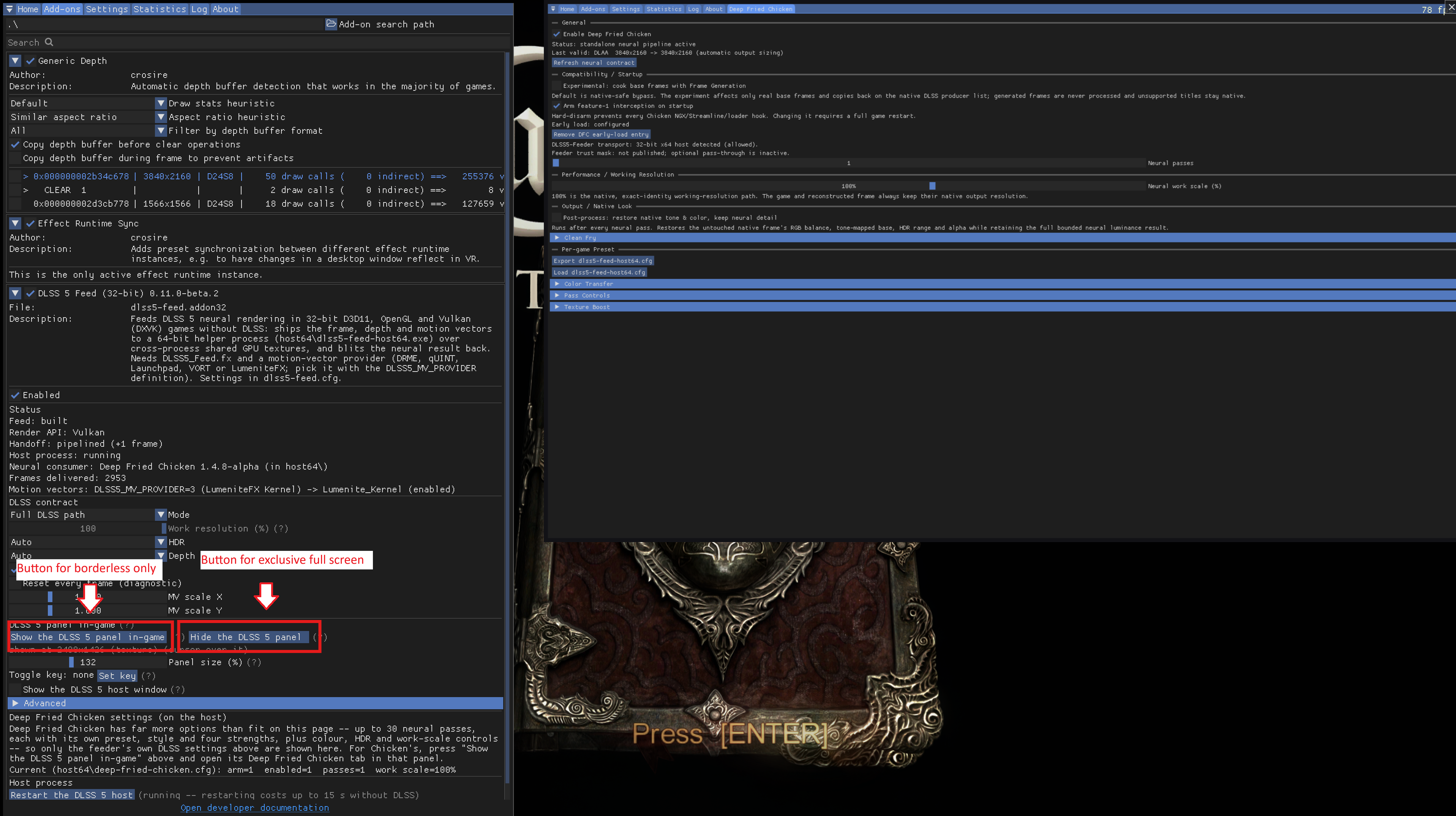

For a 32-bit game, its three files go in the host64\ folder, next to dlss5-feed-host64.exe — not beside the game itself. A 32-bit game cannot load them.

Is it working? The overlay's Status section and dlss5-feed.log both show Chicken's version and its state. ARMED is what you want. DISARMED, CONFLICT or FAILED mean it is not running its passes, and the log says which and why.

Version notes, and one log line that looks alarming but isn't

Take 1.4.8 or newer. Up to 1.4.7 Chicken rescanned every module in the process every 300 presented frames, looking for a graphics component that might have loaded late. In an application with a lot of DLLs loaded that scan costs a frame each time it runs, on a fixed cadence of roughly five seconds at 60 fps. The result is a periodic hitch and poor 1% lows while the average frame rate stays flat. 1.4.8 replaced the polling with a callback from the operating system, and its log then says smart discovery settled: periodic full-module fallback disabled. If you are stuck on an older build, the feeder's stall_log_ms setting will confirm whether this is what you are seeing.

warm-up: re-creating the feature once is expected. Chicken arms its hooks a few seconds after it loads, and it never picks up work that started before it was ready. So the feeder watches for it to report ARMED and rebuilds once at that moment. Without that rebuild you would get plain DLSS and an idle Chicken. The feeder's own warmup_rebuild frame count is not used while Chicken is present.

Frame Generation and Ray Reconstruction pass straight through untouched; Chicken adopts neither. Its author does not claim Frame Generation works — a live test gave a black screen — and does not claim 32-bit Vulkan.

arm=0 in its config is a full off switch that needs a restart. The live enabled=0 only stops the neural work, leaving its hooks in place — worth knowing if you are trying to rule Chicken out of a problem, because only arm=0 truly takes it out of the picture.

The interop is ABI 1 in 1.4.0-alpha, 1.4.4-alpha and 1.4.8-alpha alike (FEEDER-INTEROP-v1.md is byte-identical across all three). The protocol is in src/feed_dfc.h; the request that produced it is in FEEDBACK-DFC.md.

Where it has been confirmed working

Confirmed on this machine on 2026-09-02:

• DOOM (2016), 64-bit Vulkan, 3840x2160, in-process — ARMED, 1200+ neural frames, zero failures.
• Fable Anniversary, 32-bit D3D9 via dgVoodoo2, 3578x2013, through the x64 helper — Chicken armed 6 s after the first create, the feeder rebuilt once on its ARMED state, and Chicken rendered for the rest of the session.
• A 64-bit D3D11 host, in-process, 3840x2160 HDR10 — marker accepted (feeder_marker=1 legacy_exact=0), neural frames throughout. This one is a capture/streaming application rather than a game, so it also exercised a swapchain that changes size and format live.

D3D12, OpenGL and 32-bit Vulkan are source-contract compatible per its author but not game-validated.

Reporting a problem? Send dlss5-feed.log, deep-fried-chicken.log and ReShade.log from the same run (plus host64\dlss5-feed-host.log for a 32-bit game), and the output of the installer's verification output.

Alternative: the RenoDX add-on

To use Krish's renodx-dlss5.addon64 (the #DLSS5 build) instead of Deep Fried Chicken — Before you install has the download and the list of build generations:

• In step 4, put renodx-dlss5.addon64 next to the game .exe in place of the three Chicken files. nvngx_dlssnr.dll and nvngx_dlss.dll are needed either way. For a 32-bit game it goes into host64\, again for the same reason Chicken does.
• Its neural rendering is turned on in ReShade's DLSS 5 Neural Rendering panel, and on 32-bit games mirrored onto our own overlay page — see Configuration.
• The feeder writes EnableHooks=2, NeuralUplift=1 and NREnableUpscaling=0 when they are unset, and unbinds the helper's global hotkeys. Both are RenoDX-specific and do nothing on the Chicken path.
• warmup_rebuild matters here: older builds latch STANDBY on their first create, and the warm-up re-create is what clears it.

Install for a 32-bit game (beta)

NGX only exists as 64-bit code, so a 32-bit game gets a 64-bit helper process that does the DLSS work. Two folders to fill:

Next to the game .exe (32-bit side)

• ReShade, installed with its installer (it detects 32-bit itself; tick "Enable loading of add-ons").
• dlss5-feed.addon32 from the latest release.
• DLSS5_Feed.fx into reshade-shaders\Shaders\, plus a motion-vector provider (steps 3 and 5 of the 64-bit instructions).

In a new host64\ folder next to the game .exe (64-bit side, nothing here can go beside the game)

• dlss5-feed-host64.exe from the same release.
• A 64-bit ReShade dxgi.dll (run the ReShade installer once against any 64-bit game and take it from there).
• The neural consumer: Deep Fried Chicken's three files (deep-fried-chicken.addon64, deep-fried-chicken-nvngx.dll, deep-fried-chicken.cfg), or renodx-dlss5.addon64 (the RenoDX route).
• nvngx_dlssnr.dll and nvngx_dlss.dll.

Then, in-game

• Turn it on as for a 64-bit game. The first fed frame starts the helper by itself.
• Day-to-day settings: ReShade overlay → Add-ons → DLSS 5 Feed (see Configuration).
• The neural consumer's own panel lives in the helper, not in the game's ReShade. No alt-tab needed: press Show the DLSS 5 panel in-game on that page, or bind a key with Set key, and it is drawn at the top right of the game window with your clicks forwarded to it. Changes apply live.
  • That button uses the desktop compositor: windowed or borderless games only.
  • Show as texture draws it through the game's own ReShade instead and also works in exclusive fullscreen; it appears once the feed has built.
  • While the panel is up the mouse and keyboard belong to it. Escape away from it hides it, Alt+F4 hides it and closes the game, and the X in its corner always closes it. Panel size scales it.
• host_window=1 in dlss5-feed.cfg gives the helper a visible window of its own instead (Home opens the panel there).

The helper's own window, with host_window=1:

Install for a DirectX 10 game (beta)

Direct3D 10 games need nothing extra installed -- no translation layer, unlike the DirectX 9 path. Install exactly as for any other game of the same bitness (64-bit, 32-bit): ReShade goes in as dxgi.dll, which is what its own installer picks for "DirectX 10/11/12".

Three things are worth knowing before you start.

Direct3D 10 support lives in the 32-bit add-on -- dlss5-feed.addon32 plus the host64\ folder -- because that is where the Direct3D 10 games are. A 64-bit D3D10 game is a rare enough animal that the 64-bit add-on has no D3D10 backend.

Choose a motion-vector provider that does not need compute. ReShade compiles effects at shader model 4 on Direct3D 10, so a provider written around compute shaders will not build. LumeniteFX is the safe first choice -- it checks __RENDERER__ and has a non-compute path -- and the older pixel-shader providers (qUINT, dh_uber_motion) predate compute entirely. See Motion vectors: choosing a provider.

Only DLAA is on offer, and that is a property of the API rather than of this add-on. A D3D10 game publishes no NGX parameter block and no engine jitter, so what gets reconstructed is the finished frame plus whatever the motion-vector provider can infer from it. The DirectX 9 and 32-bit Vulkan paths sit under exactly the same ceiling.

Two smaller notes. The in-game panel's Show as texture button is unavailable here -- the panel would have to cross into the game's ReShade as a Direct3D 11 texture -- so use the compositor button next to it, or host_window=1.

And the frame costs two GPU drains, because Direct3D 10 has no fence. The copies themselves are cheap (spike\spike-d3d10client32.exe measures hundredths of a millisecond at 1080p on an idle GPU), but that is a floor rather than a forecast: a drain waits for everything the device has outstanding, which in a real game includes the frame the game has just queued. The honest cost is lost CPU/GPU pipelining, and the only place to measure it is in the game, with the add-on's own GPU-cost figures on the overlay.

Install for a DirectX 9 game (beta)

D3D9 games need a translation layer first — dgVoodoo2 turns D3D9 into D3D11, and everything after that is a normal 32-bit install.

Not sure if you need this? Launch the game with ReShade installed and check ReShade.log: IDirect3DDevice9 means yes; D3D11CreateDevice means the game already runs on D3D11 — skip to Install for a 32-bit game.

1. Download dgVoodoo2 from http://dege.freeweb.hu/dgVoodoo2/ and unzip it.

2. Copy MS\x86\D3D9.dll, dgVoodoo.conf and dgVoodooCpl.exe next to the game's .exe (often not the game's root folder — Fable Anniversary's is Binaries\Win32\).

3. Run dgVoodooCpl.exe from that folder (or edit dgVoodoo.conf directly). In [DirectX]:

   Setting	Value	Why
   DisableAndPassThru	false	Ships as true, which disables dgVoodoo entirely — the #1 reason "dgVoodoo doesn't seem to do anything".
   VRAM	1GB	The default (256 MB) causes "ran out of video memory" crashes regardless of your real GPU. Don't use 2GB — some old engines mishandle it.
   VideoCard	internal3D	dgVoodoo's own virtual card; the most capable option.
   dgVoodooWatermark	true	Temporary — confirms dgVoodoo is actually running.

   In [General]: OutputAPI = d3d11_fl11_0 (or higher).

4. Launch the game — the dgVoodoo watermark must appear, or nothing else will work.

5. Follow Install for a 32-bit game (or the 64-bit steps for a 64-bit D3D9 game). Install ReShade as dxgi.dll, never d3d9.dll — dgVoodoo owns that name.

6. Turn the watermark off once everything works.

Install for a Vulkan game

Same pieces as a 64-bit game — with two differences.

1. Run ReShade's installer, point it at your game's .exe, choose Vulkan, and tick "Enable loading of add-ons".
2. Add AddonPath=.\ under [ADDON] in the game's ReShade.ini (next to the exe).
3. Everything else is identical to the 64-bit instructions.

The add-on tick matters more on Vulkan than anywhere else. The Vulkan layer is machine-wide (C:\ProgramData\ReShade\ReShade64.dll), so it is shared by every Vulkan game on the PC: one plain, no-add-on install done for some other game years ago is reused here, and nothing complains — ReShade loads, the overlay appears, and dlss5-feed.addon64 is simply never looked for. The two builds carry the same version number and the same product name, so they are indistinguishable by eye (issue #53). Verify-DLSS5Feeder.ps1 now checks this directly and the installer replaces a plain layer automatically.

Most Vulkan games don't enable the extensions this needs — the add-on adds them automatically, so there's nothing else to configure. See The Vulkan path for the mechanism.

If dlss5-feed.log says the interop entry points are missing, launch through the bundled fallback layer instead:

layer\run-with-feed-layer.bat "E:\path\to\game.exe"

See layer/README.md — it does the same job from outside the process.

32-bit Vulkan (DXVK)

Almost every 32-bit game that reaches Vulkan does it through DXVK. Two differences:

1. Install ReShade as a Vulkan layer, not as a local dxgi.dll or d3d9.dll — DXVK owns those names in the game folder.
2. Add the host64\ folder from Install for a 32-bit game, and install both halves from the same release.

DLSS runs at the game's native resolution here, so the Work resolution slider is fixed at 100%.

A working configuration from issue #15 (World of Warcraft 3.3.5a, DXVK 3.0.2, ReShade 6.8 x86 as a global Vulkan layer, Guild Wars Reforged likewise): the default dxvk.conf is fine; the only setting that mattered was dxvk.allowFse = False. Expect roughly half the frame rate — DLAA at native size plus the 32→64-bit hop — and, from 0.11.0-beta.2, no more plateaus at exactly 30 fps (the helper's own Present used to block on the compositor while the game waited behind it; it no longer waits). If frame times still step between two fixed values, run once with mode=1 (transport only, no DLSS) and once with async_home=0 and post both dlss5-feed.logs; the present probe line now also counts presents against frames fed here, which tells an external frame pacer apart from a slow helper.

If dlss5-feed.log says the interop entry points are missing, use the 32-bit fallback layer:

layer\x86\run-with-feed-layer32.bat "E:\path\to\game.exe"

Install for an OpenGL game

The simplest of the four — nothing extra to configure.

1. Run ReShade's installer, point it at your game's .exe, and choose OpenGL.
2. Everything else is identical to the 64-bit instructions.

For a 32-bit OpenGL game, follow Install for a 32-bit game — install both halves from the same release.

Hybrid laptops: force the game onto the NVIDIA GPU (Windows Settings ▸ Display ▸ Graphics). Otherwise the feed disables itself — DLSS needs that GPU.

Motion vectors: choosing a provider

DLSS5-Feeder does not estimate motion itself — it reads the output of a motion-vector shader you install. Which one it reads is fixed at compile time by the DLSS5_MV_PROVIDER preprocessor definition on DLSS5_Feed.fx (ReShade overlay → select DLSS5_Feed.fx → Preprocessor definitions → reload effects):

Value	Provider	Enable this technique	Notes
0 (default)	Anything writing the shared texMotionVectors — qUINT, dh_uber_motion, DRME	that shader's own	The old convention. DRME does not compile on ReShade 6.8 (see below).
1	iMMERSE Launchpad (MartysMods)	Launchpad	Also files Launchpad's per-frame optical-flow request, so it works without iMMERSE RTGI running. Warping around flames/transparents is worst here.
2	VORT	vort_Motion	MIT.
3	LumeniteFX Kernel ← recommended	LUMENITE: Kernel 2.0	1/8-resolution flow plus a confidence map, which the feed uses. The configuration this beta was tuned on.
4	LumeniteFX QuantMotion	LUMENITE: QuantMotion	Same shape as Kernel, different estimator.

Rules that apply to all of them:

• The provider's technique must be enabled and above DLSS 5 Feed in the technique list.
• Only one provider should be enabled. The add-on warns (overlay + log) when the shader is compiled for one provider while a different one is enabled — the classic silent failure.
• Nothing of any provider is bundled or #included here: the shader declares the provider's output texture identically to the provider itself, so ReShade binds the same resource. Only the selected provider's texture is allocated.

ReshadeMotionEstimation (DRME) does not compile on ReShade 6.8 (error X3020: 'V__texCur0': cannot sample from texture that is also used as render target). It still appears as a technique and can be "enabled", but it writes nothing, so DLSS runs with no motion vectors at all. Releases up to 0.5.2 recommended it. This release reads the compiler error out of ReShade.log and reports it in the overlay and dlss5-feed.log.

Are the guides actually arriving?

The add-on checks both configuration and the actual textures handed to DLSS:

• The overlay's Motion vectors section states the mode, the provider found, and its state (enabled / DISABLED / FAILED TO COMPILE / not installed), in red when something is wrong.
• A low-frequency guide probe reads back the vectors actually handed to DLSS every 600 frames and logs their mean/max magnitude and non-zero share: MV probe … N% non-zero. While you move, that must not be 0%. The same deferred readback samples four distributed depth blocks and reports min/max/mean/variance/finite share. It warns when sampled depth is flat without disabling the feed. Both readbacks analyse an older, completed copy, so they do not introduce a per-frame GPU stall.

Validation and the trust mask

Every provider here is optical flow: it answers a lighting change — a flickering light, a flame — with a confident vector pointing at whatever happened to match, and DLSS then warps history in from there. DLSS5_Feed.fx now reprojects each vector into the previous frame and checks it: depth (disocclusion), vector consistency, and a static-hypothesis test asking whether "did not move" explains the pixel better, on illumination-normalised structure. Vectors that fail are zeroed, and the pixel is flagged in a DLSS5_Mask texture the add-on passes to DLSS as its bias-current-colour mask — DLSS's own mechanism for "don't trust history for this pixel" (all three transports; the 32-bit add-on does not pass it yet). The defaults are the tuned ones.

The static test is the one with a memory. Left to decide afresh every frame, it can win on one and lose the next over a low-contrast surface under a slow pan, so the vector alternates between the provider's and zero and DLSS alternately reprojects and does not — a flicker that comes and goes and that no consumer downstream can smooth away. Static test: require two frames in a row (STATIC_HYSTERESIS, on by default) only zeroes a vector where the test won twice; on the first win it keeps the vector and masks the pixel instead. Turn it off to compare against the old behaviour. Debug view Validation tests over the image marks in yellow what was actually zeroed, and in orange what the hysteresis held back, so a flip is visible rather than inferred.

How it works

• DLSS5_Feed.fx (companion effect) converts the selected provider's motion vectors (delta-UV, prev_uv = uv + mv) into DLSS5_MV (RG16F, pixels), copies the raw hardware depth with ReShade's orientation fixes into DLSS5_Depth (R32F), and flags every vector it does not trust in DLSS5_Mask (R8). MV, mask and raw depth are emitted by one MRT guide pass, avoiding a second full-screen depth pass while leaving the depth values sent to DLSS unchanged.
• dlss5-feed.addon64 registers with the ReShade add-on API. After the DLSS5_Feed technique renders, it takes the backbuffer + those textures and runs NGX_D3D12_EVALUATE_DLSS in DLAA mode (render size = output size, no jitter). The neural consumer (deep-fried-chicken.addon64, or renodx-dlss5.addon64) detours that D3D12 evaluate and inserts its neural pass — it cannot tell the contract is synthetic.
• On a 64-bit D3D11 game the optional Work resolution slider can run the private DLAA + Neural Rendering contract at 50–100% of each backbuffer axis. Color is resampled linearly; depth, motion vectors and the trust mask use point sampling; motion-vector magnitudes are corrected for the selected work extent. The result is expanded back over the native-size backbuffer, bilinearly or (work_upscale=1) through AMD FSR 1 EASU + RCAS. At 100% this reduces to the original copy path.
• On a D3D12 game there is no transport at all: NGX runs on the game's own device and queue, motion vectors and depth are consumed zero-copy straight from the effect textures, and the feature survives alt-tabs and effect reloads untouched (only a real resolution change rebuilds).
• NGX calls are wrapped in SEH, a command list the add-on crashed in is discarded rather than submitted, and NGX is reinitialized after repeated failures — a faulting closed-source add-on disables the feed instead of taking the game down. A failed or crashed feature create is retried up to twice, each attempt spaced a full hook-arming grace apart (with an NGX re-initialisation before the second), instead of latching the feed off on the spot. On the D3D11 bridge the shared textures and the live feature also survive alt-tabs and effect reloads now: a runtime recreation re-creates only the feature, and keeps the old one if the new create fails.

The 32-bit path

NGX and the DLSS 5 add-on only exist as x64 code, and a 32-bit process cannot load an x64 DLL — so dlss5-feed.addon32 does none of the NGX work itself. Instead:

• It creates the four Color/Output/Depth/MV textures as cross-process shared D3D11 resources (D3D11_RESOURCE_MISC_SHARED_NTHANDLE) on the game's own device, plus two shared fences. If the game's device refuses (a feature-level 10.x device cannot bind the UAV the DLSS output needs — NFS Most Wanted 2012, issue #33), it switches to the route the GL and Vulkan clients use: the host creates the set on D3D12 and hands the handles in, keeps the output's UAV on its own side and copies the result into a plain shared texture. The log says so (the host will create the shared set instead).
• It spawns dlss5-feed-host64.exe and hands it the texture/fence handles over a named pipe (DuplicateHandle across the process boundary — the same WDDM sharing the driver already uses, just one hop further).
• The host — a genuine 64-bit process — opens those shared resources on its own D3D12 device, runs the same DLSS DLAA evaluate the 64-bit add-on runs in-process, and signals a fence back. No frame data ever crosses into system memory; every copy stays GPU-to-GPU.
• Because the DLSS 5 add-on is itself a ReShade add-on, the host disguises itself as a game to load it: a window with a minimal D3D12 swap chain lets its own bundled ReShade (host64\dxgi.dll) attach and the add-on arm its hooks, exactly as in a real D3D12 title. The 32-bit dlss5-feed.cfg add-on writes settings changes made in the game's own overlay straight into that window's ReShade.ini and restarts it to apply them. For live changes it instead casts that window into the game: a DWM live thumbnail of the host window is registered on the game window (no pixel transport, no protocol change), and while the cursor is over it the game's mouse and keys — read through ReShade's add-on API and blocked from the game — are posted to the host window as ordinary WM_* messages, which is where the host's ReShade reads its input.
• Everything that means waiting on the host — spawning it, the handshake, and each build request — happens on a worker thread, and every pipe transfer has a deadline. The render thread hands a build over and returns; the answer is picked up on a later frame. So the expensive part, a host starting up (up to 15 s while it loads ReShade, NGX and the ~165 MB model) and every build after a resolution or work-resolution change, no longer freezes the game at all. A host that hangs rather than dies no longer freezes it either: the transfer times out and the add-on treats it as a lost host. Apply and Restart still pause briefly — up to about four seconds — because the old helper has to be given time to save its ReShade.ini before the replacement can claim the pipe; the reconnect after it is free.
• If the host process dies, the pipe breaks, the add-on notices and disables itself — the game keeps rendering normally.
• Verified end to end with a deliberate split-screen test (mode=1): the host copies only the left half of the frame back, so a visibly half-black screen proves the full round trip — game → shared texture → host → shared fence → game's backbuffer — actually reaches the display, not just the logs.

The DirectX 10 path

Direct3D 10 cannot reach the helper on its own, and not for one reason but three. NT-handle sharing is Direct3D 11.1+, so the helper's D3D12 device can never open a texture a D3D10 device made. D3D10 has no fence of any kind, which is how every other client here says a frame is ready. And it has no UAVs, so the Output slot could not be written at all.

So the add-on creates a private D3D11 relay device of its own, inside the game's process, on the game's adapter (matched by LUID). The game's D3D10 device copies colour, depth and motion vectors into legacy shared textures; the relay opens those same textures; and from there this is the 32-bit D3D11 client running unchanged -- the NT-handle shared set, the shared D3D12 fence, the blit chain, the pipe, the helper. The host is never told the game was D3D10. It is a FEED_CLIENT_D3D11 on the same protocol version, and host\dlss5-feed-host64.cpp needed no change at all. The relay is created at feature level 11_0, so the ID3D11Device1 / ID3D11Device5 / ID3D11DeviceContext4 queries the D3D11 client hard-fails on all succeed, and the game's own device is asked for nothing but copies.

Two details are worth recording, because neither is what the design notes predicted.

Keyed mutexes do not work. LEGACY-API-ADAPTER.md says D3D10.1 can synchronise the two devices with an IDXGIKeyedMutex. On real hardware it cannot: every CreateTexture2D carrying D3D10_RESOURCE_MISC_SHARED_KEYEDMUTEX comes back E_INVALIDARG -- every bind flag, every format, with or without MISC_SHARED alongside -- while the same call on a D3D11 device succeeds and plain legacy MISC_SHARED on the same D3D10 device succeeds. Modern drivers simply do not implement that legacy path. Both D3D10 versions therefore take the event-query route that document reserves for D3D10.0, and spike\spike-d3d10client32.exe keeps the check so that a driver which ever grows the capability shows up as a passing line rather than as folklore.

The frame comes home by CopyResource, not by a draw. The relay runs the whole blit chain -- scaling, FSR1 EASU/RCAS -- into a backbuffer-sized shared texture, and the game's device only copies that into its own render target. So the D3D10 side never binds a shader, a viewport or a render target. That matters more here than anywhere else in this project, because D3D10 has no ID3D10DeviceContext: state lives directly on the device, so anything the add-on set, the game would silently inherit.

The price is two pipeline bubbles a frame, one per device, since an event query drains everything that device has outstanding. All three input copies share a single drain rather than paying for one each, and spike\spike-d3d10client32.exe measures the result.

The DirectX 9 path

dgVoodoo2 sits in front as D3D9.dll and translates the game's D3D9 calls onto its own D3D11 device. ReShade (installed as dxgi.dll) hooks that D3D11 device rather than the game's D3D9 one, so from DLSS5-Feeder's point of view it is simply a D3D11 game and the 32-bit path applies unchanged. The translation is what makes SM5 motion-vector shaders, shared NT-handle textures and fences available at all — none of which exist on real D3D9.

The Vulkan path

The DLSS 5 add-on only hooks D3D12 NGX entry points, so even though NGX has a Vulkan API, using it would be pointless — the add-on would never see the call. The evaluate therefore runs on a private D3D12 device exactly as on the D3D11 path, and the frame crosses the API boundary through shared memory rather than being copied out to system RAM:

• The D3D12 side creates the shared textures and two shared fences (D3D12_HEAP_FLAG_SHARED, D3D12_FENCE_FLAG_SHARED) and exports NT handles for them.
• The add-on imports those handles into the game's own VkDevice with raw Vulkan — the D3D12 external types (VK_EXTERNAL_MEMORY_HANDLE_TYPE_D3D12_RESOURCE_BIT, VK_EXTERNAL_SEMAPHORE_HANDLE_TYPE_D3D12_FENCE_BIT, dedicated allocation). A D3D12 fence and a Vulkan timeline semaphore are the same object, so the frame counter crosses unchanged.
• The resulting VkSemaphores are handed back to ReShade as api::fence handles (in ReShade's Vulkan backend they are those objects), so per-frame queue signal/wait stay inside ReShade's own locks. A raw vkQueueSubmit would race the game's and ReShade's submits.
• Per frame: ReShade's barrier() moves the game's own images (its layout tracking stays correct), raw vkCmdCopyImage/vkCmdBlitImage move pixels into and out of our imported images, which sit permanently in VK_IMAGE_LAYOUT_GENERAL.

The interop extensions are fixed at vkCreateDevice, and games rarely enable them (ReShade adds external_memory_win32 and timeline_semaphore itself, but not the semaphore/dedicated-allocation ones). The add-on is already in the process by then — ReShade's Vulkan layer loads add-ons inside its vkCreateInstance hook and fires create_device from there — so on that event it puts an inline hook (MinHook) on vulkan-1.dll's exported vkCreateDevice (src/feed_vk_hook.h). The loader returns that same export for vkGetInstanceProcAddr(instance, "vkCreateDevice"), so every loading style lands in the hook, above ReShade's own layer, which then passes the extended list down. The hook is removed on DLL unload, since ReShade reloads add-ons per Vulkan instance. layer/VkLayer_feed_vk.dll does the same from outside the process, as a fallback.

32-bit Vulkan (DXVK) reuses every one of those pieces — src/feed_vk.h and src/feed_vk_hook.h are compiled into the x86 add-on unchanged — with the D3D12 middle moved out to the helper process, exactly as on the 32-bit D3D11 and OpenGL paths. One thing flips: the host creates the shared textures and duplicates the handles into the game, because D3D12 cannot open memory Vulkan exported. That is the same direction the OpenGL path already uses, so the pipe protocol needed only a new client kind and one extra field — the host owns the Output format there, since only its device can be asked whether this GPU supports a typed UAV store to BGRA8, and DXVK swapchains are almost always BGRA8. Getting that wrong is issue #11's washed-out image again. spike\spike-vkhost64.exe + spike\spike-vkclient32.exe prove the cross-bitness half on its own.

The OpenGL path

Same shape as the Vulkan path — a private D3D12 device creates the shared textures and fences, and the game's API imports them — but everything the Vulkan path had to fight for comes free here, and one thing it could rely on does not exist.

What comes free. There is no device hook and no layer. Vulkan bakes extensions in at vkCreateDevice, which is why the add-on has to hook that call; OpenGL has no equivalent opt-in — extensions are a property of the driver's context, resolved at runtime through wglGetProcAddress. If GL_EXT_memory_object_win32 and GL_EXT_semaphore_win32 are in the extension string, the transport works. If they are not, the frame is not being rendered on an NVIDIA GPU, so DLSS could not run either way and the feed says so and stops. Add-on discovery is also a non-question: ReShade is the local opengl32.dll, and add-ons load from its own directory.

What does not exist. On Vulkan, ReShade's api::fence is a VkSemaphore, so the imported objects could be handed back and every queue operation kept inside ReShade's locks. On OpenGL an api::fence is documented as "an opaque value" — there is no way to wrap a raw GL semaphore into one. So the whole per-frame GL side is raw (src/feed_gl.h), which is safe here precisely where it was not on Vulkan: OpenGL has no queue object. Every command enters the current context's single in-order stream on the calling thread, and reshade_render_technique fires while ReShade is itself issuing GL commands on that thread and context. Our calls interleave in program order — there is no lock to bypass, and no barriers are needed at all.

Per frame, inside the technique callback:

• glCopyImageSubData copies the motion vectors, depth and trust mask into our imported aliases (exact formats, no state touched); the colour is captured with glBlitFramebuffer, which converts formats and channel order and can read what a raw copy cannot — a renderbuffer or the default framebuffer.
• glSemaphoreParameterui64vEXT(GL_D3D12_FENCE_VALUE_EXT) + glSignalSemaphoreEXT + glFlush hands the frame to D3D12 (a D3D12 fence is a GL "D3D12 fence" semaphore, so the counter crosses unchanged). The flush matters: without it the signal can sit in the client command buffer while D3D12's GPU-side wait starves.
• D3D12 waits, evaluates, and signals back — or CPU-signals on any failure, because glWaitSemaphoreEXT has no timeout and a missing signal would hang the GL stream.
• glWaitSemaphoreEXT stalls the GL stream on the GPU (never the CPU), and a final blit puts the output back over the technique's render target.

A small state guard saves and restores exactly what the blits touch — the two framebuffer bindings, the read/draw buffer selection, scissor and GL_FRAMEBUFFER_SRGB — and nothing else. GL_FRAMEBUFFER_SRGB is forced off for our blits on purpose: the frame we are handed is already encoded, and an sRGB encode on the way home is the OpenGL flavour of the washed-out image of issue #11.

Because GL has no sized BGRA8 internal format and we choose the shared textures' formats, the GL path folds B8G8R8A8/B8G8R8X8 to R8G8B8A8 — harmless, because a blit is component-wise rather than byte-order-preserving. GL names live in the share group of the context current at import, so every frame checks wglGetCurrentContext() and rebuilds the session if the game switched contexts.

The 32-bit OpenGL path uses the very same header, compiled x86, over the existing helper-process protocol — with one change forced by the API: the host creates the shared textures, because GL memory objects are import-only and a GL process cannot export one. Both directions (x86 extension parity, cross-process D3D12→GL import) are proven by spike\spike-gl32.exe.

Requirements

Piece	Notes
D3D10, D3D11, D3D12, Vulkan or OpenGL game, 32- or 64-bit	NGX is 64-bit only, hence the helper process for 32-bit games. D3D9 works through dgVoodoo2; D3D10 is native, through a private D3D11 relay device the add-on creates for itself (Install for a DirectX 10 game); Vulkan works out of the box at both bitnesses (the add-on adds the interop extensions itself; a small bundled layer is the fallback — 64-bit, 32-bit/DXVK); OpenGL needs nothing extra at all, but the game must be rendering on the NVIDIA GPU (see Install for an OpenGL game).
ReShade 6.8+ with add-on support	Generic Depth add-on enabled and picking the scene depth.
A neural consumer + nvngx_dlssnr.dll	Deep Fried Chicken (recommended — deep-fried-chicken.addon64, deep-fried-chicken-nvngx.dll, deep-fried-chicken.cfg, from its Discord), or Krish's renodx-dlss5.addon64 #DLSS5 build as the alternative. Exactly one of them. Not ShortFuse's renodx-dlss, which is a different add-on that replaces this project rather than working with it (see Before you install). Neither is included here, and neither bundles nvngx_dlssnr.dll.
nvngx_dlss.dll	a DLSS Super Resolution runtime next to the game (the driver's copy is used otherwise).
A motion vector provider	one of five, selected with the DLSS5_MV_PROVIDER definition — LumeniteFX Kernel is recommended (=3); also iMMERSE Launchpad, VORT, LumeniteFX QuantMotion, or anything writing texMotionVectors (qUINT, dh_uber_motion). Not DRME — it does not compile on ReShade 6.8. See Motion vectors: choosing a provider. Install it yourself — nothing third-party is bundled, and our shader includes no third-party files.
dlss5-feed.addon64 (or .addon32 + host64\) + DLSS5_Feed.fx	this project.

Configuration

The easiest way to change any of this is ReShade's overlay → Add-ons tab → DLSS 5 Feed: every setting below is a live control there (checkboxes, sliders, combos), reading from and saving straight to dlss5-feed.cfg. On 32-bit games running the RenoDX add-on, the same page also mirrors that add-on's neural-rendering settings from the host process (neural uplift, NR intensity/style/local structure/local tone/auto mask/UI correction) with an Apply button — since those live in a separate process, Apply writes them into host64\ReShade.ini and restarts the helper (~2 s without DLSS; the game keeps rendering, the feed reconnects automatically). Deep Fried Chicken is not mirrored: its settings live in its own tab in the helper's window and in deep-fried-chicken.cfg.

dlss5-feed.cfg itself is created automatically next to the add-on and re-read while the game runs, if you prefer editing the file directly:

Key	Default	Meaning
enabled	1	0 disables everything, and from 0.13.0-beta.1 it means it: no frames are fed, no effect runtime is queried, no textures are created, and the Vulkan interop hook is not installed. Only the overlay page stays, so the Enabled checkbox can undo it. Two consequences worth knowing when using it as an A/B: a Vulkan game needs a restart with enabled=1 (the hook can only be installed before the game's vkCreateDevice, which has already happened by the time you tick the box), and on a Vulkan game already running with enabled=1 the hook stays installed until the game exits even after you untick it. Before 0.13.0-beta.1 this switch only stopped the per-frame feed, so "it still crashes with enabled=0" did not clear the add-on.
mode	2	0 inert · 1 transport test (no NGX; on 32-bit it copies only the left half, so a split screen proves the round trip) · 2 full DLSS path.
work_resolution	100	D3D11 only (64-bit and 32-bit). 50–100% of each backbuffer axis for the private DLAA + Neural Rendering work textures. The Add-ons overlay slider applies once 400 ms after dragging stops. Other paths remain at 100%. A cost knob, not DLSS upscaling — below 100% the image is downsampled, processed, and expanded back (see the troubleshooting FAQ).
work_upscale	0	D3D11 only. How the work-size output is expanded back over the backbuffer: 0 bilinear stretch · 1 AMD FSR 1 (EASU + RCAS), visibly crisper at 50–75% than the stretch · 2 cfg-only experiment, not recommended: DLSS Super Resolution on synthetic jitter — measured to cost as much as 100% and to shimmer (see the FAQ); on a 32-bit game the helper creates the SR feature (IPC v6: add-on and helper must be from the same build). Overlay checkbox "FSR 1 expand-back" toggles between 0 and 1. Better filters for work_resolution, not DLSS Quality: the result can never exceed the native frame. If the FSR shaders fail to compile the log says so and the spatial path stays bilinear.
work_sharpness	0.3	RCAS strength for work_upscale 1 and 2, 0 (off) to 1 (sharpest). At 100% work resolution only the sharpening runs. Overlay slider "Sharpness".
jitter_sign	1	Diagnostic for work_upscale=2, parse-only. 1 or -1: the sign of the grid shift handed to DLSS. On a static scene the right sign converges to a stable image within a second, the wrong one crawls. Here until the convention is confirmed in a game.
jitter_phases	0	Diagnostic for work_upscale=2, parse-only. Halton sequence length; 0 = NVIDIA's 8 × (native ÷ work)².
hdr	-1	-1 auto (FP16 / R11G11B10 backbuffer = HDR), 0 force SDR, 1 force HDR.
depth_inverted	-1	-1 follow RESHADE_DEPTH_INPUT_IS_REVERSED, 0/1 force.
flags	-1	raw DLSS.Feature.Create.Flags override.
reset_every	0	1 = NGX Reset every frame (no temporal history; diagnostic).
warmup_rebuild	180	RenoDX path only. Re-create the feature once after N delivered frames, working around older RenoDX builds latching STANDBY on their first create. Skipped automatically on "v45+" builds. Not used as a frame count while Deep Fried Chicken is present — there the one re-create is triggered by Chicken's own ARMED state instead (it arms its NGX detours seconds after claiming, and never adopts a create it did not see).
rebuild	0	change the number to re-create the feature once, by hand.
log_frames	3	first N frames logged in detail.
create_delay	60	frames to hold a feature (re)build after a runtime (re)init — the neural consumer arms its NGX hooks asynchronously, and calling in too early can crash. 0 disables.
preset	0	DLSS render-preset hint: 0 default, 5/6 = legacy CNN presets E/F (clamp history harder — try these if motion warps around transparents like dust or flames), 10/11 = transformer presets J/K.
gpu_timeout_ms	2000	how long a frame waits for the GPU to retire a command allocator before that frame is abandoned. Three abandoned frames in a row stop the feed. Raise it on a heavily contended GPU; clamped to 100–60000.
mv_scale_x/y	1.0	extra motion-vector multiplier.
stall_log_ms	50	Diagnostic. Log a breakdown for any frame whose present-to-present interval exceeds this, in ms (0 = off). Each STALL frame line splits the interval into the time inside the NGX evaluate call — which is where the neural consumer's own work runs — the rest of this add-on's work, and everything outside it, then names which of the three dominated. The 600 frames: summary also carries the worst frame and a stall count. Use it to tell "the feed is slow" apart from "the neural consumer is slow" apart from "neither, something else in the process stalled".
async_home	1	32-bit games only. 1 = pipelined handoff: each frame carries the DLSS output of the frame before it, so the game never waits for the helper process inside a frame — this is what lifts the ~35 fps ceiling of the original same-frame contract (issue #15). Costs one frame of latency on the DLSS output, which the temporal history hides. 0 = the original same-frame behaviour. Also on the overlay as "Pipelined handoff".
host_window	0	32-bit games only. 0 keeps the helper's window behind the game, off the taskbar, and lets the overlay's "Show the DLSS 5 panel in-game" button cast its tuning panel into the game window; 1 gives the helper its own visible window instead (press Home there). Read when the helper is started.
cast_key	0	32-bit games only. Virtual-key code that shows/hides the cast DLSS 5 panel in-game; 0 = none. Set it from the overlay page with "Set key" rather than by hand.
cast_scale	100	32-bit games only. Size of the cast panel, 25..300 % of the largest size that fits the game window (above 100 % it may run past the window's edges). Also on the overlay as "Panel size".
cast_mode	0	32-bit games only. How the cast panel is drawn: 0 = a desktop-compositor thumbnail of the helper's window (windowed / borderless games, any API); 1 = a shared copy of the helper's frame drawn by the game's ReShade or blitted onto its backbuffer (works in exclusive fullscreen; D3D11, OpenGL and Vulkan). The two overlay buttons set it.

In DLSS5_Feed.fx's own UI (settings that only make sense per-shader, not per-session):

• MV_SIGN — if the image doubles or smears while moving, flip a component.
• Validation — Validate motion vectors and its four tests (static hypothesis, luma, depth, consistency) with their thresholds. The defaults are the tuned ones; the usual reason to touch them is diagnosis. Setting Depth tolerance to 0 does not mean "strict" — it rejects effectively every vector, which is stable but motionless.
• Use geometry vectors — experimental, off, not recommended. Fits a camera model from the provider's flow + depth and derives static pixels' vectors from geometry. It removes the flame/flicker warping by construction, but the fit is noisy frame to frame and the HUD, which is not part of the 3D world, gets camera vectors it should not have.
• DLSS 5 Feed – debug view technique — nine views: the vectors/depth being sent (static scene = grey, motion = colour), the provider's confidence map, the validation mask alone and over the image, which test fired, and the three geometry views. The depth view applies a display-only contrast curve so reversed and far-heavy hardware depth is visible; DLSS5_Depth itself stays raw.

Preprocessor definitions on the shader (overlay → Preprocessor definitions → reload effects):

Definition	Default	Meaning
DLSS5_MV_PROVIDER	0	Which provider's output to read — see the provider table.

Logs and troubleshooting

File	Contents
dlss5-feed.log	next to the game exe: resolved effect handles, the session, the contract (feature ready: WxH DLAA, flags=…), frame N delivered, timing and guide probes every 600 frames, crash breadcrumbs.
ReShade.log	which graphics API ReShade attached to, shader compile errors.
host64\dlss5-feed-host.log	32-bit games: the helper's own session and per-frame state.
host64\ReShade.log	32-bit games: the neural consumer's messages (feature 18 created, inline feature 18 evaluation succeeded).
deep-fried-chicken.log	next to the Chicken add-on: its own arming, contract and per-pass state. Quote it with dlss5-feed.log on any Chicken report.

Common cases:

• "unknown technique" for DLSS5_Feed / your provider — the shaders are not in reshade-shaders\Shaders\, or the runtime is D3D9 and they cannot compile (see the D3D9 section).

• Image is static-sharp but smears when moving — no vectors are reaching DLSS. The overlay's Motion vectors section says which of the four causes it is: the provider is not installed, it is installed but disabled, it failed to compile (DRME on ReShade 6.8 — use LumeniteFX Kernel instead), or a different provider is enabled than the one DLSS5_MV_PROVIDER selects. The MV probe … 0% non-zero line in dlss5-feed.log confirms it independently.

• Depth probe says sampled depth is flat — open DLSS 5 Feed – debug view, select the depth view, and verify that scene geometry is visible. Then use ReShade's Add-ons → Generic Depth page to select the draw call/clear that contains the scene rather than UI or an already-cleared buffer. The warning is diagnostic only; it does not guess a different buffer or disable DLSS.

• Subnautica: flat or wrong depth — this 4K D3D11 profile was contributor-verified with DLAA + neural rendering. Merge these values into the matching sections of ReShade.ini and keep every unrelated key. In PreprocessorDefinitions, append or replace only the four definitions shown below in the existing comma-separated list; do not discard other definitions:

  [DEPTH]
  DepthCopyAtClearIndex=1
  DepthCopyBeforeClears=2
  DrawStatsHeuristic=0
  FilterFormat=0
  UseAspectRatioHeuristics=3

  [GENERAL]
  PreprocessorDefinitions=RESHADE_DEPTH_LINEARIZATION_FAR_PLANE=1000.0,RESHADE_DEPTH_INPUT_IS_UPSIDE_DOWN=1,RESHADE_DEPTH_INPUT_IS_REVERSED=1,RESHADE_DEPTH_INPUT_IS_LOGARITHMIC=0

• Warping / smearing around flames, flickering lights or transparents — optical flow answers a lighting change with a wrong-but-confident vector. Keep validation on (default), try provider 3 (LumeniteFX Kernel) rather than Launchpad, and try preset=5 or 6 in dlss5-feed.cfg (the legacy CNN presets clamp history harder).

• Nothing happens, no dlss5-feed.log — ReShade's architecture does not match the game's (a 64-bit dxgi.dll cannot load into a 32-bit game, and vice versa).

• "ran out of video memory" with dgVoodoo — raise VRAM in dgVoodoo.conf; the default 256 MB is a virtual limit unrelated to your real GPU.

• Vulkan game: "the Vulkan interop entry points are missing" — the add-on's vkCreateDevice hook did not get to add the KHR external-interop extensions; the lines right above it in dlss5-feed.log say whether the hook was not installed, never reached, or what the driver refused. Fallback: launch via layer\run-with-feed-layer.bat (see layer/README.md); feed-vk-layer.log next to the DLL shows what it added.

• OpenGL game: "the OpenGL interop extensions are missing on the rendering GPU" — the log line above it names the exact extension that was absent and prints GL_RENDERER. If that says anything other than an NVIDIA GPU, the game is rendering on the wrong adapter: force it onto the NVIDIA one (Windows Settings ▸ Display ▸ Graphics) and restart it. There is no fallback for this and there cannot be one — DLSS itself needs that GPU.

• 32-bit game: "the host64\ folder is from a different release" — the add-on and the helper speak a versioned protocol (v2 added the OpenGL client kind, v3 the Vulkan one). Reinstall both halves from the same release rather than mixing them.

• NVIDIA driver 616.64: the helper runs but no neural frame ever arrives (issue #54) — with renodx-dlss5.addon64 v4.6 or v4.7 as the neural consumer, every DLSS evaluate faults inside the driver's own NGX runtime on this driver. host64\dlss5-feed-host.log names it exactly:

  [host] evaluate raised 0xC0000005 (reading address FFFFFFFFFFFFFFFF) in D3D12Core.dll
  [host] evaluate fault stack, by module (innermost first):
         D3D12Core.dll <- nvngx_dlssnr.dll <- _nvngx.dll <- renodx-dlss5.addon64 <- dlss5-feed-host64.exe


  The faulting address differs from run to run (-1 above, 0xC on the next), which is what an uninitialised pointer looks like. Nothing on this side is in that chain past the call itself, and 0.14.0-beta.1 says so up front when it sees the combination. Measured here with dlss5-feed-host64.exe --test on an RTX 5090, same files throughout, changing only the consumer:

  neural consumer in host64\	driver 616.56	driver 616.64
  none	—	300/300
  Deep Fried Chicken 1.4.8-alpha	—	300/300
  renodx-dlss5 v4.55 (classic engine)	—	300/300
  renodx-dlss5 "latest" (classic engine)	—	300/300
  renodx-dlss5 v4.6	—	1/300
  renodx-dlss5 v4.7	300/300	0/300

  A dash is not a pass — it is a combination nobody has run. Only v4.7 was measured on both drivers, and it is the row that flips, which is what pins the driver rather than the machine. (616.56 was this machine's driver until 2026-09-04; it cannot be re-measured here now. One real-game log on 616.86 reproduces the v4.7 failure; nothing else has been run on 616.86.)

  616.64 also changed what NGX says about the feature that path creates: the requirements query for feature 18 answered NotImplemented (0xBAD00012) on 616.56 and answers supported on 616.64. So the driver moved and the v4.6+ engine is what does not survive the move. Three fixes, any one of them: use Deep Fried Chicken as the neural consumer, use a classic-engine renodx-dlss5 build, or roll the driver back to 616.56. Run host64\dlss5-feed-host64.exe --test to check your own combination in about fifteen seconds.

• 32-bit game: dlss5-feed.addon64 in host64\ — it does not belong there and 0.14.0-beta.1 refuses to run when it finds itself in the helper. host64\ takes dlss5-feed-host64.exe, a 64-bit ReShade dxgi.dll, the neural consumer and the nvngx_* runtimes; the game's own folder keeps dlss5-feed.addon32. Delete the stray file — Verify-DLSS5Feeder.ps1 flags it too.

• DLSS 5 panel stuck in STANDBY (RenoDX add-on) — it missed the first create; the built-in warm-up re-creates the feature a few seconds in, which normally clears it.

• Deep Fried Chicken's tab says DISARMED, CONFLICT or FAILED — DISARMED is arm=0 in deep-fried-chicken.cfg (restart-only), or the first launch before its LoadFromDllMain entry took effect; CONFLICT means a second neural consumer (renodx-dlss5.addon64, renodx-dlss.addon64, alexs-toolkit.addon64) is loaded — remove it and fully restart. dlss5-feed.log prints the same state.

• A regular stutter every few seconds, with poor 1% lows but a normal average frame rate — first check the neural consumer's version. Deep Fried Chicken up to 1.4.7 rescanned every module in the process every 300 presented frames, which is about every 5 s at 60 fps and costs a frame each time in a host with a lot of DLLs loaded. 1.4.8 fixes it; its log then says smart discovery settled: periodic full-module fallback disabled. To confirm the cause rather than guess, set stall_log_ms in dlss5-feed.cfg to roughly one and a half frame times (25 for 60 fps) and read the STALL frame lines: they say whether the lost time was inside the NGX evaluate call, inside this add-on, or outside both. arm=0 plus a full restart is the clean A/B, because the live enabled=0 switch leaves the consumer's observation hooks installed and the scans running.

• Neural rendering stops mid-session, no crash — the overlay's Status section now names the reason next to Session: disabled, and Re-enable restarts it. If the log says the GPU did not retire allocator slot N within 2000 ms, the GPU is not keeping up rather than broken: raise gpu_timeout_ms. A single slow frame no longer stops the session — three consecutive failures do.

• Corruption or flicker with Smooth Motion on — see Before you install at the top of this README. The overlay says whether Smooth Motion was detected, and dlss5-feed.log records the feeding thread: frame fed from thread N, not the usual M means Present is arriving off-thread, and re-entrant frame … dropped means it arrived twice at once. Both lines are worth quoting on an issue. Turn Smooth Motion off for this game's API only, with Profile Inspector.

• Smooth Motion on, everything reports healthy, nothing looks neural — two ReShade runtimes (effect runtime … initialised (device …, window class '…'; 2 runtimes in this process)), and before 0.11.0-beta.2 the feeder could be bound to the wrong one. Update; the log then shows binding to effect runtime …: it is the one rendering DLSS5_Feed.

• Can I use DLSS Quality / Balanced / Performance instead of DLAA? No — not as a setting, and not as a future one either. Real DLSS upscaling needs the game to render smaller than the screen and jitter its camera, then hands DLSS that small frame; the feeder only ever sees the finished, screen-sized frame ReShade has, so it publishes a 1:1 DLAA contract by construction. work_resolution (D3D11) is a cost knob: the frame is downsampled, DLAA + neural rendering run on the smaller image, and the result is expanded back — that is why 50–66% looks blurry rather than like DLSS Quality. From 0.12.0 the expand-back can be AMD FSR 1 instead of a bilinear stretch (work_upscale=1, or the "FSR 1 expand-back" checkbox under the slider): much crisper at 50–75%, still bounded by the native frame. Leave the DLSS 5 add-on's NREnableUpscaling at 0: with a 1:1 contract it cannot engage, and on v4.6 it parks neural rendering for the run. For games that ship DLSS already, use the game's own DLSS (or OptiScaler) instead of this feeder.

• What about adding the jitter ourselves? (work_upscale=2, D3D11, experimental) — it exists, and it is honest about its limits. The feeder shifts the downsample grid by a Halton sub-pixel offset every frame, reports that offset to DLSS, and creates the feature in Super Resolution mode (render = work size, target = native), so DLSS itself rebuilds the native frame from the jittered history. Three things it cannot change: the game still rendered every native pixel, so there is no frame-rate win on the game side; every jittered sample comes from that same native frame, so the best DLSS can converge to is the image you already had at 100%; and DLSS SR leans on motion vectors far more than DLAA — with the feeder's estimated vectors, a rejected history means a blurry low-res frame rather than a sharp native one, so expect smear in motion. Measured (Fable Anniversary, 3578x2013, Deep Fried Chicken 1.4.8): it saves nothing. At 50% work resolution DLAA + FSR 1 ran at 57–62 fps and DLSS reconstruction at 44–48 fps, the same as 100%. DLSS Super Resolution's cost follows the output size, and the neural consumer takes DLSS's resolved native output as its input (neural=3578x2013->3578x2013 in Chicken's log), so the neural pass runs on every native pixel again. The image also shimmers. That is why it is not on the overlay: it stays reachable as work_upscale=2 in the cfg for anyone who wants to repeat the experiment, and nothing more. What people actually want — render the game smaller, run DLSS 5 on that, upscale the neural result — would need a neural model trained to upscale, which is NVIDIA's to ship. The only route to a real frame-rate win today is the game rendering fewer pixels: set a lower resolution in the game and let the GPU scale it to the panel (NVIDIA Control Panel → Adjust desktop size and position → GPU scaling); the feeder then works 1:1 at that size. See PLAN-PROXY-SWAPCHAIN.md for what doing that in-process would take.

• 32-bit game: changing the work resolution froze the PC for a few seconds, then DLSS never came back and the helper window stopped responding — the helper's log shows feature create did not complete, its ReShade.log shows DXGI_ERROR_DEVICE_HUNG, and every later rebuild fails with OpenSharedHandle … 0x887A0005. Before 0.12.0 the helper released the old feature and textures without waiting for the GPU, which a neural consumer that keeps a graph alive on the feature (Deep Fried Chicken) turned into a GPU hang, and a helper whose D3D12 device was removed retried against it forever. From 0.12.0 the rebuild drains the GPU first, and a helper whose device was removed says so, exits, and is respawned by the add-on on the next frame.

• 32-bit game: tex 1 CreateTexture2D failed 0x80070057, failure: shared build forever — the game's D3D11 device is feature level 10.x and cannot bind the UAV the DLSS output needs. From 0.11.0-beta.2 the helper creates the shared set instead (the log says the host will create the shared set instead); on older builds there is no workaround (mode=1 uses the same texture).

• The game crashed — dlss5-feed.log (or dlss5-feed-host.log) ends with ### CRASH RECORDED ###, naming the exception, the module it faulted in and what the feeder was doing at the time, and from 0.11.0-beta.2 a dlss5-feed-crash.dmp is written next to it. Post the log and the .dmp on the issue; the last ordinary line before the crash line (the session opens in fixed steps — adapter, D3D12 device, NGX init, multithread protection, session open) pins the step.

Building

MSVC (v143/v145) + Windows SDK. Dependencies not vendored: the NGX SDK (see external/ngx/README.md) and the Vulkan headers (see external/vulkan/README.md); the ReShade add-on headers are included under external/reshade/include (BSD-3-Clause, Patrick Mours), as is MinHook under external/minhook (BSD-2-Clause, Tsuda Kageyu) for the vkCreateDevice hook.

Script	Output	Needs
build.bat	build\dlss5-feed.addon64	NGX SDK
build-addon32.bat	build\dlss5-feed.addon32	Vulkan headers
host\build-host.bat	host\dlss5-feed-host64.exe	NGX SDK
layer\build-layer.bat	layer\VkLayer_feed_vk.dll and layer\x86\VkLayer_feed_vk32.dll (fallback for Vulkan games where the add-on's own vkCreateDevice hook cannot add the interop extensions; the 32-bit pair keeps its own subdirectory because the Vulkan loader tries every manifest on VK_LAYER_PATH)	Vulkan headers
spike\build-spike.bat	the standalone proofs used during development: the 32↔64-bit shared-resource pair, plus spike-gl64.exe / spike-gl32.exe and spike-vkhost64.exe / spike-vkclient32.exe, which round-trip a texture and a fence between D3D12 and OpenGL / Vulkan, in-process and cross-process, and spike-proxy-swapchain.exe, the IDXGISwapChain wrapper contract behind PLAN-PROXY-SWAPCHAIN.md (a 960×540 "game" presented at window size through FSR 1). They need an NVIDIA GPU to run, none to compile.	—

NGX links against the Release CRT, so the builds use /MD.

Each script picks up its toolchain through toolscvars.bat, which asks vswhere for the latest Visual Studio install with the C++ tools and falls back to a fixed BuildTools path. Set VCVARSALL to your own vcvarsall.bat to override it.

CI — .github/workflows/build.yml builds all five targets on every pull request, fetching the NGX SDK and the Vulkan headers from their upstream repositories, and uploads the binaries as a workflow artifact. It only proves the tree compiles and links: DLSS needs an RTX GPU and a real swapchain, so nothing in the table under Status can be verified there.

Limitations and roadmap

• DLAA contract, optional reduced work extent on D3D11 — render resolution still equals DLAA output resolution, but the private work extent can be 50–100% of the native backbuffer and is spatially expanded afterward (bilinear, or FSR 1 with work_upscale=1). D3D12, Vulkan and OpenGL paths remain at 100%. This is not jittered DLSS Super Resolution, and a Quality/Balanced/Performance mode cannot be added: see the FAQ entry in Logs and troubleshooting.
• Estimated motion vectors → temporal artifacts in fast motion; the UI is processed with the scene (a UI mask / pre-UI colour capture is future work).
• Geometry vectors are experimental and off. The camera-model fit is derived from the provider's own flow, so it inherits that noise, and it has no way to know the HUD is not part of the scene. Doing it properly needs the game's real view-projection matrices, not a fit.
• Synthetic-jitter DLSS reconstruction (work_upscale=2) is a cfg-only experiment, not on the overlay. It turns DLSS into the expand-back for the work-resolution cost knob, and the measurement says it costs as much as 100% (DLSS SR follows the output size; the neural consumer runs on the resolved native output) and shimmers (the jitter sign convention, jitter_sign on the 64-bit add-on, was never confirmed). D3D11 only. On the 32-bit path the add-on ships the target size with each build and the grid shift with each frame (IPC v6) and the helper creates the SR feature; no covering preset means a DLAA + FSR 1 rebuild. Kept so the result can be reproduced; use FSR 1.
• A light that flickers faster than DLSS's history converges is averaged into a slow pulse. The trust mask reduces it; nothing available to a post-process feed removes it.
• Exclusive-fullscreen swapchain churn can make some games reload effects repeatedly; windowed is smoother.
• Depends on a closed-source, community-distributed neural consumer and the NGX runtime; both can change. Deep Fried Chicken is game-validated here only on 64-bit Vulkan in-process and through the 32-bit x64 helper — its other backends are source-contract compatible per its author, and it claims neither Frame Generation nor 32-bit Vulkan.
• The 32-bit and D3D9 paths are beta — see PLAN-32BIT.md for the full design and known risks. Cross-process adds a small amount of scheduling jitter versus the in-process 64-bit path (not measured as a problem so far).
• 32-bit Vulkan has not run in a real game yet — the cross-bitness interop is proven by the spike pair, but nothing above it is. See PLAN-VULKAN32.md.

Credits

• D3D11↔D3D12 shared-texture / fence transport adapted from NIGos' dlss5-dx11-bridge (MIT) — not re-hosted here.
• Motion vectors: interop happens purely by declaring each provider's output texture identically, so ReShade binds the same resource — the mechanism dh_uber_rt and VORT use. Thanks to LumeniteFX (Umar Afzaal), iMMERSE Launchpad (MartysMods), VORT (MIT), Jakob Wapenhensch's ReshadeMotionEstimation (CC BY-NC 4.0), the qUINT ecosystem that established the texMotionVectors convention, and AlucardDH's dh-reshade-shaders for the provider-switch pattern. No provider's files are bundled or included by this project's shader — install them from their own repositories, under their own licenses.
• DLSS 5 neural rendering: Deep Fried Chicken by Alexander — the recommended consumer, and the author who built the ABI-1 interop this feeder negotiates over (FEEDER-INTEROP-v1.md) — and the RenoDX community's renodx-dlss5 add-on, the alternative. Neither is bundled here.
• ReShade add-on API by Patrick Mours.
• dgVoodoo2 by Dege — the D3D9 translation layer that makes the DirectX 9 path possible.
• D3D12 stability findings independently confirmed by the Pizzawookiee fork's diagnostics.

License

MIT — see LICENSE. This covers only the code in this repository (src/, shaders/, host/); the dependencies above keep their own licenses.
