README.md

Tine

A fast, local, Logseq-compatible outliner.
Reads and writes the same markdown graph as Logseq — swap between the two on the same files.

Tauri 2 SolidJS Rust Linux AGPL-3.0

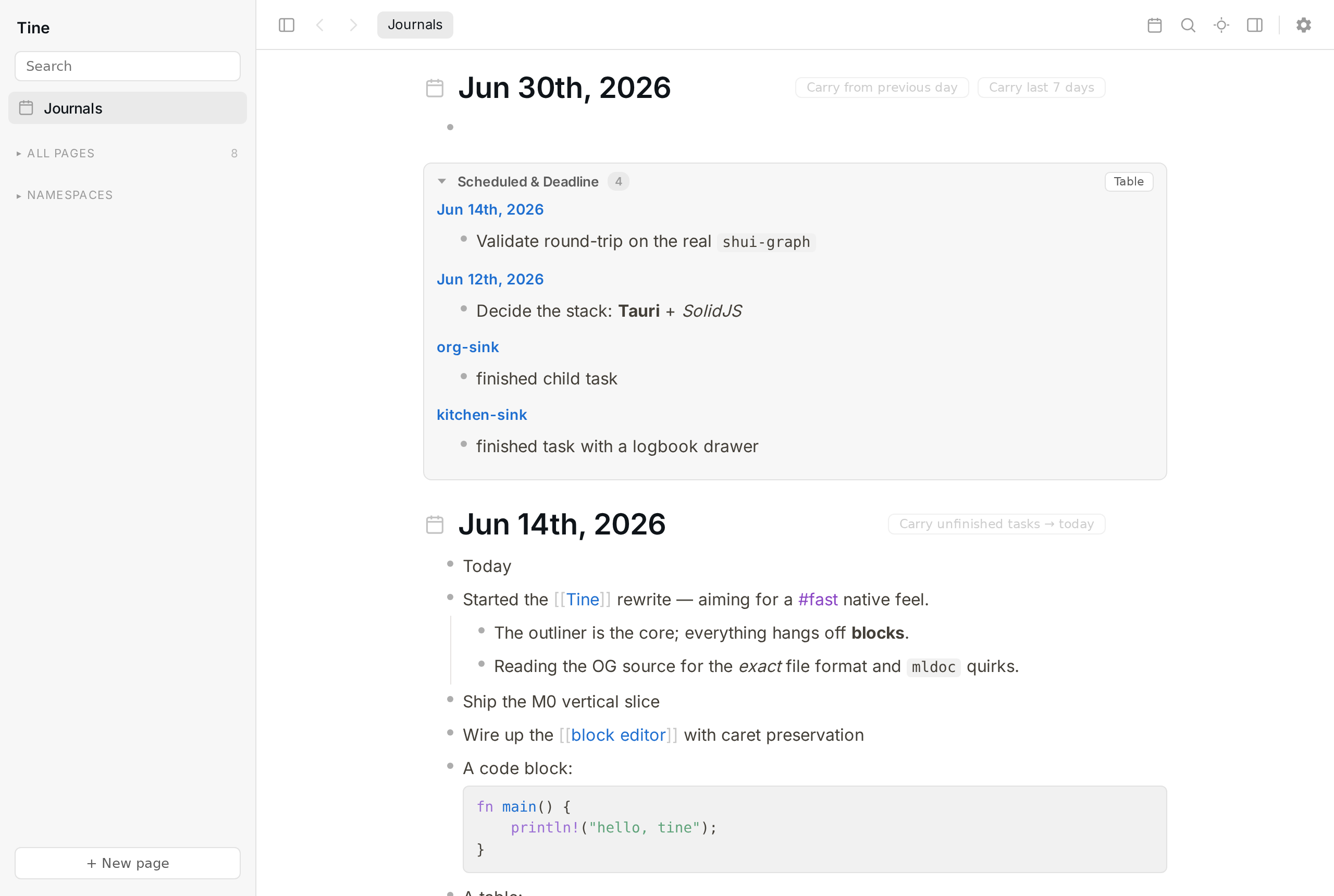

Tine — journals view

Browse a demo graph — the onboarding graph, published with Tine's own HTML export.


What is Tine?

Tine is a desktop outliner built to look and feel like Logseq while being much faster. It operates directly on the standard Logseq graph layout — journals/, pages/, assets/, and logseq/config.edn — so you can point it at the graph you already use and keep editing in either app (one at a time). Files are written back in Logseq-compatible markdown, so there's no import/export step and no lock-in.

Why build it? Logseq's UI is Electron + DataScript with heavy re-rendering, and it gets sluggish on large graphs. Tine is a ground-up rewrite: a small native shell (Tauri/WebKitGTK), a pure-Rust core for parsing and indexing, and a fine-grained reactive frontend (SolidJS) that never diffs a virtual DOM. The editor keeps the live block tree in the frontend, so keystrokes never round-trip to Rust, and whole-graph reads (search, backlinks, queries) hit an in-memory cache instead of re-parsing.

Status: a usable daily-driver for outlining, linking, tasks, journals, search, queries, and PDF annotation. Linux is the primary, best-tested platform; macOS and Windows builds are produced too but are newer. Not yet 1.0 — see Roadmap.


Install

Grab a prebuilt installer from the Releases page. The builds aren't code-signed yet, so your OS may warn the first time — here's how to get past it:

  • Linux — the AppImage runs on any distro with no install: chmod +x Tine_*.AppImage, then run it. Or use the .deb (Debian/Ubuntu) or .rpm (Fedora/openSUSE).
  • macOS — open the .dmg; on first launch macOS says "unidentified developer", so right-click the app → Open (just once) and it opens normally after that. If Tine then keeps asking to access your Documents folder on every launch, see the workaround below.
  • Windows — run the .exe installer; if SmartScreen appears, click More info → Run anyway. Prefer no installer? Grab the portable Tine_*_x64-portable.zip, unzip, and run Tine.exe — it needs the WebView2 runtime, which is preinstalled on Windows 10/11.

(Want to hack on Tine instead? Build from source — see Build & run.)

macOS: repeated "Documents" permission prompt

If your Logseq graph lives in ~/Documents (the common default), macOS gates access to that folder behind a permission prompt. Because the build isn't notarized yet and is run with the download "quarantine" flag, macOS launches it from a randomized temporary location each time (Gatekeeper App Translocation), so it can't remember your answer — and re-asks on every launch. To make the grant stick:

  1. Move Tine.app into /Applications (drag it out of the disk image / Downloads).
  2. Clear the quarantine flag in Terminal:
    xattr -dr com.apple.quarantine /Applications/Tine.app
  3. Launch Tine from /Applications and Allow the Documents prompt once — it won't ask again.

(Both this and the "unidentified developer" warning disappear once Tine ships notarized macOS builds.)


What Tine adds on top of Logseq

These are the things that started as "I wish Logseq did this" — Tine's reasons to exist beyond raw speed. (Comparisons are against current Logseq desktop core, no plugins.)

  • ⚡ Native speed. Pure-Rust core + SolidJS fine-grained reactivity + a tiny Tauri/WebKitGTK runtime instead of Electron — typing stays in the frontend tree, reads hit an in-memory index.
  • 🗂️ Built-in tabs. Middle-click anything to open it in a background tab; pin, drag-reorder, Mod+W to close. (Logseq core has none.)
  • ⏯️ Browser-style back/forwardAlt+Left / Alt+Right, per-tab history, works mid-edit.
  • 🎯 Focus mode + dim-inactive-blocks (t f / t b) — fade everything but the block you're on.
  • ⚡ Global quick-capture — bind tine --capture to a desktop hotkey and a small always-on-top box pops from any app with the full editor, filing a bullet to today's journal.
  • 🔁 Carry unfinished tasks forward to today (last 7 / 30 / 365 days, or a configurable N).
  • 🛟 A real data-safety story — conflict detection instead of silent overwrites, launch snapshots with one-click restore, and delete-to-trash; built to live safely on a graph you also edit from Logseq mobile over Syncthing.
  • 👋 First-run onboarding — a Welcome screen that opens an existing graph or creates a new one pre-loaded with a short, narrated demo graph (which opens in Logseq too).

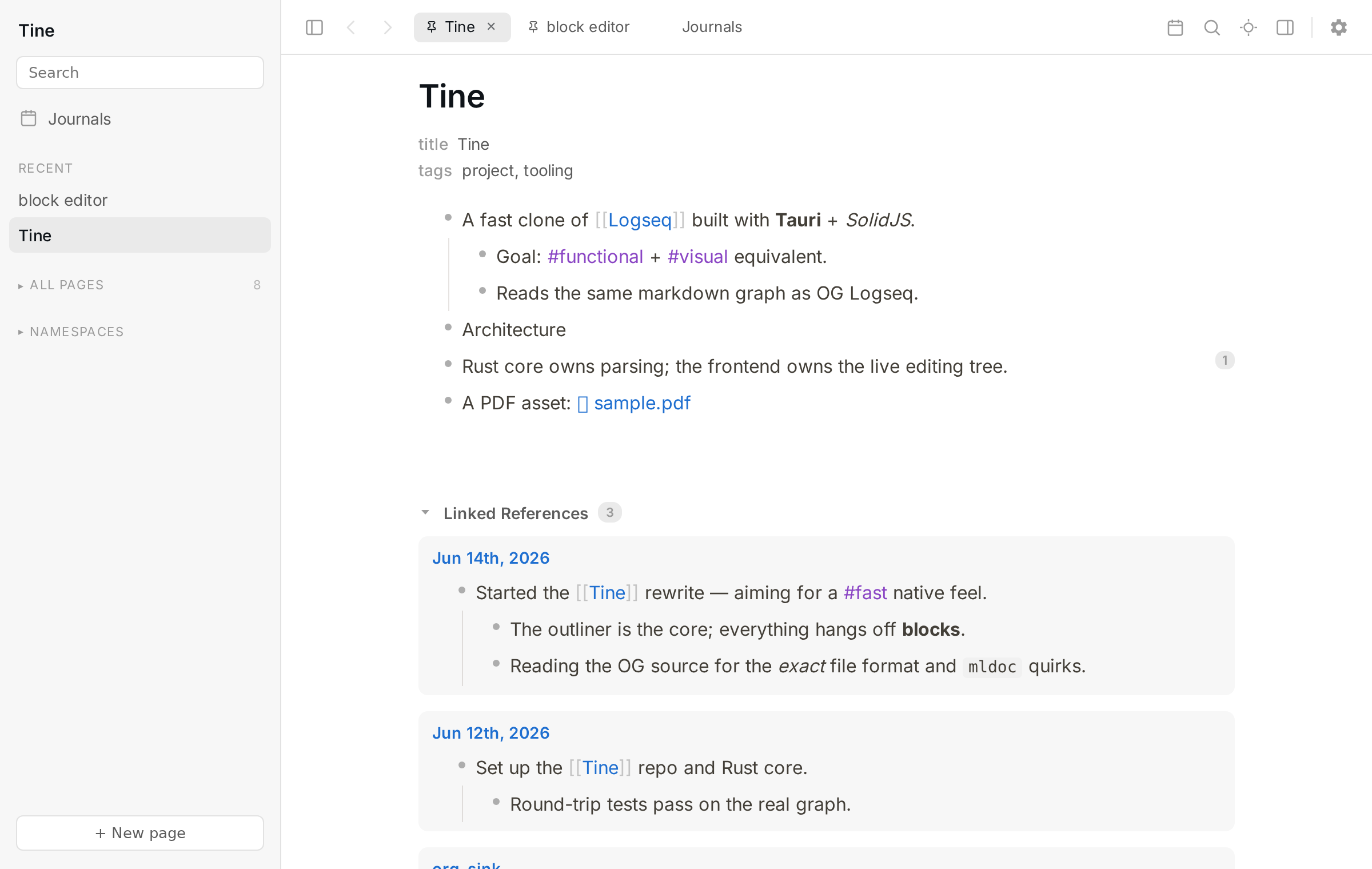

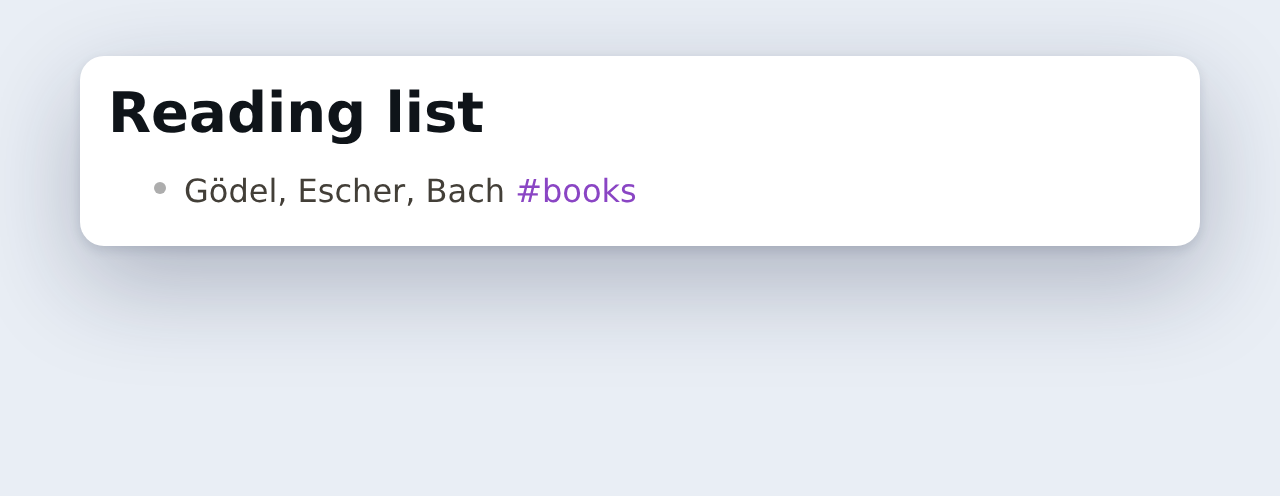

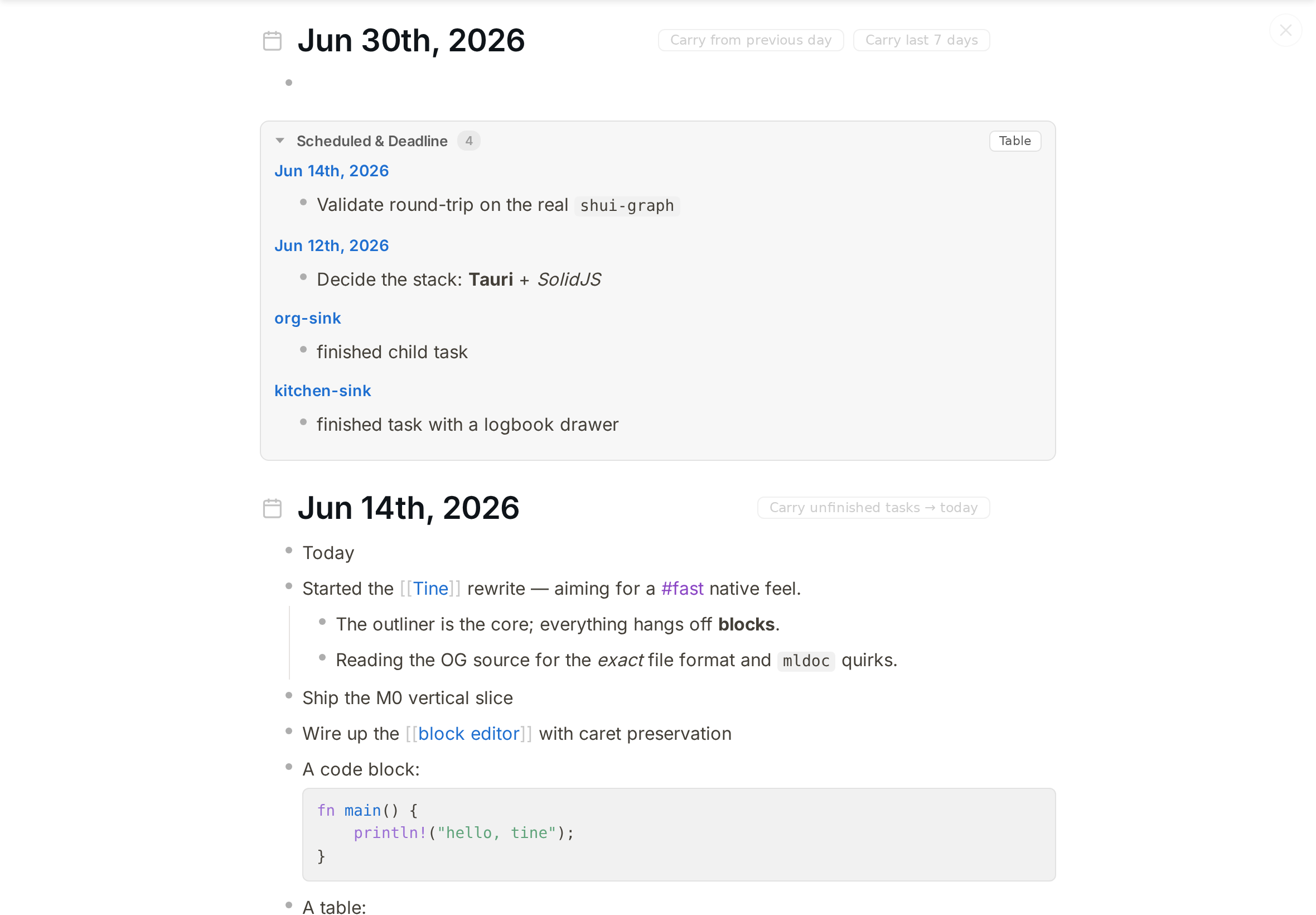

Global quick-capture mini-window Focus mode with inactive blocks dimmed Built-in tabs

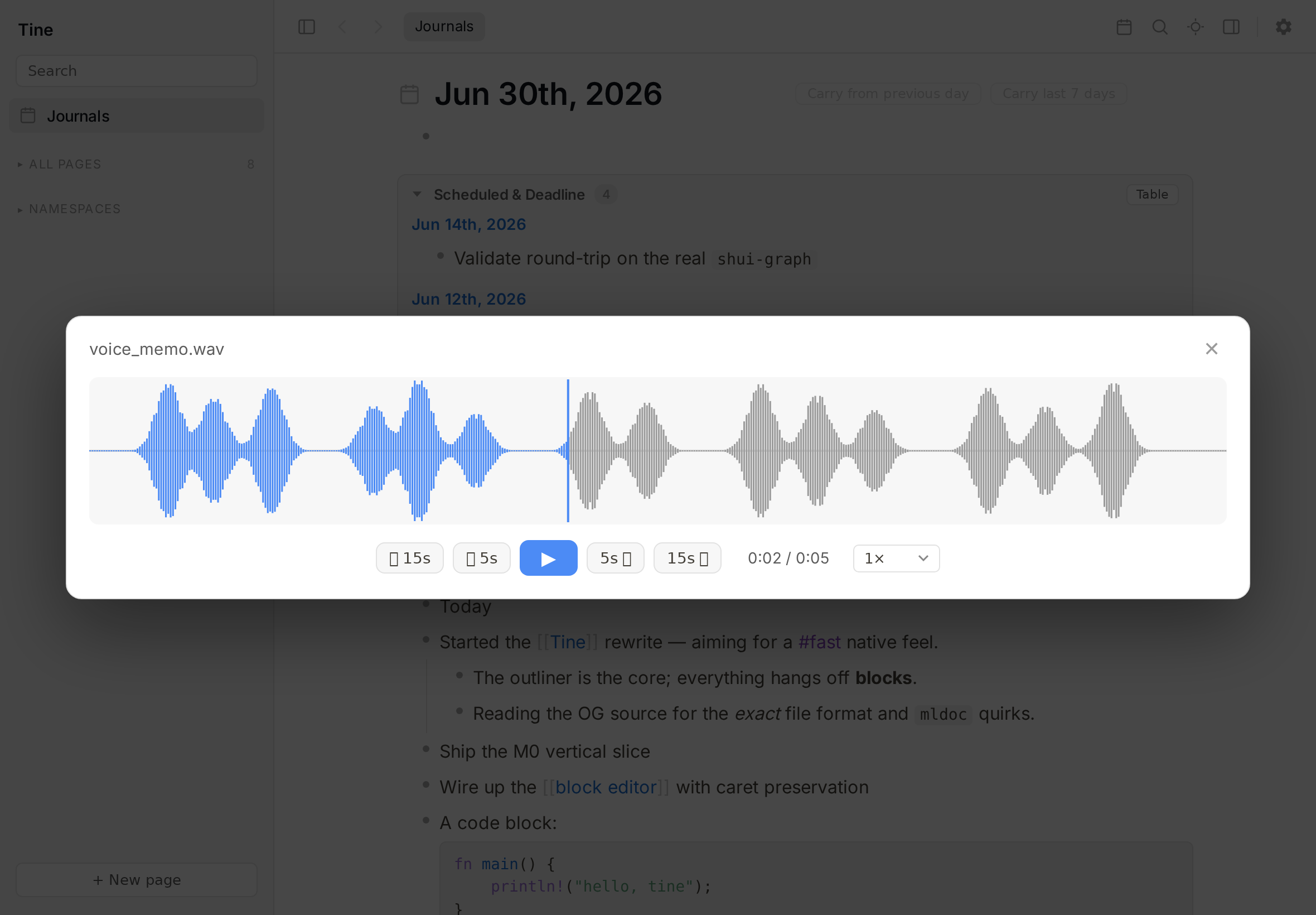

Audio waveform overlay player with skip and speed controls
Paste audio, then ⤢ Expand to a waveform scrubber (±5s / ±15s skip, speed, time read-out) — no Logseq-core equivalent.


Features

A quick map of what's in the box — the full feature list lives in docs/FEATURES.md, and the demo shows the rendered-content side of it in your browser.

AreaHighlights
OutlinerClick-to-edit with exact caret landing, Logseq keyboard semantics, zoom, drag-reorder, multi-block select; in-block lists & checklists; callouts; a live /calc block.
MediaPaste/import images, video & audio; configurable asset names; drag-resize images and video; an audio waveform overlay player; image lightbox; orphaned-media cleanup.
Links, refs & queries[[page]] · #tag · ((block ref)) · {{embed}} with autocomplete; live linked/unlinked references; per-block ref counts; the macro set; a {{query}} engine with a visual builder; a scoped Datalog path.
Tasks, journals & datesTask workflows + priorities, scheduled/deadline with a date picker, recurring tasks, carry-forward, a multi-day journal feed, agenda, and a calendar.
PDFZoomable virtualized viewer, in-PDF find, text + area (image) highlights stored Logseq-compatibly, each a bullet you can annotate.
Search & navCtrl+K switcher (titles + full text), command palette, namespace tree, tabs, back/forward, focus mode, global quick-capture, page icons.
Your filesSafe to run alongside Logseq mobile over Syncthing — conflict detection, format-preserving atomic saves, transactional rename, org-mode (byte-faithful or read-only), snapshots + trash.
Customize & exportRemappable shortcuts with ? help, themes + custom CSS, multi-language spell check, static HTML export with offline search, copy/export as Markdown.

See every feature, with the details, in docs/FEATURES.md.


Built with

LayerTechNotes
ShellTauri 2 (Rust)OS webview (WebKitGTK on Linux) — tiny runtime vs Electron
FrontendSolidJS + TypeScript + Vitefine-grained reactivity, no virtual-DOM churn
Corecrates/tine-core (pure Rust)parse/serialize, model, indexing, queries, refs, dates, PDF/EDN, HTML publish
Renderingpdf.js, KaTeX, highlight.jsPDF, math, code

The Rust core is GUI-free and unit-tested in isolation; the Tauri layer is a thin set of ~41 IPC commands over it. The frontend owns the live editing tree (normalized store) and pushes debounced, format-preserving saves; whole-graph reads hit an in-memory page cache (RwLock<Arc<Graph>> — read commands clone the Arc and release the lock immediately) keyed by a graph generation counter.

The bigger architectural choices — Tauri/WebKitGTK over Electron, the pure-Rust core, in-browser WASM parsing, the data-safety invariants — are written up as short decision records in docs/adr/.

Project layout

crates/tine-core/    Rust core: parse/serialize, model, config, dates, refs, query, pdf, edn, publish
src-tauri/           Tauri app — IPC commands + windows (main + quick-capture)
src/                 SolidJS frontend (components, store, render pipeline, keybindings)
scripts/             env.sh (toolchain paths), screenshot generators
docs/                Logo, images, FEATURES.md, ADRs, feature notes
samples/             Demo graph used by tests/screenshots

Build & run

source scripts/env.sh        # toolchain env (CARGO_HOME/RUSTUP_HOME, lib paths)
npm install                  # first time

# Build the release binary (NOT plain `cargo build` — that produces a dev-mode
# binary that can't connect to the bundled frontend):
npx tauri build --no-bundle

# Run it against your graph:
TINE_GRAPH=/path/to/your/graph ./target/release/tine

Release checklist

Before tagging a release, run npm run e2e:caret against the release binary to guard the ADR 0013 duplicate-instance caret/focus invariant.

  • Point TINE_GRAPH at the same journals/ + pages/ + logseq/config.edn tree you use with Logseq. Run one app at a time on a given graph.
  • GPU compositing (smooth scrolling) is on by default. On the rare GPU/compositor combo where WebKitGTK's DMABUF renderer aborts (the window fails to appear, or you see EGL_BAD_PARAMETER on the console), set TINE_GPU=0 to fall back to software rendering — slower, but it always starts. If Tine detects it's painting on the CPU it now says so with a banner.
  • Prefer the raw binary over an AppImage on Linux — an AppImage's bundled graphics libraries can clash with the host GPU and silently drop you to (slow) software rendering. The .deb/.rpm packages use your system's drivers and don't have this problem.

Troubleshooting a bad startup (debug mode)

If Tine won't start cleanly (e.g. the window never appears), run it with debug logging on. It writes a timestamped trace to a file — the environment (renderer, session type, AppImage, graph), every startup milestone, any panic (with backtrace), and the frontend's own boot/errors — so one file is usually enough to diagnose it:

TINE_DEBUG=1 tine                 # or:  tine --debug
TINE_DEBUG=1 ./Tine-*.AppImage    # AppImage

Tine prints the log path on startup; it defaults to /tmp/tine-debug.log (override with TINE_DEBUG_LOG=/path). Reproduce the problem, then send that file. The log records no note content — only startup diagnostics.

Quick capture — at the top of the journal feed, a page-title field + a body composer: fill the title to capture a new page, leave it empty to append to today, then Ctrl-Shift-Enter. Global quick-capture: bind your desktop environment's keyboard settings to run tine --capture (a second launch is routed to the running instance via single-instance).

Develop

npm run dev                  # frontend only, in a browser, against an in-memory mock backend
npm run app                  # full Tauri dev window  (alias for: tauri dev)
node scripts/screenshot.mjs  # regenerate screenshots from the mock backend

Testing

source scripts/env.sh
cargo test -p tine-core      # Rust: parse/serialize round-trip, model, queries, search cache
npm test                     # Frontend: Vitest (editor ops, outline, autocomplete, markers, …)

Round-trip parsing is validated against a real Logseq graph (0 structural diffs beyond accepted canonicalization); tine-check is a privacy-safe profiler that proves byte-faithful serialization without reading note content.

Contributing

Tine is a single-maintainer project with an unusual contribution model: the most valuable thing you can send is testing and bug reports, and code changes come in as proposals/specs the maintainer implements rather than merged patches (docs/typo PRs excepted). The why, and how to file a good report, are in CONTRIBUTING.md.

Roadmap & non-goals

Planned / under evaluation: graph view, configurable typographic auto-replace, and broader coverage of advanced Datalog queries (a scoped subset works today — see above).

Out of scope (by design): whiteboards, flashcards, the plugin system, and built-in git. Today Tine coexists with the Logseq mobile app over your own sync; a native Android build (Tauri v2) is under evaluation.

The full working backlog — what's next, what's deferred, and what's explicitly WONTFIX — lives in docs/BACKLOG.md.

Acknowledgements

Tine is an independent reimplementation, not a fork — the codebase is original Rust + SolidJS and contains no Logseq source. It does target Logseq's on-disk format and adapts parts of Logseq's outliner CSS (variables and bullet/indent rules), so it is a derivative work for licensing purposes and is released under the same license.

Logseq is © its authors, licensed AGPL-3.0. Tine is not affiliated with or endorsed by Logseq. Thanks to the Logseq project for the format and the design it pioneered.

License

GNU AGPL-3.0-only.

Copyright (C) 2026 Martin Koutecký.

This program is free software: you can redistribute it and/or modify it under the terms of the GNU Affero General Public License as published by the Free Software Foundation, version 3. It is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the LICENSE for details.


Built ground-up as a faster, file-compatible alternative to Logseq. Not affiliated with Logseq.
