ff-tracking

A virtual camera films an AI agent's screen while a tracker locks onto every glyph it types.

Six seconds, two fframes passes, one SkSL shader. No footage, no stock audio: every pixel and every sound comes from code.

▶ Full 1080p with sound · On X · How it works · Quick start

_{fframes studies · #1 ff-tracking · #2 ff-unmute, the one you can unmute}

What you are looking at

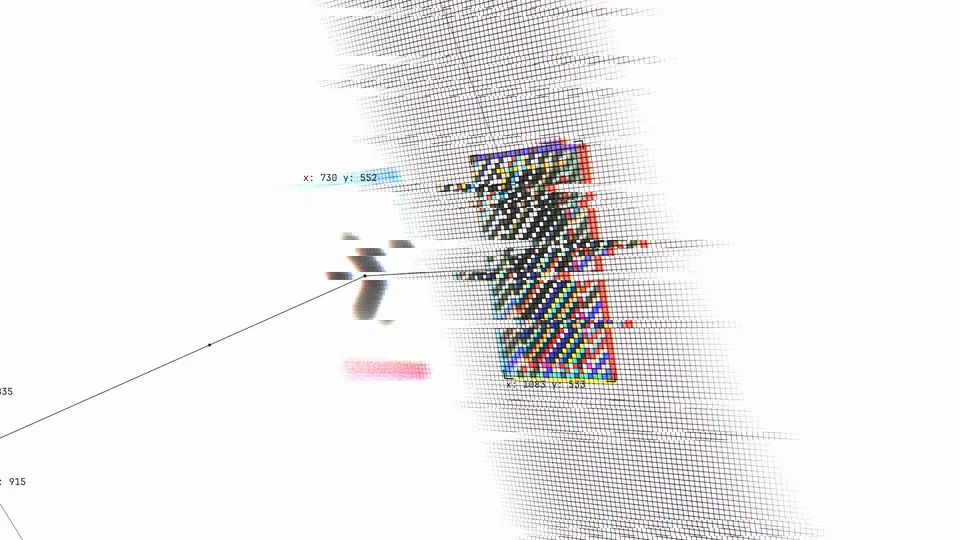

An agent thinks out loud in a terminal: thinking… → reading 14 files → tool_call: render_frame() → … → ✓ 0 problems → Done. A computer-vision style tracker follows the newest characters. A camera that never sits still films the screen up close.

• Real coordinates. Every x: 1403 y: 559 label is the box's actual pixel position in that frame of the output. None of them are random numbers.
• Focus that follows the tracker. The focal plane is set by the box being tracked, so the depth of field racks along the line as the agent types.
• Chain of thought, drawn. Links run from box to box in reading order, and a dot runs along every link.
• The lock. Every shot ends with the newest word locking on: red for two frames, a scanline tear, a beep panned to where the box is.

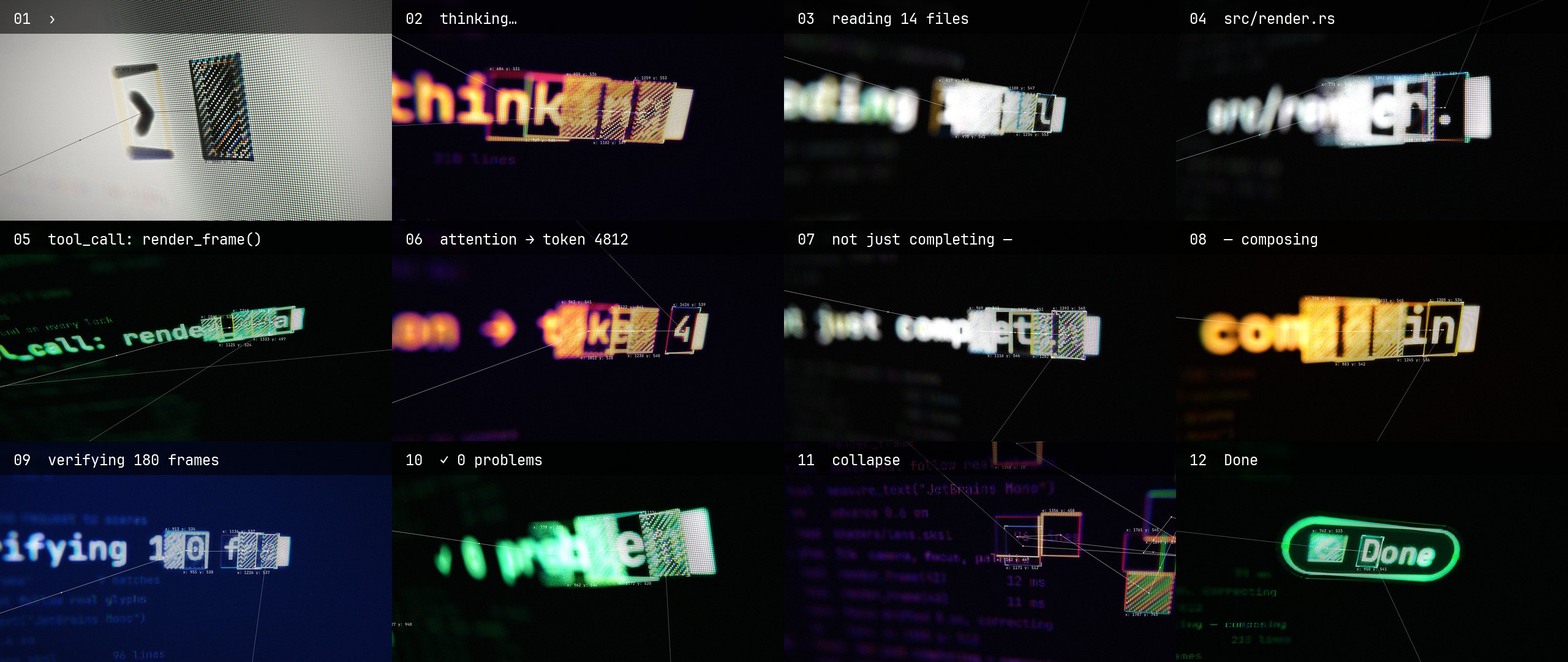

• Twelve shots, twelve looks. A cut every 0.5 s through paper white, thermal, black and white, phosphor, amber, navy and neon.
• A collapse and a landing. Fourteen boxes fall into one, and that box becomes a Done pill before the fade to black.

How it works

hud ──► flat    pass 1: SVG, 3840×2160 ─────────► out/pass/flat.mp4 ──┐ iChannel0
 │                                                                      ▼
 ├────► lens    pass 2: SkSL on Skia Metal + camera tracker ──► out/tracking.mp4
 │                                                                      ▲ audio
 └────► tracks ──► out/tracks.json ──► sfx.py ──► out/pass/sfx.wav ─────┘

Pass 1, flat, draws the screen the way a terminal would: black, white, monospace, one <text> per glyph, so the position of every character is known exactly. The tracker boxes are on the screen itself. Some are hatched with an SVG pattern in mix-blend-mode: difference, so the stripes turn dark where they cross a glyph. The only color is pure red, and it marks a locked box. The pass renders at 2× because the lens magnifies it up to 3×.

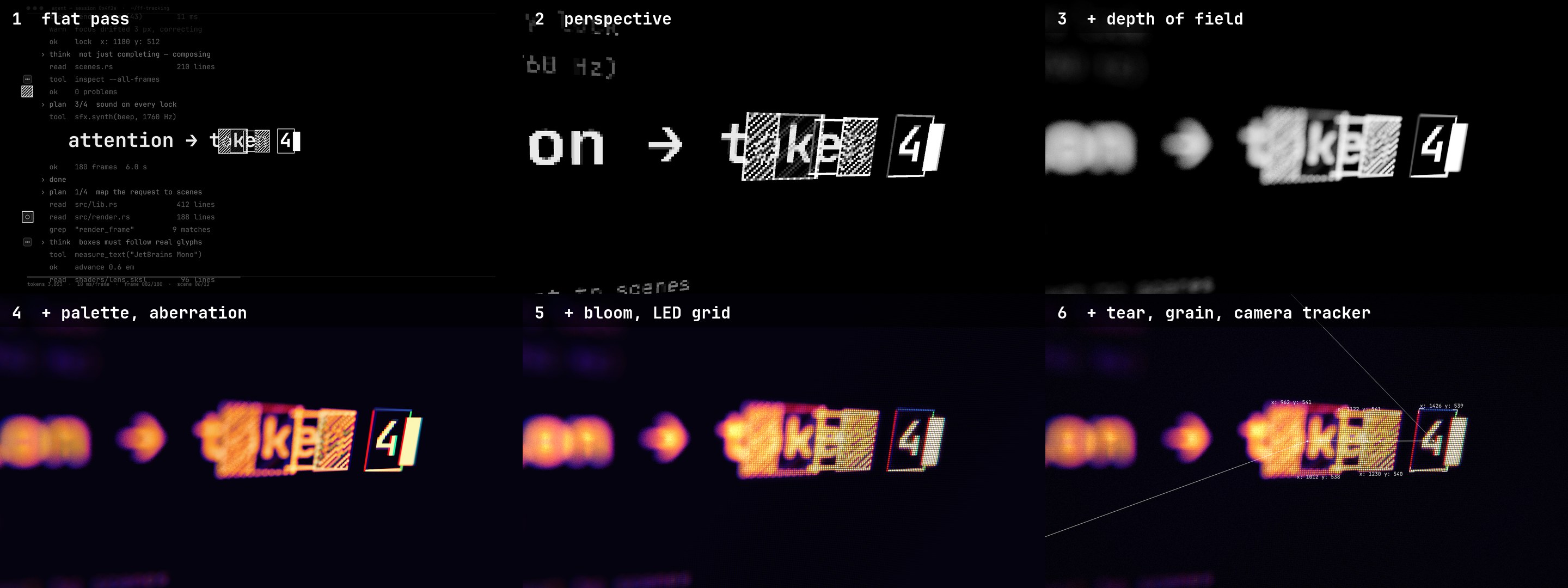

Pass 2, lens, binds each frame of pass 1 as a shader input and films it. One SkSL shader does everything physical:

1. Perspective. Every pixel shoots a ray at a tilted plane: real perspective, not an SVG skew.
2. Depth of field. The circle of confusion comes from the depth difference to the tracked target, with 36 golden-angle taps and highlights weighted like bokeh.
3. Palette and aberration. Brightness maps through five color stops per shot. R, G and B sample at radially shifted points, and the shift grows on a lock.
4. Bloom and LED grid. A wide ring of taps lifts everything around bright glyphs. The grid uses equal-area RGB stripes, so it adds no tint, and it fades out of focus.
5. Tear, grain, camera tracker. Rows slide on a lock and right after a cut. On top, the lens draws its own tracker sharp: links, labels and target brackets, projected with hud::project, the CPU copy of the shader's camera.

Both passes and the sound read the same hud crate, so the lens always knows where the glyph it focuses on actually is.

Sound: tools/sfx.py reads out/tracks.json and synthesizes everything. It makes a screen hum, a bit-crushed glitch on each cut, a click per keystroke and a pentatonic beep per lock, panned to the box. It adds a riser into the collapse and a chime with a sub hit on Done. Loudness is measured with ffmpeg's ebur128 and set to -14 LUFS.

Score (optional): score/score.py is a second soundtrack, made in Slab: a darker, heavier piece at 120 BPM, so every cut lands on a beat. It reads the same out/tracks.json, plus out/camera.json from the camera binary, so the mix follows the lens. The tracked box pans the lock blips and keystrokes, the screen's slide pans the pad, riser and glitches, each zoom push opens the bass filter, and the red lock frames tear the bass. See Slab score.

Quick start

Requirements: macOS with Apple silicon (Skia on Metal), Rust, ffmpeg, Python 3 with numpy and scipy. The README images also need Pillow and img2webp.

git clone https://github.com/mrsarac/ff-tracking && cd ff-tracking
tools/render.sh            # → out/tracking.mp4

render.sh builds the workspace, exports the tracks, renders pass 1, synthesizes the sound and renders pass 2. It takes about 40 s on an M3 Pro, plus the first build.

Every pass is an fframes CLI, so the usual tools work on each of them:

target/release/lens strip all -n 12        # contact sheet of the final video
target/release/lens frame 81 -o frames     # one full-size frame
target/release/lens preview                # real-time window with sound
target/release/lens audio analyze          # loudness, true peak
LENS_STAGE=1 target/release/lens frame 81  # stop the shader after a step (0-3), as in the image above
python3 -I tools/readme_media.py           # rebuild the images in this README

Slab score

tools/score.sh is render.sh with the Slab score in place of sfx.py:

tools/score.sh                          # uses the committed render, score/score.wav
SLAB=/path/to/slab tools/score.sh       # renders the score again from score/score.py

Rendering needs a Slab checkout built with zig build -Doptimize=ReleaseFast. score/score.py writes the project score/ff_tracking.slab, which opens in Slab's arrangement and mixer, and renders it headless. The render runs past the picture for the reverb tail, so score.sh cuts it at 6 s and fades it with the fade to black. It comes out around -10.7 LUFS with a -1 dBTP true peak.

Change a shot and run SLAB=… tools/score.sh: the hits, pans and filter moves follow the new timing and camera.

The Slab score is by nooga (@MGasperowicz), the author of Slab, contributed in #1; how it was made is in #2.

License note: score/score.py imports slabkit, which ships with Slab under GPL-3.0. slabkit is not part of this repo and Slab is needed only to re-render the score. Its author offers score/score.py, the project in score/ff_tracking.slab/ and score/score.wav under this repo's MIT license.

Make it yours

Every shot is one entry in SCENE_LIST in hud/src/lib.rs:

SceneDef {
    kind: Kind::Typing,
    text: "thinking…",                     // what the agent types
    palette: Palette::Thermal,             // Paper, Thermal, Mono, Phosphor, Amber, Navy, Neon
    //         tilt_x tilt_y  roll  zoom 0→1  pan x, y  blur
    cam: cam(0.38, -0.22, 0.04, 2.5, 2.8, 50.0, 0.0, 1.2),
    hero: (560.0, 540.0),                  // where the line starts on the flat screen
    size: 104.0,                           // font size
},

Change the text, a palette or the camera, run tools/render.sh, and the tracker, focus, labels and beeps all follow. cargo test -p hud checks that every line fits the screen and that the camera keeps every target in frame.

Layout

hud/           shots, tracker boxes, camera per frame, projection (no fframes dependency)
flat/          pass 1: the screen, 3840×2160
lens/          pass 2: lens/shaders/lens.sksl and the camera-space tracker
tools/         render.sh (whole pipeline), sfx.py (sound), readme_media.py (these images),
               score.sh (the pipeline with the Slab score)
score/         the Slab score: score.py, the ff_tracking.slab project, score.wav
docs/          design spec, prompts and decisions, fframes contributions

Notes from the build

• A synced video frame is a regular image for a shader: .image("iChannel0", &frame.get_synced_video_frame(..)?.into_image()). That is what makes the two-pass camera possible.
• flat is a reserved word in SkSL (a GLSL ES interpolation qualifier), so name helpers something else.
• At the Video level, never return Svgr::empty(); return a root <svg>. An empty root is an error, and late in a Skia render it surfaces only after the encoders drain (fframes#209).
• The two passes exist because a shader can't yet sample an SVG subtree of the same frame. fframes#210 proposes that.

Credits

• Visual style inspired by Michael Nowak (@mnowakdesign). None of his footage is used.
• Slab score (optional soundtrack): nooga, made in Slab.
• Built on fframes by Dmitriy Kovalenko, rendering with Skia, encoding with FFmpeg.
• Font: JetBrains Mono (SIL OFL 1.1, see licenses/JetBrainsMono-OFL.txt).
• Made with Claude Code. docs/PROMPT.md is the prompt that makes this video, and the design is in docs/superpowers/specs/.

License

MIT © 2026 Mustafa Saraç. The font keeps its own license.
