🦞 OpenClaw Windows Hub

A Windows companion suite for OpenClaw - the AI-powered personal assistant.

Made with 🦞 love by Scott Hanselman and Molty

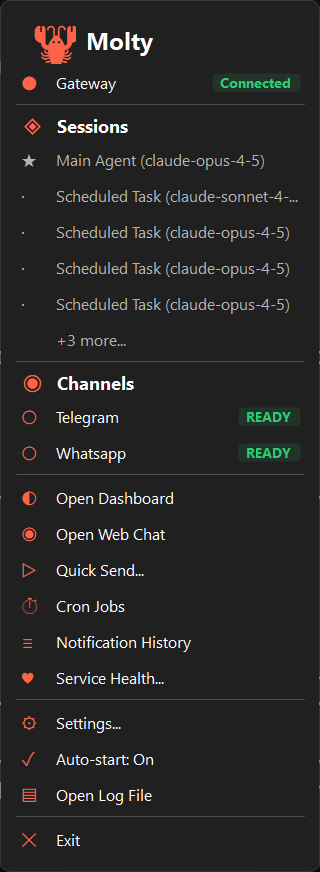

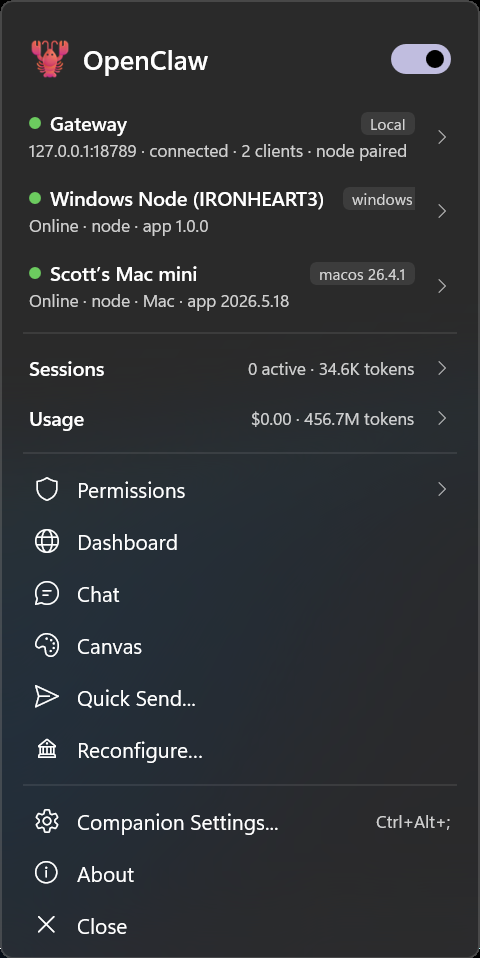

Molty - Windows Tray App

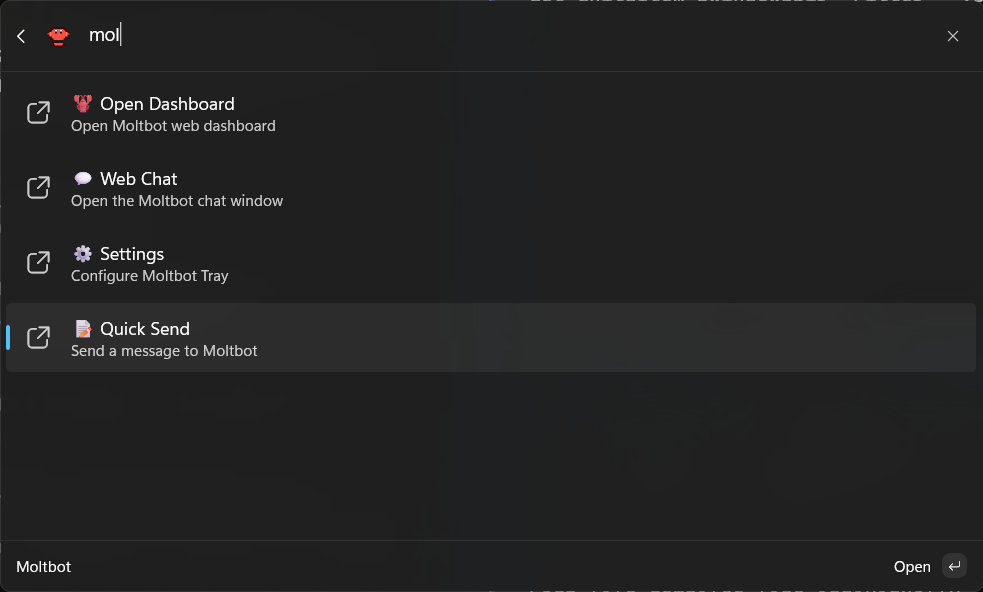

Molty - Command Palette

Projects

This monorepo contains four projects:

Project	Description
OpenClaw.Tray.WinUI	System tray application (WinUI 3) for quick access to OpenClaw
OpenClaw.Shared	Shared gateway client library
OpenClaw.Cli	CLI validator for WebSocket connect/send/probe using tray settings
OpenClaw.CommandPalette	PowerToys Command Palette extension

🚀 Quick Start

End-user installer? See docs/SETUP.md for a step-by-step installation guide (no build required).

Prerequisites

Windows 10 (20H2+) or Windows 11
.NET 10.0 SDK - https://dotnet.microsoft.com/download/dotnet/10.0
Windows 10 SDK (for WinUI build) - install via Visual Studio or standalone
WebView2 Runtime - pre-installed on modern Windows, or get from https://developer.microsoft.com/microsoft-edge/webview2
PowerToys (optional, for Command Palette extension) — see docs/POWERTOYS.md

Build

Use the build script to check prerequisites and build:

# Check prerequisites
.\build.ps1 -CheckOnly

# Build all projects
.\build.ps1

# Build specific project
.\build.ps1 -Project WinUI

Or build directly with dotnet:

# Build all (use build.ps1 for best results)
dotnet build

# Build WinUI (requires runtime identifier for WebView2 support)
dotnet build src/OpenClaw.Tray.WinUI/OpenClaw.Tray.WinUI.csproj -r win-arm64  # ARM64
dotnet build src/OpenClaw.Tray.WinUI/OpenClaw.Tray.WinUI.csproj -r win-x64    # x64

# Build MSIX package (for camera/mic consent prompts)
dotnet build src/OpenClaw.Tray.WinUI -r win-arm64 -p:PackageMsix=true  # ARM64 MSIX
dotnet build src/OpenClaw.Tray.WinUI -r win-x64 -p:PackageMsix=true    # x64 MSIX

Run Tray App

# Run the exe directly (path includes runtime identifier)
.\src\OpenClaw.Tray.WinUI\bin\Debug\net10.0-windows10.0.19041.0\win-arm64\OpenClaw.Tray.WinUI.exe  # ARM64
.\src\OpenClaw.Tray.WinUI\bin\Debug\net10.0-windows10.0.19041.0\win-x64\OpenClaw.Tray.WinUI.exe    # x64

Run CLI WebSocket Validator

Use the CLI to validate gateway connectivity and chat.send outside the tray UI.

# Show help
dotnet run --project src/OpenClaw.Cli -- --help

# Use tray settings from %APPDATA%\OpenClawTray\settings.json and send one message
dotnet run --project src/OpenClaw.Cli -- --message "quick send validation"

# Loop sends and also probe sessions/usage/nodes APIs
dotnet run --project src/OpenClaw.Cli -- --repeat 5 --delay-ms 1000 --probe-read --verbose

# Override gateway URL/token for isolated testing
dotnet run --project src/OpenClaw.Cli -- --url ws://127.0.0.1:18789 --token "<token>" --message "override test"

📦 OpenClaw.Tray (Molty)

Modern Windows 11-style system tray companion that connects to your local OpenClaw gateway.

Features

🦞 Lobster branding - Pixel-art lobster tray icon with status colors
🎨 Modern UI - Windows 11 flyout menu with dark/light mode support
💬 Quick Send - Send messages via global hotkey (Ctrl+Alt+Shift+C)
🔄 Auto-updates - Automatic updates from GitHub Releases
🌐 Web Chat - Embedded chat window with WebView2
📊 Live Status - Real-time sessions, channels, and usage display
🧭 Command Center - Dense gateway, channel, usage, node, pairing, and allowlist diagnostics from one window
⚡ Activity Stream - Dedicated flyout for live session, usage, node, and notification events
🔔 Toast Notifications - Clickable Windows notifications with smart categorization
📡 Channel Control - Start/stop Telegram & WhatsApp from the menu
🖥️ Node Observability - Node inventory with online/offline state and copyable summary

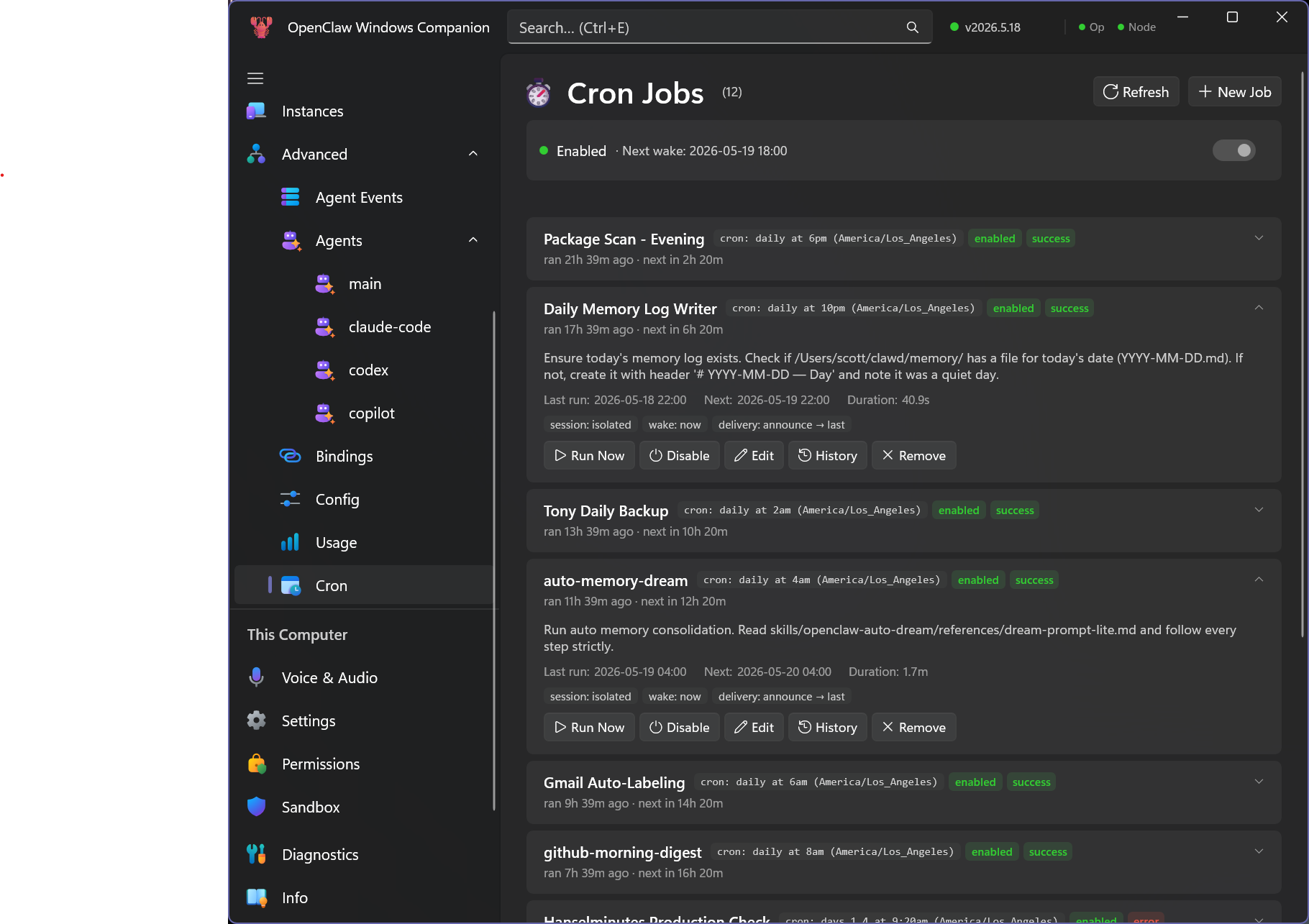

⏱ Cron Jobs - Quick access to scheduled tasks
🚀 Auto-start - Launch with Windows
⚙️ Settings - Full configuration dialog
🎯 First-run experience - Welcome dialog guides new users

Quick Send scope requirement

Quick Send uses the gateway chat.send method and requires the operator device to have operator.write scope.

If Quick Send fails with missing scope: operator.write, Molty now copies identity + remediation guidance to your clipboard, including:

operator role and client.id used by the tray app
gateway-reported operator device id (if provided)
currently granted scopes (if provided)

For this specific error (missing scope: operator.write), the cause is an operator token scope issue. Update the token used by the tray app so it includes operator.write, then retry Quick Send.

If Quick Send fails with pairing required / NOT_PAIRED, that is a device approval issue. Approve the tray device in gateway pairing approvals, reconnect, and retry.

Menu Sections

Status - Gateway connection status with click-to-view details
Command Center - Status detail window with diagnostics, channel health, usage, sessions, nodes, and copyable repair commands
Sessions - Active agent sessions with preview and per-session controls
Usage - Provider/cost summary with quick jump to activity details
Channels - Telegram/WhatsApp status with toggle control
Nodes - Online/offline node inventory and copyable summary
Recent Activity - Timestamped event stream for sessions, usage, nodes, and notifications
Actions - Dashboard, Web Chat, Quick Send, Activity Stream, History
Support & Debug - Logs, config, diagnostics folder, redacted support context, browser setup, port/capability/node/channel/activity summaries, and managed SSH tunnel restart
Settings - Configuration and auto-start

Mac Parity Status

Comparing against openclaw-menubar (macOS Swift menu bar app):

Feature	Mac	Windows	Notes
Menu bar/tray icon	✅	✅	Color-coded status
Gateway status display	✅	✅	Connected/Disconnected
PID display	✅	✅	Command Center shows gateway listener process/PID
Channel status	✅	✅	Mac: Discord / Win: Telegram+WhatsApp
Sessions count	✅	✅
Last check timestamp	✅	✅	Shown in tray tooltip
Gateway start/stop/restart	✅	⚠️	Windows can restart the managed SSH tunnel from tray Support & Debug and Command Center; external gateway process control is not implemented
View Logs	✅	✅
Open Web UI	✅	✅
Refresh	✅	✅	Auto-refresh on menu open
Launch at Login	✅	✅
Notifications toggle	✅	✅

Windows-Only Features

These features are available in Windows but not in the Mac app:

Feature	Description
Quick Send hotkey	Ctrl+Alt+Shift+C global hotkey
Embedded Web Chat	WebView2-based chat window
Toast notifications	Clickable Windows notifications
Channel control	Start/stop Telegram & WhatsApp
Modern flyout menu	Windows 11-style with dark/light mode
Deep links	`openclaw://` URL scheme with IPC
First-run welcome	Guided onboarding for new users
PowerToys integration	Command Palette extension

🔌 Node Mode (Agent Control)

When Node Mode is enabled in Settings, your Windows PC becomes a node that the OpenClaw agent can control - just like the Mac app! The agent can:

Capability	Commands	Description
System	`system.notify`, `system.run`, `system.run.prepare`, `system.which`, `system.execApprovals.get`, `system.execApprovals.set`	Show Windows toast notifications, execute commands with policy controls
Canvas	`canvas.present`, `canvas.hide`, `canvas.navigate`, `canvas.eval`, `canvas.snapshot`, `canvas.a2ui.push`, `canvas.a2ui.pushJSONL`, `canvas.a2ui.reset`	Display and control a WebView2 window
Screen	`screen.snapshot`, `screen.record`	Capture screenshots and fixed-duration MP4 screen recordings
Camera	`camera.list`, `camera.snap`, `camera.clip`	Enumerate cameras and capture still photos or short video clips
Location	`location.get`	Return Windows geolocation when permission is available
Device	`device.info`, `device.status`	Return Windows host/app metadata and lightweight status

Node Setup

Enable Node Mode in Settings (enabled by default)
First connection creates a pairing request on the gateway

Approve the device on your gateway:

openclaw devices list          # Find your Windows device
openclaw devices approve <id>  # Approve it

Configure gateway allowCommands - Add the commands you want to allow under gateway.nodes in ~/.openclaw/openclaw.json:

{
  "gateway": {
    "nodes": {
      "allowCommands": [
        "system.notify",
        "system.run",
        "system.run.prepare",
        "system.which",
        "system.execApprovals.get",
        "system.execApprovals.set",
        "canvas.present",
        "canvas.hide",
        "canvas.navigate",
        "canvas.eval",
         "canvas.snapshot",
         "canvas.a2ui.push",
         "canvas.a2ui.pushJSONL",
         "canvas.a2ui.reset",
         "screen.snapshot",
         "camera.list",
         "camera.snap",
         "camera.clip",
         "location.get",
         "device.info",
         "device.status"
      ]
     }
   }
}

⚠️ Important: The gateway has a server-side allowlist. Commands must be listed explicitly - wildcards like canvas.* don't work! Privacy-sensitive commands such as screen.record should only be added to allowCommands when you explicitly want to allow them.

Test it from your Mac/gateway:

 # Show a notification
 openclaw nodes notify --node <id> --title "Hello" --body "From Mac!"

 # Open a canvas window
 openclaw nodes canvas present --node <id> --url "https://example.com"

 # Execute JavaScript (note: CLI sends "javaScript" param)
 openclaw nodes canvas eval --node <id> --javaScript "document.title"

 # Render A2UI JSONL in the canvas (pass the file contents as a string)
 openclaw nodes canvas a2ui push --node <id> --jsonl "$(cat ./ui.jsonl)"

 # Take a screenshot
 openclaw nodes invoke --node <id> --command screen.snapshot --params '{"screenIndex":0,"format":"png"}'

 # Record a short screen clip (requires explicitly allowing screen.record on the gateway)
 openclaw nodes screen record --node <id> --duration 3000 --fps 10 --screen 0 --no-audio --out /tmp/openclaw-windows-screen-record-test.mp4 --json

 # List cameras
 openclaw nodes invoke --node <id> --command camera.list

 # Take a photo (NV12/MediaCapture fallback)
 openclaw nodes invoke --node <id> --command camera.snap --params '{"deviceId":"<device-id>","format":"jpeg","quality":80}'

 # Execute a command on the Windows node
 openclaw nodes invoke --node <id> --command system.run --params '{"command":"Get-Process | Select -First 5","shell":"powershell","timeoutMs":10000}'

 # View exec approval policy
 openclaw nodes invoke --node <id> --command system.execApprovals.get

 # Update exec approval policy (add custom rules)
 openclaw nodes invoke --node <id> --command system.execApprovals.set --params '{"rules":[{"pattern":"echo *","action":"allow"},{"pattern":"*","action":"deny"}],"defaultAction":"deny"}'

📷 Camera permission: Desktop builds rely on Windows Privacy settings. Packaged MSIX builds will show the system consent prompt.

🔒 Exec Policy: system.run is gated by an approval policy on the Windows node at %LOCALAPPDATA%\OpenClawTray\exec-policy.json (schema: { "defaultAction": "...", "rules": [...] }). This is separate from gateway-side ~/.openclaw/exec-approvals.json.

Rules are matched against the full command line. Known wrapper payloads such as cmd /c ..., powershell -Command ..., pwsh -EncodedCommand ..., and bash -c ... are also evaluated before execution. Dangerous environment overrides like PATH, PATHEXT, NODE_OPTIONS, GIT_SSH_COMMAND, LD_*, and DYLD_* are rejected.

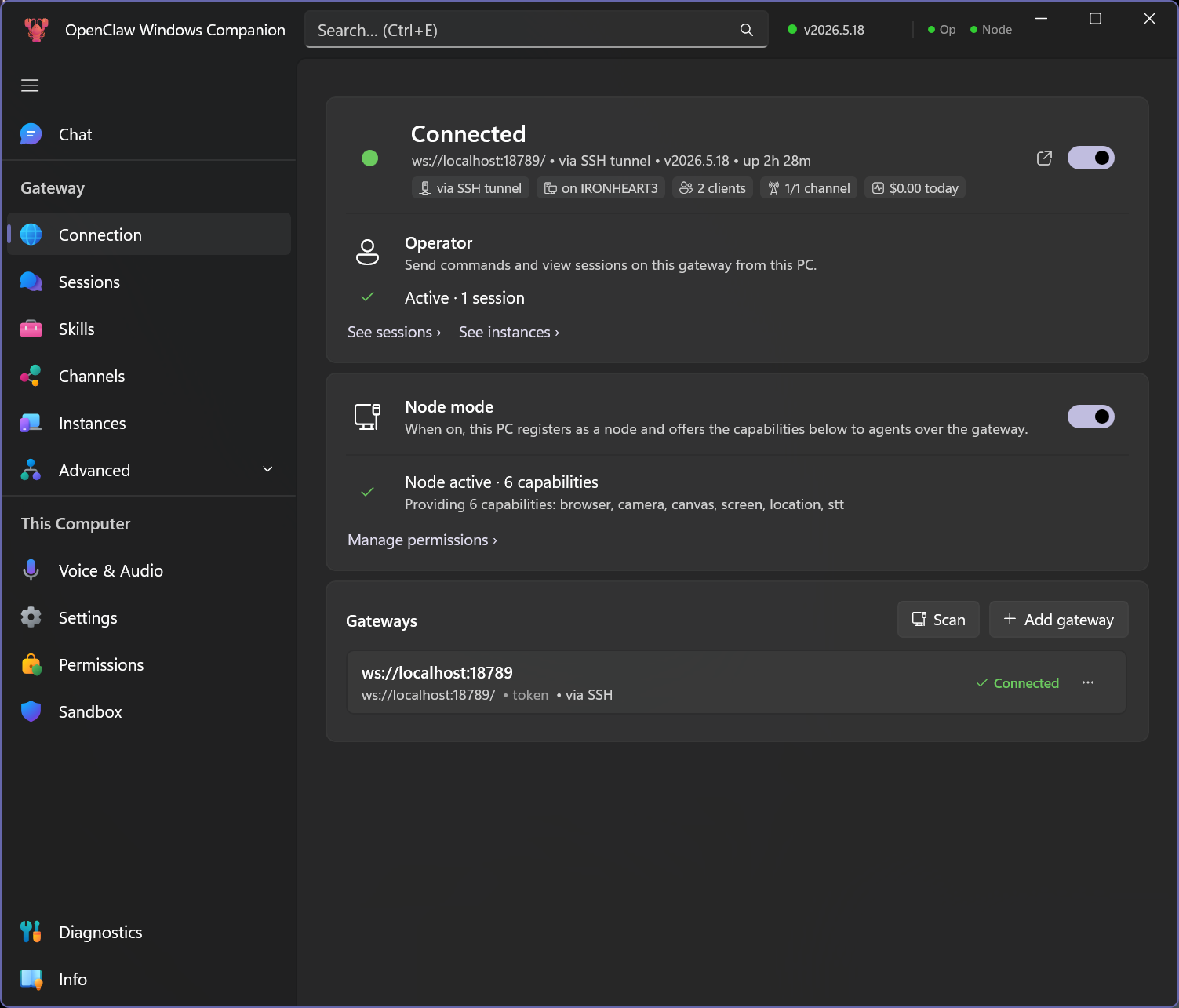

Command Center diagnostics

Open the status detail/Command Center from the tray menu or with openclaw://commandcenter. It shows:

channel health from gateway health events, including node-mode health received without a separate operator connection
active sessions, usage/cost data, node inventory, declared commands, and Mac parity notes
allowlist diagnostics that separate safe companion commands from privacy-sensitive opt-ins like screen.record, camera.snap, and camera.clip
copyable repair commands for safe allowlist fixes and pending pairing approval
recent activity and node invoke results through the Activity Stream, storing command names/status/duration only (not payloads, screenshots, recordings, or secrets)
```
openclaw nodes invoke --node <id> --command system.execApprovals.set --params '{"rules":[{"pattern":"powershell.exe","action":"allow"},{"pattern":"pwsh.exe","action":"allow"},{"pattern":"echo *","action":"allow"},{"pattern":"*","action":"deny"}],"defaultAction":"deny"}'
```
🔐 Web Chat secure context: Remote web chat requires https:// (or localhost). If using a self-signed cert, trust it in Windows (Trusted Root Certification Authorities) or use an SSH tunnel to localhost.

Node Status in Tray Menu

The tray menu shows node connection status:

🔌 Node Mode section appears when enabled
⏳ Waiting for approval... - Device needs approval on gateway
✅ Paired & Connected - Ready to receive commands
Click the device ID to copy it for the approval command

Deep Links

OpenClaw registers the openclaw:// URL scheme for automation and integration:

Link	Description
`openclaw://settings`	Open Settings dialog
`openclaw://setup`	Open Setup Wizard
`openclaw://chat`	Open Web Chat window
`openclaw://commandcenter`	Open Command Center diagnostics
`openclaw://activity`	Open Activity Stream
`openclaw://history`	Open Notification History
`openclaw://dashboard`	Open Dashboard in browser
`openclaw://dashboard/sessions`	Open specific dashboard page
`openclaw://dashboard/channels`	Open Channels dashboard page
`openclaw://dashboard/skills`	Open Skills dashboard page
`openclaw://dashboard/cron`	Open Cron dashboard page
`openclaw://healthcheck`	Run a manual health check
`openclaw://check-updates`	Run a manual update check
`openclaw://logs`	Open the current tray log file
`openclaw://log-folder`	Open the logs folder
`openclaw://config`	Open the config folder
`openclaw://diagnostics`	Open the diagnostics JSONL folder
`openclaw://support-context`	Copy redacted support context
`openclaw://debug-bundle`	Copy a combined debug bundle for support
`openclaw://browser-setup`	Copy browser.proxy/browser-control setup guidance
`openclaw://port-diagnostics`	Copy gateway/browser/tunnel port diagnostics with owner PID stop hints
`openclaw://capability-diagnostics`	Copy permissions, allowlist, and parity diagnostics
`openclaw://node-inventory`	Copy node capabilities, commands, and policy status
`openclaw://channel-summary`	Copy channel health and start/stop availability
`openclaw://activity-summary`	Copy recent tray activity for troubleshooting
`openclaw://extensibility-summary`	Copy channel, skills, and cron dashboard surface guidance
`openclaw://restart-ssh-tunnel`	Restart the tray-managed SSH tunnel when enabled
`openclaw://send?message=Hello`	Open Quick Send with pre-filled text
`openclaw://agent?message=Hello`	Send message directly to the connected gateway

Deep links work even when Molty is already running - they're forwarded via IPC.

📦 OpenClaw.CommandPalette

PowerToys Command Palette extension for quick OpenClaw access.

Commands

🦞 Open Dashboard - Launch the OpenClaw web dashboard
💬 Dashboard: Sessions - Open the sessions dashboard
📡 Dashboard: Channels - Open the channel configuration dashboard
🧩 Dashboard: Skills - Open the skills dashboard
⏱️ Dashboard: Cron - Open the scheduled jobs dashboard
💬 Web Chat - Open the embedded Web Chat window
📝 Quick Send - Open the Quick Send dialog to compose a message
🧭 Setup Wizard - Open pairing/setup
🧭 Command Center - Open diagnostics and support actions
🔄 Run Health Check - Refresh connection health
⬇️ Check for Updates - Run a manual GitHub Releases update check
⚡ Activity Stream - Open recent activity
📋 Notification History - Open notification history
⚙️ Settings - Open the OpenClaw Tray Settings dialog
📄 Open Log File / 📁 Logs / 🗂️ Config / 🧪 Diagnostics - Open support files and folders
📋 Copy Support Context - Copy redacted Command Center metadata
🧰 Copy Debug Bundle - Copy combined support, port, capability, node, channel, and activity diagnostics
🌐 Copy Browser Setup - Copy browser.proxy and node-host setup guidance
🔌 Copy Port Diagnostics - Copy gateway/browser/tunnel port owners and stop hints
🛡️ Copy Capability Diagnostics - Copy permission, allowlist, and parity diagnostics
🖥️ Copy Node Inventory - Copy node capabilities, commands, and policy status
📡 Copy Channel Summary - Copy channel health and start/stop availability
⚡ Copy Activity Summary - Copy recent tray activity
🧩 Copy Extensibility Summary - Copy channel, skills, and cron surface guidance
🔁 Restart SSH Tunnel - Restart the tray-managed SSH tunnel when enabled

Installation

Run the OpenClaw Tray installer and tick "Install PowerToys Command Palette extension", or
Register manually: Add-AppxPackage -Register "$env:LOCALAPPDATA\OpenClawTray\CommandPalette\AppxManifest.xml" -ForceApplicationShutdown
Open Command Palette (Win+Alt+Space) and type "OpenClaw" to see commands

See docs/POWERTOYS.md for detailed setup and troubleshooting.

📦 OpenClaw.Shared

Shared library containing:

OpenClawGatewayClient - WebSocket client for gateway protocol
IOpenClawLogger - Logging interface
Data models (SessionInfo, ChannelHealth, etc.)
Channel control (start/stop channels via gateway)

Development

Project Structure

openclaw-windows-node/
├── src/
│   ├── OpenClaw.Shared/           # Shared gateway library
│   ├── OpenClaw.Tray.WinUI/       # System tray app (WinUI 3)
│   └── OpenClaw.CommandPalette/   # PowerToys extension
├── tests/
│   ├── OpenClaw.Shared.Tests/     # Shared library tests
│   └── OpenClaw.Tray.Tests/       # Tray app helper tests
├── docs/
│   └── molty1.png                 # Screenshot
├── moltbot-windows-hub.slnx       # Solution file (historical name)
├── README.md
├── LICENSE
└── .gitignore

Configuration

Settings are stored in:

Settings: %APPDATA%\OpenClawTray\settings.json
Logs: %LOCALAPPDATA%\OpenClawTray\openclaw-tray.log

Default gateway: ws://localhost:18789

First Run

On first run without a token, Molty displays a welcome dialog that:

Explains what's needed to get started
Links to documentation for token setup
Opens Settings to configure the connection

License

MIT License - see LICENSE

Formerly known as Moltbot, formerly known as Clawdbot
