A Rust TUI client for NetEase Cloud Music, with an embedded fullscreen playback page.

Project Overview

CNMPlayer (Customized NetEase Music Player) is a NetEase Cloud Music client that runs in the terminal. A single process carries two UIs:

• the host UI — login, home recommendations, playlist / artist / search pages, a sliding sidebar and a five-row collapsed player bar;
• the fullscreen playback page — cover, lyrics, playlist overlay, a 10-band EQ and the visualizers. The fullscreen keybind (default Ctrl+F) opens it; inside, Ctrl+F or Esc returns to the host.

Playback belongs to the host: streaming with a local cache, queue memory, private roam, VIP-aware audio quality and the visualization modes that the other UI draws.

CNMPlayer is an unofficial client; music copyright belongs to the rights holders, and the cache / download features are for personal offline use only. Read DISCLAIMER.md before use.

Screenshots

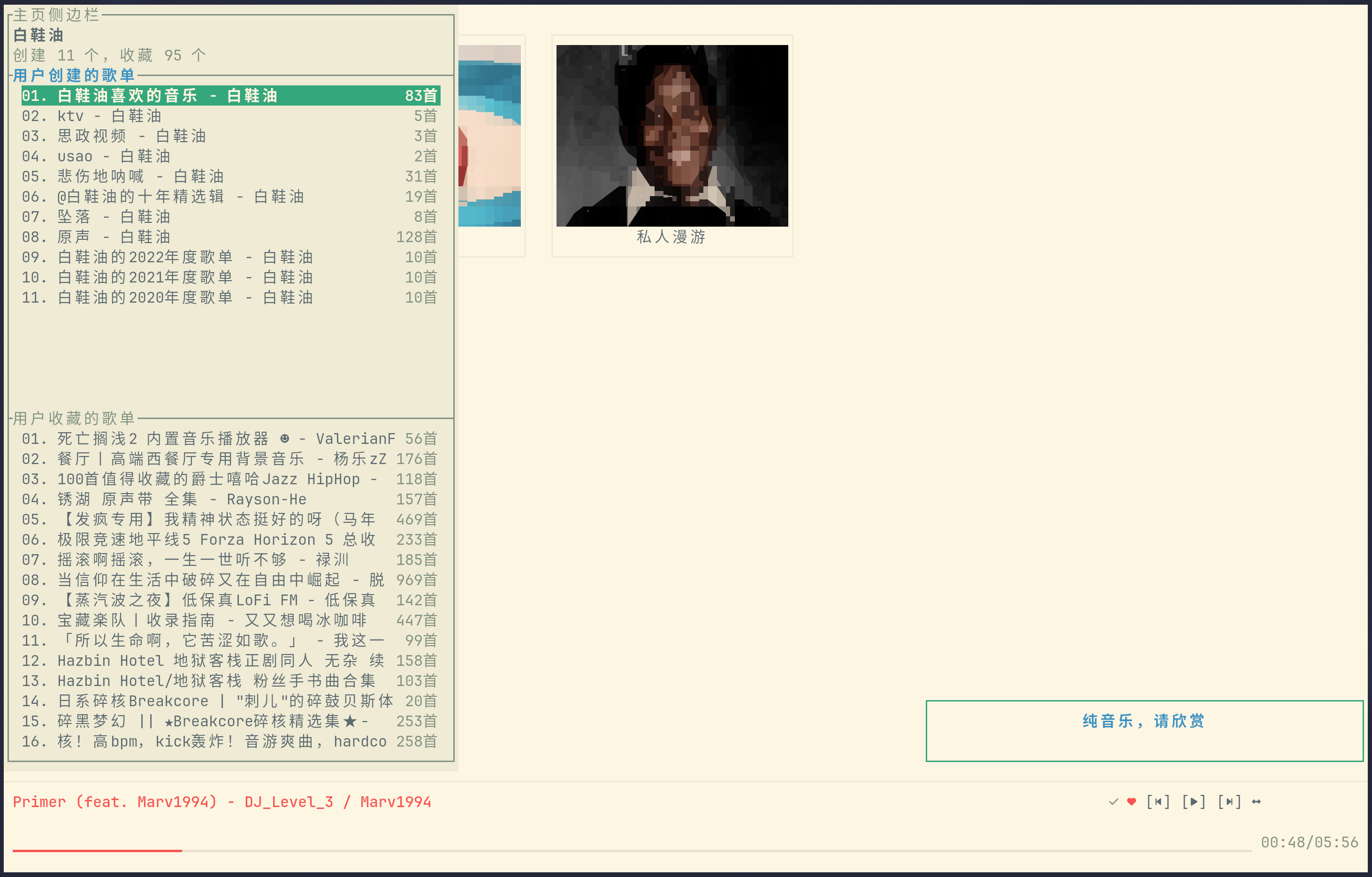

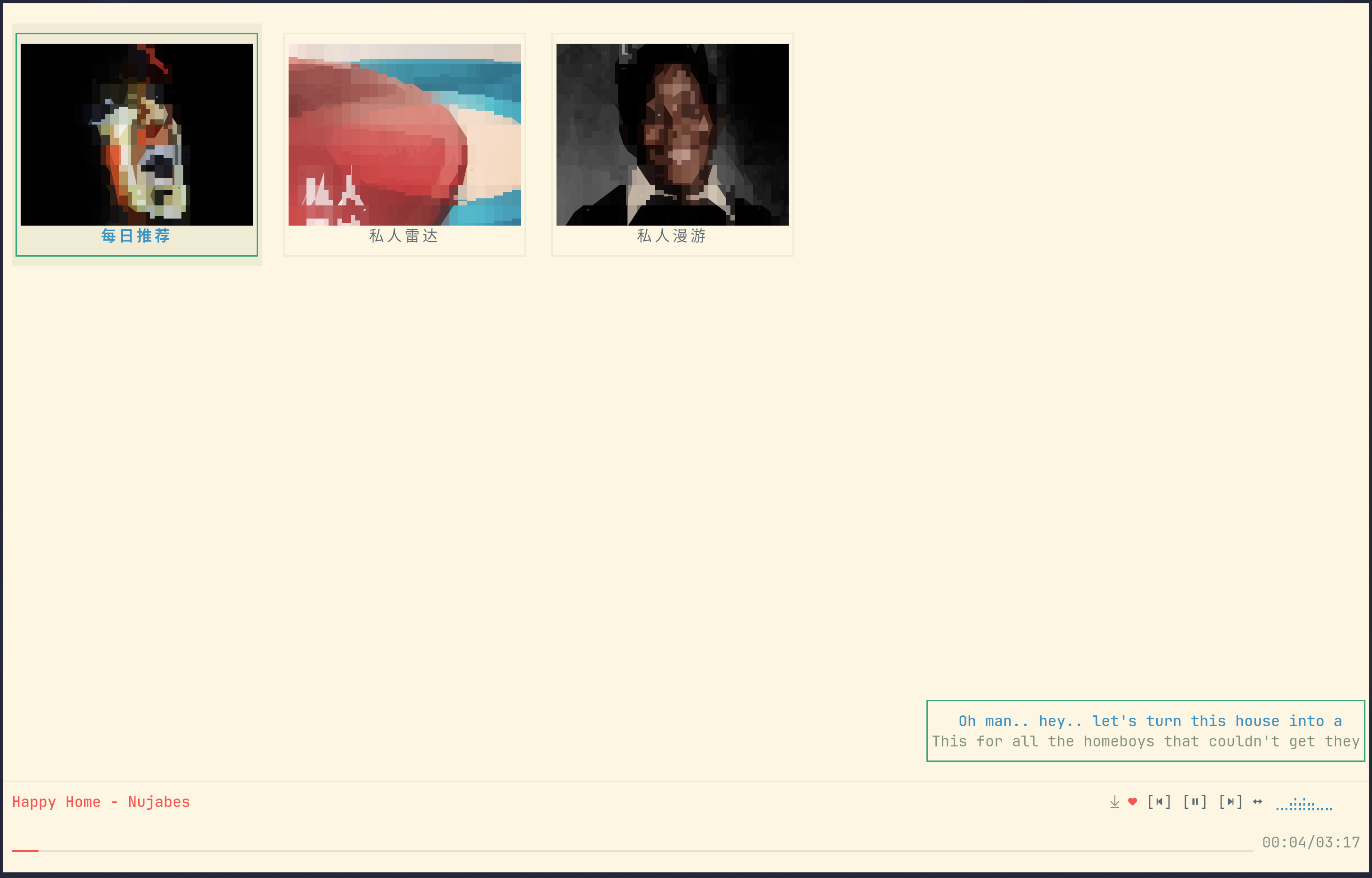

_{Host UI — home recommendations; sidebar with created / collected playlists}

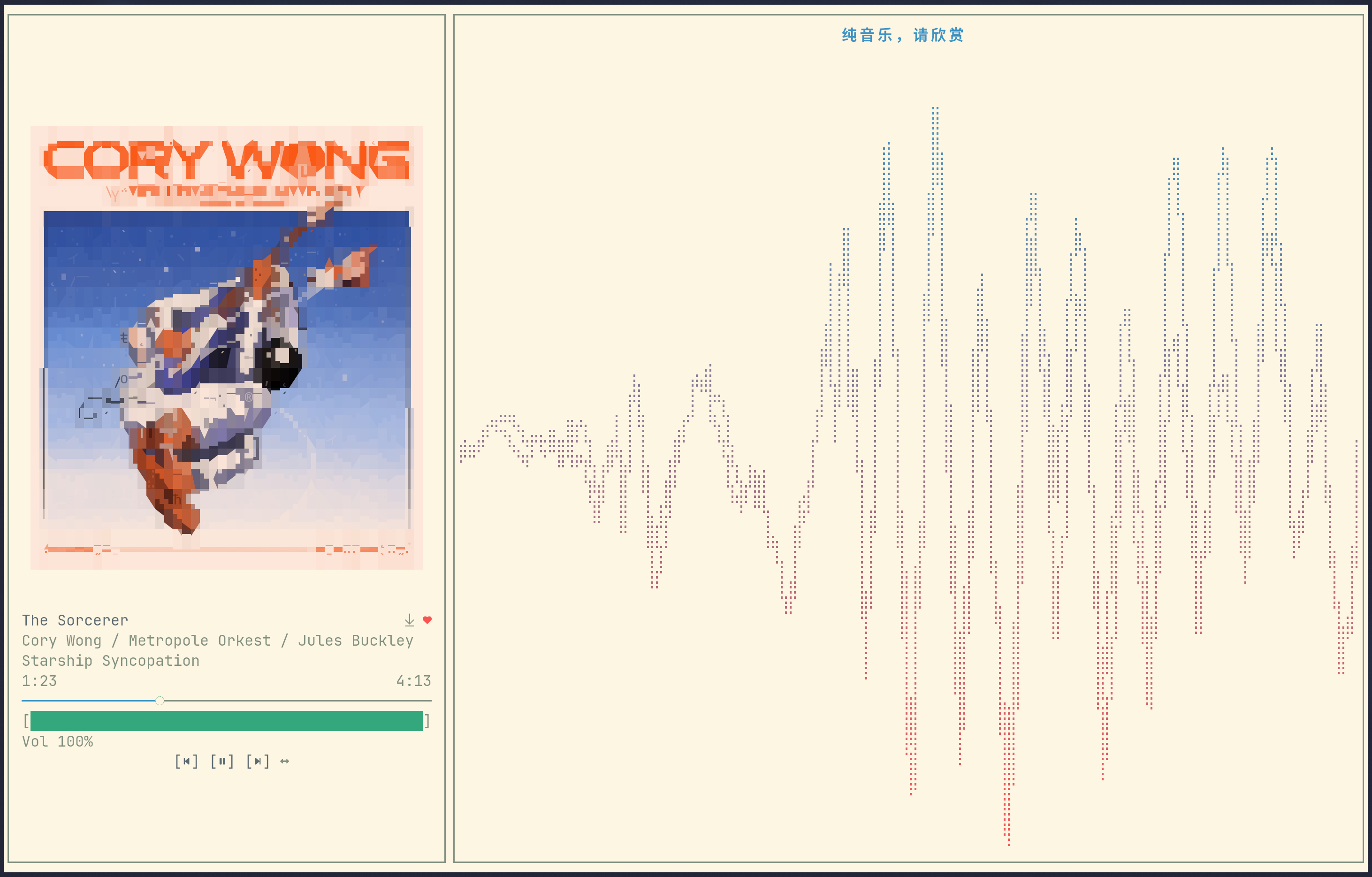

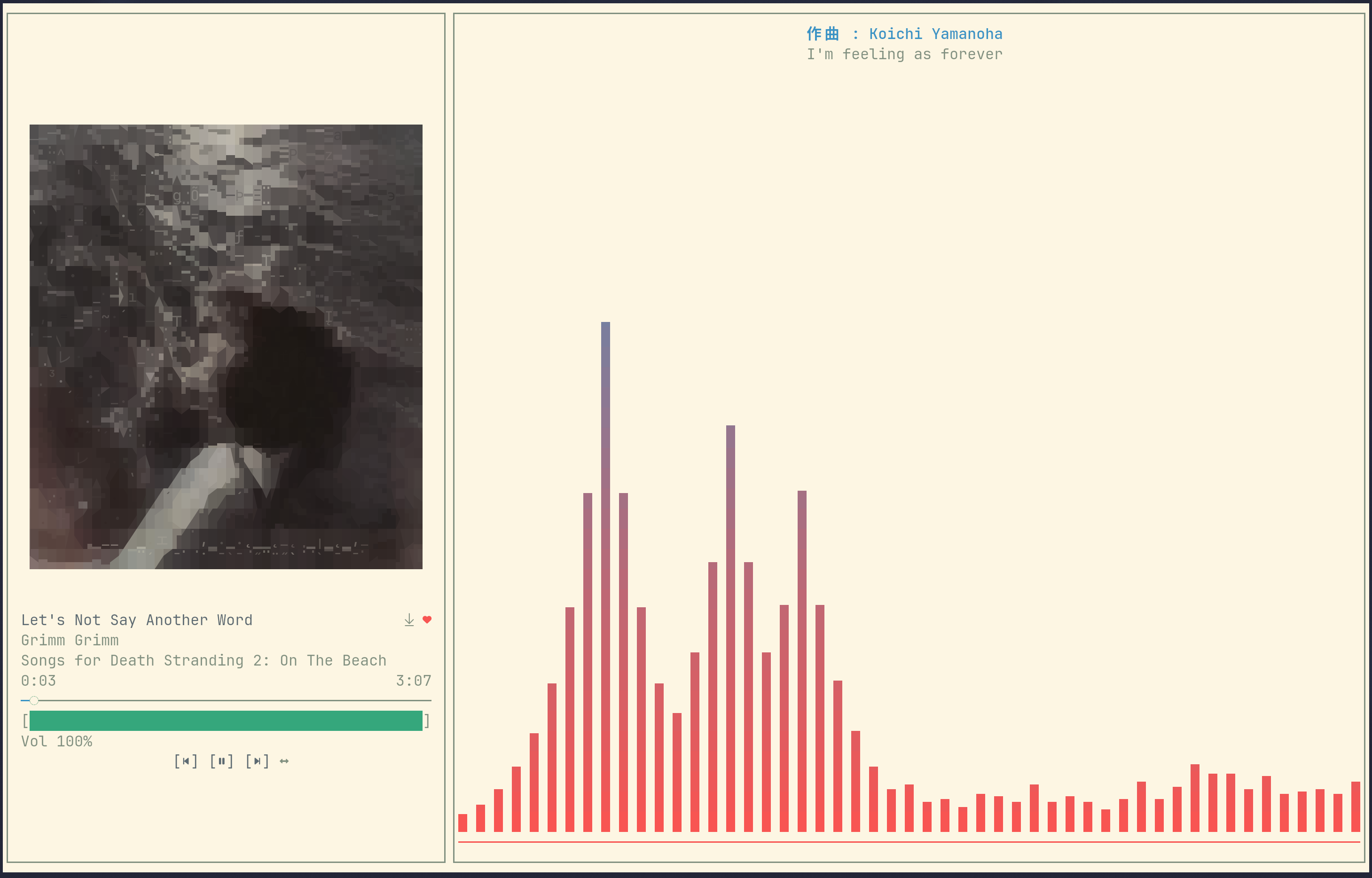

_{Fullscreen playback page — bars spectrum; oscilloscope waveform}

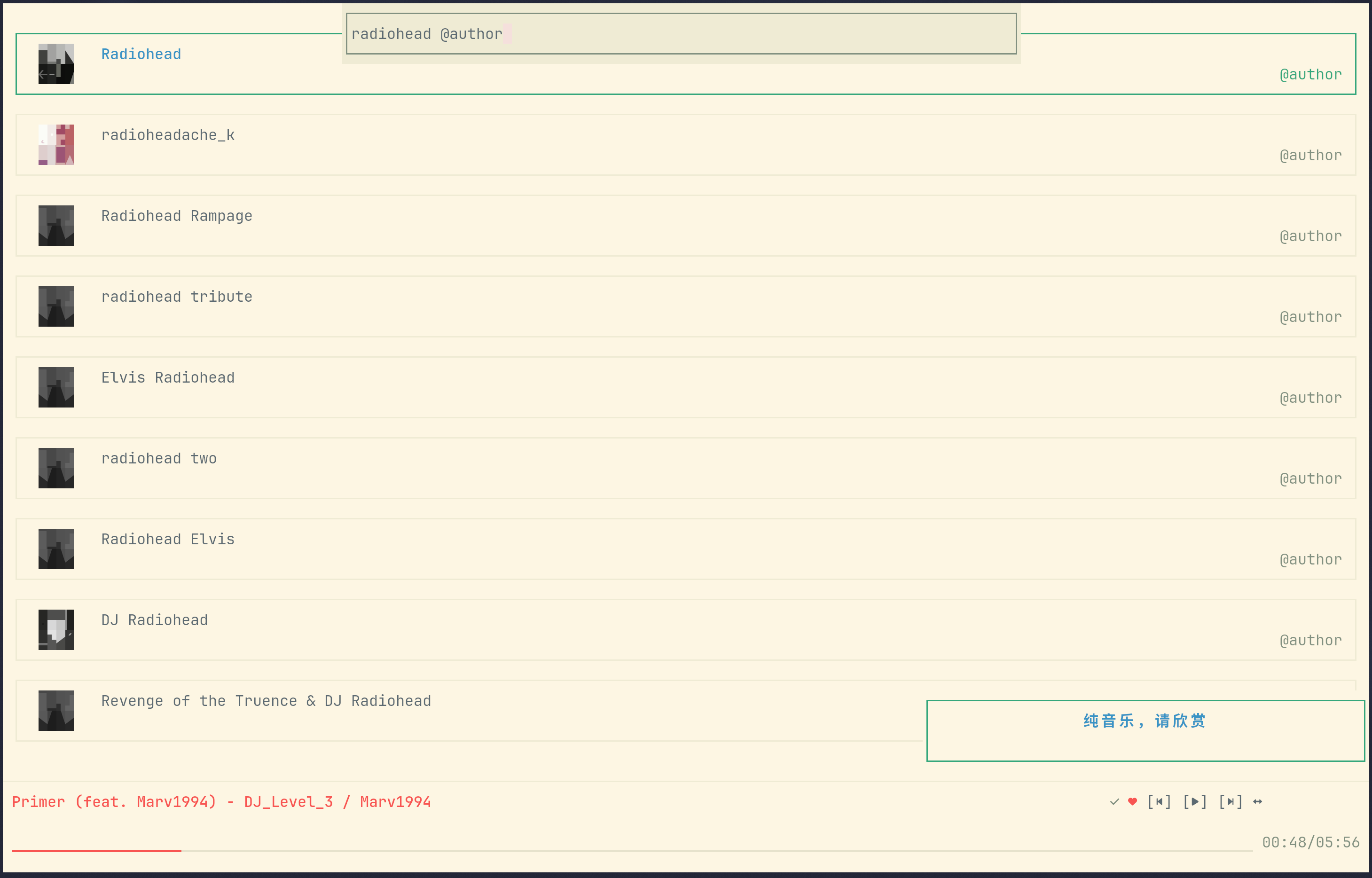

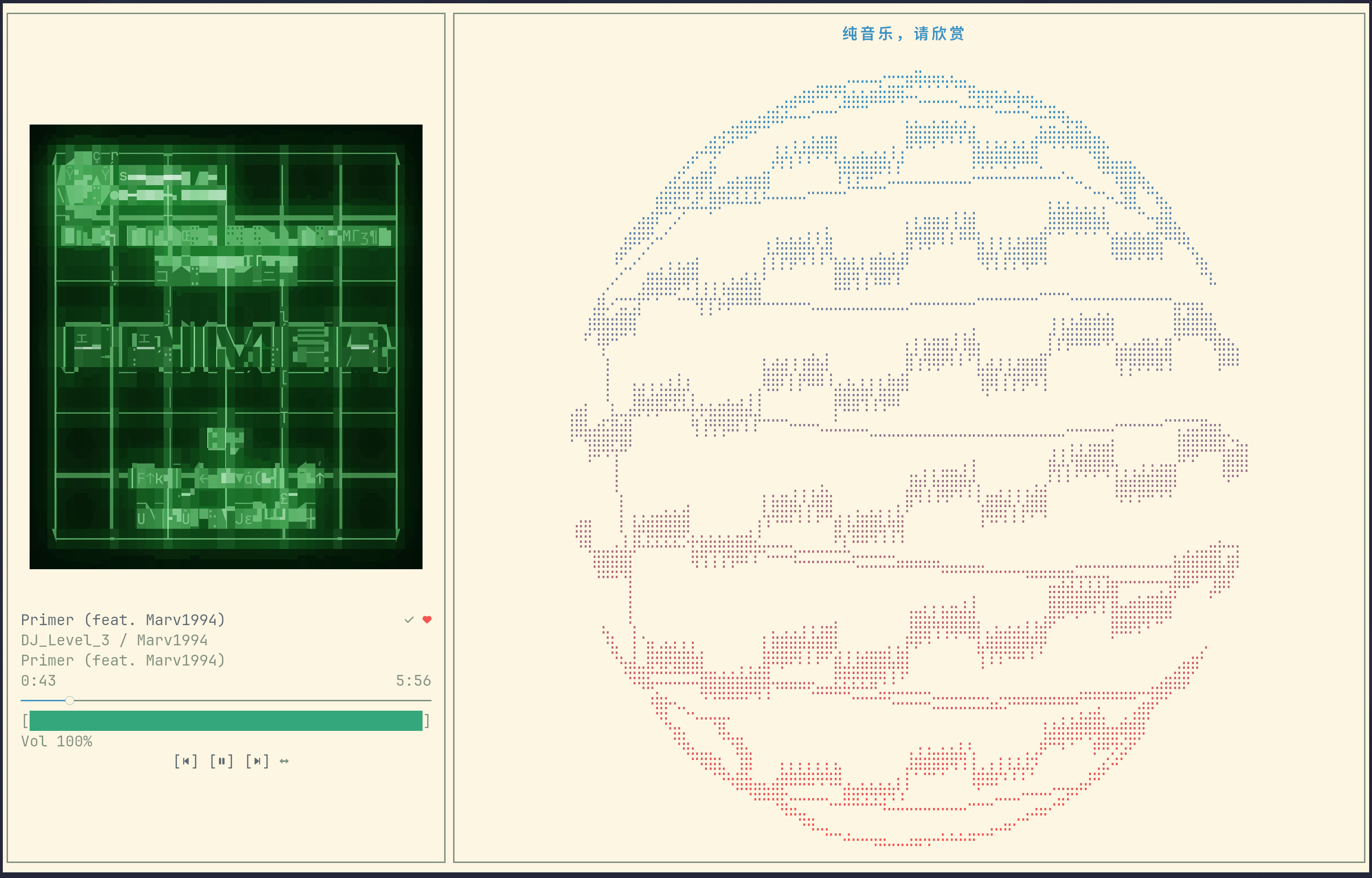

_{Fullscreen vector mode; search results for a suffix query}

Features

Account

• QR code (F1), username / email + password (F2) and phone + SMS code (F3) login
• The session is persisted to auth/session.toml and validated on the next start
• Logout from the settings modal (clears the login cookie, playback memory and private-roam data)

Browsing

• Home: a recommendation tile grid whose first three slots are always 每日推荐 (Daily Recommendations), 私人雷达 (Private Radar) and 私人漫游 (Private Roam); home_more_recommend expands the remaining recommendations
• Home sidebar (toggle keybind, default P): your created and collected playlists, 100 per fetch and appended when scrolling to the end; Ctrl+Up/Down switches section, Enter opens, Esc collapses
• Playlist page — also used for albums, there is no separate album page; a header (cover, title, author, description, track count) above a virtualized track list, 100 tracks per fetch. Browsing and playback share one source-bound cursor, so a page fetched by either is appended to both
• Artist page: avatar, name, hot-song / album / EP / single counts and a tile grid per section
• Search page: a keyword searches artists, playlists and songs at once, with a trailing suffix to narrow the type (see Search syntax)
• Private roam: keeps the last played track at the head; reaching the end of the list fetches more (three API calls merged and de-duplicated); the tile cover follows the currently playing roam song
• Navigation: Enter opens or plays, Esc / Left goes back, Tab / Down and Shift+Tab / Up move, PageUp / PageDown jump one page
• Mouse: the wheel scrolls, a single click focuses, a double click activates; the collapsed player bar's previous / play-pause / next, like and repeat-mode buttons and its progress bar are clickable

Search syntax

The search box (Ctrl+S) searches artists, playlists and songs at once; a trailing suffix narrows it to one type. @author and @artist are synonyms, and an empty keyword with @author lists the artists you follow.

Artists and playlists are capped at the 5 most relevant hits and never paginate; only the song section appends more when you scroll to the end.

Playback

• Streaming: the song is downloaded into the local audio cache while it plays, and only becomes the cached file after the complete response is written — a partial or cancelled transfer is never played from the cache. The buffered part of the progress bar shows download progress.
• Seeking from the progress bar or inside the fullscreen page, with a pulse animation while the position catches up
• Queue memory (playback_memory): queue, current index, repeat mode and the queue's origin list are saved on every track change and restored on startup; the restored track starts from the beginning
• VIP-aware audio quality (audio_quality): 9 levels from standard to jymaster; a non-VIP account is clamped to exhigh
• 10-band EQ, ±12 dB (eq_bands_db), edited from the fullscreen EQ modal and applied to the live stream
• Like / unlike from the fullscreen page and from the collapsed player bar
• Repeat modes: sequence → shuffle → loop all → loop one
• Playlist playback prefetches the next page when entering the last three loaded tracks, and waits for an unfinished page instead of stopping or wrapping early
• Linux media control (MPRIS, player name cnmplayer) with metadata and cover art

Downloads

• Songs are saved to cnmplayer/ inside the system music directory (download_path overrides it; falls back to ~/Music/cnmplayer/)
• Entry points: the download button on single-song rows in the host, the button left of the heart on the fullscreen title row, Ctrl+Alt+D (host) and Ctrl+D (fullscreen); pressing again cancels the download and removes the partial file
• One download runs at a time; extra requests queue up and run in order
• File name is Title - Artist - Album.<mp3|flac>, with tags written in: title, artists, album, track number, date, embedded cover and lyrics (Vorbis Comment for lossless, ID3v2 for mp3)
• Download quality and path live in the "Download Settings" page: an absolute path enables downloads; an empty value or the literal Null disables them (the download buttons disappear and the quality row greys out)

Visualization

• hidden (shown as "Off" in settings) — the fullscreen right-hand side is collapsed: neither the visualizer nor the lyrics are drawn, and the song info panel stretches across the terminal width
• lyrics (shown as "Lyrics") — lyrics only, no visualizer
• bars — an internal Rust port of Cava's spectrum algorithm, rendered with eight sub-cell height levels; it is the default and needs no external cava
• oscilloscope — a real-PCM waveform that smoothly settles to a flat line on pause, stop or audio interruption, and reopens when playback resumes
• vector — a Lissajous vectorscope: the left channel drives the horizontal axis and the right channel the vertical one (up is always positive), scaled so the track's loudest moment so far fills the panel. On pause or a sudden cut to silence the figure bursts apart into drifting dots that settle and twinkle until playback resumes
• The collapsed player bar draws a 10-cell braille mini spectrum (blank in lyrics and hidden), and the narrow small window draws a stereo VU meter fed by a 400 ms momentary LUFS meter (−60…0 LUFS)

Bars and the mini spectrum analyze CNMPlayer's own decoded playback PCM, tapped after the 10-band EQ and before the playback volume — not the microphone, the system output or other applications. The spectrum is a faithful Rust port of Cava's algorithm at commit 6d43df3b2c7882122585c02c064b20009842a6f8, and its FFT backend is pure Rust (realfft). See THIRD_PARTY_NOTICES.md for attribution and full license terms.

Small window mode

Enabled by default (small_window_display = false turns it off). It applies to the host's content pages, and takes over as soon as the terminal drops below the thresholds:

Entering the mode closes the sidebar and any open overlay. Settings, the search box and the sidebar cannot be opened while it is active, and only quit, previous, next, play-pause, repeat mode, like (collapsed), the small-window toggle key and the flat player bar's mouse targets (previous, play-pause, next, like, repeat mode, progress seek) still respond.

Interface

• Themes: loaded dynamically from themes/*.toml — 20 built-ins, frappe by default; drop in your own toml and it joins the cycle. Files that fail validation are skipped, and a broken selected theme falls back to the default
• UI language: zh / en
• 22 rebindable shortcuts with conflict detection; Ctrl+Alt+R restores the defaults
• Transparent background, album-cover border and hint lines
• Startup: a loading page (ASCII title plus progress bar) appears first, while login restore and recommendation fetches run in the background step by step; an unusable saved session hands over to the login page
• About modal with braille art, and a hidden easter egg inside it (the easter-egg cargo feature, compiled in by default and removable with --no-default-features)

Installation

Arch Linux (AUR)

# with paru
paru -S cnmplayer-bin

Prebuilt tarballs

Every release publishes CNMPlayer_vX.Y.Z_linux_amd64.tar.xz, CNMPlayer_vX.Y.Z_linux_aarch64.tar.xz and SHA256SUMS on the Releases page. Both tarballs are flat archives containing the cnmplayer binary, LICENSE and THIRD_PARTY_NOTICES.md (including the full MIT notices for Cava and the Rust FFT dependencies).

# Download SHA256SUMS next to the tarball; verify the downloaded architecture.
sha256sum --check --ignore-missing SHA256SUMS
tar -xJf CNMPlayer_vX.Y.Z_linux_amd64.tar.xz
./cnmplayer

Build from source

git clone https://github.com/professor-lee/CNMPlayer.git
cd CNMPlayer
cargo build --release
./target/release/cnmplayer

Build dependencies on Debian/Ubuntu (the same list is used by CI):

sudo apt update
sudo apt install -y build-essential cmake pkg-config \
  libasound2-dev libchafa-dev libpipewire-0.3-dev libssl-dev libglib2.0-dev libclang-dev

libchafa-dev must be chafa ≥ 1.8.0 (the image renderer probes it through pkg-config), and libclang-dev plus libpipewire-0.3-dev are needed because the PipeWire audio backend generates bindings at build time. libasound2-dev is a build-time requirement only: cpal compiles its ALSA backend unconditionally on Linux, while playback itself goes through PipeWire.

Requirements

• Linux with PipeWire for audio (the ALSA backend is deprecated), and the chafa shared library at runtime
• A Nerd Font is required for the playback and navigation icons; the application never guesses glyph availability from TERM

First Run and Asset Root

On first run the app creates an asset directory under your OS config directory; on Linux this is usually ~/.config/cnmplayer. If CNMPLAYER_ASSET_DIR is set, that directory becomes the asset root instead.

The root holds (files appear as you use the app):

• config/default.toml — application, playback, keybind and cache settings
• themes/*.toml — theme files (the key is the file's name field, falling back to the file name); any extra .toml dropped here becomes selectable
• auth/session.toml — the persisted login cookie
• playback/session.toml — the remembered queue (written while playback_memory is on)
• private_roam/session.toml — the private-roam list, its last played position and the cached cover

The cache root defaults to the OS cache directory (~/.cache/cnmplayer on Linux) and can be moved with cache.path. It holds:

• audio/<song_id>__<quality>.audio — finished downloads; a transfer in flight is a .part file and is removed on failure or cancellation (a hard kill can leave one behind)
• cover/ — cover images fetched for the now-playing track
• mpris_art/ — cover files exported for the MPRIS player
• Player.log and Player.stderr.log — application log and the native audio backends' stderr (both capped at 4 MB)

Configuration

The repository's config/default.toml is embedded at build time and is the single source of defaults: first-run configuration, Config::default() and missing-field completion (including nested cache settings). User values override the template, and missing fields are saved back on startup. Unparsable files, invalid enum values and zero ui_fps return an error without replacing the user file; out-of-range page_lyrics_pos_x / page_lyrics_pos_y are clamped.

Cleanup runs as an age pass followed by a size LRU pass, and only looks at files directly inside the directory.

Keyboard Shortcuts

Rebindable

Rebinding syntax: optional Ctrl / Alt / Shift, then a key name (Esc, Enter, Space, Tab, BackTab, arrows, Home, End, PageUp/PgUp, PageDown/PgDn, Insert, Delete, Backspace, Plus, F1–F12) or a single character. A binding that collides with another slot is rejected, and Ctrl+Alt+R inside the keybind modal restores every default.

The fullscreen-only slots are inert in the host: there they fall through to page navigation instead.

Fixed shortcuts

• Esc — close the current overlay, or go back from the current page
• Ctrl+C — quit from any state
• Ctrl+K — open the keybind list; press it again inside the list to close the whole modal on either UI, not return to settings. Esc retains its parent-navigation behavior.
• Ctrl+Up / Ctrl+Down — switch the sidebar playlist section (Created / Collected) while the sidebar is open
• Ctrl+Alt+R — restore the default keybinds (inside the keybind modal)
• F1 / F2 / F3 — login method (QR / account / phone)

Per page

Login page:

• F1 refresh the QR code, F2 account login, F3 phone login
• Tab / Down next field, Shift+Tab / Up previous field, Enter confirm or submit
• Q quits while no username / password field is focused

Search box:

• Enter runs the search, Esc / Ctrl+S closes it
• Home / End / Left / Right / Backspace / Delete edit the query; clicking positions the caret

Search, playlist and artist pages:

• Enter opens or plays the focused item, Esc or Left goes back
• Tab / Down next item, Shift+Tab / Up previous item
• PageUp / PageDown move a whole page (search and playlist pages)

Settings modal:

• Up / Down / Tab / Shift+Tab move, Left / Right / Enter change a value, Esc steps back
• Mouse: the wheel moves the selection, a single click focuses a row and a double click activates it — except in the lyrics subpage, where a single click flips the switch
• Keybind modal: Enter starts rebinding, Esc cancels it while waiting for input; Ctrl+K closes the whole modal and cancels any pending rebinding without changing the binding.

Fullscreen page:

• The host ignores the entry keybind while the terminal is narrower than 50 columns
• P opens the playlist overlay, Up / Down select, Enter plays, Esc closes it
• T opens the settings modal, Ctrl+K the keybind list, About is reachable from the settings modal; these modals open and close immediately, including while playback is paused.
• E opens the EQ modal; arrows move and adjust a band, Alt+R resets it, Esc / E closes it
• Up / Down adjust the volume, Left / Right change track, Space plays or pauses, M cycles the repeat mode, L likes the song
• Ctrl+F or Esc returns to the host; the mouse clicks the control buttons, the progress bar, the volume bar (click, or press and drag), the like glyph and the playlist rows; clicking an artist name (each name of a multi-artist line is its own target) or the album name leaves the fullscreen page for that artist's or album's page in the host; an open overlay takes the wheel for row focus, and its rows focus on a single click and activate on a double click (the EQ modal sets a band on click)
• If small_window_display is on and the terminal drops below 50 columns or 12 rows, the fullscreen page returns to the host by itself
• Entering and leaving fullscreen slides the player layout up from the bottom like a drawer (and back down on exit); mouse controls are active as soon as the entry transition finishes

Notes

• There are no command line flags. The environment variables are CNMPLAYER_ASSET_DIR (asset root) and COLORTERM / TERM (color capability detection).
• Prebuilt artifacts and AUR packages are produced for Linux amd64 and aarch64 only. MPRIS is Linux-only as well.
• API responses and cover downloads have a 30-second deadline covering headers and the complete body; slow audio bodies stay cooperatively cancellable instead of imposing a total song-download deadline.
• Cover art never falls back to ASCII art: at most a transient halfblock preview is shown while loading, and missing or failed artwork stays blank.

Tech Stack

• Rust 2024
• TUI: ratatui + crossterm
• Async and networking: compio + cyper
• NetEase API client: ncm-api (vendored from ncm-api-rs into ncm-api-rs/ as a path dependency)
• Playback: rodio + symphonia (mp3 / flac) over PipeWire
• Metadata, artwork and download tags: image + qrcode + lofty
• Image rendering: ratatui-image + chafa
• Visualization: internal Cava Rust spectrum port (realfft) fed by a shared playback PCM tap
• Linux media control: mpris-server
• Fullscreen playback: embedded src/tmplayer/ UI using host playback and shared configuration

Development

cargo run                              # development build
cargo build --release                  # release build
cargo test --workspace --all-targets   # root and vendored crate tests
cargo fmt --all -- --check
cargo clippy --all-targets --all-features -- -D warnings

CI (ci.yml) runs check and test for the default and --no-default-features builds on Rust 1.95 and stable, then fmt and clippy gates for the host and the vendored crate, plus the vendored test suite. Release (release.yml) runs the root and vendored test gates before publishing, publishes SHA256SUMS alongside the x86_64 and aarch64 tarballs, and maintains the AUR packages.

Related Projects

• ncm-api-rs: the NetEase Cloud Music API client vendored in ncm-api-rs/

Disclaimer

The full disclaimer — unofficial client, music copyright, personal-use-only cache and downloads, account risk and liability — is in DISCLAIMER.md.

License

CNMPlayer is licensed under AGPL-3.0-only.

Third-party attributions and license notices for vendored code, adapted algorithms and the FFT dependencies are documented in THIRD_PARTY_NOTICES.md, which is also included in the prebuilt release archives.

See CITATION.cff for the standard citation metadata and upstream references.
