CLI Proxy API Management Center

中文文档

A single-file Web UI for CLI Proxy API (CPA) plus an optional Usage Service for persistent usage analytics.

Since v6.10.0, CPA no longer includes built-in usage statistics. This project now supports usage analytics through a long-running Usage Service that consumes the CPA usage queue, persists request events to SQLite, and exposes panel-compatible usage APIs.

• CPA Main project: https://github.com/router-for-me/CLIProxyAPI
• Recommended CPA version: >= v6.10.8

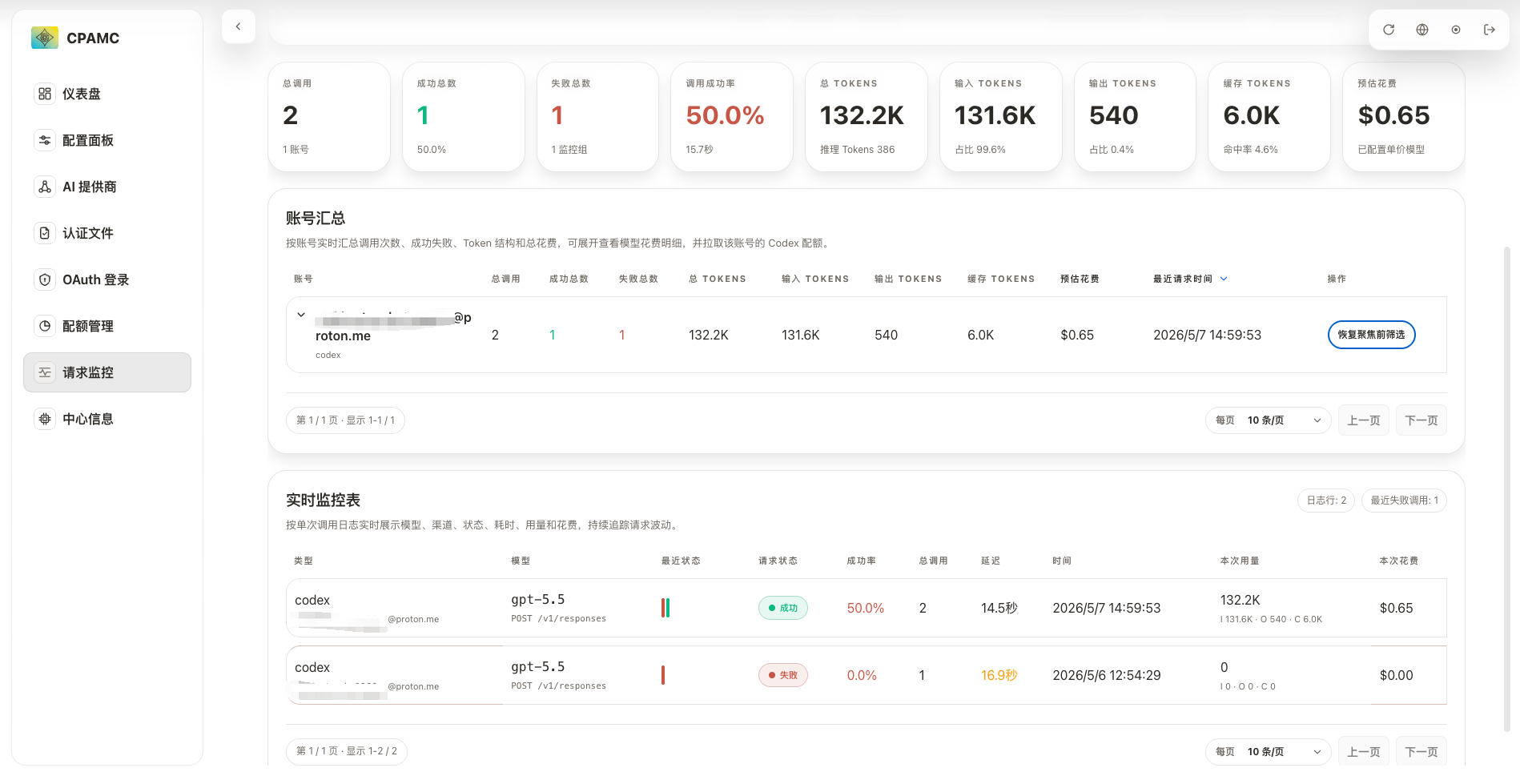

Panel Preview

What This Provides

• A single-file React management panel for CPA Management API (/v0/management)
• A Dockerized Usage Service for SQLite-backed usage persistence
• Native amd64 and arm64 packages for Windows, macOS, and Linux with the panel embedded
• Two deployment modes:
  • Full Docker mode: open the built-in panel from Usage Service and only enter the CPA URL + Management Key
  • CPA panel mode: keep using CPA's /management.html, then configure a separately deployed Usage Service inside the panel
• Runtime monitoring, account/model/channel breakdowns, model pricing, estimated token cost, imports/exports, auth-file operations, quota views, logs, config editing, and system utilities

Choose a Deployment Mode

Mode	Entry URL	What the user configures	Best for
Full Docker mode	http://<host>:18317/management.html	CPA URL + Management Key on login	New deployments, one entry point, least browser/CORS complexity
CPA panel mode	http://<cpa-host>:8317/management.html	Usage Service URL under Management Center Info -> External Usage Service	Existing CPA automatic panel loading
Frontend only	Vite dev server or dist/index.html	CPA URL, optionally Usage Service URL	Development

Full Docker mode does not bundle CPA itself. CPA still runs as the upstream service; the Docker image provides the Usage Service plus an embedded copy of this management panel.

CPA Prerequisites

Request statistics require the CPA usage queue:

• CPA Management must be enabled because the usage queue uses the same availability and Management Key as /v0/management.
• Enable usage publishing in CPA with usage-statistics-enabled: true, or through PUT /usage-statistics-enabled with { "value": true }.
• CPA v6.10.8+ is preferred because it exposes the HTTP usage queue endpoint /v0/management/usage-queue, which can pass through regular HTTP reverse proxies.
• Older CPA versions use the RESP queue protocol. Usage Service falls back to RESP in auto mode when the HTTP queue endpoint is unavailable. RESP listens on the CPA API port, usually 8317, and cannot pass through a regular HTTP reverse proxy.
• CPA keeps queue items in memory for redis-usage-queue-retention-seconds, default 60 seconds and maximum 3600 seconds. Keep Usage Service running continuously.
• Exactly one Usage Service should consume the same CPA usage queue.

Architecture

Full Docker Mode

Browser
  -> Usage Service :18317
      -> built-in management.html
      -> /v0/management/usage and /v0/management/model-prices from SQLite
      -> other /v0/management/* proxied to CPA
      -> HTTP/RESP consumer -> CPA API port
      -> SQLite /data/usage.sqlite

The login page detects that it is hosted by Usage Service. You enter the CPA URL and Management Key. Usage Service validates the CPA Management API, stores the setup in SQLite, starts the collector with the configured mode (auto by default: HTTP queue first, RESP fallback), and serves the panel from the same origin.

CPA Panel Mode

Browser
  -> CPA /management.html
      -> normal CPA Management API calls stay on CPA
      -> usage calls go to configured Usage Service URL

Usage Service
  -> HTTP/RESP consumer -> CPA API port
  -> SQLite /data/usage.sqlite

Use this when CPA still auto-downloads and serves the panel. Deploy Usage Service separately, then open Management Center Info -> External Usage Service, enable it, enter the Usage Service URL, and save.

Quick Start: Full Docker Mode

Docker Hub Image

docker run -d \
  --name cpa-manager \
  --restart unless-stopped \
  -p 18317:18317 \
  -v cpa-manager-data:/data \
  seakee/cpa-manager:latest

Open:

http://<host>:18317/management.html

Enter:

• CPA URL:
  • Docker Desktop host CPA: http://host.docker.internal:8317
  • Same compose network: http://cli-proxy-api:8317
  • Remote CPA: https://your-cpa.example.com
• Management Key

The published image supports linux/amd64 and linux/arm64. If your image is published under another Docker Hub namespace, replace seakee/cpa-manager:latest.

Native Packages

GitHub Releases also provide native packages with the panel embedded:

• cpa-manager_<version>_linux_amd64.tar.gz
• cpa-manager_<version>_linux_arm64.tar.gz
• cpa-manager_<version>_darwin_amd64.tar.gz
• cpa-manager_<version>_darwin_arm64.tar.gz
• cpa-manager_<version>_windows_amd64.zip
• cpa-manager_<version>_windows_arm64.zip

macOS/Linux:

tar -xzf cpa-manager_vX.Y.Z_linux_amd64.tar.gz
cd cpa-manager_vX.Y.Z_linux_amd64
./cpa-manager

The tar archives preserve execute permissions, so no extra chmod +x is normally required after extraction. If macOS blocks the unsigned binary, run xattr -dr com.apple.quarantine . in the extracted directory and start it again.

Windows PowerShell:

Expand-Archive .\cpa-manager_vX.Y.Z_windows_amd64.zip -DestinationPath .
cd .\cpa-manager_vX.Y.Z_windows_amd64
.\cpa-manager.exe

You can double-click cpa-manager.exe on Windows, but PowerShell is recommended because it keeps logs and startup errors visible.

Then open:

http://<host>:18317/management.html

Native packages do not include CPA itself. Run CPA separately, then enter the CPA URL and Management Key on the login page. Set USAGE_DATA_DIR or USAGE_DB_PATH only when you want to override the default data location.

On first start, if USAGE_DATA_DIR and USAGE_DB_PATH are not set, the native package creates config.json next to the binary and writes SQLite data to data/usage.sqlite in the same directory. The extracted package directory therefore contains both the program and its user data.

Docker Compose

services:
  cpa-manager:
    image: seakee/cpa-manager:latest
    restart: unless-stopped
    ports:
      - "18317:18317"
    volumes:
      - cpa-manager-data:/data

volumes:
  cpa-manager-data:

Start:

docker compose up -d

Linux Host CPA

If CPA runs directly on a Linux host and Usage Service runs in Docker, add a host gateway:

docker run -d \
  --name cpa-manager \
  --restart unless-stopped \
  --add-host=host.docker.internal:host-gateway \
  -p 18317:18317 \
  -v cpa-manager-data:/data \
  seakee/cpa-manager:latest

Then enter http://host.docker.internal:8317 as the CPA URL.

Quick Start: CPA Panel Mode

1. Start CPA as usual and open:

   http://<cpa-host>:8317/management.html

2. Deploy Usage Service:

   docker run -d \
     --name cpa-manager \
     --restart unless-stopped \
     -p 18317:18317 \
     -v cpa-manager-data:/data \
     seakee/cpa-manager:latest

3. In the CPA panel, go to:

   Management Center Info -> External Usage Service

4. Enable it and enter:

   http://<usage-service-host>:18317

5. Click Save and connect.

The panel sends the current CPA URL and Management Key to Usage Service. After that, monitoring reads usage data from Usage Service while other management calls continue to use CPA.

Build Locally

docker compose -f docker-compose.usage.yml up --build

This builds the React panel and embeds it into the Go Usage Service binary.

Usage Service Configuration

Most users can configure CPA URL and Management Key from the panel. Environment variables are useful for automated deployments.

Variable	Default	Description
CPA_MANAGER_CONFIG	empty	Optional config file path. When empty, native packages use config.json next to the binary
HTTP_ADDR	0.0.0.0:18317	Usage Service HTTP listen address
USAGE_DB_PATH	Docker: /data/usage.sqlite; native: ./data/usage.sqlite	SQLite database path
USAGE_DATA_DIR	Docker: /data; native: ./data	Base data directory when USAGE_DB_PATH is not overridden
CPA_UPSTREAM_URL	empty	Optional CPA base URL for unattended startup
CPA_MANAGEMENT_KEY	empty	Optional CPA Management Key for unattended startup
CPA_MANAGEMENT_KEY_FILE	/run/secrets/cpa_management_key	Optional file containing the Management Key
USAGE_COLLECTOR_MODE	auto	Collection mode: auto prefers the HTTP usage queue and falls back to RESP for older CPA; http forces HTTP; resp forces RESP
USAGE_RESP_QUEUE	usage	RESP key argument; CPA currently ignores it, leave the default unless upstream changes
USAGE_RESP_POP_SIDE	right	right uses RPOP; left uses LPOP
USAGE_BATCH_SIZE	100	Maximum queue records per pop
USAGE_POLL_INTERVAL_MS	500	Idle polling interval
USAGE_QUERY_LIMIT	50000	Maximum recent events returned through compatible /usage
USAGE_CORS_ORIGINS	*	Allowed browser origins for CPA panel mode
USAGE_RESP_TLS_SKIP_VERIFY	false	Skip TLS verification for RESP connection
PANEL_PATH	empty	Serve a custom management.html instead of the embedded one

Configuration precedence is: environment variables > config.json > program defaults. Relative paths in the config file are resolved from the config file directory. The generated default config is:

{
  "httpAddr": "0.0.0.0:18317",
  "dataDir": "./data"
}

If CPA_UPSTREAM_URL and CPA_MANAGEMENT_KEY are set, collection starts automatically on boot. Otherwise, use the web panel setup flow.

Data and Security Notes

• SQLite data is stored under /data; mount it to persistent storage.
• In full Docker mode, CPA URL and Management Key are stored in the SQLite settings table so collection can resume after restart.
• Protect the /data volume. It contains usage metadata and the saved Management Key.
• Usage Service redacts key-like fields before storing raw JSON payload snapshots, but request metadata may still expose models, endpoints, account labels, and token usage.
• RESP queue consumption is pop-based. Do not run multiple Usage Service consumers against the same CPA instance.
• If Usage Service is down longer than CPA's queue retention window, that period's usage cannot be recovered without CPA-side persistence.

Runtime Endpoints

Endpoint	Purpose
GET /health	Basic health check
GET /status	Collector, SQLite, event count, and error status
GET /usage-service/info	Allows the frontend to detect full Docker mode
POST /setup	Save CPA URL + Management Key and start collection
GET /v0/management/usage	Compatible usage payload for the panel
GET /v0/management/usage/export	Export usage events as JSONL
POST /v0/management/usage/import	Import JSONL usage events or legacy JSON snapshots
GET /v0/management/model-prices	Read SQLite-backed model pricing
PUT /v0/management/model-prices	Replace saved model pricing
POST /v0/management/model-prices/sync	Sync model prices from LiteLLM pricing metadata
GET /models, GET /v1/models	Proxy model-list requests to CPA after setup
/v0/management/*	Proxied to CPA except usage endpoints

After setup, /status, usage, model-pricing, and /v0/management/* proxy endpoints require the same Management Key as a Bearer token.

Usage import accepts two file families: JSONL/NDJSON event files exported by Usage Service, and legacy JSON snapshots produced by older CPA /usage/export. Legacy JSON can be converted only when usage.apis.*.models.*.details[] request details are present. Files that contain only aggregate totals are rejected because request-level monitoring data cannot be reconstructed. Legacy import is a migration/recovery path, not a perfect continuation of newly collected Usage Service data: old files may miss metadata such as api_key_hash, channel, request ID, method/path, latency, cache tokens, or failure reason, so account matching, API Key level analysis, and detail accuracy may be lower. Importing legacy files affects totals, trend charts, and account/key breakdowns; use a test or backup database first when accuracy matters.

Feature Overview

• Dashboard: connection state, backend version, quick health summary
• Configuration: visual and source editing for CPA configuration
• AI Providers: Gemini, Codex, Claude, Vertex, OpenAI-compatible providers, and Ampcode
• Auth Files: upload, download, delete, status, OAuth exclusions, model aliases
• Quota: quota views for supported providers

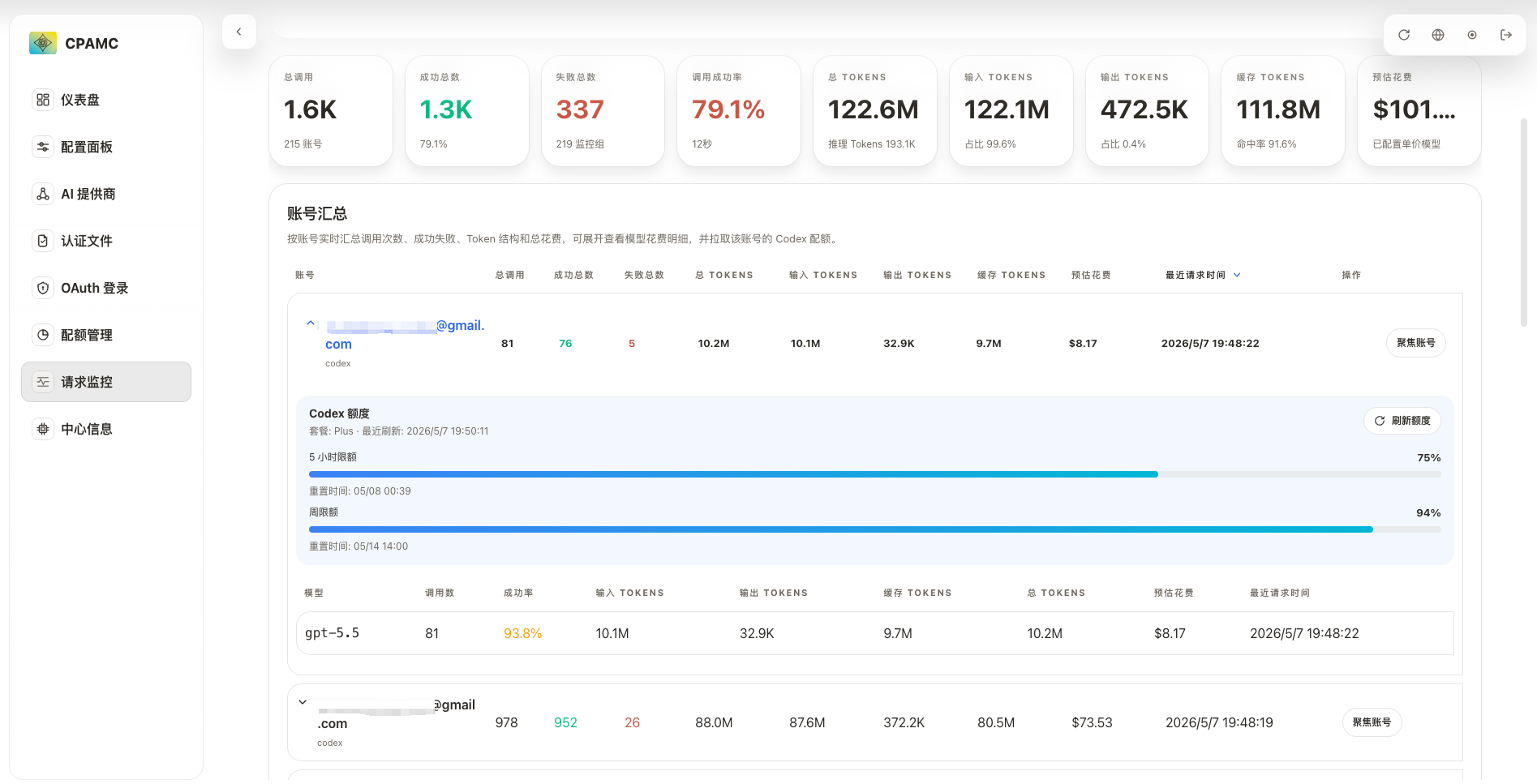

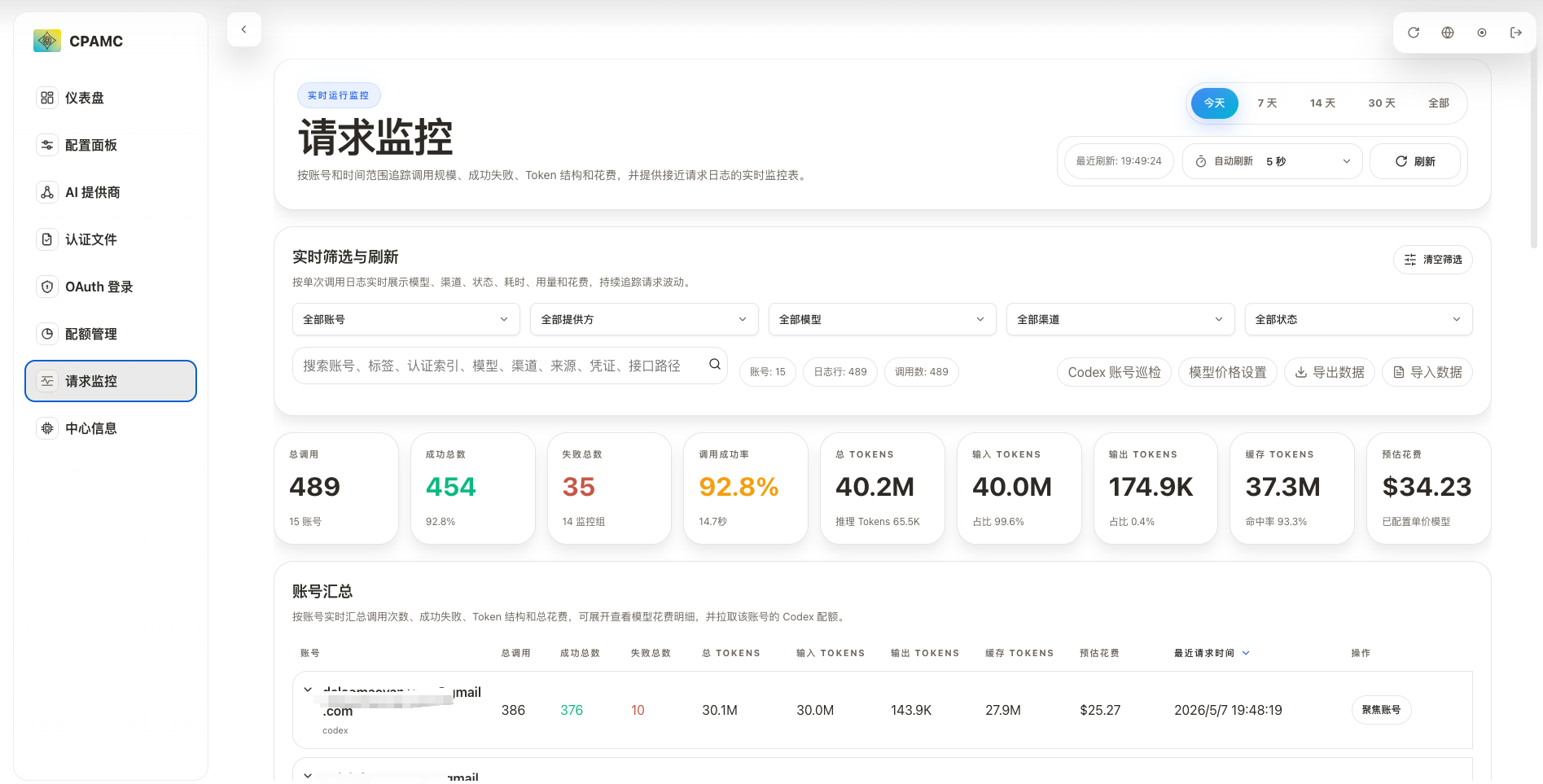

• Request Monitoring: persisted usage KPIs, model/channel/account breakdowns, model pricing, estimated token cost, failure analysis, realtime tables

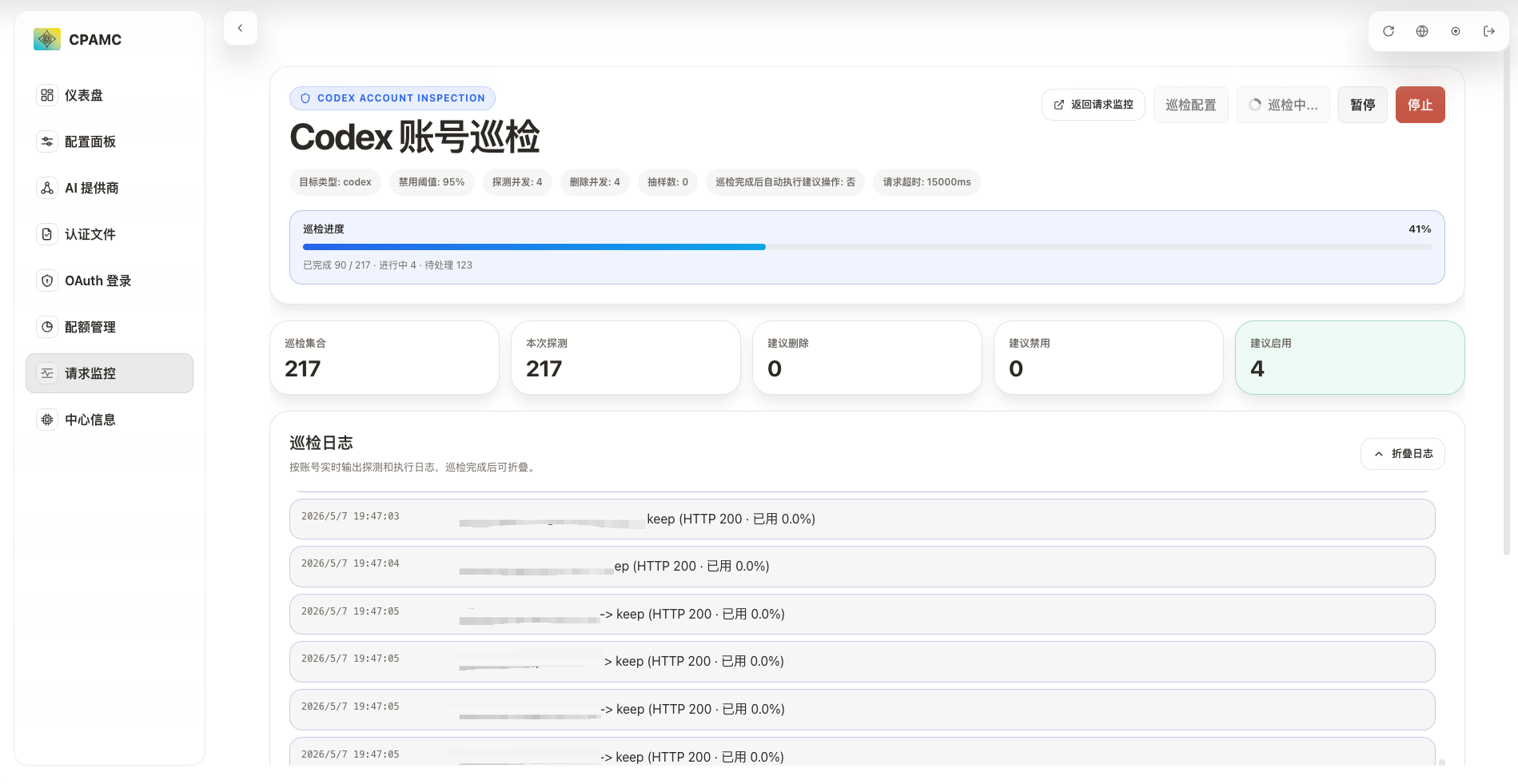

• Codex Account Inspection: batch probing and cleanup suggestions for Codex auth pools
• Logs: incremental file log reading and filtering
• Management Center Info: model list, version checks, local state tools, external Usage Service configuration

Development

Frontend:

npm install
npm run dev
npm run type-check
npm run lint
npm run build

Usage Service:

cd usage-service
go test ./...
go run ./cmd/cpa-manager

Build and Release

• Vite builds a single-file dist/index.html.
• Tagging vX.Y.Z triggers .github/workflows/release.yml.
• The release workflow uploads dist/management.html, native packages, and checksums.txt to GitHub Releases.
• Native packages are published for linux, darwin, and windows on both amd64 and arm64, with the management panel embedded.
• The same workflow builds Dockerfile.usage-service and pushes seakee/cpa-manager.
• The Docker image is published for linux/amd64 and linux/arm64.
• The workflow syncs README.md to the Docker Hub overview.
• Required GitHub secrets:
  • DOCKERHUB_USERNAME
  • DOCKERHUB_TOKEN

Troubleshooting

• Cannot connect in full Docker mode: verify the CPA URL from inside the Usage Service container. For host CPA on Linux, use --add-host=host.docker.internal:host-gateway.
• Monitoring is empty: enable CPA usage publishing, verify Usage Service /status, and confirm only one consumer is running.
• unsupported RESP prefix 'H': upgrade CPA to v6.10.8+ and keep the default USAGE_COLLECTOR_MODE=auto so Usage Service uses the HTTP usage queue first. On older CPA or forced RESP mode, the CPA URL must be a container/host direct address for port 8317, not a regular HTTP reverse-proxy domain.
• 401 from Usage Service: use the same Management Key that was saved during setup.
• Docker panel shows stale data: check /status for lastConsumedAt, lastInsertedAt, and lastError.
• CPA panel mode has CORS errors: set USAGE_CORS_ORIGINS to the CPA panel origin or keep the default * for private deployments.
• Data disappears after container rebuild: mount /data to a Docker volume or host directory.
• Detailed FAQ: see FAQ and Troubleshooting or the Chinese FAQ.

References

• CLIProxyAPI: https://github.com/router-for-me/CLIProxyAPI
• Redis usage queue documentation: https://help.router-for.me/management/redis-usage-queue.html

Acknowledgements

• Thanks to the upstream projects CLIProxyAPI and Cli-Proxy-API-Management-Center for the foundation and inspiration.
• Thanks to the Linux.do community for project promotion and feedback.

License

MIT
