SPR: Secure Programmable Router

version

Overview

Create an adaptive, micro-segmented network for managing WiFi devices, remote VPN access, and wired systems.

One Password Per WiFi Device
Policy Based / Zero Trust Network Access
Per-Device DNS Rules & Ad Block Lists

Features

Security

Multi-PSK including with WPA3, a SPR first
Secure Router Chaining
Almost no unmanaged code, minimized attack surfaces

Firewall

Policy based routing
Isolation by default
Bidirectional groups and unidirectional service rules
Secure container networking

WiFi

WPA3/2
WPA1 backwards compatibility
WiFi 6, 7 Support including MLO and 320mhz channels on supported hardware

Advanced Networking

Wireguard™ VPN
Multi WAN with Load Balancing
Wireless Uplink
Multicast Traffic Support
Mesh with Wired Backhaul *
Policy Based Site Forwarding *

Advanced DNS Capabilities

Remote DNS Queries with DNS over HTTPs
DNS Ad Block lists
Per-Device DNS Rules and Overrides
DNS Rebinding Protection

User Friendly

React UX
iOS App Available

Observability

Traffic Insights by Country & ASN
Internet & Uplink Health Monitoring
Alerts
DNS Logs
Event System & DB

Interoperability

Runs on a wide variety of Linux systems with Docker
API Plugin System

Parental Controls

Family DNS Rules
Device Time Limits

* Some features are part of SPR PLUS, a paid subscription to support the project

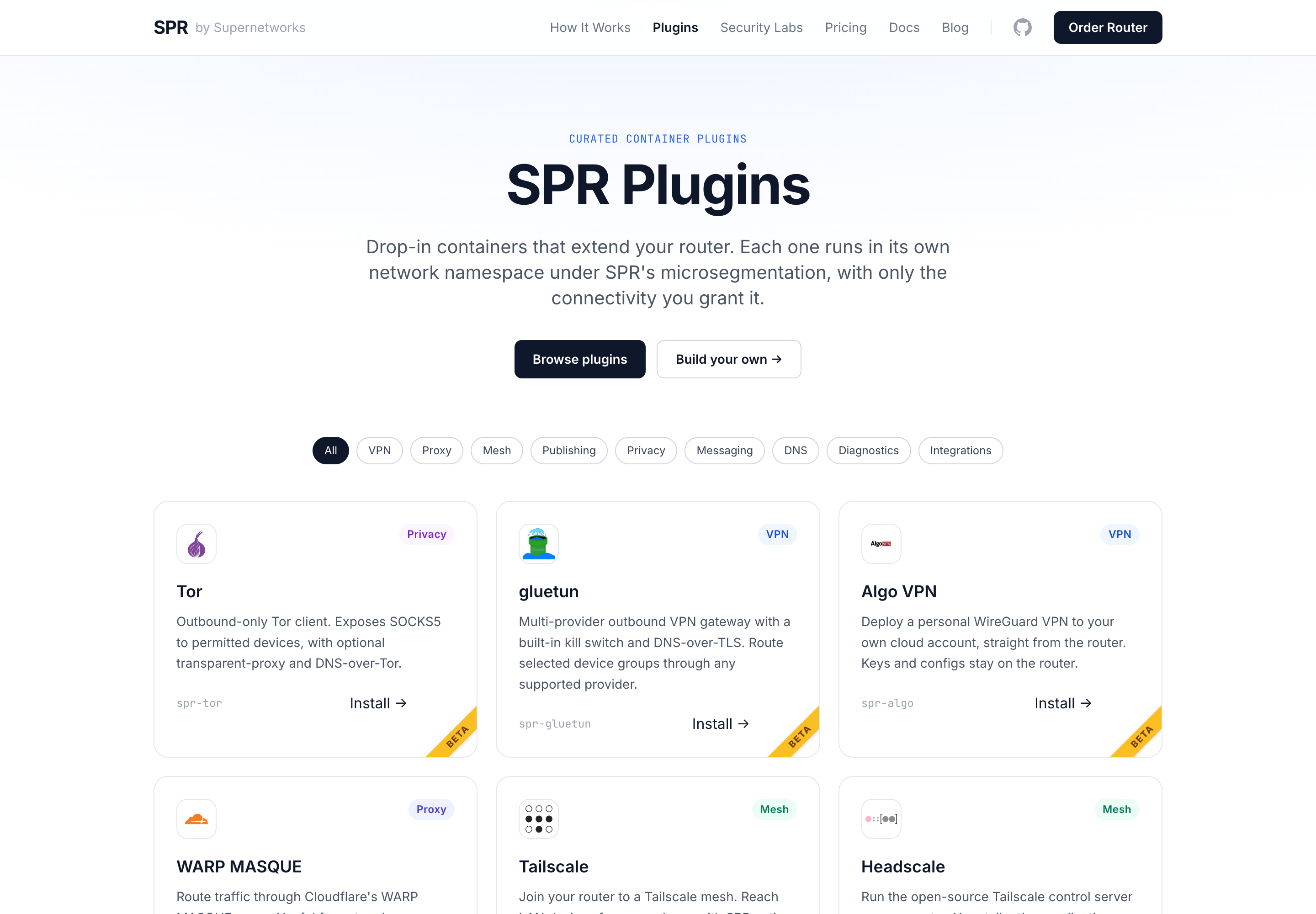

Plugins

Extend SPR with Docker based plugins. Use community supported plugins or write your own. Browse the catalog at https://www.supernetworks.org/plugins.html

How it Works

An unspoofable device identity is established with a MAC address and Per-Device Passphrase for WiFi (or a VPN Public Key for Remote Devices). From there, each device gets its own /30 subnet to exist on. Hardening and strict firewall rules block network spoofing and impersonation, and routing rules redefine connectivity between devices and to the internet.

Our Goals

Be the best Security & Privacy choice
Programmable with an API
Easy to use

Frequently Asked Questions

Check out our FAQ on our website

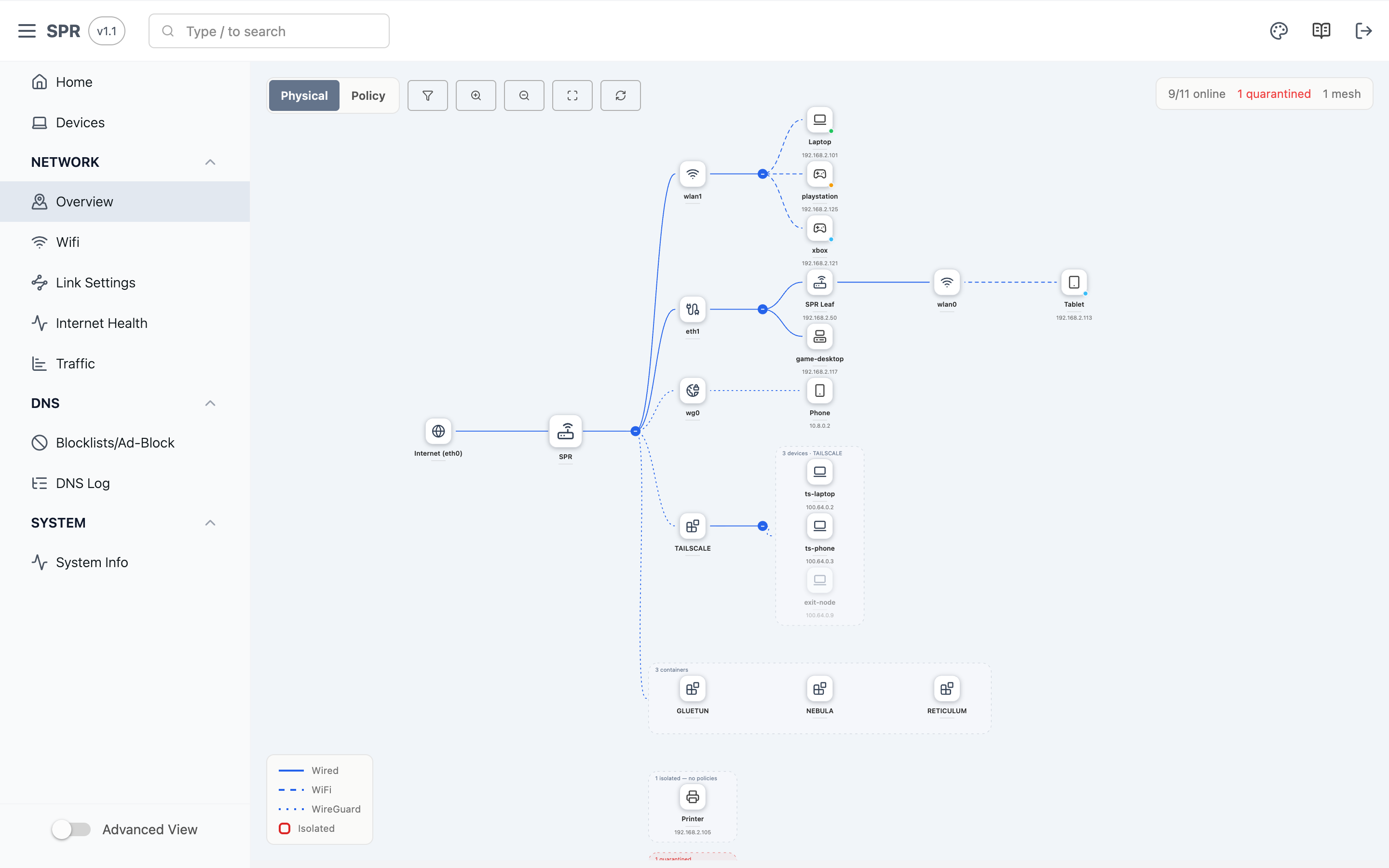

UI Demo Page

https://demo.supernetworks.org/

SPR Bus Events

https://github.com/spr-networks/sprbus-json

Updating

Building from scratch

./build_docker_compose.sh --load
docker-compose up -d

For performance and to minimize wear on SD cards, the build uses a memory-backed filesystem. On memory-limited devices, this can cause build failures if memory is exhausted. In this case, you can provide the build argument --set "*.args.USE_TMPFS=false".

Using prebuilt containers

docker-compose pull
./setup.sh # (optional)
docker-compose up -d
