reims-vgpu

Alpha. This project is early and under active development. The QEMU device ABI, boot scripts, crate layout, backend behavior, and supported host/guest pathways may change without a stable compatibility guarantee. Treat it as research-quality: useful for experimentation and bring-up, not a frozen virtualization product.

reims-vgpu is an experimental virtual GPU for macOS guests. It aims to let macOS running inside a VM use accelerated graphics instead of a basic framebuffer, while keeping the guest operating system unchanged.

macOS already includes a paravirtual GPU driver named AppleParavirtGPU.kext. reims-vgpu provides the QEMU device that driver attaches to, then decodes the guest's GPU command stream on the host and executes it through Metal (TODO) or Vulkan, with Vulkan translation handled by metal2vulkan. There is no custom macOS kext and no guest driver to install.

Contributions are welcome. I am especially interested in collaborating with developers who want to work on correctness, visual glitches, synchronization bugs, command-stream decoding, Metal/Vulkan translation, and making more host/guest combinations reliable.

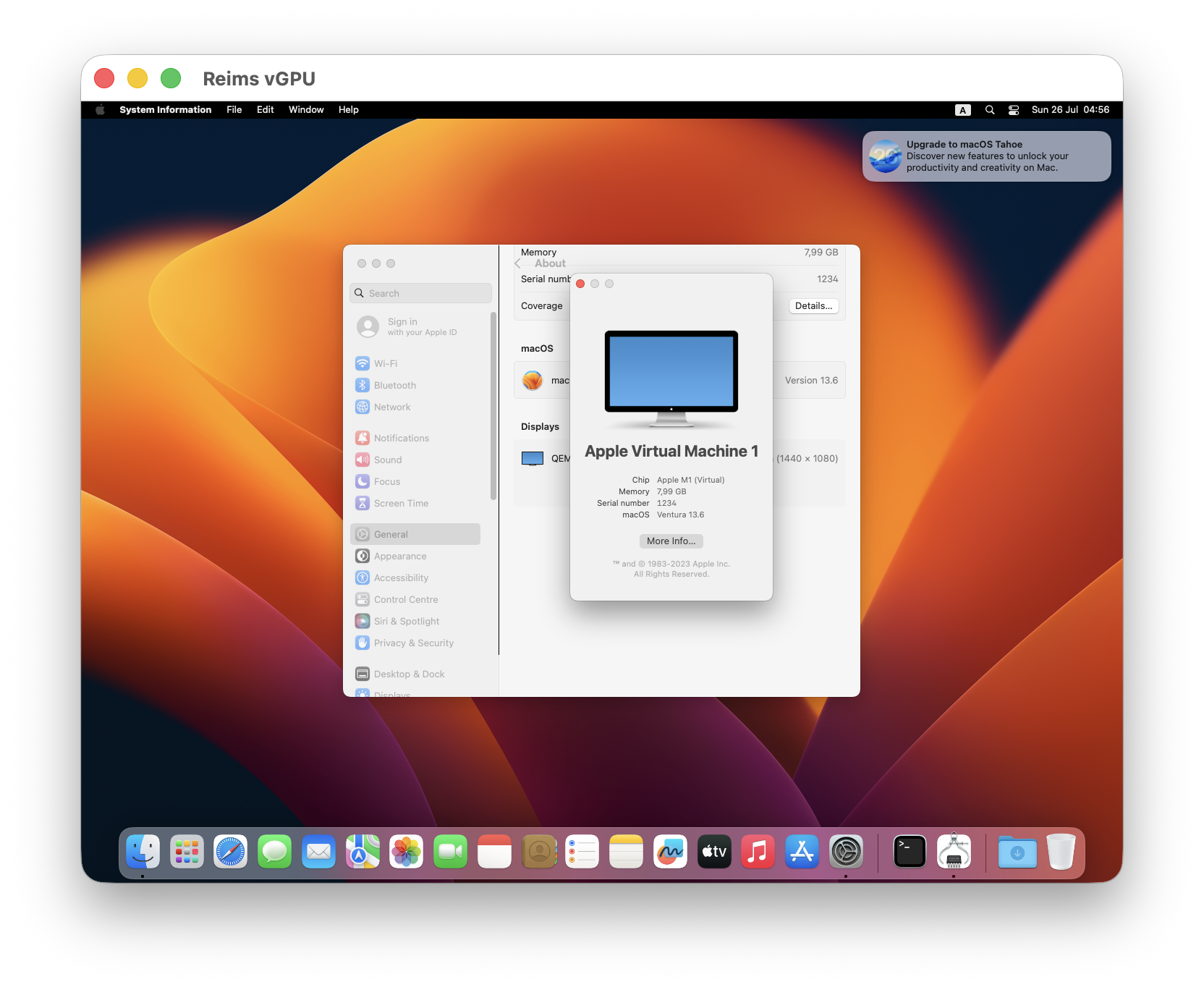

arm64 macOS 13 Ventura guest on an Apple Silicon host.

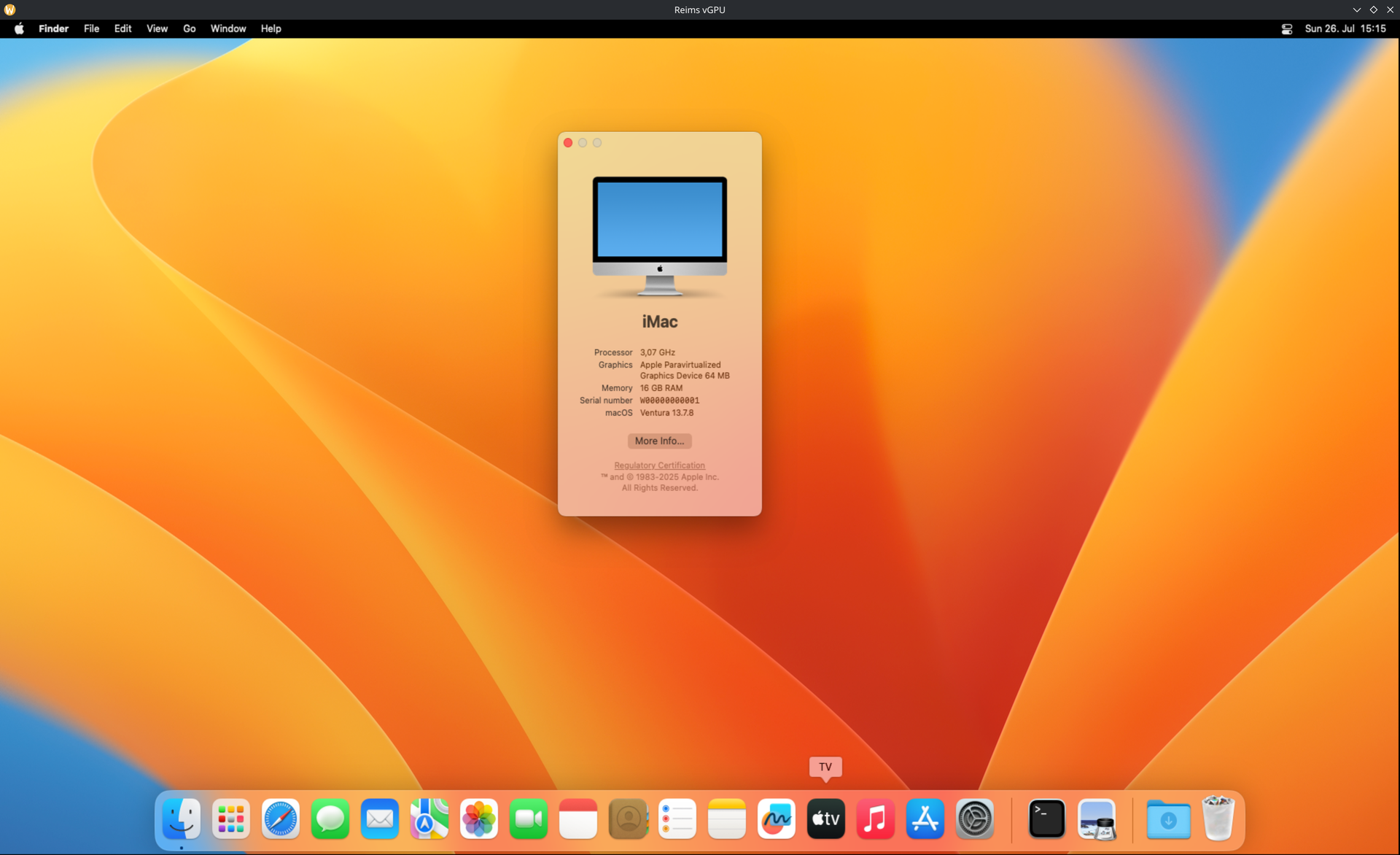

x86_64 macOS 13 Ventura guest on a Linux host.

Three pathways

crates/reims-vgpu targets the following host/guest/backend combinations. Agents pick the pathway their unit of work is on.

• QEMU device shims: vendor/qemu tracks steelbrain/qemu-reims-vgpu@host-reims-vgpu-vmapple (thin C — QOM/MMIO/IRQ/console/HostOps only)
• Product logic: crates/reims-vgpu (decode + device model + Metal/Vulkan backends)
• Wire layouts: crates/reims-vgpu-wire (derived serializer views/parsers; decode uses these as the layout authority for covered records)
• Vulkan translator dependency: public steelbrain/metal2vulkan Git crate. On macOS, the Vulkan host backend runs through MoltenVK.
• VM lifecycle: vm/ (snapshot-revert; arm and x86 guest boot scripts)

Getting started

This tree ships boot scripts and the device, not a ready-made macOS disk image. Guest disks, firmware vars, and OpenCore blobs are private/gitignored under vm/. Pick a pathway, provision a guest once, freeze a golden snapshot, then use the snapshot-revert boots for day-to-day work. macOS 13 Ventura is the recommended guest release for bring-up.

x86_64 guest on Linux (KVM)

1. Host prep. You need KVM (/dev/kvm), a working NVIDIA (or other) Vulkan stack for the product backend, and build deps for the in-tree QEMU (scripts/qemu-build/qemu-build.sh --target x86_64 --backend vulkan).

2. Generate OpenCore, OVMF, and a guest disk with OSX-KVM. macOS 13 is recommended.Follow that project’s docs to fetch recovery media, build OpenCore, and install macOS under QEMU+KVM. The point of this step is only to produce a working, post-Setup-Assistant guest plus the usual OpenCore/OVMF pieces — not to stay on OSX-KVM’s long-term launcher.

3. Drop the artifacts where this repo expects them (paths are the defaults in vm/boot-x86.sh; override with env if you prefer):

   Artifact	Default location
   Guest system disk	vm/disks/macos.img
   OpenCore boot disk	vm/disks/OpenCore.qcow2
   OVMF code	vm/ovmf/OVMF_CODE_4M.fd
   OVMF vars template	vm/ovmf/OVMF_VARS-1920x1080.fd

   Finish install in the guest: enable Remote Login, install your SSH key, turn off sleep/screensaver as you like. Host SSH is typically localhost:2222 → guest :22 (see vm/boot-x86.sh).

4. Capture the first immutable snapshot. Guests are organised into rails — one rail per guest OS line (macos-11 … macos-26), each with a snapshot history of its own under vm/disks/rails/<rail>/snapshots/. Create the rail's directory, then from a clean guest state (logged in, network/SSH known-good) shut down cleanly while booting in capture mode:

   mkdir -p vm/disks/rails/macos-15
   vm/boot-x86.sh --rail macos-15 --capture --device vmware-svga
   # clean shutdown from inside the guest → new label under
   # vm/disks/rails/macos-15/snapshots/, and that rail's snapshots/current points at it

   Every later boot clones the selected rail's snapshots/current (COW when possible) and throws the clone away on exit, so wedges and hard kills never poison the golden image.

   Importing a guest built elsewhere is the same shape without the boot — drop {macos.img,OpenCore.qcow2,OVMF_VARS.fd} (plus OVMF_CODE.fd if that guest was installed under a different OVMF build) into vm/disks/rails/<rail>/snapshots/base/, chmod 444 them, and ln -sfn base vm/disks/rails/<rail>/snapshots/current. Use cp --reflink=auto on btrfs and the import costs no disk.

5. Day-to-day boots.

   vm/boot-x86.sh --list-rails                  # what guest lines exist (* = default)
   vm/boot-x86.sh --rail macos-15 --list-snapshots

   # Console only (mainstream OSX-KVM-style VGA) while you debug the host stack
   vm/boot-x86.sh --testing --device vmware-svga

   # Product Reims VGPU device (needs in-tree QEMU + reims-vgpu Vulkan)
   REIMS_VGPU_BACKEND=vulkan scripts/qemu-build/qemu-build.sh --target x86_64
   vm/boot-x86.sh --testing --device reims-vgpu-pci --rail macos-15

   # Host-window screenshot (Linux/Plasma or macOS host)
   scripts/screenshot/screenshot.sh -o /tmp/screen.png

   Without --rail a boot follows vm/disks/rails/current; change it with ln -sfn <rail> vm/disks/rails/current. Neither --rail nor --snapshot repoints anything.

arm64 guest on Apple Silicon (HVF / vmapple)

Arm bring-up is in-tree: Virtualization.framework via Homebrew macosvm, then QEMU’s vmapple machine under HVF. There is no OSX-KVM step.

1. Install macosvm, and build the vendored QEMU:

   scripts/qemu-build/qemu-build.sh --target aarch64 --backend metal

2. Provision a guest from a UniversalMac IPSW with the project helpers in scripts/vmapple-provision/. The live bundle lives under vm/guest/ (disk, aux, vm.json / ECID).

3. Configure the guest once: enable Remote Login, run scripts/vmapple-guest-config/ for no-sleep settings, and optionally enable auto-login by hand in System Settings. Capture a golden under vm/guest/rails/<rail>/snapshots/ with the snapshot helpers (scripts/vmapple-snapshot/, or vm/boot-arm64.sh --rail <rail> --capture once the disk is ready).

4. Boot:

   vm/boot-arm64.sh --testing --device reims-vgpu-mmio    # product
   vm/boot-arm64.sh --testing --device apple-gfx-mmio   # Apple ParavirtualizedGraphics A/B
   scripts/screenshot/screenshot.sh /tmp/screen.png

   Optional performance ceiling reference: the same guest under native VZ via macosvm --gui.

After the first snapshot

• Prefer --testing for agent/measurement boots (time-bounded, always reverts).
• Use --interactive when you need an open-ended GUI session (still reverts unless you are in --capture mode).
• Say which rail a result came from. A number from macos-11 and a number from macos-26 are two measurements, not one — that separation is the whole reason snapshots are per-rail.
• Never commit disks, IPSWs, or OpenCore/OVMF runtime under vm/.
• Device/backend work lives in crates/reims-vgpu + the thin shims in vendor/qemu; rebuild QEMU after product changes before claiming a live boot result.

The host window takes your keyboard shortcuts

On the reims-vgpu-pci / reims-vgpu-mmio device the guest is displayed in a window this project owns, and while that window has keyboard focus it asks the host desktop to stop acting on its own shortcuts so they reach the guest instead. Without that the desktop consumes them first: a stock Plasma session claims 63 Meta/Alt/Ctrl combinations, and because a macOS guest reads host Meta as Cmd, that covers most of what the guest expects — Cmd+A, Cmd+V, Cmd+Q, Cmd+W, Cmd+1…Cmd+9, and Alt+Tab.

Press Ctrl+Alt+Esc to release the grab. While it is held your own Alt+Tab goes to the guest, so this is how you get back to the host desktop. The chord is consumed rather than forwarded, and the grab re-arms by itself the next time you focus the window — it is an escape hatch, not a mode you have to remember you are in. The guest's own Cmd+Option+Esc (Force Quit) carries no Ctrl and is forwarded to the guest untouched.

The window says so on stderr the first time it captures, and records it in the always-on log:

window_capture_engaged mechanism=wayland_shortcuts_inhibit release=Ctrl+Alt+Esc

How much can be captured depends on the host, and the log names which mechanism a boot got:

A host that cannot capture at all still runs; it emits a window_capture_* reason on /tmp/reims-vgpu-fail.log rather than silently dropping the keys.

Environment overrides

Set on the boot command; every one is optional and every default is "let the device decide". The full list, with the parse, is crates/reims-vgpu/src/env.rs. Each accepts 1/on/true/yes and 0/off/false/no, case-insensitively.

An override can only narrow what the device does. There is no way to switch a rail on that the host reported it cannot run: capability is measured from the device at startup, and asking a driver for an extension it does not advertise fails device creation rather than degrading. REIMS_VGPU_DMABUF has no on direction for that reason — on a host without the extension it is already off, and the vk_caps line in /tmp/reims-vgpu-fail.log names which check said so.

Repo layout

AGENTS.md           - repo operating guide for agents
crates/             - Rust crates (`reims-vgpu`, `reims-vgpu-wire`, `reims-vgpu-efi`)
scripts/            - host setup, VM lifecycle, screenshot, and diagnostic helpers
vendor/             - vendored QEMU submodule and patch record
vm/                 - VM launch/configuration glue; images are private/untracked

crates/reims-vgpu-wire holds zero-copy views and parsers for the Apple paravirtualized GPU serializer format, derived from Apple's own encoder rather than inferred from captures. crates/reims-vgpu's runtime::decode uses those exports for opcodes, record framing, and field layouts on wire-covered families (encoder blit/compute/render binds and state, and the create records above); decode remains the mapping layer into the device's Command / Kind model and decline naming. Gaps without a wire export (FIFO, event opcodes, unobserved compute residency, pipeline TLV) stay local to decode.

License

Licensed under the GNU Lesser General Public License v3.0 or later (LGPL-3.0-or-later).

Metal, macOS are trademarks of Apple Inc. reims-vgpu is an independent project and is not affiliated with, sponsored by, or endorsed by Apple Inc.
