HydraSRT

An open-source alternative to Haivision SRT Gateway.
Report Bug · Request Feature

Status

Project Status: Beta.

Supported transports

NDI is off by default. It needs the NDI runtime, which is not shipped with HydraSRT and is installed by the operator: see docs/ndi.md.

Planned transports

Capabilities

RTMP output remuxes the route MPEG-TS stream to FLV without decoding. It supports codecs accepted by GStreamer's FLV muxer, such as H.264 video and AAC/MP3 audio.

Missing a feature? Open an issue.

Overview

HydraSRT is an open-source alternative to Haivision SRT Gateway for reliable video transport and routing. It manages SRT, UDP, and RTP streams with built-in failover, supervision, metrics, and a modern web UI and API designed for broadcast and live production workflows.

Built with Elixir(Erlang/OTP), Rust, and GStreamer, HydraSRT combines strong fault isolation with lightweight orchestration. The BEAM supervises routing and control logic, while isolated media pipelines run only where active streams are present, providing high reliability with low system overhead.

Architecture

HydraSRT has three layers:

flowchart LR
  UI[React UI] -->|REST/WebSocket| API[Phoenix API]
  API --> Control[Elixir/OTP Supervisor]
  Control -->|spawns & monitors| Pipeline1[Rust Pipeline 1]
  Control -->|spawns & monitors| Pipeline2[Rust Pipeline 2]
  Control -->|spawns & monitors| PipelineN[Rust Pipeline N]
  Control --> SQLite[(SQLite Config)]
  Control --> VictoriaMetrics[(VictoriaMetrics)]
  Control --> VictoriaLogs[(VictoriaLogs)]

Management & Control (Elixir/OTP)

• Supervises routes and restarts failed route processes
• Stores configuration and route state in SQLite
• Exposes REST and WebSocket APIs
• Handles failover and source switching

Streaming & Processing (Rust + GStreamer)

• Runs each route as an isolated OS process
• Uses GStreamer for media processing
• Keeps pipeline crashes limited to the affected route

User Interface (React + Vite)

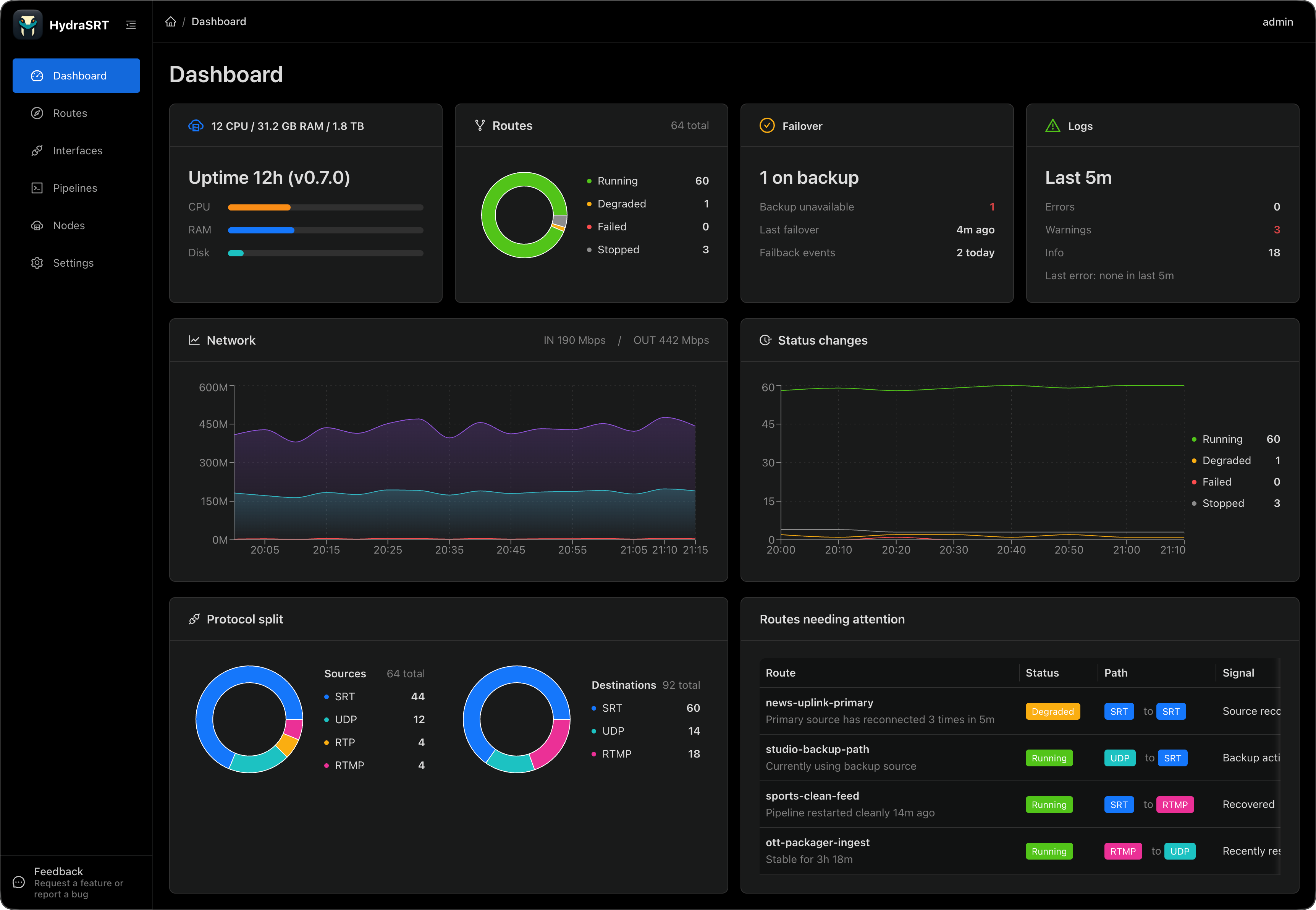

• Route management dashboard
• Real-time status over WebSocket
• Historical metrics and logs

See docs/architecture.md for details.

Quick Start

Docker

docker compose up

Open http://127.0.0.1:4000 and log in with admin / password123.

The default Compose file uses Linux host networking. If your Docker Engine cannot use Linux host networking, run with explicit port mappings:

docker compose -f docker-compose.yml -f docker-compose.ports.yml up

Host networking is intended for native Linux, including WSL2 only when Docker Engine runs inside the WSL distro.

Local Development

# First-time setup
mix setup

# Start dev server (Elixir + Vite)
make dev

Web UI: http://localhost:5173.

Setup, deployment, and troubleshooting: docs/development.md.

Features

• SRT source and destination modes: Listener, Caller, Rendezvous
• UDP sources and destinations
• RTP (TS over RTP) sources
• SRT authentication with passphrase and stream ID support
• Source failover with primary + backup sources, automatic failover, and manual source switching
• System metrics via Prometheus /metrics
• Historical analytics and route events stored in VictoriaMetrics
• Historical pipeline logs stored in VictoriaLogs
• Real-time route status updates over WebSocket

Documentation

Contributing

See CONTRIBUTING.md for contribution guidelines.

License

Apache 2.0. See LICENSE.

Inspiration

• Secure Reliable Transport
• Haivision SRT Gateway

Contact

Use GitHub issues: https://github.com/streamband/hydra-srt/issues
