EUI-NEO
EUI-NEO is a cross-platform, high-performance, low-overhead C++17 UI framework with GLFW/SDL2 window backends and OpenGL/Vulkan render backends.

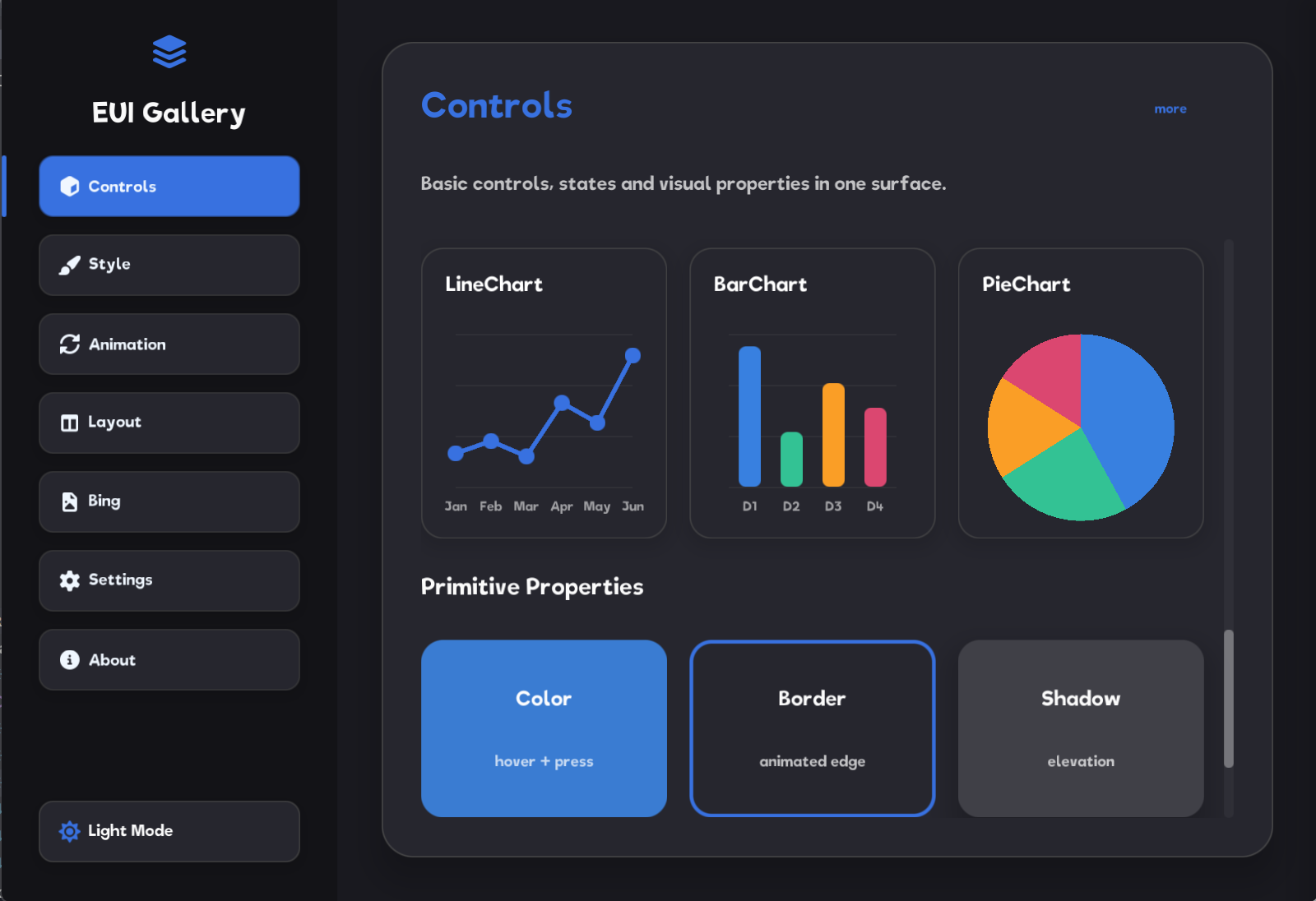

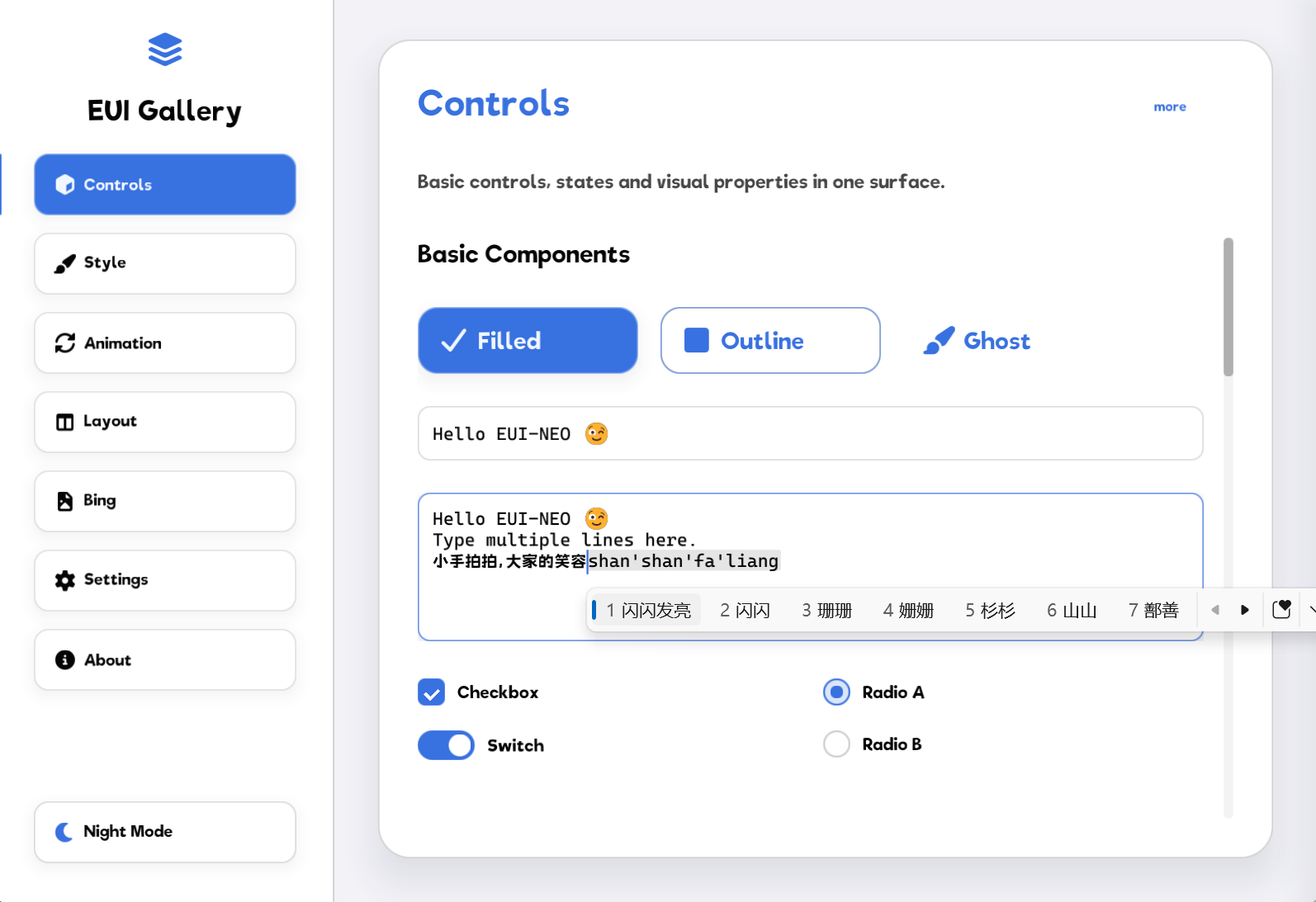

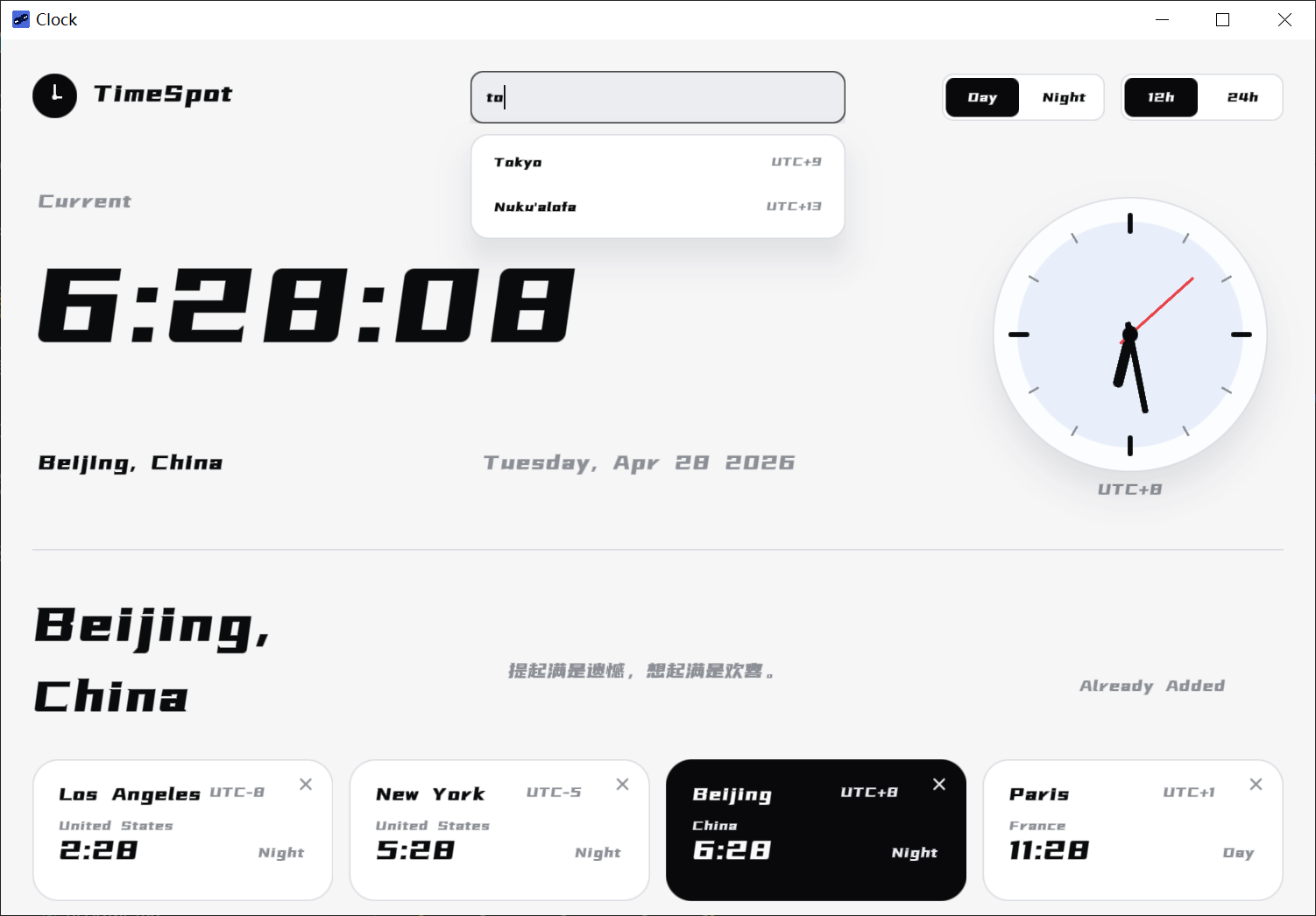

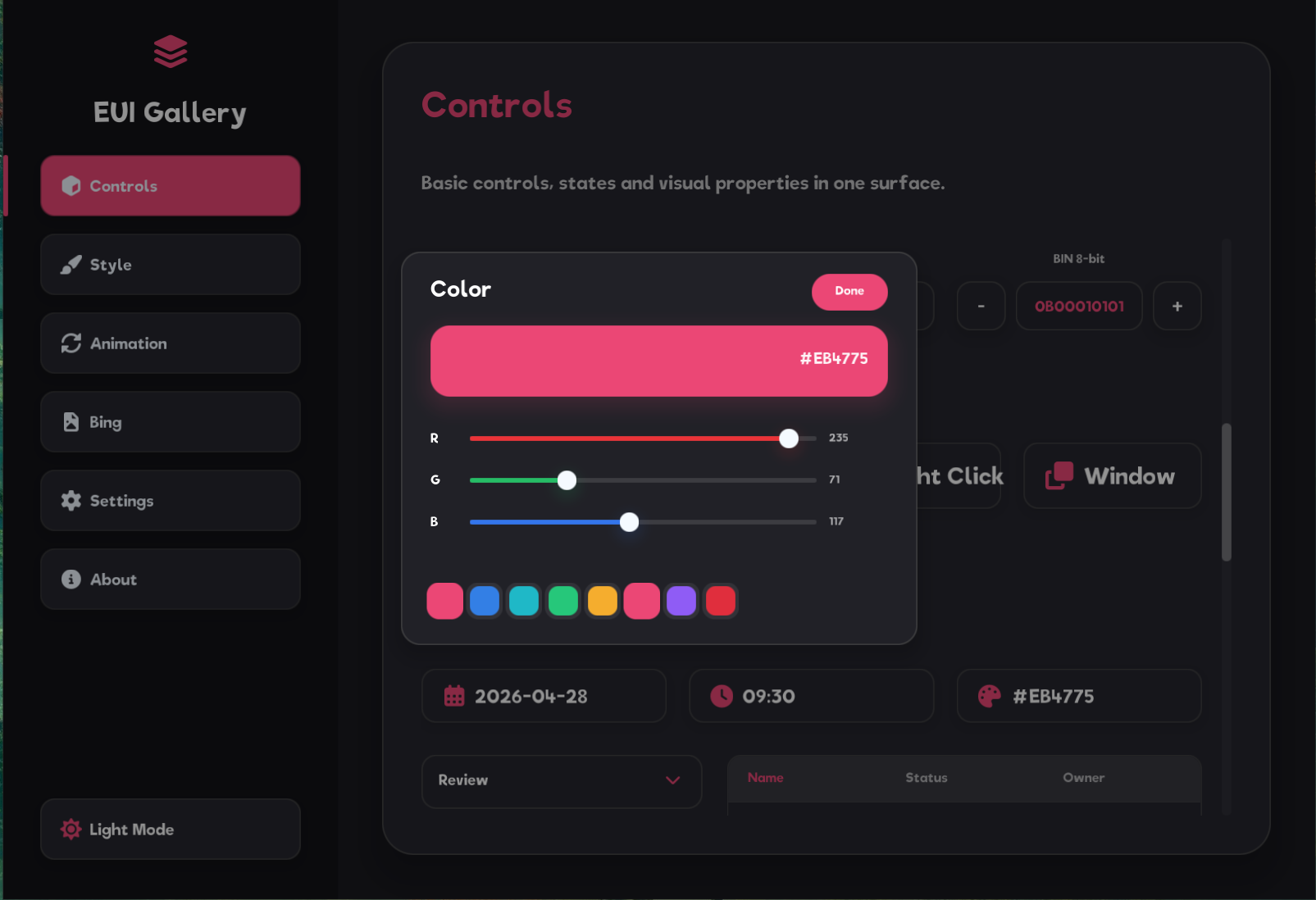

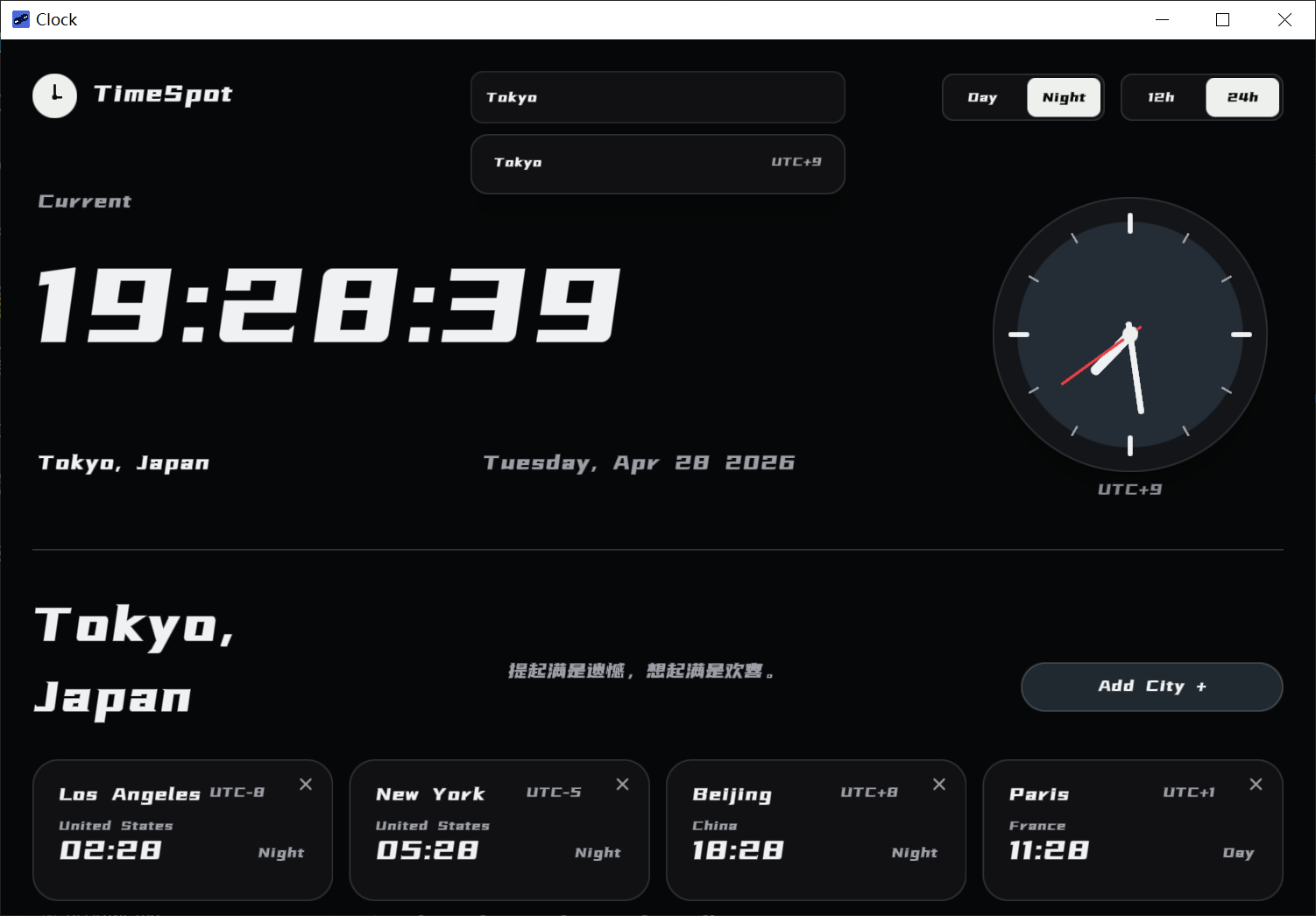

Preview
 |  |
 |  |
 |  |
Quick Start
Requirements:
- CMake 3.14+
- A C++17 compiler: MSVC 19.29+ (Visual Studio 2019 16.11+), GCC/MinGW-w64 12+, or Clang 14+
- OpenGL development files for the default renderer
Add EUI-NEO under 3rd/EUI-NEO, then create:
If the GitHub clone fails, use the AtomGit mirror as a fallback:
git clone https://atomgit.com/sudoevolve/EUI-NEO.git 3rd/EUI-NEOcmake_minimum_required(VERSION 3.14)
project(MyProject LANGUAGES C CXX)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
add_subdirectory(3rd/EUI-NEO)
add_executable(my_app main.cpp)
eui_neo_configure_app(my_app)main.cpp:
#include "eui_neo.h"
namespace app {
const DslAppConfig& dslAppConfig() {
static const DslAppConfig config = DslAppConfig{}
.title("My App")
.pageId("my_app")
.windowSize(960, 640);
return config;
}
void compose(eui::Ui& ui, const eui::Screen& screen) {
ui.column("root")
.size(screen.width, screen.height)
.padding(32.0f)
.content([&] {
ui.text("title")
.text("Hello EUI-NEO")
.fontSize(28.0f)
.build();
})
.build();
}
} // namespace appBuild:
cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build --config Release --parallelOn Windows with the Visual Studio generator, run:
.\build\Release\my_app.exeOn Linux or macOS, run:
./build/my_appeui_neo_configure_app() adds the selected GLFW/SDL2 entry point, links eui::neo, applies platform executable settings, and deploys the runtime assets. The application does not reference files under core/.
The release SDK supports the same target setup:
find_package(EuiNeo CONFIG REQUIRED)
add_executable(my_app main.cpp)
eui_neo_configure_app(my_app)See the Integration Guide for installation, FetchContent, and SDL2/Vulkan selection. See Development And Release for building this repository and dependency requirements.
Optional Modules
Optional feature modules live under modules/ and are documented in the Modules Guide.
Project Layout
assets/ Runtime assets: fonts, PNG, SVG, and icons
components/ Reusable UI components built on top of the DSL
core/ DSL, Runtime, primitives, text, image, network, and platform code
docs/ Implementation notes and API documentation
examples/ Short, single-screen API demonstrations
modules/ Optional feature modules such as keyboard and serial
apps/ Longer or multi-page applications; each app lives in its own folder
include/ Public include path: eui_neo.h and eui/* facade headers
tests/ Probe sources, fixture apps, and local benchmark notes
3rd/ Vendored third-party build sources and single-file dependenciesDocs
- DSL Design And Current Implementation
- Components
- Modules
- State Model
- Layout
- Events
- Animation
- Async
- Render Backend Architecture And Pipeline
- Retained Layer Cache
- Images
- Network
- Platform Capabilities
- Integration Guide
- Shadertoy Primitive
- Development And Release
License
EUI-NEO's original source code is licensed under the Apache License 2.0. Third-party code under 3rd/, optional build-time dependencies fetched by CMake, and bundled fonts or icon fonts under assets/ follow their respective upstream licenses and copyright notices.
Contributors
Thank you to everyone who has contributed code, improved the documentation, reported issues, or shared feedback with EUI-NEO.
