Turn anything you want to understand, plan, or share into an interactive visual.

Start with an idea, a question, or a plan. Describe it to your AI agent, and Archify turns it into an interactive HTML you can explore, customize, and share. From travel itineraries and learning maps to complex systems—make it your own.

See what the community is creating—and imagine what you could make next.

Live demos  ·  Get started  ·  Scenario guide  ·  Community  ·  简体中文  ·  日本語

❤️ Partners & sponsors: Kimi Work · Supercode · OpenLux

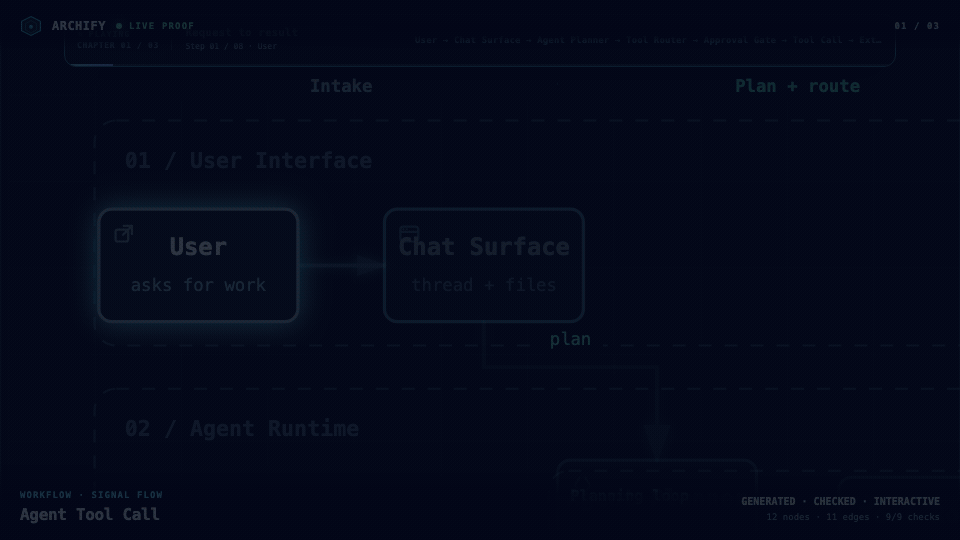

See Archify in action

https://github.com/user-attachments/assets/78570807-ba1d-4737-953f-55504a378a87

One sentence. Your repo, mapped. Watch the 35-second demo: explore the diagram, follow source links, and trace a path. Try the interactive examples ↗

Install, then describe your idea

Works with Cursor, Claude Code, Codex CLI, and OpenCode. See installation options below for additional integrations.

npx skills add tt-a1i/archify -g

Send this to your agent:

Use Archify to diagram a web request: Browser calls the API,
the API checks Redis, and a cache miss queries PostgreSQL and fills the cache.

Then continue: “Add authentication”, “Highlight the cache-miss path”, or “Switch to the light theme”.

No repository is required: start with a description, or ask your agent to read a repository for a source-backed architecture diagram.

Choose your agent · Installation details and update checks

❤️ Sponsors

Archify × Kimi Work. Find Archify in the Kimi Work plugin store as Interactive Architecture Diagram. Describe your system in one sentence to create an interactive diagram. Try it in Kimi Work →

supercode.sh	Supercode sponsors Archify and enhances Codex and Cursor with token optimization, curated Skills, and spec-driven development. Archify is featured as a Supercode Editor’s Choice skill.
OpenLux	Thank you to OpenLux for sponsoring this project! OpenLux is an all-in-one AI platform for businesses, bringing together leading AI models from major providers worldwide. With fast, reliable service and responsive technical support, OpenLux offers base pricing for Claude, OpenAI, and Gemini models as low as 8.82%, 4%, and 8% of official rates, respectively. Exclusive offer for Archify users: Sign up through our referral link and enjoy up to 7.5% off credit top-ups! Get started with OpenLux →
EverMind · Raven	EverMind sponsors Archify and builds memory infrastructure for agents. Its Raven harness supports Archify as a Skill for verified, interactive system maps.

Want to sponsor Archify? Contact us by email.

Show what matters

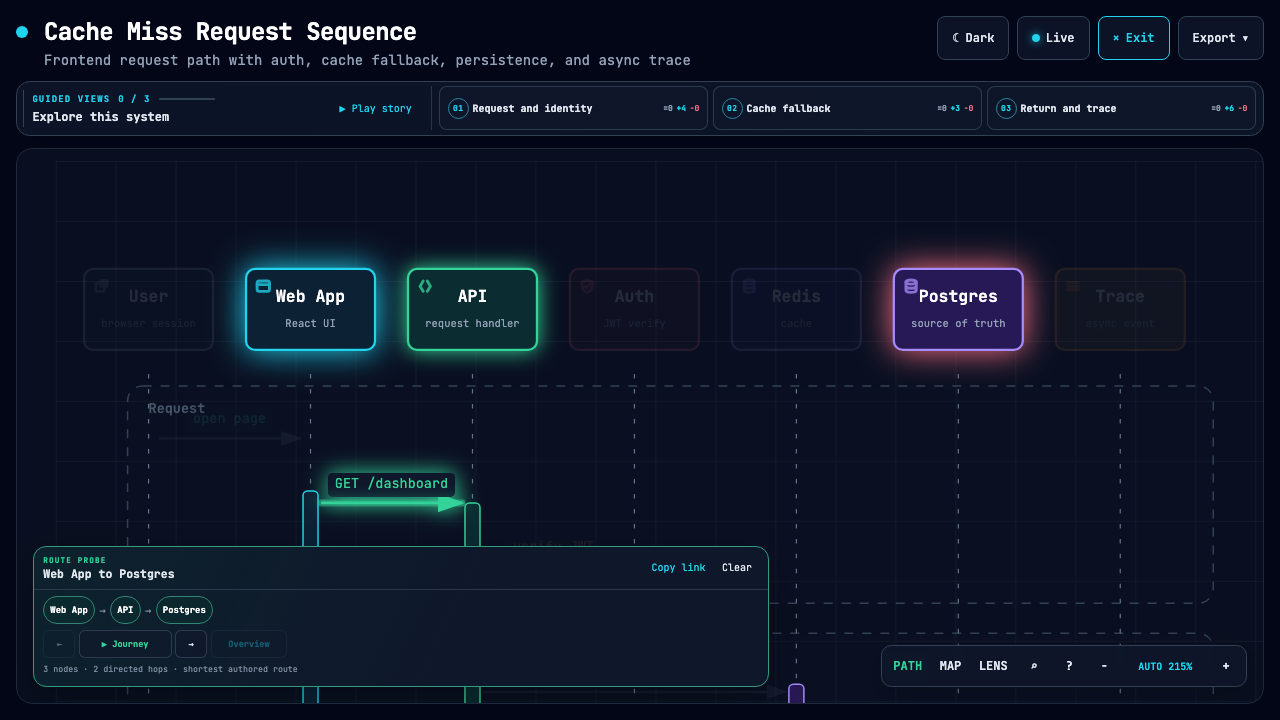

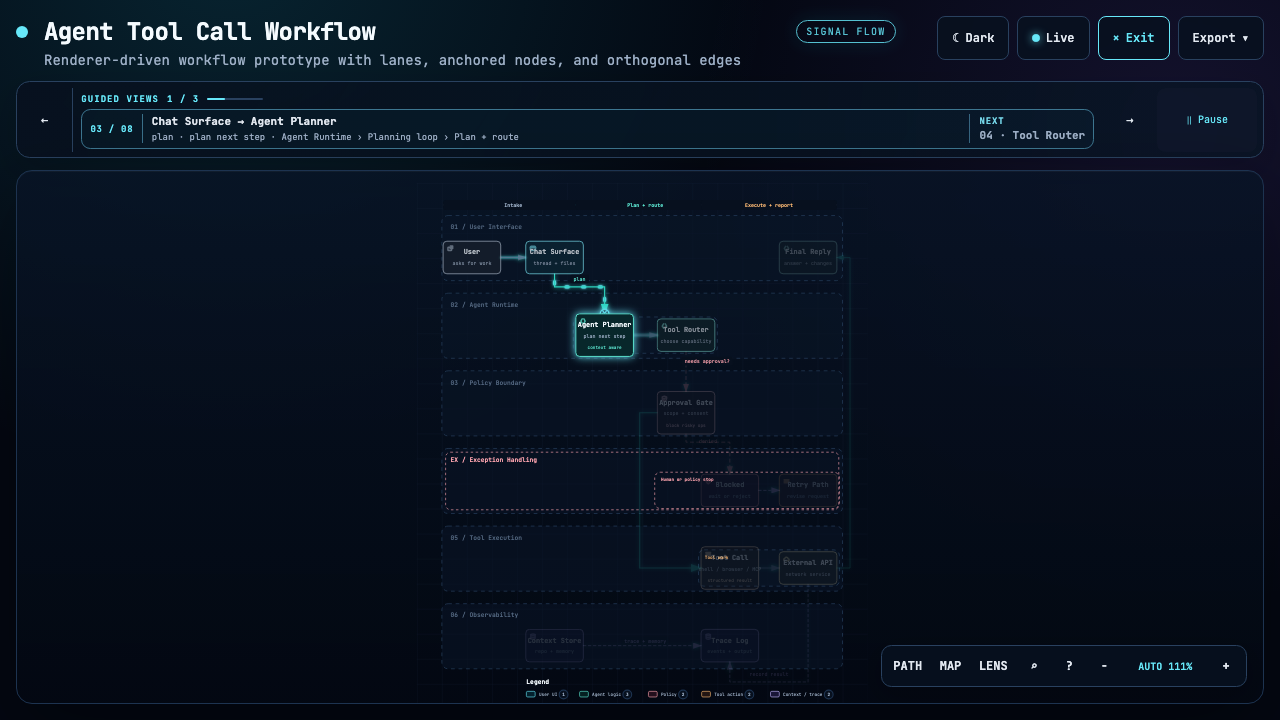

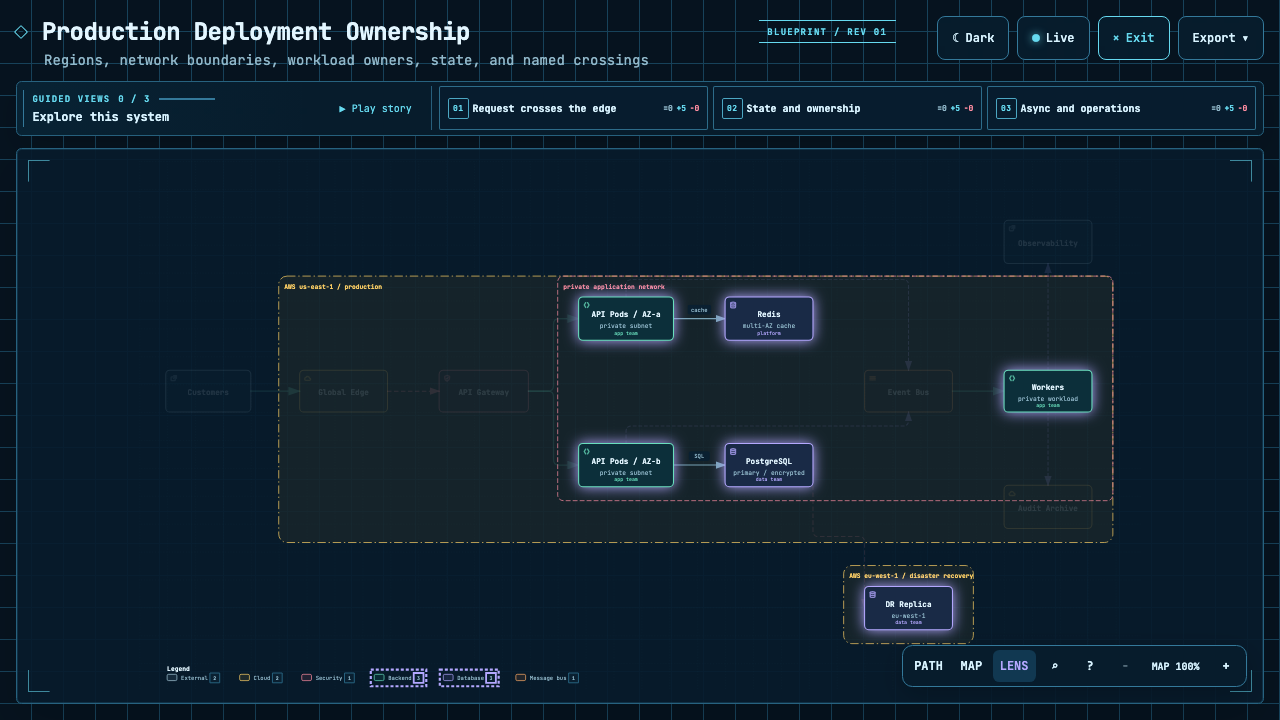

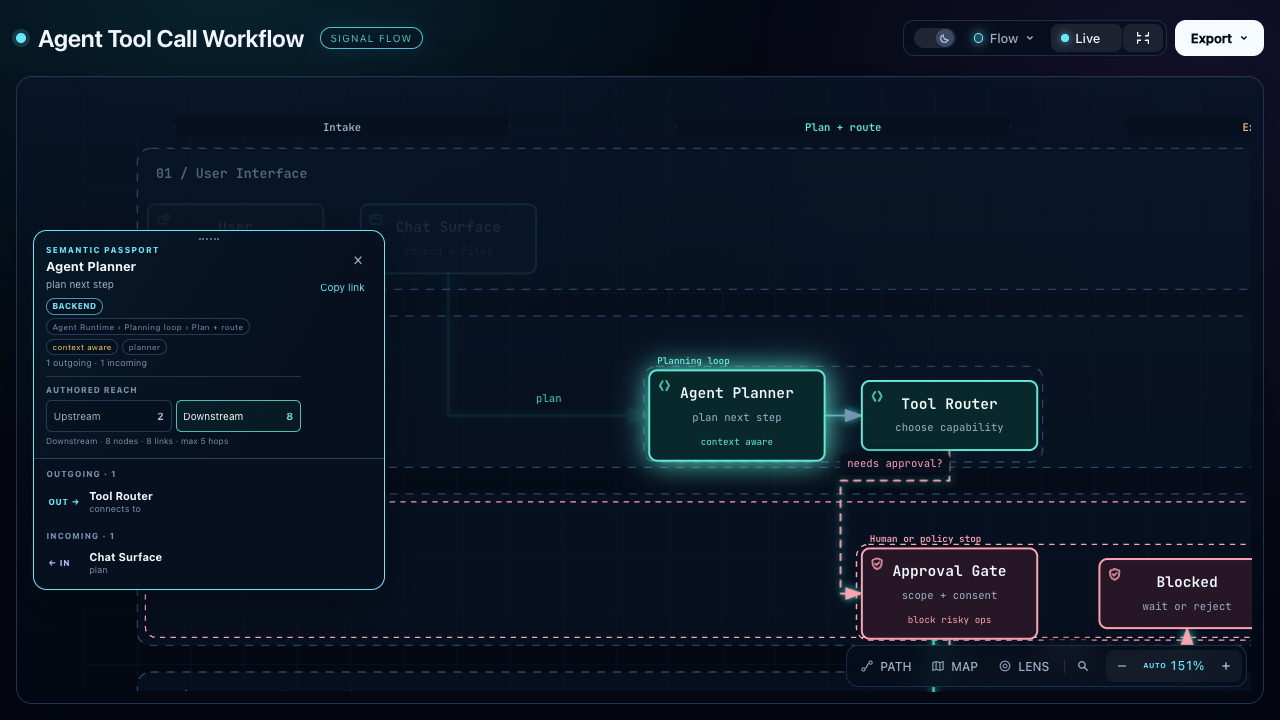

Explain an agent workflow	Follow a cache miss	Explore service relationships
Trace everything downstream of one step.	Highlight the path from web app to database.	Focus on authored backend and database connections.

The Proof Lab contains all 11 checked-in scenarios, their JSON sources, and validation receipts.

Understand a real repository

_{CODE → DIAGRAM · A source-backed system map}

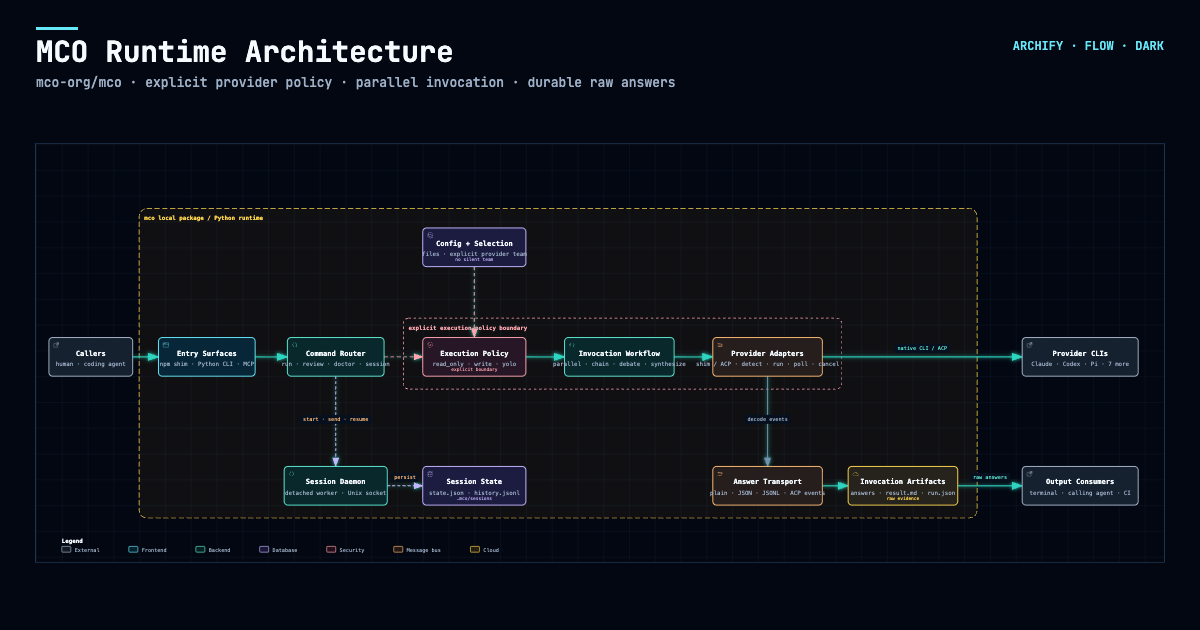

Archify traced mco-org/mco at 9f1a1cf and produced this checked map. Open it ↗ · trace reach ↗ · typed source

Easy to extend. More ways to make it yours.

_{COMMUNITY STORIES · Selected examples shared by users}

Keep building after the diagram is generated. Archify is open source and its output is standalone HTML. Ask your agent to adapt it, connect useful links, or add interactions for your own workflow. Community creations already span team collaboration, travel planning, legal citation checks, contract review, and incident retrospectives. These are just a few examples.

One user started with a hand-drawn multi-agent architecture, turned it into an interactive diagram, then added a Kimi execution pool through conversation. Others asked their agent to read a project and brought the resulting architecture into Feishu or DingTalk for team discussion.

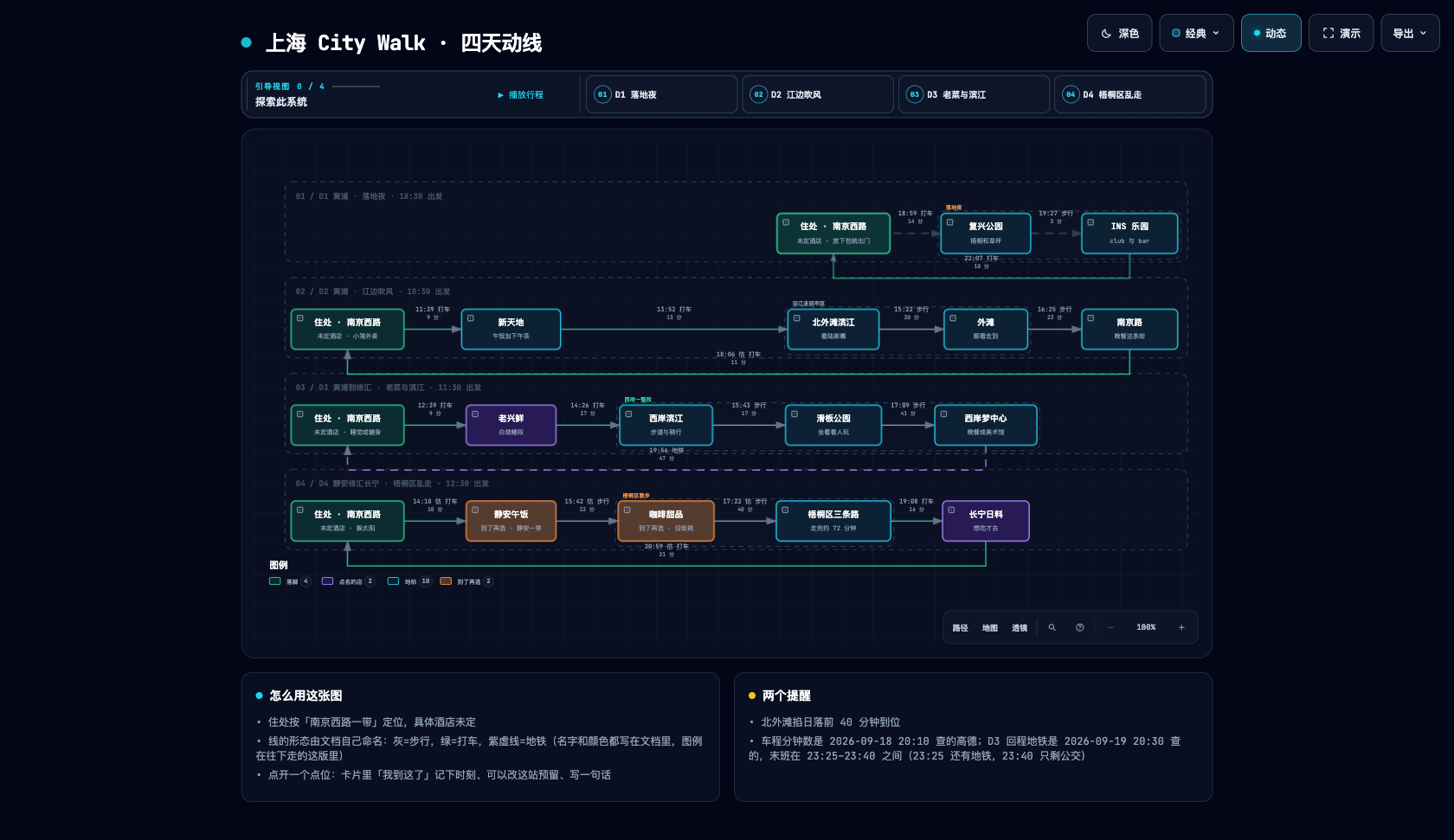

Another user turned a Shanghai CityWalk guide into a four-day itinerary: switch between days, inspect a stop, and jump to Amap, Xiaohongshu, or Dianping. The author also added arrival check-ins and stop notes, turning the itinerary into a small tool to use during the trip. These extensions were added by the community author for this particular artifact.

▶ Explore the interactive Shanghai CityWalk

▶ Try the interactive version · Switch between D1–D4 and click a place to explore.

_{Community artifact · Shanghai CityWalk · Four days of routes and place links}

Download it. Open it. Explore it.

The output is a self-contained HTML file. Download it and open it in your browser to use the node details and path exploration included in that artifact. No Archify installation is needed to view it. Send the HTML to someone else and the interactions go with it; external websites and map links need a network connection.

Explore the Shanghai CityWalk ↗ · Download HTML ↓

_{Try switching between D1–D4, opening a place card, or following a map link. Times and place information reflect the author's original itinerary.}

Community and recognition

• #1 on GitHub Trending's weekly, all-language repository list. Ranking screenshot published by the creator on September 1, 2026, with all languages and “This week” selected.
• Featured and interviewed by QbitAI. Project feature · The developer's story.
• Shared with developer communities. midudev's post.

_{A selection of public coverage, community shares, and historical milestones. Follow the links for dates and sources.}

Preview

Themes, exports, and share cards

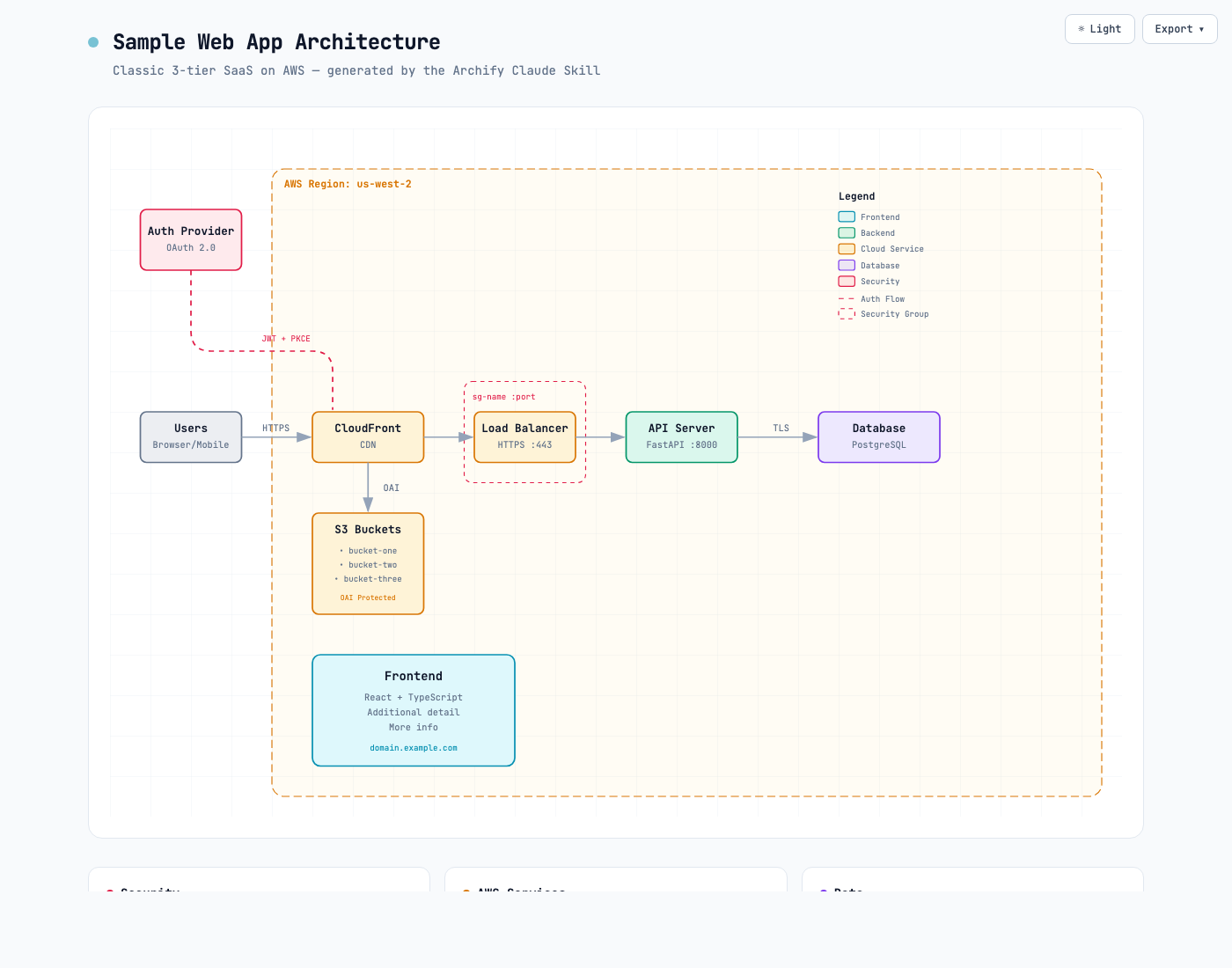

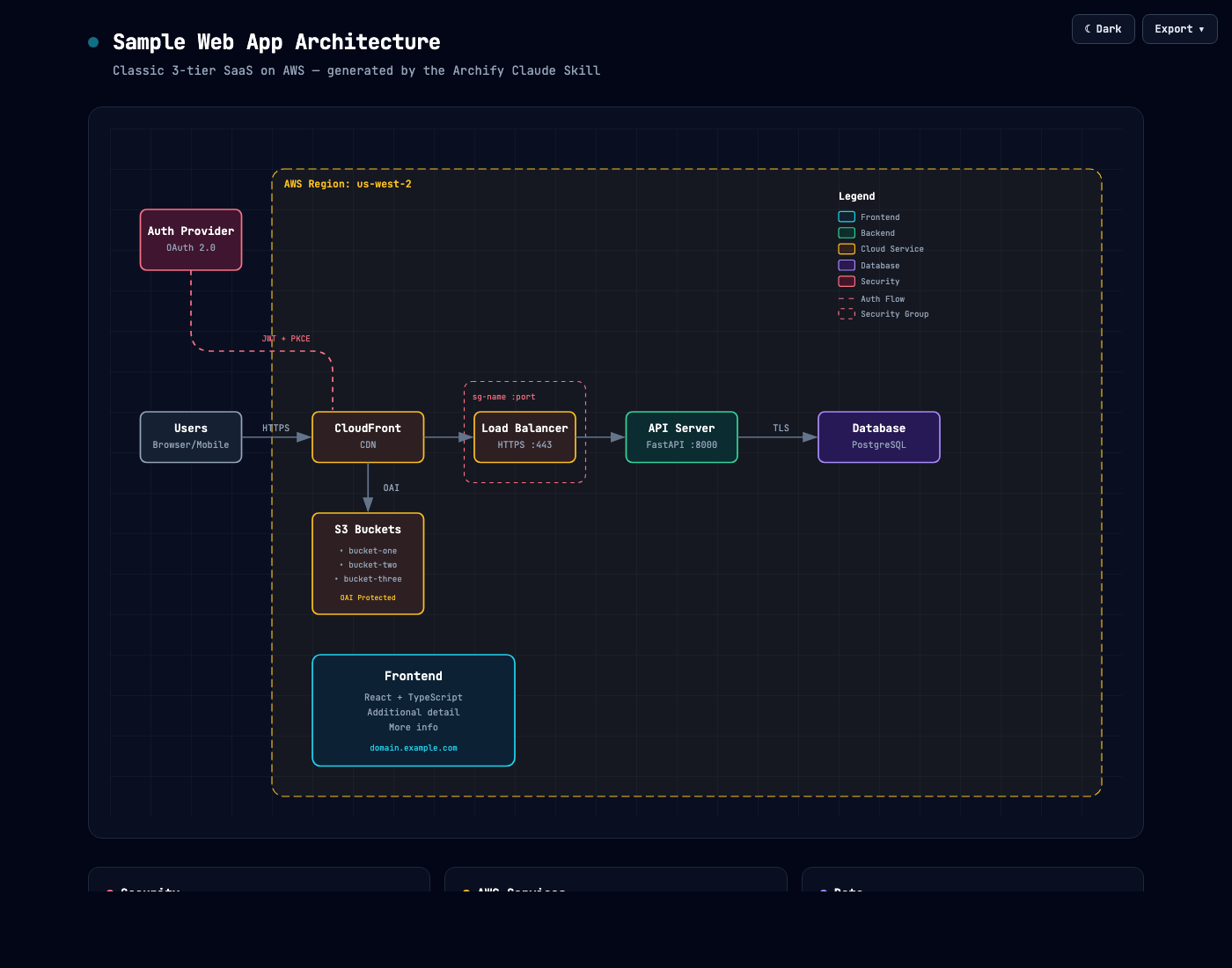

Same diagram, two themes, one click to switch:

Dark	Light

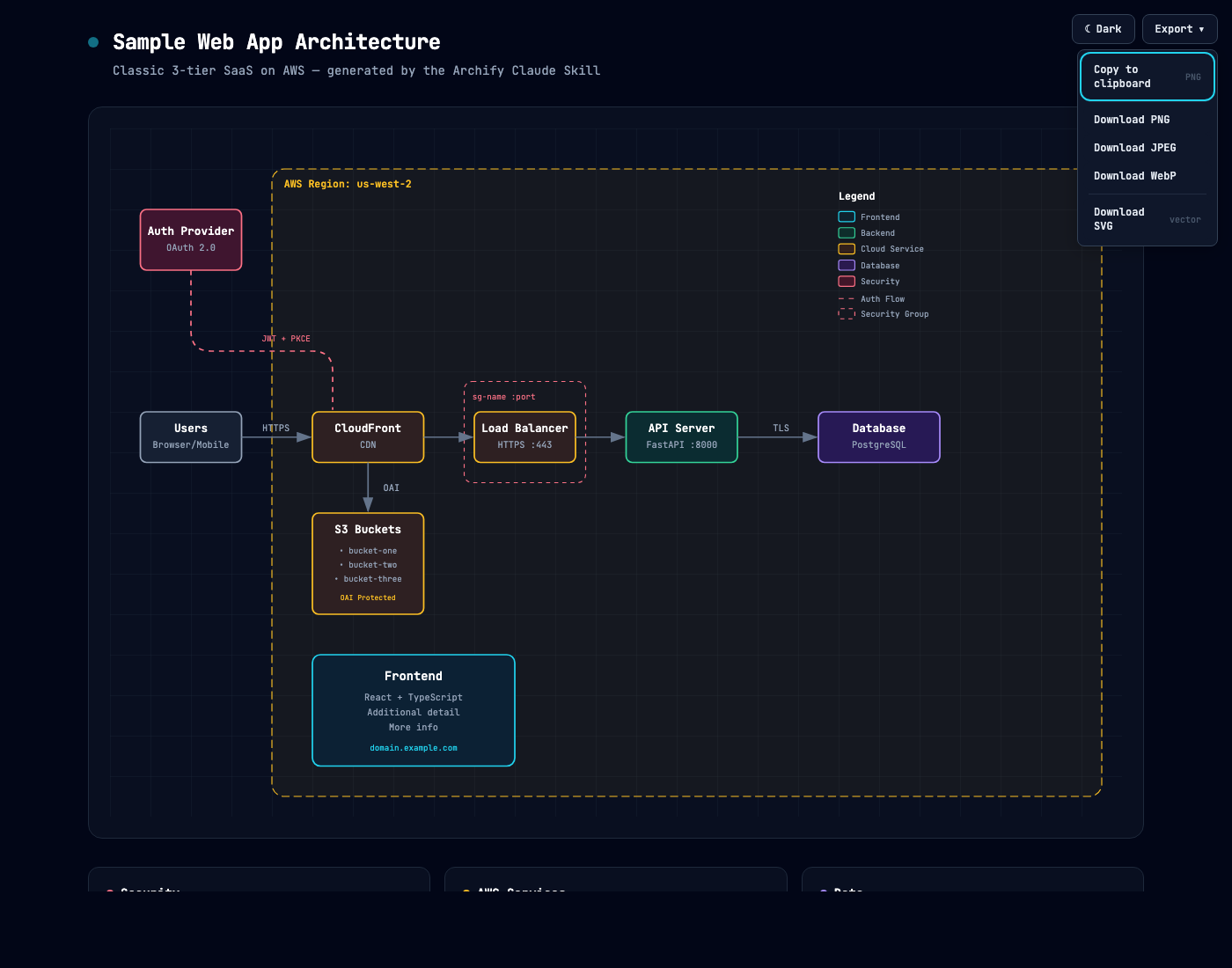

The Export menu copies PNG to the clipboard and downloads static or motion formats:

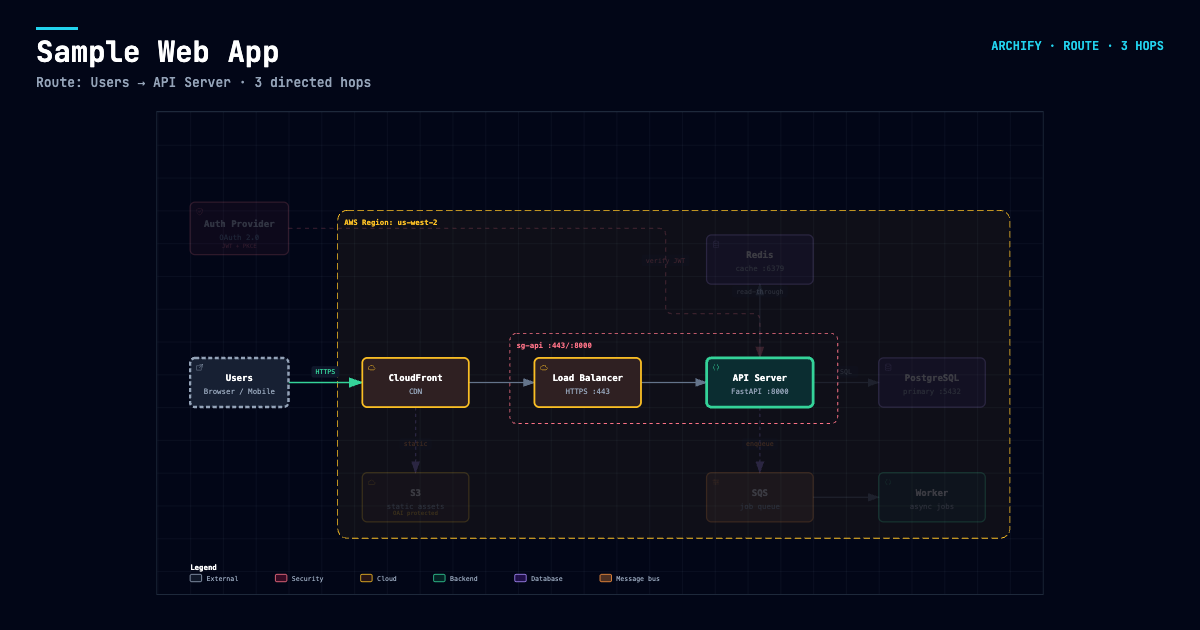

After tracing a route, Export → Route Share Card downloads that authored path as a 1200×630 PNG with the full diagram retained for context.

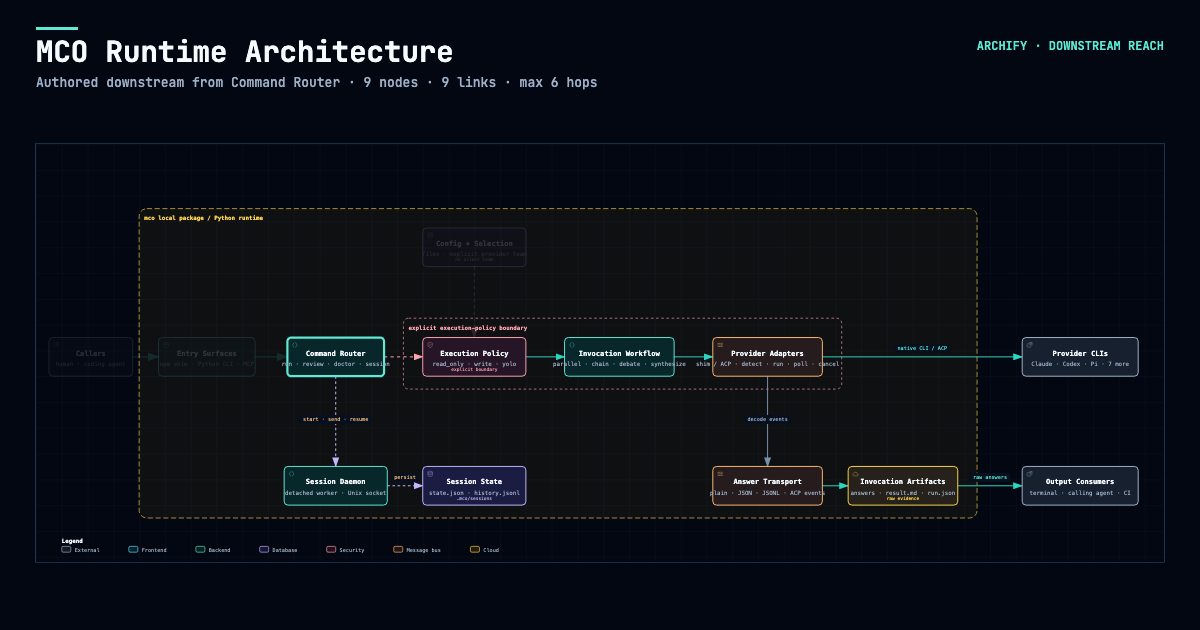

After tracing authored Upstream or Downstream reach, Export → Reach Share Card captures that exact reading without claiming runtime impact.

Open examples/web-app.html locally to try the complete viewer.

Quick start

Current stable version: v3.0.1. See Changelog.

1. Install

npx skills add tt-a1i/archify -g

npx -y skills add tt-a1i/archify --skill archify --agent cursor --global --copy --yes

npx skills use tt-a1i/archify@archify --agent codex

2. Start from a description — no repository required

Use Archify to draw: Browser -> API -> Redis cache -> PostgreSQL fallback.

For source evidence, open a repository and ask:

Analyze this repository, then use archify to create a high-level runtime architecture diagram.
Show 8–12 core components, one primary path, external dependencies, and trust boundaries.
Put supporting detail in cards instead of adding more edges.

3. Refine in chat

Continue with focused requests such as add Redis, move auth to the left, or highlight the rollback path. Archify keeps the typed source available for targeted iteration.

Choose the right diagram

node archify/bin/archify.mjs guide "Show an API request with Redis cache miss"
node archify/bin/archify.mjs guide "Map Kafka topics, consumer groups, replay, and DLQ" --json

Why Archify

How it works

cd archify
node bin/archify.mjs doctor
node bin/archify.mjs demo /tmp/archify-demo
node bin/archify.mjs guide "Show CI/CD checks, approval, deploy, and rollback"
node bin/archify.mjs validate workflow examples/agent-tool-call.workflow.json --quality showcase --json
node bin/archify.mjs preview workflow examples/agent-tool-call.workflow.json /tmp/workflow.html --quality showcase
node bin/archify.mjs deliver workflow examples/agent-tool-call.workflow.json /tmp/workflow.html --quality showcase --open --json

{
  "meta": {
    "locale": "en",
    "animation": "trace",
    "visual_preset": "signal-flow"
  }
}

Explore and share the output

Stable links can restore #focus=<id>, #focus=<id>&reach=upstream|downstream, #relation=<id>, #route=<source>~<target>, and #lens=<kind>~<kind>. Reader-driven motion is finite, respects prefers-reduced-motion, and never enters canonical exports.

The complete generation and viewer contract lives in archify/SKILL.md.

Installation options

Reference and scope

• Schema reference · Skill · Examples · Agent cookbook
• Changelog
• Roadmap
• Generated Proof Lab

Automatic Mermaid parsing, general-purpose auto-layout, hosted sharing, and WYSIWYG editing are intentionally outside the current scope.

Community

👋 Welcome to the Archify Community!

Connect with other users and developers, share ideas, request features, report bugs, discuss development, and help make Archify better together.

• Discord
• WeChat: scan the QR code below. WeChat group codes expire periodically; if this one has expired, ask for the current code through Discord or QQ.
• QQ group: 1121948602

WeChat

QQ

License

MIT — free to use, modify, and distribute.

Contributing

Issues, pull requests, and real-world diagrams are welcome. Start with the contribution guide, use the reproducible bug form for failures, or submit a validated diagram through the community showcase form. · LINUX DO
