DeepDiagram AI: Agentic AI Visualization Platform

DeepDiagram AI is an open-source, intelligent visualization platform that leverages Agentic AI and multi-agent orchestration to transform natural language and multimodal inputs into professional diagrams. Unlike traditional tools, DeepDiagram employs a LangGraph-powered architecture where specialized agents handle different visualization domains—from interactive mind maps to complex infographics.

Demo: http://deepd.cturing.cn/

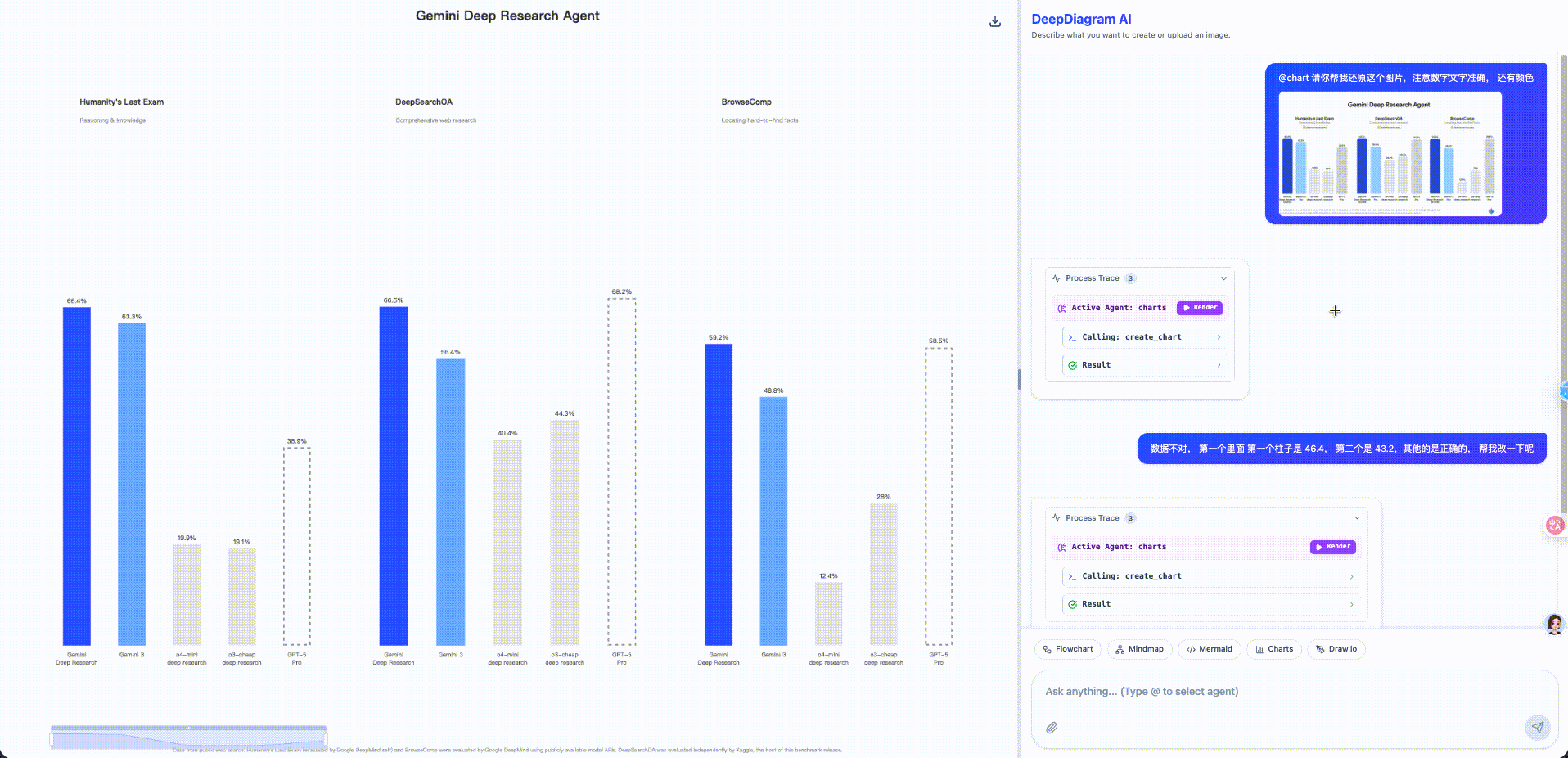

DeepDiagram AI Demo

DeepDiagram AI Demo1

DeepDiagram AI Demo2

DeepDiagram AI Demo3

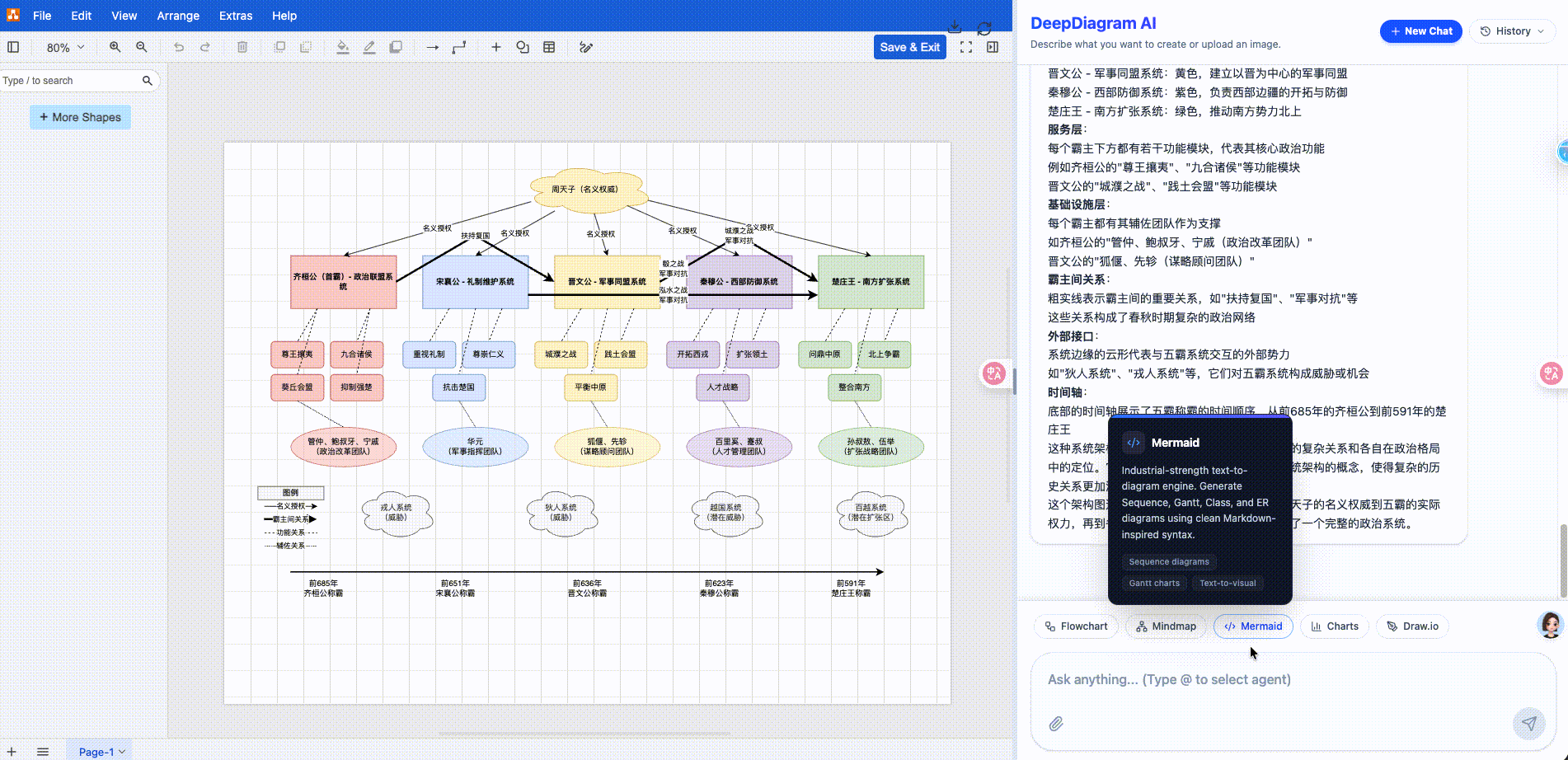

DeepDiagram AI Demo4

🚀 Core Features

🧠 Mind Map Agent

Powered by: mind-elixir
Capabilities: Generates 4-5 level deep, structured, interactive mind maps in Markdown format
Use Cases: Knowledge mapping, brainstorming, concept organization
Workflow: Supports real-time preview, editing, and export to PNG

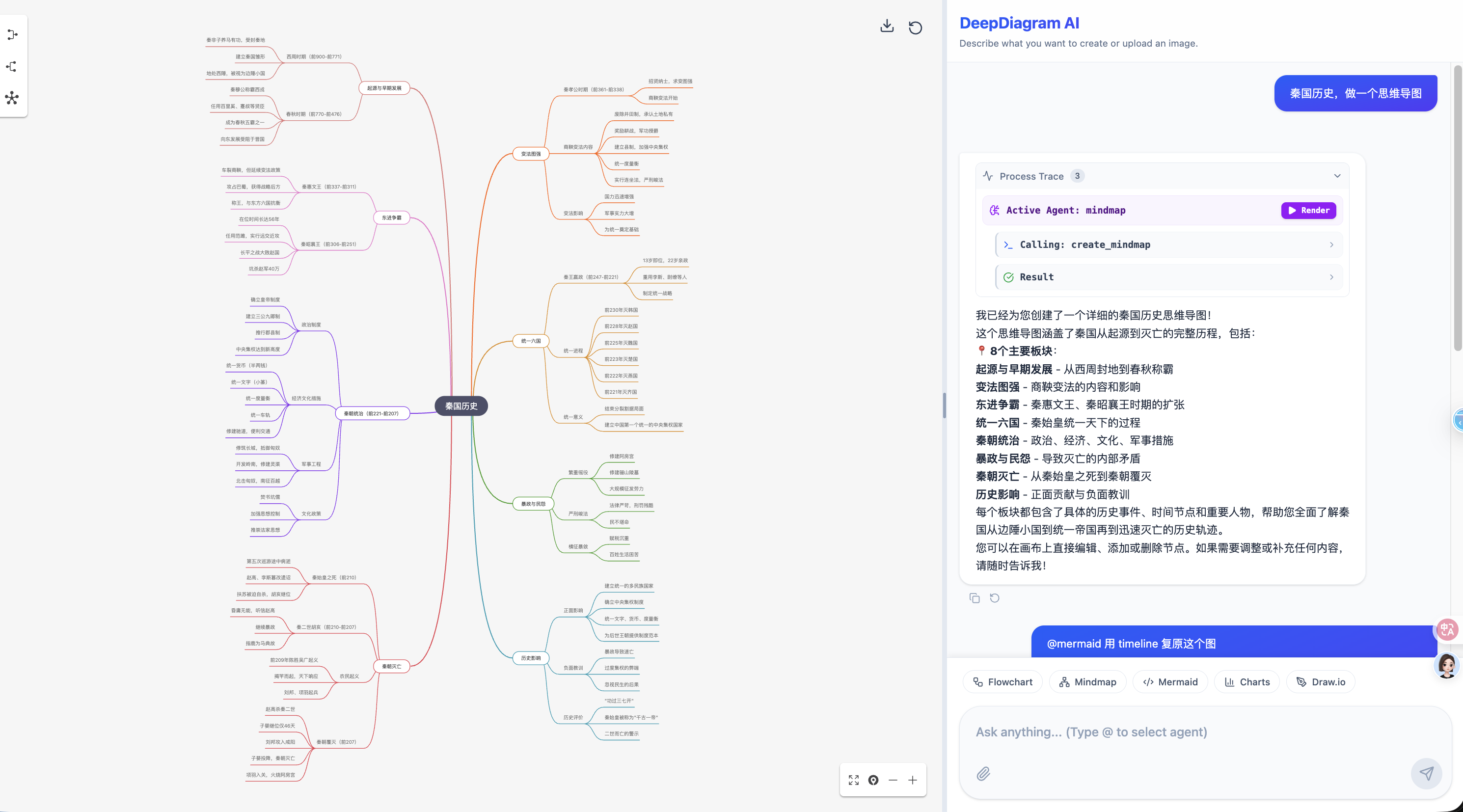

Mind Map Agent Demo

🔀 Flowchart Agent

Powered by: React Flow
Capabilities: Creates business process flows with intelligent auto-layout and custom node styling
Use Cases: Business processes, logic flows, step-by-step procedures
Workflow: Interactive canvas with drag-and-drop editing and high-quality image export

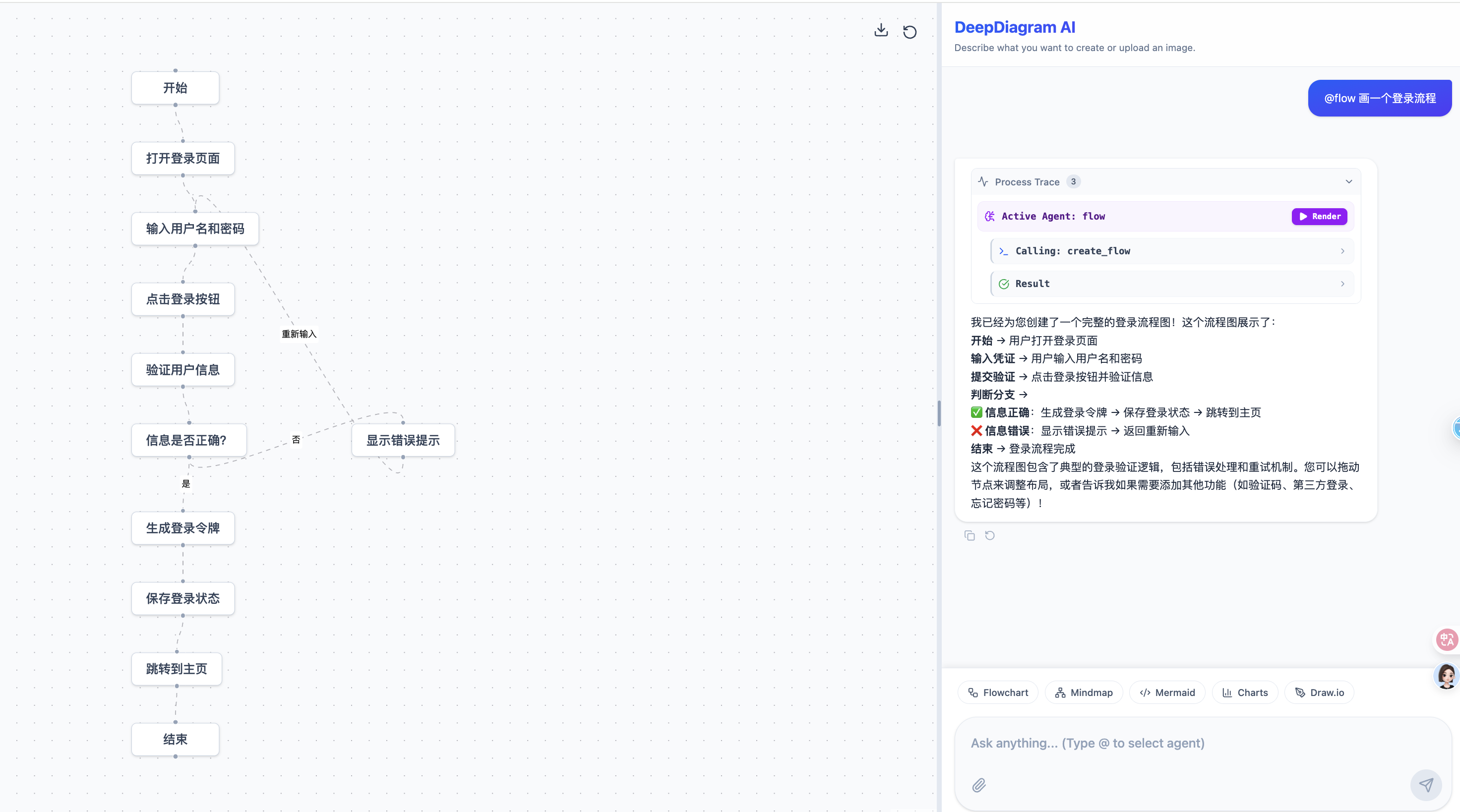

Flowchart Agent Demo

📊 Data Chart Agent

Powered by: Apache ECharts 6.0
Capabilities: Visualizes data using bar charts, line graphs, pie charts, gauges, and more with modern animations
Use Cases: Data visualization, dashboards, trend analysis
Workflow: Analyzes data or descriptions to generate rich, interactive ECharts configurations

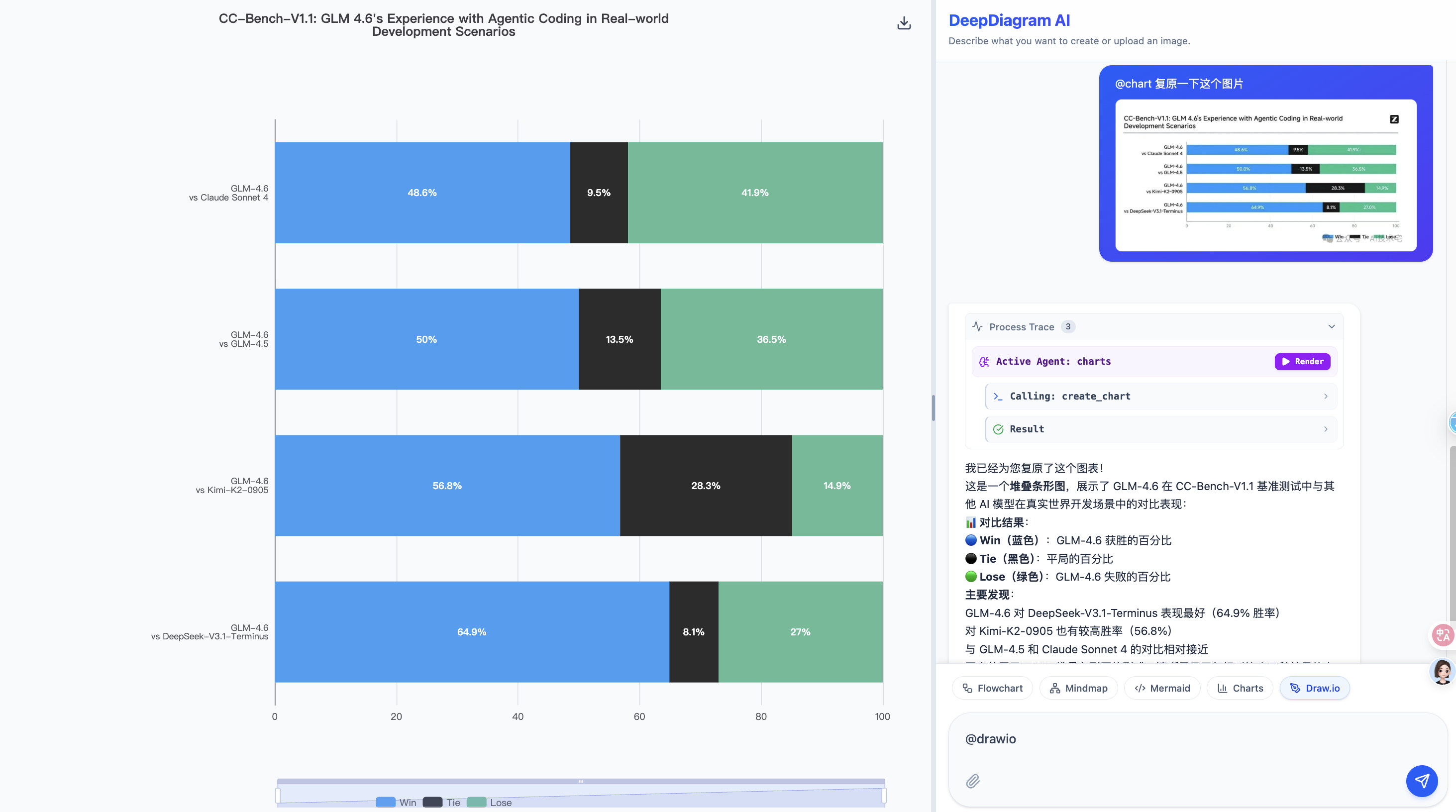

Data Chart Agent Demo

✏️ Draw.io Agent

Powered by: Draw.io (Atlas Theme)
Capabilities: Produces professional-grade cloud architecture and network topology diagrams
Use Cases: Cloud infrastructure, system architecture, technical blueprints
Workflow: Advanced canvas with auto-centering and sidebar concealment for a focused drawing experience

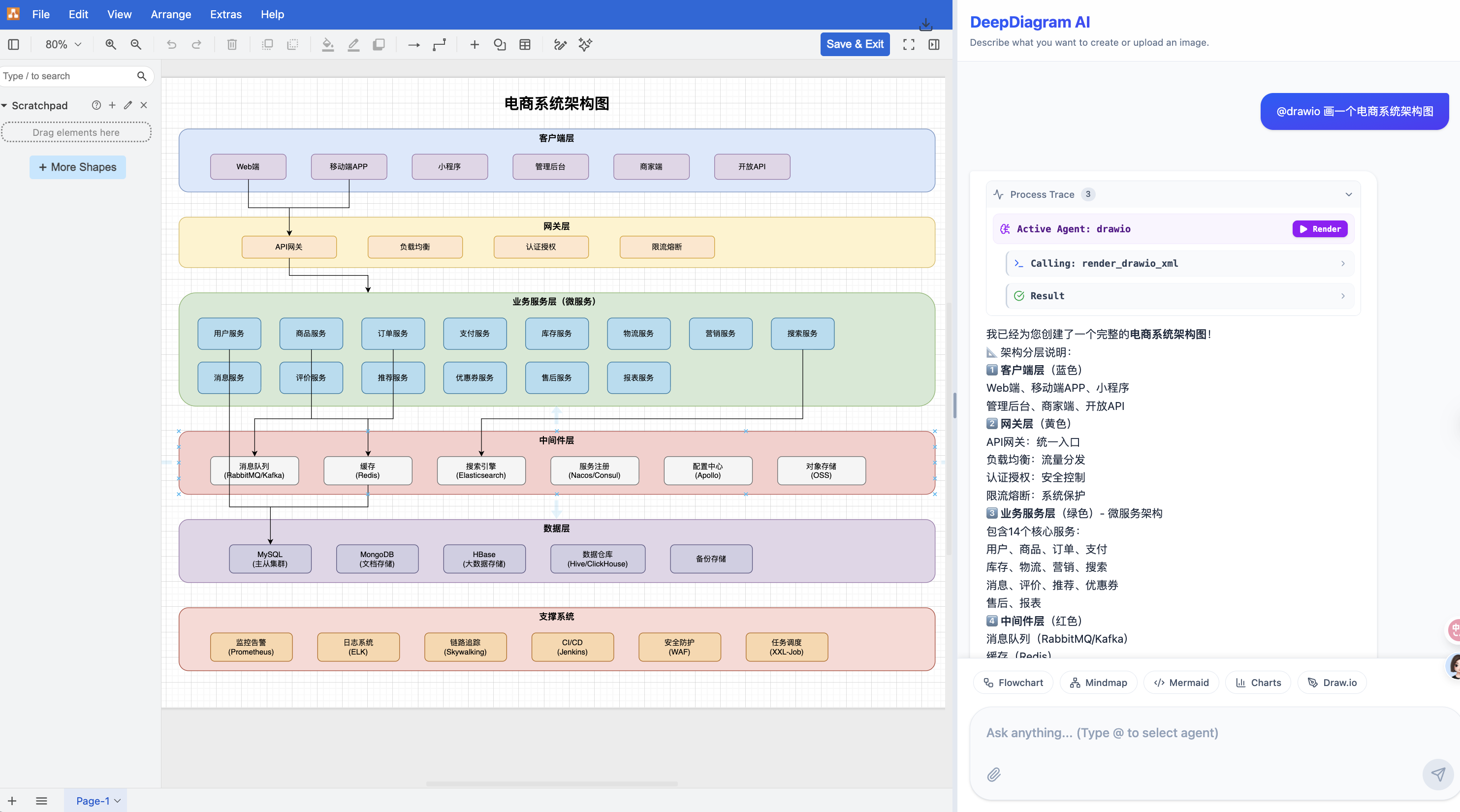

Draw.io Agent Demo

🧜 Mermaid Agent

Powered by: Mermaid.js 11.12 + react-zoom-pan-pinch
Capabilities: Generates text-driven diagrams including Sequence, Gantt, Timeline, State, Class, and ER diagrams
Use Cases: Technical documentation, software design, project planning
Workflow: Native interactive canvas with adaptive scaling, zoom/pan controls, and high-resolution SVG/PNG export

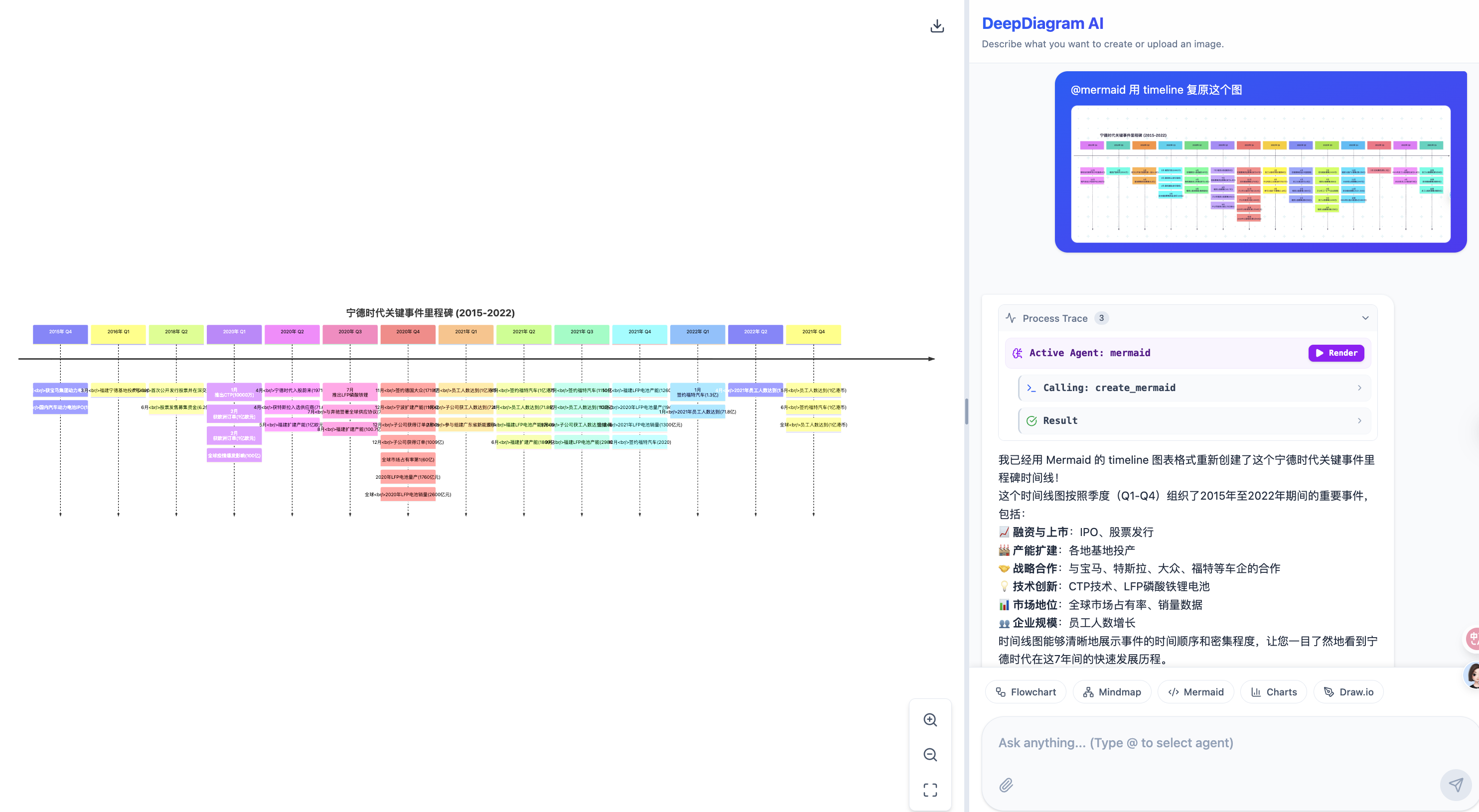

Mermaid Agent Demo

🎨 Infographic Agent

Powered by: AntV Infographic
Capabilities: Creates professional digital infographics, data posters, and visual summaries using declarative DSL
Use Cases: Data storytelling, visual summaries, creative presentations
Workflow: Two-phase intelligent pipeline:
1. Template Selection: LLM analyzes user intent and selects optimal template from 50+ options (chart, compare, hierarchy, list, relation, sequence)
2. Code Generation: Template-specific prompts with syntax rules generate precise DSL code

Infographic Agent Demo

✨ Advanced Features

🤖 Intelligent Router & XML Tag Output

Context-Aware Routing: Automatically routes requests to the optimal agent based on:
- Explicit mentions (e.g., @mindmap, @flow, @charts)
- LLM intent recognition with full agent capability descriptions
- Conversation context (prefers last active agent for continuity)
XML Tag Output: Each agent outputs <design_concept>...</design_concept><code>...</code> directly without tool calls, enabling cleaner parsing and multi-line content support
Multimodal Support: Upload whiteboards, sketches, or technical diagrams for digitization

💡 Design Concept Streaming

AI Reasoning Visibility: See the AI's design thinking and architectural decisions in real-time
Collapsible Panel: Yellow-themed card auto-expands during streaming, collapses when complete
Markdown Rendering: Design concepts support rich formatting with headers, lists, and emphasis

📜 Persistent History & Message Branching

Session Management: Maintain multiple chat sessions with automatic state restoration (including diagrams and process traces)
Message Branching: Retry assistant responses to explore different visualization paths; navigate between versions via built-in pagination
Version Control: Git-like branching system with turn_index and parent_id tracking
Robust Storage: PostgreSQL-backed persistence ensures reliability for complex technical traces and multimodal content

📄 Intelligent Document Analysis

Deep Content Understanding: Automatically parses uploaded documents (PDF, DOCX, XLSX, PPTX, TXT, MD) with:
- Concurrent chunking for large files
- LLM extraction of temporal data, key entities, and relationships
- Structured information retrieval
Persistent Memory: Analysis results are database-persisted, allowing AI to retain context across sessions
Time-Aware: All agents are aware of the current date/time for accurate timeline generation and scheduling

🎯 Real-Time Streaming & Process Trace

Dual-Stream SSE: Design concept and code stream independently for optimal UX
Execution Trace Visualization:
- Agent selection tracking
- Design concept with AI reasoning
- Streaming code generation with syntax highlighting
- Contextual "Render" and "Retry" actions
Error Handling: Clear visual feedback for rendering failures with instant retry capability

🎨 Modern UI/UX Enhancements

Resizable Layout: Flexibly adjust canvas and chat panel widths using a draggable separator
Responsive Design: All tables and components adapt to container size without layout breaks
Visual Loading States: Clear feedback during history loading, document parsing, and content generation
Accessibility: Keyboard shortcuts, hover tooltips, and status indicators

🏗 System Architecture

DeepDiagram AI uses a React 19 + FastAPI architecture, orchestrated by LangGraph. Each specialized agent directly outputs structured content with XML-style <design_concept> and <code> tags, streamed to the frontend via SSE (Server-Sent Events) for real-time preview.

graph TD
    Input[User Request: Text/Images/Documents] --> Router[Intelligent Router]
    Router -- Intent Classification --> Graph[LangGraph Orchestrator]

    subgraph Agents [Specialized Agents - XML Tag Output]
        AgentMM[MindMap Agent<br/>Markdown/Markmap]
        AgentFlow[Flowchart Agent<br/>React Flow JSON]
        AgentChart[Data Chart Agent<br/>ECharts Config]
        AgentDraw[Draw.io Agent<br/>mxGraph XML]
        AgentMermaid[Mermaid Agent<br/>Mermaid Syntax]
        AgentInfo[Infographic Agent<br/>AntV DSL]
        AgentGeneral[General Agent<br/>Plain Text]
    end

    Graph -->|Route by Intent| Agents

    subgraph Output [Streaming XML Tag Output]
        Agents -->|LLM Generation| Tags["&lt;design_concept&gt;...&lt;/design_concept&gt;<br/>&lt;code&gt;...&lt;/code&gt;"]
        Tags -->|Parse & Stream| Parser[StreamingTagParser]
    end

    Parser -->|design_concept events| DC[Design Concept Stream]
    Parser -->|code events| Code[Code Stream]

    DC -->|SSE| Frontend[React 19 Frontend]
    Code -->|SSE| Frontend

    Frontend -->|Real-time Render| Canvas[Interactive Canvas]
    Frontend -->|Process Trace| Trace[Execution Trace UI]

    style Input fill:#f9f,stroke:#333
    style Router fill:#bbf,stroke:#333
    style Tags fill:#bfb,stroke:#333
    style Canvas fill:#fdf,stroke:#333
    style DC fill:#ffc,stroke:#333

Architecture Highlights

No Tool Calls: Agents directly output XML tags <design_concept>...</design_concept><code>...</code> without intermediate tool invocations
Streaming Tag Parser: Real-time parsing of XML-style tags with state machine for robust multi-line content handling
Dual-Stream Output: design_concept (AI reasoning) and code (diagram content) stream independently
Design Concept UI: Yellow collapsible panel shows AI's design thinking before rendering

Key Components

Backend (Python)

dispatcher.py: Intent-based routing with explicit @agent tags and LLM fallback
graph.py: LangGraph state machine with Router → Agent → END flow
routes.py: SSE endpoint with StreamingTagParser for real-time XML tag parsing
file_service.py: Concurrent document parsing and LLM extraction
chat.py: Session and message CRUD with branching support
SQLModel ORM with async PostgreSQL driver

Frontend (React)

ChatPanel.tsx: Message history, SSE handling, execution trace rendering
CanvasPanel.tsx: Dynamic agent component loading and rendering
ExecutionTrace.tsx: Visual process trace with DesignConceptItem component
chatStore.ts: Zustand state management for messages, sessions, and versions
Agent-specific renderers: MindmapAgent, FlowAgent, MermaidAgent, etc.

🛠 Tech Stack

Frontend

Framework: React 19 (concurrent rendering), Vite, TypeScript
Styling: TailwindCSS 4.1.17
State Management: Zustand 5.0.9
Visualization:
- React Flow 11.11.4 (flowcharts)
- Mind-elixir 5.3.8 (mind maps)
- Mermaid 11.12.2 (technical diagrams)
- ECharts 6.0.0 (data charts)
- AntV Infographic 0.2.6 (infographics)
UI Components: Lucide React (icons), react-resizable-panels, react-zoom-pan-pinch
Markdown: React Markdown + remark-gfm

Backend

Framework: Python 3.13, FastAPI (async), Uvicorn (ASGI)
AI Orchestration: LangGraph 1.0.4, LangChain 1.1.3, langchain-openai
Database: PostgreSQL 16, SQLModel 0.0.27 (ORM), asyncpg (driver)
Document Processing: PyMuPDF 1.25.3 (PDF), python-docx, python-pptx, pandas + openpyxl
Package Manager: uv (ultra-fast Python package manager)

DevOps

Containerization: Docker, Docker Compose (multi-container orchestration)
Web Server: Nginx (reverse proxy, static file serving)
CI/CD: GitHub Actions (automated Docker image builds)

🏁 Getting Started

Prerequisites

Python: 3.10+ (3.13 recommended)
Node.js: v20+
Docker & Docker Compose: Recommended for production
API Keys: OpenAI-compatible API (OpenAI, DeepSeek, or custom providers)

Option 1: Development Setup

1. Backend Setup

cd backend
uv sync                # Install dependencies via uv
bash start_backend.sh  # Runs DB migrations + starts FastAPI server

Backend runs on http://localhost:8000

2. Frontend Setup

cd frontend
npm install
npm run dev

Frontend runs on http://localhost:5173

Option 2: Docker Deployment (Recommended)

1. Configuration

Create a .env file in the project root:

# LLM Configuration
OPENAI_API_KEY=sk-your-openai-key
OPENAI_BASE_URL=https://api.openai.com/v1
MODEL_ID=claude-sonnet-3.7

# Alternative: DeepSeek
DEEPSEEK_API_KEY=sk-your-deepseek-key
DEEPSEEK_BASE_URL=https://api.deepseek.com

# Database (auto-configured in Docker Compose)
DATABASE_URL=postgresql+asyncpg://postgres:postgres@db:5432/deepdiagram

# Optional: Thinking verbosity (concise/normal/verbose)
THINKING_VERBOSITY=normal

2. Launch

docker-compose up -d

Services:

Frontend: http://localhost (Nginx on port 80)
Backend API: http://localhost/api (proxied by Nginx)
Database: PostgreSQL on port 5432 (internal)

3. Verify Deployment

docker-compose ps               # Check running services
docker-compose logs -f backend  # View backend logs

Option 3: Custom LLM Provider

DeepDiagram supports any OpenAI-compatible API endpoint. Configure via .env:

OPENAI_BASE_URL=https://your-custom-endpoint.com/v1
OPENAI_API_KEY=your-api-key
MODEL_ID=your-model-name

Or configure interactively in the UI:

Click the Settings icon in the top-right corner
Add a new model configuration with Name, Base URL, Model ID, and API Key
Select your custom model from the dropdown

📖 Usage Guide

Basic Workflow

Natural Language Input: Type requests like "Create a mind map for AI history" or "@flow design a user authentication process"
Multimodal Upload: Attach images (whiteboards, sketches) or documents (PDF, DOCX) for context
Interactive Canvas: Resize panels, zoom/pan diagrams, edit content
Export: Download diagrams as PNG or SVG via the canvas toolbar
Refine: Ask AI to modify results (e.g., "Add a timeline branch for Industry 4.0")

Advanced Features

Retry with Branching: Click the retry icon to generate alternative versions
Version Navigation: Use left/right arrows to switch between message versions
Session Management: Create new chats or load previous sessions from the History dropdown
Process Trace: Expand "Process Trace" to view agent selection and tool call details

🗺 Roadmap

🤝 Contributing

Contributions are welcome! Please follow these guidelines:

Fork the repository
Create a feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

Development Tips

Use uv for Python dependency management (faster than pip)
Follow the existing code style (Black for Python, Prettier for TypeScript)
Add tests for new features
Update documentation as needed

⭐ Star History

📄 License

This project is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0). See the LICENSE file for details.

Key points:

✅ Free to use, modify, and distribute
✅ Must disclose source code for derivative works
✅ Must use the same AGPL-3.0 license for derivatives
⚠️ Network use counts as distribution (must share source)
