UnifoLM-WMA-0: A World-Model-Action (WMA) Framework under UnifoLM Family

Project Page | Models | Dataset

🦾 Real-Robot Demonstrations

Note: the top-right window shows the world model’s pretion of future action videos.

🔥 News

• Sep 22, 2025: 🚀 We released the deployment code for assisting experiments with Unitree robots.
• Sep 15, 2025: 🚀 We released the training and inference code along with the model weights of UnifoLM-WMA-0.

📑 Opensource Plan

• Training
• Inference
• Checkpoints
• Deployment

⚙️ Installation

conda create -n unifolm-wma python==3.10.18
conda activate unifolm-wma

conda install pinocchio=3.2.0 -c conda-forge -y
conda install ffmpeg=7.1.1 -c conda-forge

git clone --recurse-submodules https://github.com/unitreerobotics/unifolm-world-model-action.git

# If you already downloaded the repo:
cd unifolm-world-model-action
git submodule update --init --recursive

pip install -e .

cd external/dlimp
pip install -e .

🧰 Model Checkpoints

🛢️ Dataset

In our experiments, we consider the following five opensource dataset:

Extra available dataset

This dataset is collected using the Unitree G1 robot with a 7-DOF dexterous arm, covering a variety of table-top manipulation tasks in both single-arm and dual-arm settings. It is suitable for training video generation models, world models, and other downstream applications. Each episode lasts approximately 30 seconds. Available image resolutions: 256×256 and 128×128.

To train on your own dataset, first to have the data following the Huggingface LeRobot V2.1 dataset format. Assume the dataset’s source directory structure is as follows:

source_dir/
    ├── dataset1_name
    ├── dataset2_name
    ├── dataset3_name
    └── ...

Then, convert a dataset to the required format using the command below:

cd prepare_data
python prepare_training_data.py \
    --source_dir /path/to/your/source_dir \
    --target_dir /path/to/save/the/converted/data \
    --dataset_name "dataset1_name" \
    --robot_name "a tag of the robot in the dataset" # e.g, Unitree Z1 Robot Arm or Unitree G1 Robot with Gripper.

The resulting data structure (Note: model training only supports input from the main-view camera. If the dataset includes multiple views, remove the corresponding values from the data_dir column in the CSV file.

target_dir/
    ├── videos
    │     ├──dataset1_name
    │     │   ├──camera_view_dir
    │     │       ├── 0.mp4
    │     │       ├── 1.mp4
    │     │       └── ...
    │     └── ...
    ├── transitions
    │    ├── dataset1_name
    │        ├── meta_data
    │        ├── 0.h5
    │        ├── 1.h5
    │        └── ...
    └──  dataset1_name.csv

🚴‍♂️ Training

A. Our training strategy is outlined as follows:

• Step 1: Fine-tune a video generation model as the world model using the Open-X dataset;
• Step 2: Post-train $\text{UnifoLM-WMA}$ in decision-making mode on the downstream task dataset;

• Step 3: Post-train $\text{UnifoLM-WMA}$ in simulation mode on the downstream task dataset.


Note: If you only require $\text{UnifoLM-WMA}$ to operate in a single mode, you may skip the corresponding step.

B. To conduct training on a single or multiple datasets, please follow the steps below:

• Step 1: The maximum DoF is assumed to be 16, if you have more than 16 DoF, update agent_state_dim and agent_action_dim in configs/train/config.yaml ;
• Step 2: Set up the input shapes for each modality in configs/train/meta.json;
• Step 3: Configure the training parameters in configs/train/config.yaml. For the pretrained_checkpoint, we recommend using the checkpoint " $\text{UnifoLM-WMA-0}_{Base}$ " fine-tuned on the Open-X dataset;

  model:
      pretrained_checkpoint: /path/to/pretrained/checkpoint;
      ...
      decision_making_only: True # Train the world model only in decision-making mode. If False, jointly train it in both decision-making and simulation modes.
      ...
  data:
      ...
      train:
          ...
          data_dir: /path/to/training/dataset/directory
      dataset_and_weights: # list the name of each dataset below and make sure the summation of weights is 1.0
          dataset1_name: 0.2
          dataset2_name: 0.2
          dataset3_name: 0.2
          dataset4_name: 0.2
          dataset5_name: 0.2

• Step 4: Setup experiment_name, save_root variables in scripts/train.sh;
• Step 5: Launch the training with the command:

bash scripts/train.sh

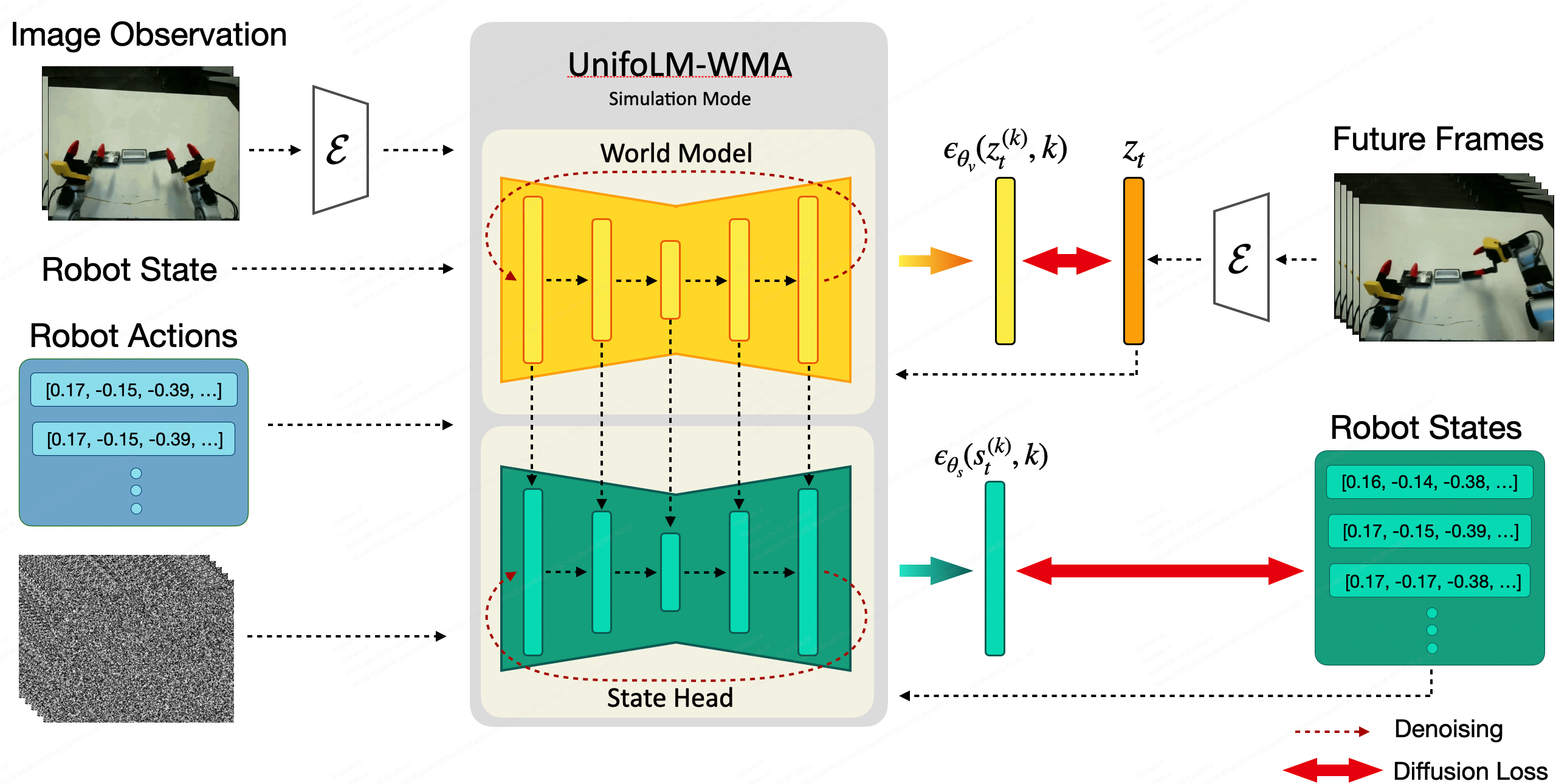

🌏 Inference under Interactive Simulation Mode

To run the world model in an interactive simulation mode, follow these steps:

• Step 1: (Skip this step if you just would like to test using the examples we provided) Prepare your own prompt following the format used in the examples/world_model_interaction_prompts:

  world_model_interaction_prompts/
    ├── images
    │    ├── dataset1_name
    │    │       ├── 0.png     # Image prompt
    │    │       └── ...
    │    └── ...
    ├── transitions
    │    ├── dataset1_name
    │    │       ├── meta_data # Used for normalization
    │    │       ├── 0.h       # Robot state and action data; in interaction mode,
    │    │       │             # only used to retrieve the robot state corresponding
    │    │       │             # to the image prompt
    │    │       └── ...
    │    └── ...
    ├──  dataset1_name.csv     # File for loading image prompts, text instruction and corresponding robot states
    └── ...


• Step 2: Specify the correct paths for pretrained_checkpoint(e.g, $\text{UnifoLM-WMA-0}_{Dual}$) and data_dir in configs/inference/world_model_interaction.yaml
• Step 3: Set the paths for checkpoint, res_dir and prompt_dir in scripts/run_world_model_interaction.sh, and specify all the dataset's name in datasets=(...). Then, launch the inference with the command:

  bash scripts/run_world_model_interaction.sh

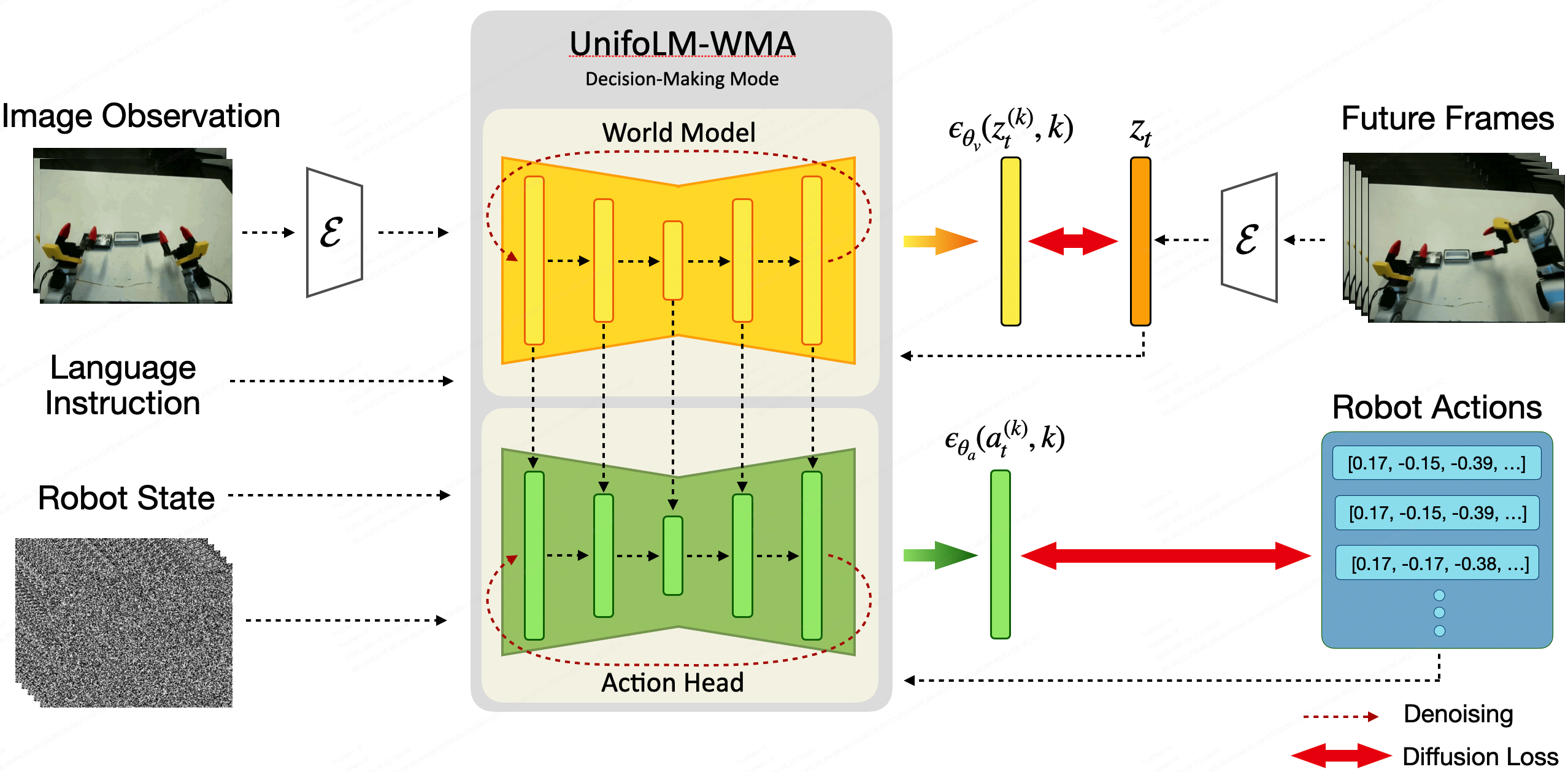

🧠 Inference and Deployment under Decision-Making Mode

In this setup, inference is performed on a server, while a robot client gathers observations from the real-robot and sends them to the server to query actions. The process unfolds through the following steps:

Server Setup:

• Step-1: Specify ckpt, res_dir, datasets in scripts/run_real_eval_server.sh;
• Step-2: Configure data_dir and dataset_and_weights in config/inference/world_model_decision_making.yaml;
• Step-3: Launch the server:

conda activate unifolm-wma
cd unifolm-world-model-action
bash scripts/run_real_eval_server.sh

Client Setup

• Step-1: Follow the instructions in unitree_deploy/README.md to create the unitree_deploy conda environment, install the required packages, launch the controllers or services on the real-robot.
• Step-2: Open a new terminal and establish a tunnel connection from the client to the server:

ssh user_name@remote_server_IP -CNg -L 8000:127.0.0.1:8000

• Step-3: Run the unitree_deploy/robot_client.py script to start inference:

cd unitree_deploy
python scripts/robot_client.py --robot_type "g1_dex1" --action_horizon 16 --exe_steps 16 --observation_horizon 2 --language_instruction "pack black camera into box" --output_dir ./results --control_freq 15

📝 Codebase Architecture

Here's a high-level overview of the project's code structure and core components:

unitree-world-model/
    ├── assets                      # Media assets such as GIFs, images, and demo videos
    ├── configs                     # Configuration files for training and inference
    │    ├── inference
    │    └──  train
    ├── examples                    # Example inputs and prompts for running inference
    ├── external                    # External packages
    ├── prepare_data                # Scripts for dataset preprocessing and format conversion
    ├── scripts                     # Main scripts for training, evaluation, and deployment
    ├── src
    │    ├──unitree_worldmodel      # Core Python package for the Unitree world model
    │    │      ├── data            # Dataset loading, transformations, and dataloaders
    │    │      ├── models          # Model architectures and backbone definitions
    │    │      ├── modules         # Custom model modules and components
    │    │      └──  utils          # Utility functions and common helpers
    └── unitree_deploy              # Deployment code

🙏 Acknowledgement

Lots of code are inherited from DynamiCrafter, Diffusion Policy, ACT and HPT.

📝 Citation

@misc{unifolm-wma-0,
  author       = {Unitree},
  title        = {UnifoLM-WMA-0: A World-Model-Action (WMA) Framework under UnifoLM Family},
  year         = {2025},
}
