Friend Maker

中文说明 | English

中文说明

朋友制作器 是一个面向 macOS / Windows + ESP32-WROOM-32 / ESP-32S 的自动绘制工具。
它会将图片转换成像素网格和手柄动作脚本，再通过 ESP32 模拟 Switch Pro Controller 输入，在游戏画板中自动完成绘制。当前版本主要面向《朋友收集：梦想生活》与 Tomodachi Life 的绘图场景。

这个项目已经历过多轮迭代，当前 README 以最新的 桌面端三页工作流 为准：

• 刷入固件
• 手柄测试
• 脚本生成 / 恢复绘制

当前最推荐的体验路线仍然是 单色绘制 和 官方色绘制。
自定义多色 已经开放测试入口，但稳定性仍弱于前两条主线，当前仍属于 测试阶段 / 实验能力。

关键词：Friend Maker、朋友制作器、Tomodachi Life、朋友收集：梦想生活、Nintendo Switch auto draw、ESP32 Pro Controller emulator、pixel art drawing automation、Bluetooth Classic HID。

平台支持

• 支持桌面端一键安装启动：macOS
• 支持桌面端一键安装启动：Windows x64
• 暂不支持：Windows ARM64
• 暂未正式支持：Linux

当前版本已经提供：

• macOS / Windows x64 的桌面端安装包，安装后可直接启动
• macOS 的 Start Friend Maker.command 一键启动脚本，作为仓库版备用方式
• Windows 的 Install Friend Maker.cmd 一键安装脚本与手动启动流程，作为仓库版备用方式

参考文档：

• macOS / Windows 试用说明
• Windows 安装说明

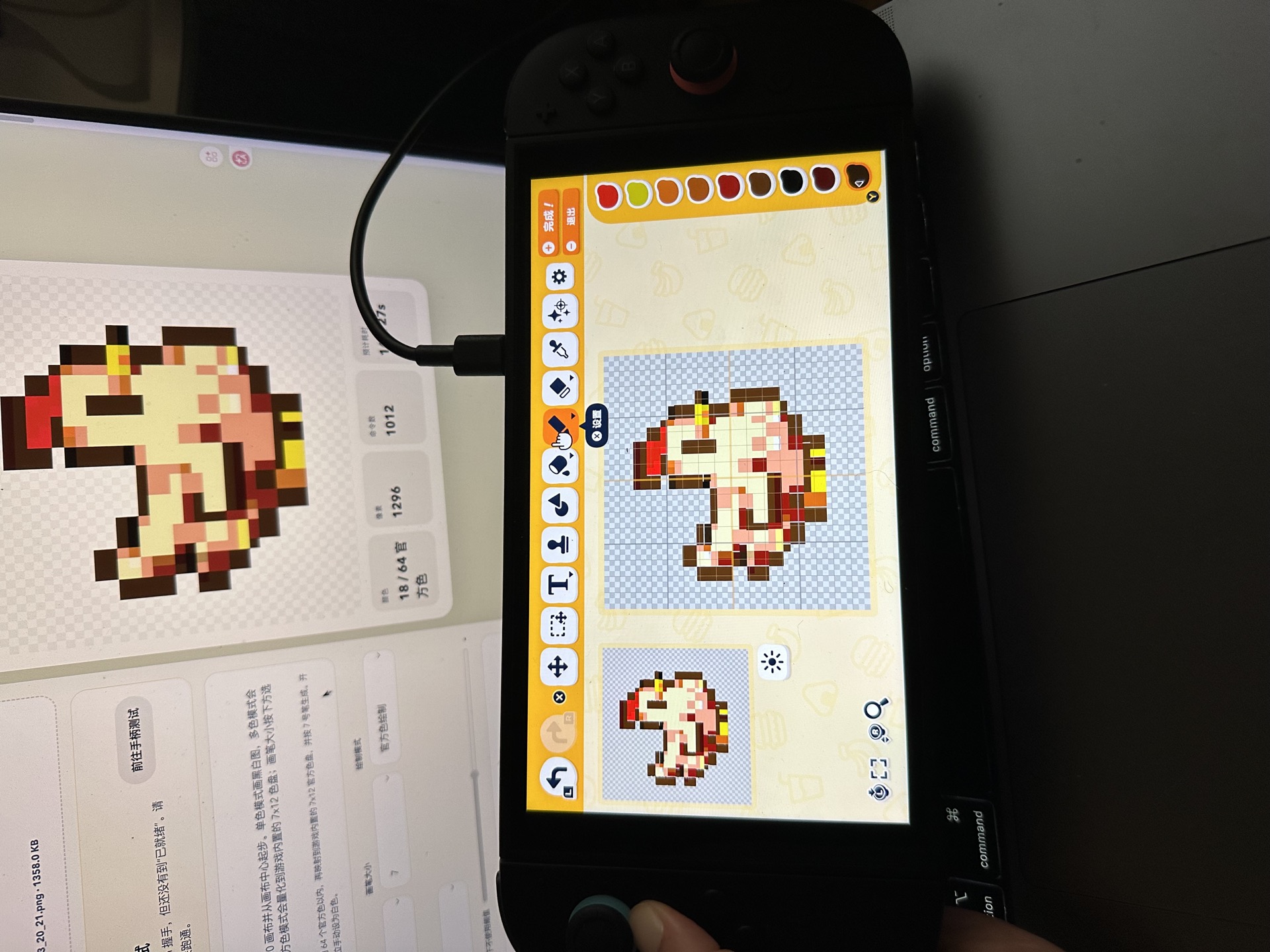

演示

• 查看演示视频

项目功能

• 导入 PNG / JPG / SVG 图片，并生成绘制预览
• 支持 1 / 3 / 7 / 13 / 19 / 27 六种画笔大小
• 支持 单色绘制、官方色绘制，以及 自定义多色（测试中）
• 支持 256x256 脚本坐标画布工作流
• 支持异形图纸模板裁切与模板预览
• 支持 自动扣背景，适合白底、浅灰底、棋盘格假透明图
• 通过带 SEQ <session> <seq> 去重帧的串口协议将绘制脚本逐条发送给 ESP32，并等待 ACK
• 在界面中完成脚本生成、固件刷写、手柄连接与按钮测试，以及暂停、继续和中断绘制
• 支持本地恢复任务：暂停、中断、异常或应用重启后，仍可从恢复点继续

整体架构

图片输入
  -> 像素化 / 量化 / 路径规划
  -> 指令脚本
  -> 串口 ACK 发送
  -> ESP32-WROOM-32
  -> Bluetooth Classic HID
  -> Nintendo Switch
  -> 游戏内画布绘制

当前主流程

当前最稳定、也是文档默认采用的使用顺序：

1. 刷入固件
2. 手柄测试
3. 脚本生成

对应的实际动作是：

1. 在 刷入固件 页更新推荐固件并确认串口正常
2. 在 手柄测试 页完成蓝牙连接、按钮和方向测试
3. 回到 脚本生成 页导入图片、检查预览并正式开始绘制

当前版本定位

• 当前主线已经从早期的“手工脚本 + 命令行试验”迭代到“桌面端闭环工作流”
• README 默认描述 桌面端安装包 / 桌面端页面 的最新行为
• 与绘图质量和成功率直接相关的能力，会优先以 输入稳定性 和 恢复能力 为准
• 自定义多色 虽然可见、可测试，但暂时不建议作为首次试用路线

绘制模式

单色绘制

• 深色像素会被绘制
• 浅色像素会保留为空白
• 适合黑白图、轮廓图与简单像素素材

官方色绘制

• 会量化到游戏内置的 7 x 12 官方色盘
• 当前支持 8 / 16 / 32 / 64 / 84 色量化档位
• 当前按游戏原始 9 个色盘槽位的默认颜色起步

自定义多色（测试中）

• 会先把图片自动量化成多种颜色，再按批次写入右侧 9 个自定义色槽
• 当前更适合颜色数量较少、结构较简单的图片
• 这是仍在继续打磨的实验路线，稳定性与容错性暂时弱于 单色绘制 和 官方色绘制
• 首次试用时，更推荐先用 单色绘制 或 官方色绘制 验证整体链路

运行要求

硬件

• Mac 或 Windows 电脑
• ESP32-WROOM-32 / ESP-32S 开发板 常见写法如 ESP32 DevKitC 或 NodeMCU-32S 兼容板通常也可以；建议选择带 USB 串口、可直接刷机的版本，并尽量避开 ESP32-C3 / ESP32-S3 / ESP32-C6 这类只有 BLE 或当前不属于本项目主线支持范围的型号
• Nintendo Switch
• 可传输数据的 USB 线

软件

• 如果你使用 桌面端安装包，不需要预先手动安装 Node.js、npm 或 PlatformIO，但首次准备 PlatformIO 需要联网
• 如果你使用 仓库版备用流程，建议准备 Node.js 20+、npm 10+、PlatformIO Core 6+

快速开始

桌面端一键安装启动（推荐）

当前推荐优先使用桌面端安装包：

• macOS：安装 .dmg 后直接启动 Friend Maker
• Windows x64：运行安装包 .exe 后直接启动 Friend Maker

首次使用请注意：

• 如果 刷入固件 页提示没有 PlatformIO，点击 准备 PlatformIO
• 这一步需要联网；如果应用提示缺少 Python，允许下载仅供 Friend Maker 使用的本地 Python 运行环境即可
• 初次刷入固件可能需要 5 分钟左右，请耐心等待
• 不要安装在中文目录下
• 如果你是 Windows 用户，且串口设备列表为空、检查不到 ESP32，在 PlatformIO 就绪后先尝试 安装 CP210x 驱动（优先），仍无效果再尝试 安装 CH340/CH341 驱动（备选）
• Windows ARM64 当前不在支持范围内；这类设备市场占有率约 1%，我们手头也没有设备可测，欢迎有能力的朋友提交 PR 补充支持

仓库版备用流程

路径说明：

• 将 /path/to/friendmaker 替换为你自己的本地项目目录
• 将 <your-serial-port> 替换为你自己的串口设备，例如 macOS 上的 /dev/cu.usbserial-0001 或 Windows 上的 COM3
• 如果 pio 已经在 shell 的 PATH 中，可以直接使用 pio ...
• 如果没有，请使用完整的 PlatformIO 路径
• macOS 路径：~/.platformio/penv/bin/pio
• Windows 路径：%USERPROFILE%\\.platformio\\penv\\Scripts\\pio.exe

macOS 仓库版一键启动（备用）

你现在可以通过下面两种方式启动应用：

• 双击 Start Friend Maker.command
• 或运行下面的命令：

cd /path/to/friendmaker
./Start\ Friend\ Maker.command

这个启动器会：

• 检测 Node.js、npm、Python 3 和 PlatformIO
• 在缺失时尝试自动安装所需软件
• 在需要时自动安装项目依赖
• 启动本地 Web UI
• 自动打开 http://127.0.0.1:4307

补充说明：

• 如果缺少 Homebrew，启动器会询问是否安装
• 第一次安装软件时，终端可能会请求输入系统密码
• 使用过程中请保持终端窗口开启

Windows 仓库版一键安装（备用）

你现在可以通过下面两种方式完成安装：

• 双击 Install Friend Maker.cmd
• 或在 CMD / PowerShell 中运行：

cd C:\path\to\friendmaker
Install Friend Maker.cmd

这个安装脚本会：

• 检测 Node.js、npm、Python 3 和 PlatformIO
• 在检测到 winget 时尝试自动安装缺失的软件
• 自动执行 npm install
• 自动执行 npm run check
• 如果安装失败，用中文提示当前问题

补充说明：

• 如果系统里没有 winget，请先安装或更新 App Installer
• 如果自动安装失败，可以直接参考 Windows 安装说明 走原本的手动安装流程
• 这个脚本负责安装，当前 Windows 仍然需要手动运行 npm run ui:dev 启动网页

1. 安装依赖

cd /path/to/friendmaker
npm install

2. 检查项目

npm run check

3. 刷入固件

cd /path/to/friendmaker/firmware/esp32
~/.platformio/penv/bin/pio run -e esp32dev_wireless -t upload

Windows 示例：

cd C:\path\to\friendmaker\firmware\esp32
$env:USERPROFILE\.platformio\penv\Scripts\pio.exe run -e esp32dev_wireless -t upload --upload-port COM3

如果刷固件时开发板一直进不去下载模式，可以尝试按住实体板上的 BOOT 键，再重新刷入。

4. 启动网页界面

cd /path/to/friendmaker
npm run ui:dev

打开：

http://127.0.0.1:4307

开始绘制前必须确认

这 3 条是试用时最容易漏掉的前提：

1. Switch 中的画笔大小要和网页当前选择一致
2. 开始绘制前，画笔和光标必须停在画布中心
3. 如果使用官方色绘制，保持游戏默认的 9 个色盘槽位颜色即可

补充约束：

• 当前绘图与恢复流程都只支持“重新进入绘图页后，从画布中心继续”这一个起点假设
• 不要把画布理解成可以稳定“撞到左上角再归零”的有边界平面；游戏主画布当前没有可依赖的左上角复位语义
• 如果文档里提到“归左上”或“左上角起点”，那只适用于色盘或颜色编辑页内部的导航建模，不适用于绘图画布光标恢复

自动扣背景

如果素材是下面这些类型：

• 白底 PNG
• 浅灰底 PNG
• 棋盘格“假透明”图片

可以在脚本生成页的预览模块中启用 自动扣背景。

补充说明：

• 真正带透明通道的 PNG 不需要开启
• 自动扣背景 是边缘背景识别，不是 AI 抠图
• 对角色、物品与像素素材通常已经够用

网页模块

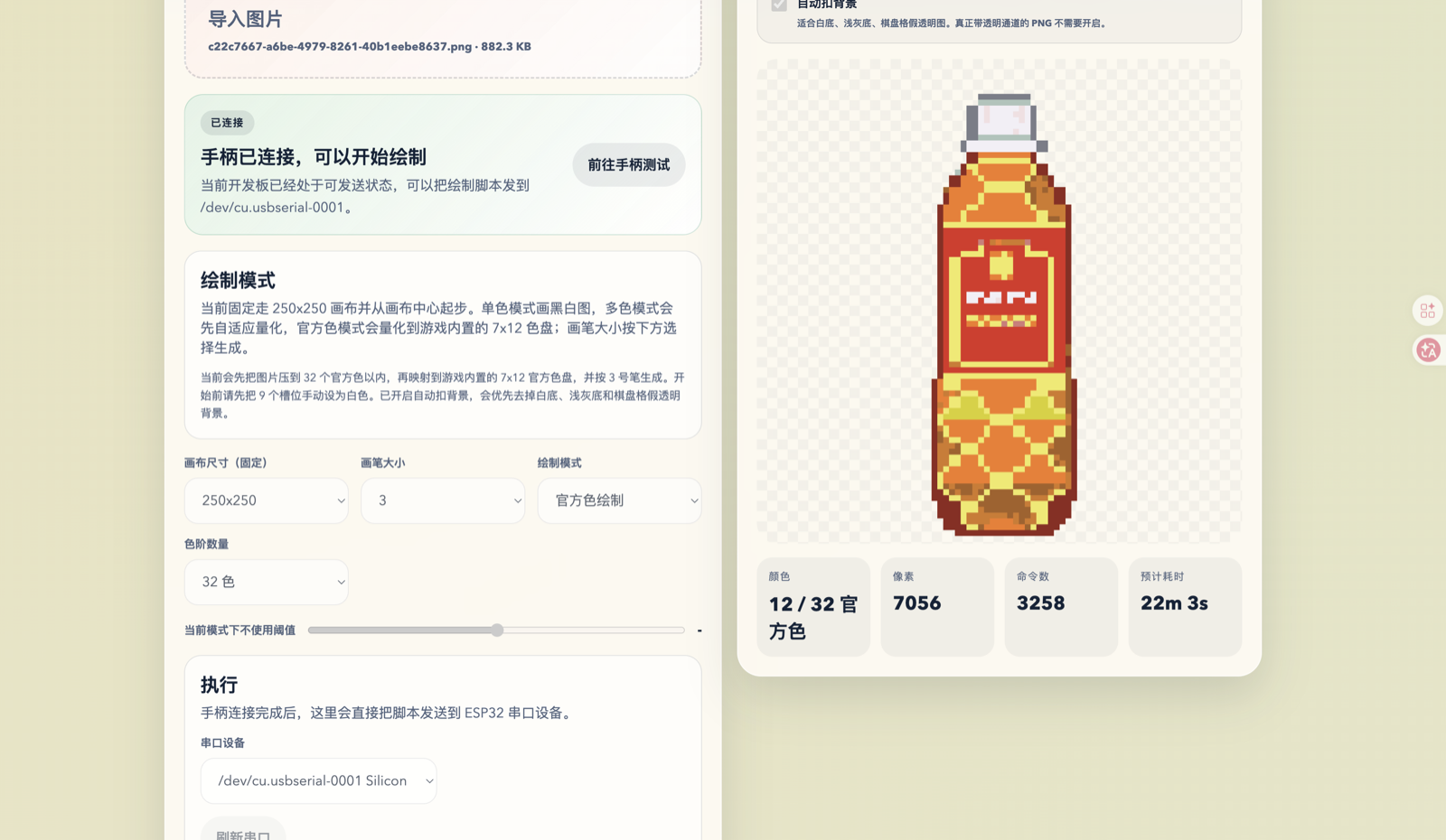

脚本生成

• 导入图片
• 选择画笔大小
• 选择单色、官方色或自定义多色（测试中）
• 选择模板、缩放和位置，并检查预览
• 生成预览与命令
• 查看官方色盘预览、统计信息与执行状态
• 一键开始绘制
• 暂停、中断或异常后会在本地保留恢复任务；如果应用在暂停期间被关闭，下次启动后该任务也会自动转成可恢复状态
• 可以从恢复点继续，也可以手动放弃已经不需要的恢复记录
• 如果“正在中断绘制”长时间卡住，页面会出现应急按钮，用于强制清除当前卡住状态

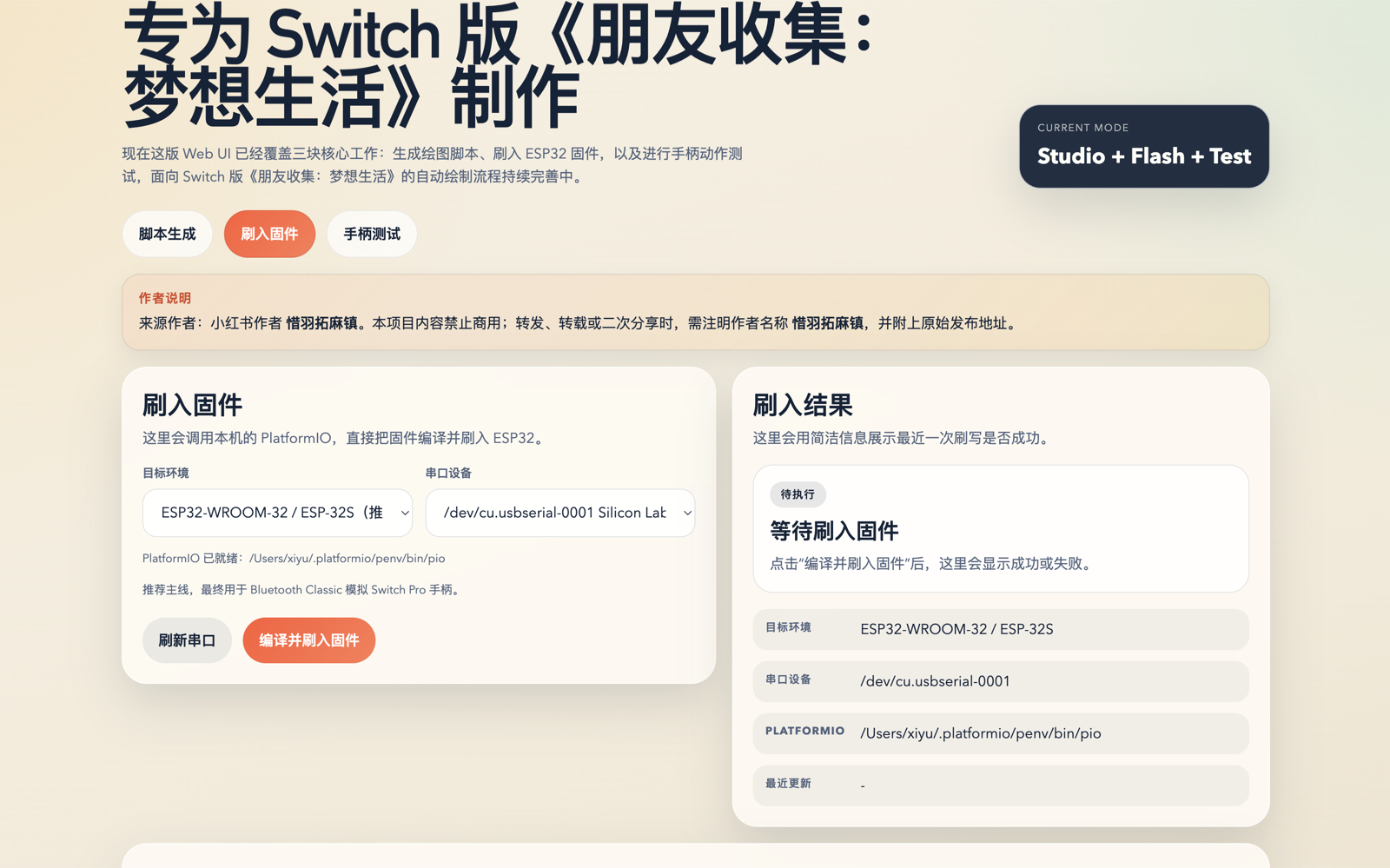

刷入固件

• 枚举串口
• 当前主线支持的固件目标环境为：ESP32-WROOM-32 / ESP-32S 与 NodeMCU-32S
• 调用本机 PlatformIO
• 编译并刷入 ESP32 固件
• Windows 下可在页面内直接安装 CP210x 或 CH340/CH341 串口驱动
• 返回刷写结果与滚动日志

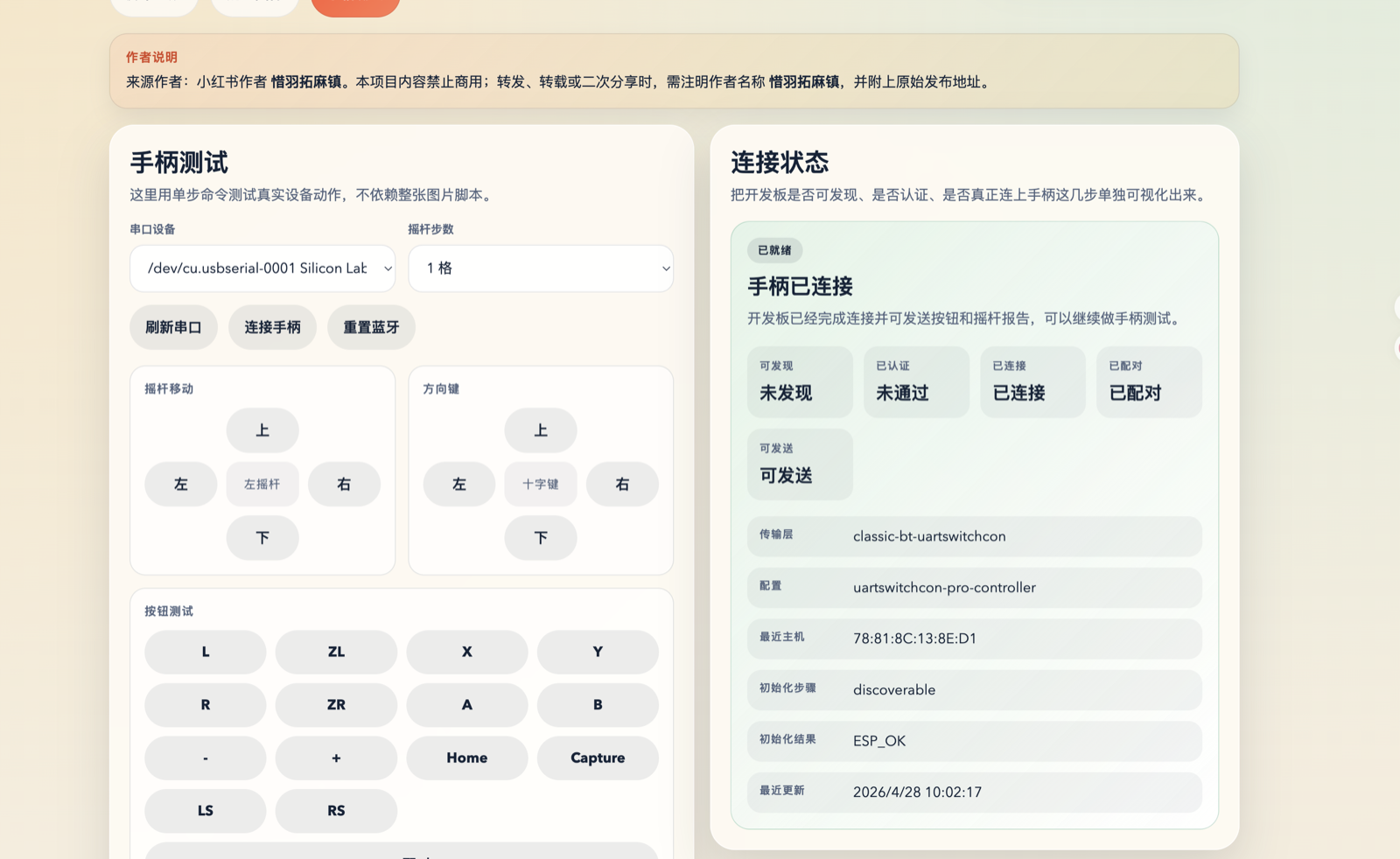

手柄测试

• 连接手柄
• 重置手柄蓝牙
• 如果连接手柄连不上，先点击 重置手柄蓝牙，再点击 连接手柄
• 如果还是连不上，可以按一下实体板上的 EN 键重启开发板，再重新点击 连接手柄
• 如果还是连不上，回到 刷入固件 页重新刷一次固件后再试
• 单步测试按钮、方向键与摇杆，并可选择摇杆步数
• 支持 Home、Capture、LS、RS 和 L+R 配对 等单独动作测试
• 查看 HID 连接状态
• 支持手动断开串口
• 发送自定义测试命令并查看滚动日志

仓库结构

apps/desktop/src
  app/               绘制计划生成
  cli/               CLI 参数解析
  config/            默认配置与官方色表
  image/             图片缩放、量化、预览与扣背景
  path/              路径生成与轻量优化
  protocol/          指令对象与序列化
  serial/            串口枚举与 ACK 发送
  web/               本地网页工作台

firmware/esp32
  src/               ESP32 固件与蓝牙控制器实现

profiles/            示例 profile
examples/            演示图片与示例命令
docs/                开发与试用文档
docs/media/          README 展示图片与视频

文档

• docs/user-trial-guide.md：给试用者的启动与使用说明
• docs/development-manual.md：当前开发手册与已知规则
• docs/setup-mac.md
• docs/arrival-checklist.md
• docs/wiring.md

当前限制

• Switch 连接和绘图流程仍然依赖固定场景假设
• 自定义多色 仍在测试阶段，当前整体稳定性明显弱于 单色绘制 和 官方色绘制
• 自定义颜色自动调色和长流程容错还不稳定，当前更推荐 官方色绘制
• 第一优先级仍然是输入稳定性，而不是绘制速度

当前状态

当前仓库已经具备可试用的闭环：

网页刷入固件
  -> 测试手柄连接
  -> 导入图片
  -> 像素化 / 量化 / 扣背景
  -> 生成命令脚本
  -> 串口 ACK 发送
  -> ESP32 协议解析
  -> Bluetooth Classic Switch 控制器输出
  -> 游戏内绘制

许可证

本仓库采用 GPL-3.0-or-later 开源协议。
完整协议内容请查看 LICENSE。

当前 firmware/esp32 中的 Switch 蓝牙兼容实现，引入并改写自 UARTSwitchCon 的思路与代码路径，因此当前仓库采用 GPL 以保持许可证一致。

作者与来源

• 来源作者：小红书作者 惜羽拓麻镇
• 如果你公开转发、转载或分享这个项目，建议注明作者名称 惜羽拓麻镇
• 建议同时附上原始发布地址

English

Friend Maker is an automatic drawing toolkit for macOS / Windows + ESP32-WROOM-32 / ESP-32S.
It converts images into pixel grids and controller action scripts, then uses an ESP32 to emulate Switch Pro Controller input and draw automatically on the in-game canvas. The current version is primarily tailored for drawing workflows in Tomodachi Life and 《朋友收集：梦想生活》.

The project has already gone through many iterations, and this README now follows the latest desktop three-page workflow:

• Firmware Flash
• Controller Test
• Script Studio / Recovery

The recommended paths are still mono drawing and official palette drawing.
Custom multicolor is now exposed for testing, but it is still less stable than those two main paths and should be treated as an experimental / testing-stage feature.

Keywords: Friend Maker, Tomodachi Life, Nintendo Switch auto draw, ESP32 Pro Controller emulator, pixel art drawing automation, Bluetooth Classic HID.

Compatibility

• Desktop app one-click install and launch supported: macOS
• Desktop app one-click install and launch supported: Windows x64
• Not supported yet: Windows ARM64
• Not officially supported yet: Linux

The current version already provides:

• desktop installers for macOS / Windows x64, with direct app launch after install
• the Start Friend Maker.command launcher for the repo-based macOS fallback flow
• the Install Friend Maker.cmd installer and manual startup flow for the repo-based Windows fallback path

Reference documents:

• macOS / Windows Trial Guide
• Windows Setup Guide

Showcase

• Watch demo video

What It Does

• Import PNG / JPG / SVG images and generate drawing previews
• Support six brush sizes: 1 / 3 / 7 / 13 / 19 / 27
• Support mono drawing, official palette drawing, and custom multicolor (testing)
• Use a 256x256 script-coordinate canvas workflow
• Support irregular drawing templates and template-aware preview cropping
• Support automatic background removal for white, light gray, and fake transparency checkerboard backgrounds
• Send drawing commands to the ESP32 over a SEQ <session> <seq> deduplicating serial protocol and wait for ACK
• Handle script generation, firmware flashing, controller connection and button testing, plus pause, resume, and stop actions from the shared app interface
• Preserve local recovery jobs so paused, interrupted, failed, or restarted sessions can still be resumed from a recovery point

Architecture

Image input
  -> Pixelization / Quantization / Path planning
  -> Command script
  -> Serial ACK sender
  -> ESP32-WROOM-32
  -> Bluetooth Classic HID
  -> Nintendo Switch
  -> In-game canvas drawing

Current Workflow

The most stable workflow, and the one used by the documentation by default, is:

1. Flash firmware
2. Test controller
3. Generate script

The practical actions are:

1. Update the recommended firmware in the Firmware Flash page and confirm the serial port works
2. Complete Bluetooth connection, button tests, and direction tests in the Controller Test page
3. Return to the Script Studio page, import an image, review the preview, and start drawing

Current Product Focus

• The main path has evolved from early command-line experiments into a desktop-app-centered closed loop
• This README describes the latest packaged desktop app and page flow by default
• Features that affect success rate are prioritized around input stability and recovery
• Custom multicolor is available for testing, but it is still not the recommended first-run path

Drawing Modes

Mono Drawing

• Dark pixels are drawn
• Light pixels are left blank
• Suitable for black-and-white images, outline art, and simple pixel assets

Official Palette Drawing

• Quantizes colors into the built-in 7 x 12 official palette
• Currently supports 8 / 16 / 32 / 64 / 84 quantization levels
• Starts from the game's default colors for the 9 palette slots

Custom Multicolor (Testing)

• Automatically quantizes the image into multiple colors, then writes them into the right-side 9 custom palette slots in batches
• Currently works best on images with fewer colors and simpler structure
• This path is still experimental, and its stability and tolerance are weaker than mono drawing and official palette drawing
• For a first successful run, mono drawing or official palette drawing is still the safer recommendation

Requirements

Hardware

• A Mac or Windows computer
• An ESP32-WROOM-32 / ESP-32S development board Common labels such as ESP32 DevKitC or NodeMCU-32S compatible boards are usually fine; prefer versions with a built-in USB serial interface that can be flashed directly, and avoid ESP32-C3 / ESP32-S3 / ESP32-C6 variants because they are BLE-only or not part of the current main supported path for this project
• Nintendo Switch
• A USB cable that supports data transfer

Software

• If you use the packaged desktop app, you do not need to preinstall Node.js, npm, or PlatformIO, but the first PlatformIO setup requires network access
• If you use the repo-based fallback flow, prepare Node.js 20+, npm 10+, and PlatformIO Core 6+

Quick Start

Desktop app one-click install and launch (recommended)

The preferred path is now the packaged desktop app:

• macOS: install the .dmg, then launch Friend Maker
• Windows x64: run the installer .exe, then launch Friend Maker

First-use notes:

• if the Firmware Flash page says PlatformIO is missing, click Prepare PlatformIO
• this step needs network access; if the app says Python is missing, allow it to download an app-local Python runtime for Friend Maker
• the first firmware flash may take around 5 minutes, so please wait patiently
• do not install under a non-English path
• if you are on Windows and no serial port appears for the ESP32, prepare PlatformIO first, then try Install CP210x Driver before Install CH340/CH341 Driver
• Windows ARM64 is not in the current support scope; its market share is only about 1%, we do not have hardware to validate it, and PRs are welcome if you want to add support

Repo-based fallback flow

Path notes:

• Replace /path/to/friendmaker with your own local project directory
• Replace <your-serial-port> with your own serial device, such as /dev/cu.usbserial-0001 on macOS or COM3 on Windows
• If pio is already in your shell PATH, you can use pio ... directly
• Otherwise, use the full PlatformIO path
• macOS path: ~/.platformio/penv/bin/pio
• Windows path: %USERPROFILE%\\.platformio\\penv\\Scripts\\pio.exe

Repo-based one-click launch on macOS

You can now start the app in either of these ways:

• double-click Start Friend Maker.command
• or run:

cd /path/to/friendmaker
./Start\ Friend\ Maker.command

This launcher will:

• detect Node.js, npm, Python 3, and PlatformIO
• try to install missing software automatically
• install project dependencies automatically when needed
• start the local web UI
• open http://127.0.0.1:4307 automatically

Notes:

• if Homebrew is missing, the launcher will ask whether it should be installed
• the Terminal may ask for your password during first-time software installation
• keep the Terminal window open while using the app

Repo-based one-click install on Windows

You can now install the project in either of these ways:

• double-click Install Friend Maker.cmd
• or run in CMD / PowerShell:

cd C:\path\to\friendmaker
Install Friend Maker.cmd

This installer will:

• detect Node.js, npm, Python 3, and PlatformIO
• try to install missing software automatically when winget is available
• run npm install
• run npm run check
• show Chinese error messages if installation fails

Notes:

• if winget is missing, install or update App Installer first
• if the automatic install fails, switch to the original manual flow in Windows Setup Guide
• this script handles installation only; on Windows you still start the web UI manually with npm run ui:dev

1. Install dependencies

cd /path/to/friendmaker
npm install

2. Type check

npm run check

3. Flash firmware

cd /path/to/friendmaker/firmware/esp32
~/.platformio/penv/bin/pio run -e esp32dev_wireless -t upload

Windows example:

cd C:\path\to\friendmaker\firmware\esp32
$env:USERPROFILE\.platformio\penv\Scripts\pio.exe run -e esp32dev_wireless -t upload --upload-port COM3

4. Start the web UI

cd /path/to/friendmaker
npm run ui:dev

Open:

http://127.0.0.1:4307

Before Drawing

These are the three most commonly missed prerequisites:

1. The brush size in Switch must match the current selection in the web UI
2. Before drawing starts, the brush and cursor must be positioned at the canvas center
3. If you use official palette drawing, keep the game's default colors for the 9 palette slots

Additional constraint:

• The current drawing and recovery flow supports only one restart assumption: after re-entering the drawing page, resume from the canvas center
• Do not model the drawing canvas as a bounded plane that can reliably reset by pushing into the top-left corner; the in-game canvas does not currently expose a dependable top-left reset semantic
• If any document mentions "top-left reset" or a "top-left starting point", that applies only to palette or color-editor navigation models, not to drawing-cursor recovery on the canvas

Automatic Background Removal

If your source image is one of the following:

• a white-background PNG
• a light-gray-background PNG
• a checkerboard fake-transparency image

you can enable automatic background removal in the preview module of the script generation page.

Notes:

• Real transparent PNG files do not need this option
• Automatic background removal uses edge-background detection, not AI cutout
• It is usually sufficient for characters, props, and pixel-art materials

Web UI Pages

Script Studio

• Import images
• Choose brush size
• Choose mono drawing, official palette drawing, or custom multicolor (testing)
• Choose template, scale, and position, then review the preview
• Generate previews and command scripts
• Review official palette previews, statistics, and execution status
• Start drawing with one click
• Preserve local recovery jobs after pause, stop, or failure; if the app closes while paused, the next launch will still surface that job as recoverable
• Resume from a saved recovery point, or discard recovery records you no longer need
• If the stop flow stays stuck for too long, the page exposes an emergency action to forcibly clear the stuck execution state

Firmware Flash

• Enumerate serial ports
• The current main supported firmware targets are ESP32-WROOM-32 / ESP-32S and NodeMCU-32S
• Call the local PlatformIO installation
• Build and flash the ESP32 firmware
• Install CP210x or CH340/CH341 serial drivers directly from the page on Windows
• Return flash results and scrollable logs

Controller Test

• Connect the controller
• Reset Controller Bluetooth
• If the controller does not connect, click Reset Controller Bluetooth first and then Connect the controller
• If it still does not connect, reflash the firmware and try again
• Test buttons, D-pad, and stick movement step by step, with selectable stick step sizes
• Test standalone actions such as Home, Capture, LS, RS, and L+R pairing
• Inspect HID connection status
• Disconnect the serial session manually when needed
• Send custom test commands and review scrollable logs

Repository Layout

apps/desktop/src
  app/               Draw plan generation
  cli/               CLI argument parsing
  config/            Default config and official palette tables
  image/             Image resizing, quantization, preview, and background removal
  path/              Path generation and lightweight optimization
  protocol/          Command objects and serialization
  serial/            Serial enumeration and ACK sending
  web/               Local web workspace

firmware/esp32
  src/               ESP32 firmware and Bluetooth controller implementation

profiles/            Example profiles
examples/            Demo images and sample commands
docs/                Development and trial documents
docs/media/          README images and videos

Documentation

• docs/user-trial-guide.md: startup and usage guide for trial users
• docs/development-manual.md: current development manual and known rules
• docs/setup-mac.md
• docs/arrival-checklist.md
• docs/wiring.md

Current Limitations

• The Switch connection and drawing workflow still depend on fixed scenario assumptions
• Custom multicolor is still in the testing stage, and its overall stability is clearly weaker than mono drawing and official palette drawing
• Automatic custom-color tuning and long-run fault tolerance are not stable yet, so official palette drawing is still the recommended color path
• The highest priority is still input stability, not drawing speed

Development Status

The repository already provides a usable end-to-end loop:

Flash firmware in the web UI
  -> test controller connection
  -> import image
  -> pixelization / quantization / background removal
  -> generate command script
  -> serial ACK sender
  -> ESP32 protocol parser
  -> Bluetooth Classic Switch controller output
  -> in-game drawing

License

This repository is licensed under GPL-3.0-or-later.
See LICENSE for the full license text.

The Switch Bluetooth compatibility implementation under firmware/esp32 borrows from and adapts ideas and code paths from UARTSwitchCon, so this repository follows GPL to keep the license compatible.

Attribution

• Original author source: Xiaohongshu creator 惜羽拓麻镇
• If you publicly repost, mirror, or share this project, it is recommended that you credit 惜羽拓麻镇
• It is also recommended that you include the original publication link
